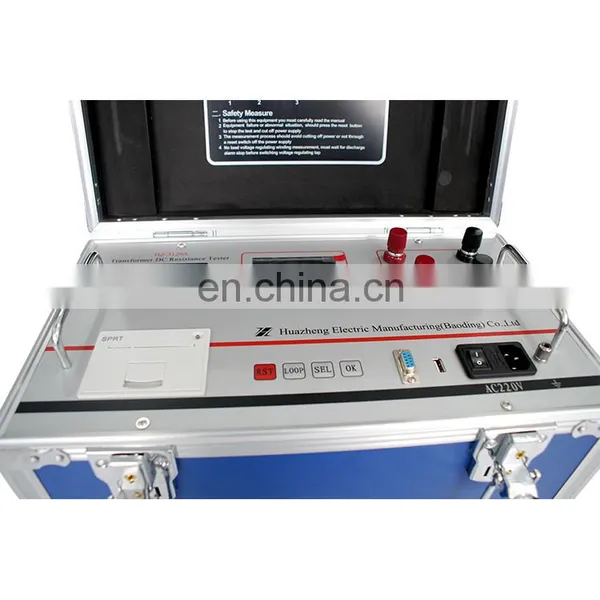

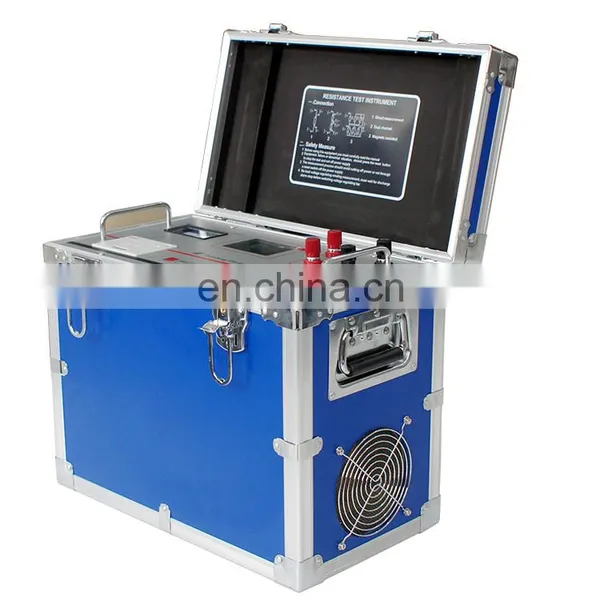

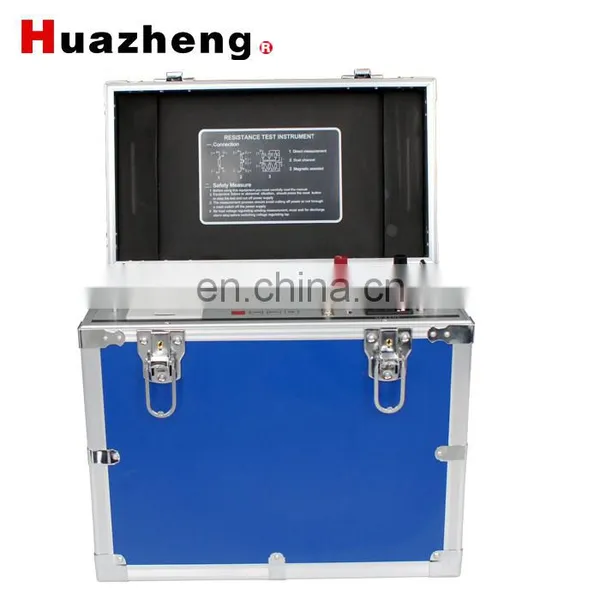

Transformer Winding Resistance meter/10A/20A DC Resistance tester
I. DC Resistance tester Introduction:
The DC resistance is the transformer’s semi-finished product, finished product test, installation, commissioning test, and electric part prevention test necessary test project,the transformer coil can effectively find the device welding, connecting parts loose, missing unit, disconnection, and other manufacturing default and other hidden danger occurred after operation.
The device is controlled by the microcontroller, with a high degree of automation, automatic discharge functions. It is a test instrument of high precision, simple, direct way to achieve fast transformer measurement.

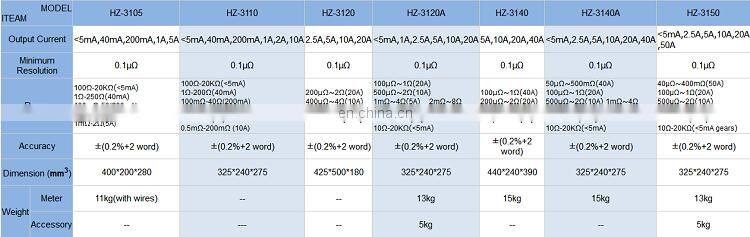

IV. DC Resistance tester Technical Data
1. Output current:<5mA ,2.5A,5A ,10A,20A,40A,
2. Resolution:0.1μΩ
3. Range: 50μΩ~500mΩ (40A)
100μΩ~1Ω (20A)
500μΩ~2Ω (10A)
1mΩ~4Ω (5A)
2mΩ~8Ω (2.5A)
10Ω~20KΩ (<5mA)
4. Accuracy:±(0.2%+2 Readings)
5. Operating temperature:0~40℃
6. Ambient humidity:≤90%RH,(non condensed)

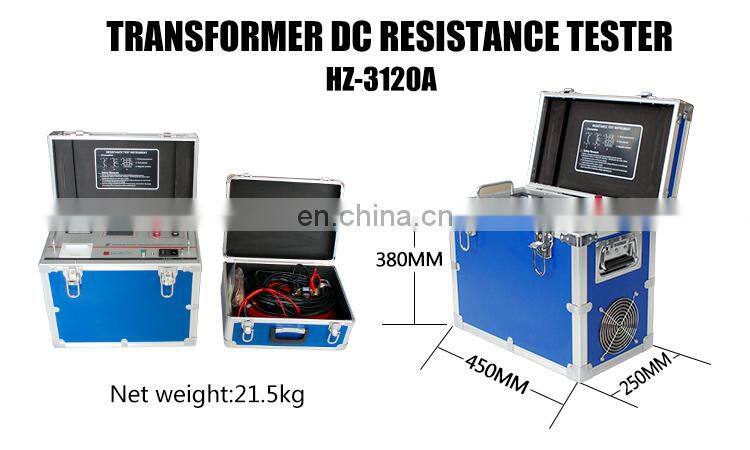

7. size:400mm*225mm*350mm.

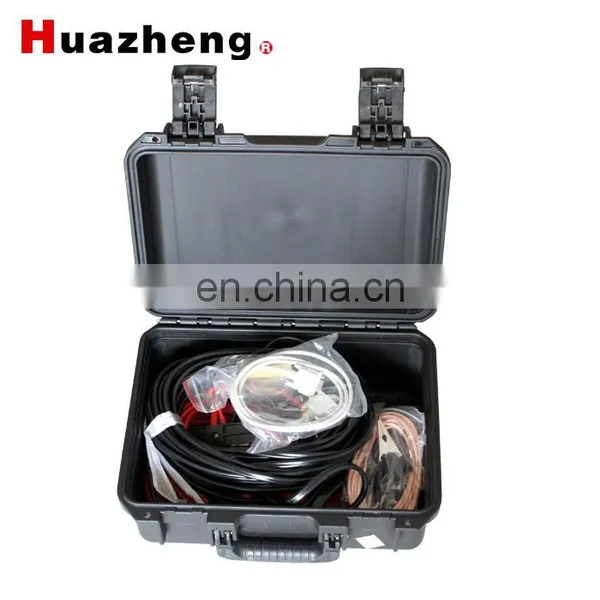

8. Instrument weight :13kg, wiring case:5kg.
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd Advantages:
1. Founded in 2008
2.Exports to 60 Countries Worldwide
3. the supplier of the State Grid in China.
4.Technical Capacity:We have 20 engineers. 2 engineers are doctor degree,who have 25 years working experience.
5.Quality : Products through the CE, ISO, IEC certification, quality and reliable, factory price.
6.After-sales service:Warranty period is one year,life long mantaince.
7. Main products: Insulating Oil Tester, Transformer Oil Tester,Cable Fault Locator, Power Quality Analyzer, Hipot tester,sf6 gas analyzer and so on.
