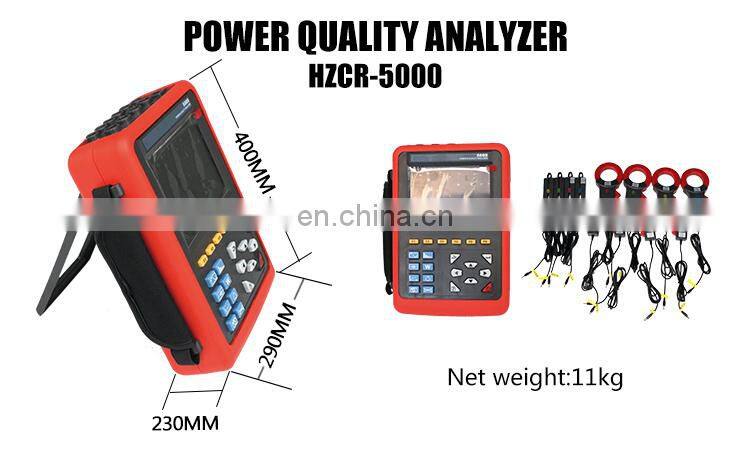

Portable Three Phase Power Energy Quality Analyzer

Power supply

Rechargeable lithium-ion battery pack 9.6V, backup charger.

Power consumption

Current consumption of normal test 490 mA, continuous working for 8 hours.

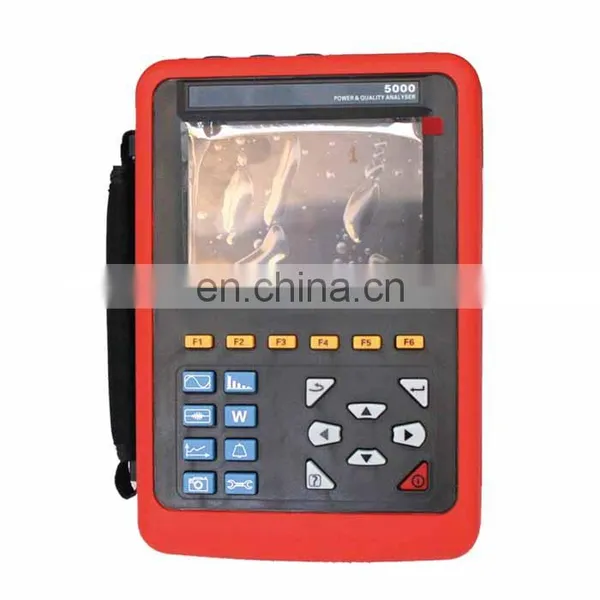

Display mode

LCD color screen, 640dots×480dots, 5.6 inches, display domain: 116mm×88mm.

Size of clamp

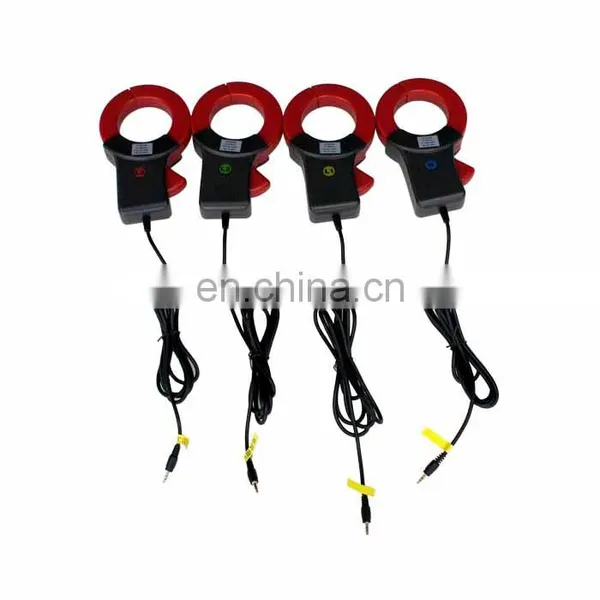

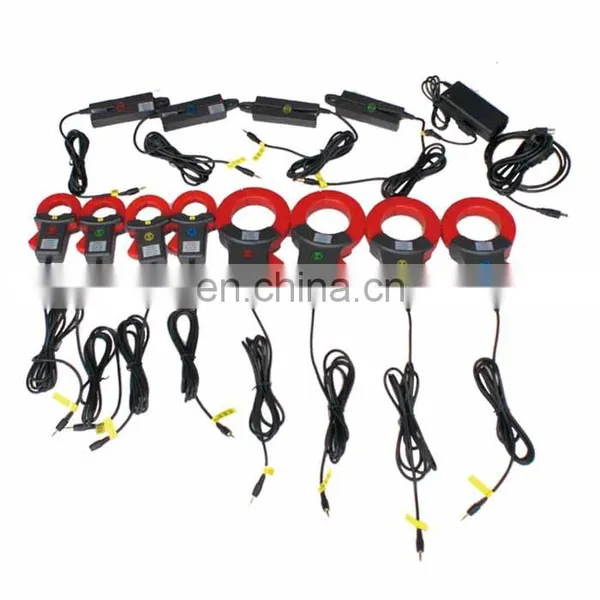

008B small sharp current clamp: 7.5mm×13mm;

040B circle current clamp: 35mm×40mm;

068B circle current clamp: 68mm×68mm.

300F Flexible Coil Current Sensor (with Integrator) : diameter 300mm

Instrument dimensions

L×W×H: 240mm×170mm×68 mm.

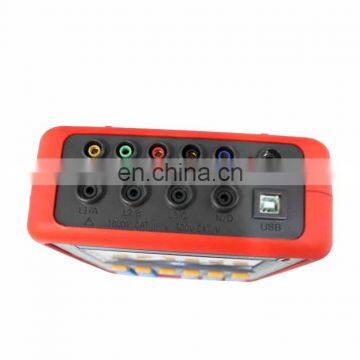

Number of channels

4U/4I.

Phase-to phase voltage

1.0V~2000V.

Phase-to-neutral voltage

1.0V~1000V.

Current

008B current clamp: 10mA~10.0A;

040B current clamp: 0.10A~100A;

068B current clamp: 1.0A~1000A;

300F Flexible Coil Current Sensor (with Integrator) : 10A ~ 3000A

Frequency

40Hz~70Hz.

Parameters of electricity

W, VA, Var, PF, DPF, cosφ, tanφ.

Energy parameters

Wh, Varh, Vah.

Harmonic

Order 0~50.

Total harmonic distortion

Order 0~50, each phase.

Expert mode

Yes.

Number of Transient records

150 sets.

Voltage flicker

Yes.

Starting current mode

Yes, 100 seconds.

3 phases unbalance

Yes.

Record

300 days(simultaneous recording 20 parameters, record one point every 5 seconds).

Min/Max recorded value

Measurement of maximum and minimum values over a period of time.

Alarm

40 different types of parameter selections, 12,800 sets alarm logs.

Peak

Yes.

Phasor diagram display

Automatically.

Capacity of snapshots

60.

Menu language

English/Chinese.

Communication

USB.

Automatic switching off

When an alarm campaign is initiated or a search for transients, an inrush current capture, or a trend recording is pending or in progress, the device is not automatic switching off.

In other test mode, 15 minutes without keystrokes, automatic shutdown after prompt 1 minute.

Backlight function

Yes, suitable for use at night and dark place.

Weight

Host: 1.6kg (with battery).

008B small sharp current clamp: 170g×4;

040B circle current clamp: 190g×4;

068B circle current clamp: 510g×4;

300F Flexible Coil Current Sensor (with Integrator) : 330g×4;

Test wires and power adapter: 900g;

Total weight: about 9.2kg (with packaging).

Length of voltage test wire

3m.

Length of current sensor wire

2m.

Working temperature and humidity

-10°C~40°C; below 80%Rh.

Storage temperature and humidity

-10°C~60°C; below 70%Rh.

Input impedance

Input impedance of test voltage: 1MΩ.

Withstand voltage

Withstand 3700V/50Hz sinusoidal AC voltage for 1 minute between instrument wiring and shell.

Insulation

Between instrument wiring and shell ≥10MΩ.

Structure

Double insulation, with insulation vibration-proof sheath.

Safely rules

IEC 61010 1000V Cat III / 600V CAT IV, IEC61010-031, IEC61326, Pollution degree: 2.
