Spiral IQF Freezer

Description

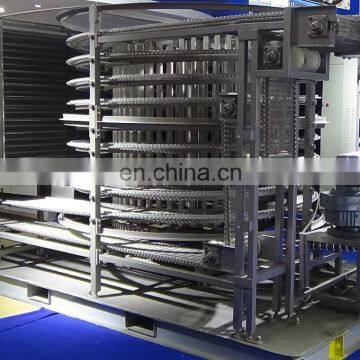

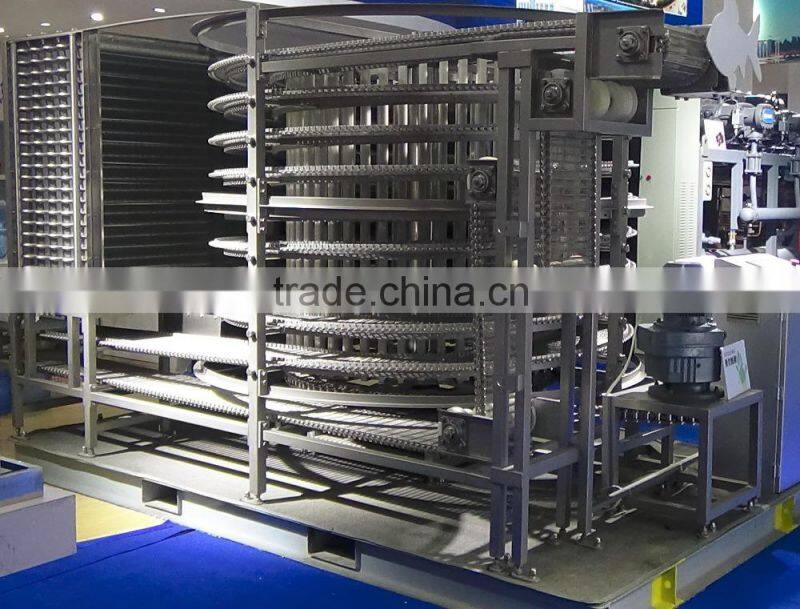

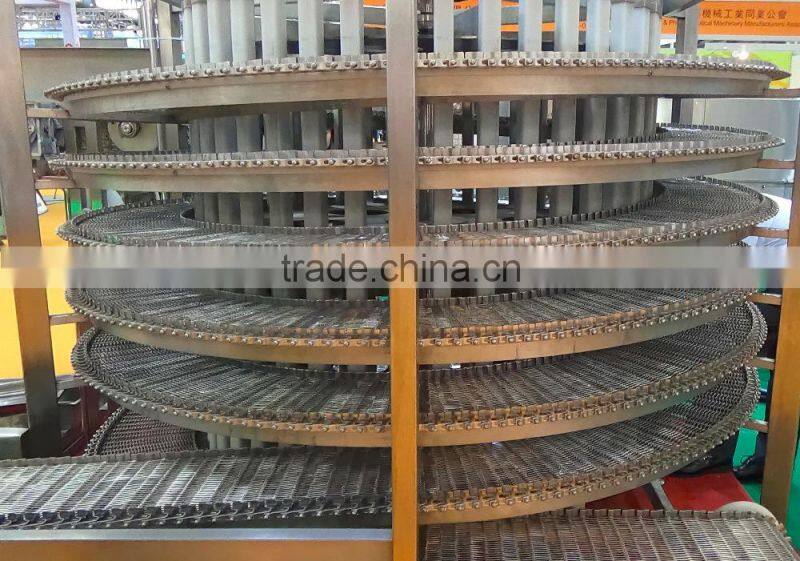

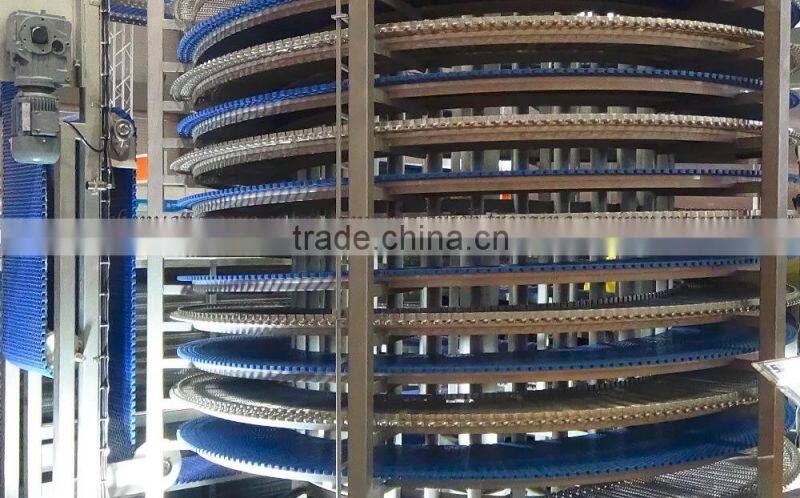

       Self-stacking spiral freezer is a kind of spiral freeze without traditional rail support, the top belt supports by the bottom belt, its own support structure for compact building dimensions. Self-contained freezing zone, with benchmark hygiene (100% air flow), high efficiency and lower consumptions advantages, reliable and less maintenance realized comes from high quality of Aerospace technology; continuous producing creates by comprehensive cleaning system-lower consumption of water, energy and chemicals. So it is more suitable for meat balls, fish balls, sausage, Spring rolls, chicken wings, legs, etc.

Model&Specification

Our equipment can process the following products:

Features

Thoroughly sanitary freezing environment

1 According to HACCP sanitary safety concept, the inner is designed for simple cleaning and maintenance, fully conforming to food sanitary requirements.

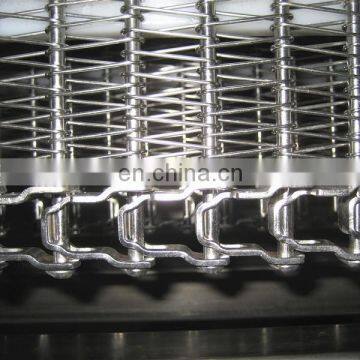

2 The internal body and mesh belt are made of stainless steel SUS304.

3 With hydrophilic film, the fins of heat exchanger can be avoided from harmful powder of alumina.

4 All roller wheel, turn hub,and guideway are made of sanitary ultra-high molecular weight polyethylene.

Advantages

1 Arc air deflector, uniform inner temperature and efficient working capacity;

2 Fined type evaporator, exchanging heat efficiently and cooling down quickly keep reliable and stable;

3 Advanced design in guarantee stable running;

4 Strict manufacture installation to ensure accuracy and reliability;

5 Multiple alarm system to eliminate incipient fault.

Detail components of equipment

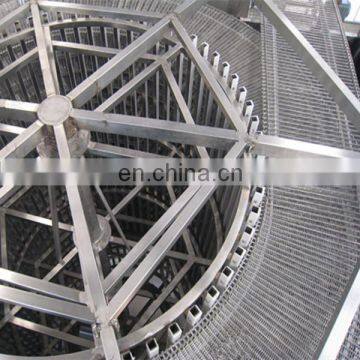

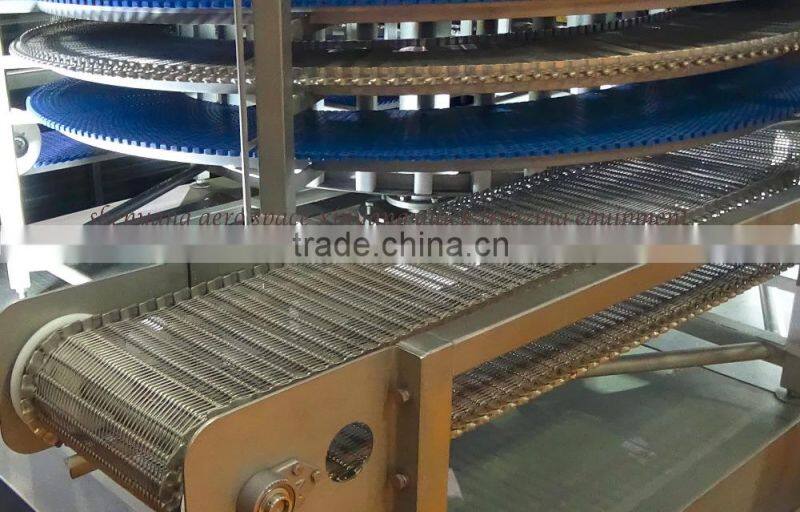

1. Products conveyor parts, inclued ahead section, conveyor belt. Plenum chamber, air guider, belt drive system.

2. Enclosure, assembly by polyurethane sandwich board and insulated access doors.

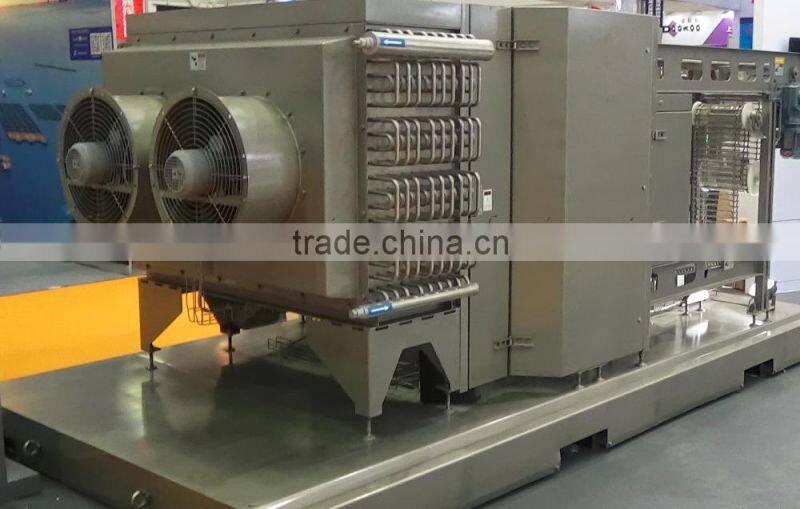

3. Cold air circulating part, include evaporator and frame, water defrosting system, fans.

4. Control part include electric control cabinet with switches, display apparatus, indication lamps, frequency converter, etc.

5. Internal maintenance walks way.

6. Protect parts include protect screens.

1.We guarantee that the commodity hereof is made of the best materials and new brand with top

workmanship, and in accordance with quality specification stipulated in product Contract and
Appendix.

2. Guarantee period shall be within 12 months from the date of acceptance. During this period, if
there are quality problems, we will provide solution by verbal or written communication. If the
problem is unsolved, our engineers will repair for you on site as soon as possible. The
maintenance is free when there are non-operation errors; otherwise it is for the buyer’s account.

Training plan: We will provide training for those who operate and maintain the freeze-drying
machines. Trained by supplier of the equipment in the process of installation and debugging,
people can operate and solve the basic mechnical problems independently. In addition, the persons
who work in general engineering such as refrigeration, boiler, and transformer substation shall be
undertaken by skilled workers.
