Description

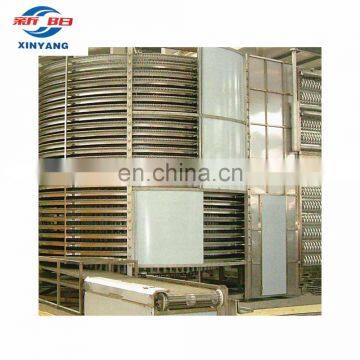

Self-stacking sprial freezer is a kind of spiral freeze without tranditional rail support, the top belt supports by the bottom belt, its own support structure for compact building dimensions. Self-contained freezing zone, with benchmark hygiene (100% air flow), high efficency and lower consumptions advantages, reliable and less maintenace realized comes from high quality of Aerospace technology; continous producing creates by comprehensive cleaning system-lower consumption of water, energy and chemicals. So it is more suitable for meat balls, fish balls, sausage, Spring rolls, chicken wings, legs, etc.
Model&Specification
| Model | LXDS-500 | LXDS-1000 | LXDS-1500 |
| Output capacity | 500kg/h | 1000kg/h | 1500kg/h |
| Feeding temp. | 15℃ | 15℃ | 15℃ |
| Circulating cold air temp.(while no loading) | -35±2℃ | -35±2℃ | -35±2℃ |
| Dimension of quick-freezing chamber | 6.6×2.7×2.55m | 9.1×7.2×3.6m | 12.6×7.4×3.6m |
| Overall length of quick-freezing equipment | 9.4 | 16.8 | 22 |
| Refrigerate capacity required | 105kw | 180kw | 300kw |
| Power | 15 | 28 | 48 |
Product Pictures
Our equipment can process the following products:
Features
Thoroughly sanitary freezing environment
1 According to HACCP sanitary safety concept, the inner is designed for simple cleaning and maintenance, fully conforming to food sanitary requirements.

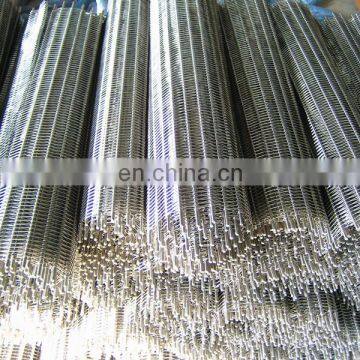

2 The internal body and mesh belt are made of stainless steel SUS304.
3 With hydrophilic film, the fins of heat exchanger can be avoided from harmful powder of alumina.
4 All roller wheel, turn hub,and guideway are made of sanitary ultra-high molecular weight polyethylene.
Advantages
1 Arc air deflector, uniform inner temperature and efficient working capacity;
2 Fined type evaporator, exchanging heat efficiently and cooling down quickly keep reliable and stable;
3 Advanced design in guarantee stable running;
4 Strict manufacture installation to ensure accuracy and reliability;
5 Multiple alarm system to eliminate incipient fault.
Detail components of equipment
1. Products conveyor parts, inclued ahead section, conveyor belt. Plenum chamber, air guider, belt drive system.

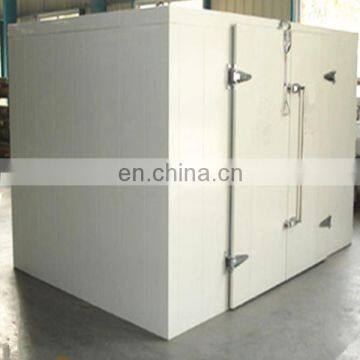

2. Enclosure, assembly by polyurethane sandwich board and insulated access doors.
3. Cold air circulating part, include evaporator and frame, water defrosting system, fans.
4. Control part include electric control cabinet with switches, display apparatus, indication lamps, frequency converter, etc.
5. Internal maintenance walks way.
6. Protect parts include protect screens.
Shenyang Aerospace Xinyang Quick freezing Equip. Manuf. Co., Ltd was founded in 1985, a leading enterprise incorporating the research, manufacturing, sales and services of food processing equipment and freezing technology. Freeze drying equipment and IQF freezing equipment are widely used around the world.
Xinyang Company closely cooperated with Atlas Company in Denmark, Harbin Commerce University, Zhejiang University and Northeastern University, etc., supporting over 1,000 food engineering projects both domestically and abroad.
It is one of the earliest, largest and most influential professional manufacturers in China. Our products have been exported to USA, Canada, Germany, Netherland, Singapore, Thailand, Malaysia, Indonesia, Korea, Myanmar, Chile, Nigeria etc. The company pays highly attention to food quick freezing, vacuum freeze drying, vacuum frying solution and pre-processing system.
Now Xinyang Company aims to give all of our customers best products and services.
