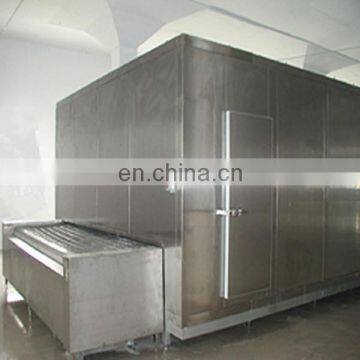

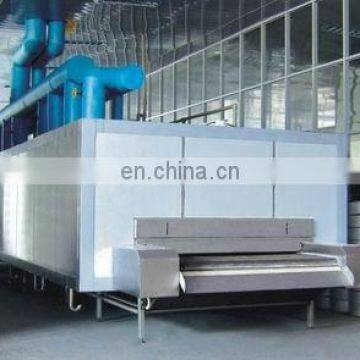

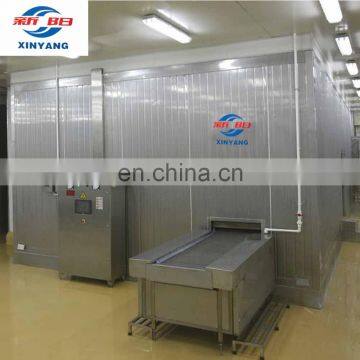

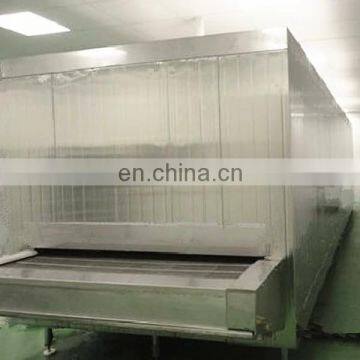

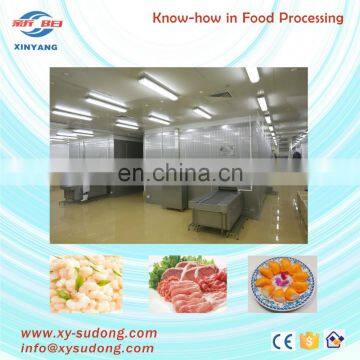

Help CenterTS500 High Quality Mesh Belt Quick Freezer for Product Freezing Processing Machine
Related Products
-
High Capacity Chicken, Shrimp Quick Freezing MachineUS$ 178,000 - 250,000MOQ: 1 Set -
IQF Tunnel Freezer, Used Machine IQF/quick Freezing Room, IQF Freezing EquipmentUS$ 76,000 - 150,000MOQ: 1 Set
-
Used IQF Spiral Freezer MachineUS$ 178,000 - 250,000MOQ: 1 Set
-
Individual Quick Freezing Machine Iqf/meat Quick Freezing Machine of Used IQF LX800US$ 120,000 - 200,000MOQ: 1 Set
-
IQF Industrial Quick FreezerUS$ 80,000 - 150,000MOQ: 1 Set
This device has a wide and various range of applications, low energy consumption, reasonable structure, low failure rate advantages. It can be suitable for prepared food, small packing or packed food, division meat and others very well, especially single quick freezing process. When material placed in between the transmission network to bring into the frozen, in the strong cold air conditions, products will be frozen rapidly, Taking into account the material weight and volume changes, the device uses inverter to adjust motor speed to achieve continuously variable, so that the conveyor belt speed can be controlled by inverter setting, normal setting figure is between 225r/min to 1500r/min.
Model&Specification
|
Model and Specification |
TS-150 |
TS-300 |
TS-500 |
TS-600 |
TS-1000 |
Output kg/h |
150dumplings, spring roll |
300dumplings, spring roll |
500dumplings, spring roll |
600dumplings, spring roll |
1000dumplings, spring roll |
Feeding temp.℃ |
25 |
25 |
25 |
25 |
25 |
Outfeeding temp.℃ |
-18 |
-18 |
-18 |
-18 |
-18 |
Cycle cold air tem when no loading.℃ |
-35±2 |
-35±2 |
-35±2 |
-35±2 |
-35±2 |
Installed power(kw) |
6 |
6 |
11 |
16 |
28.6 |
Dimension of quick freezing room(LxWxH)m |
8.1*2.5*2.2 |
12.6*2.5*2.2 |
16.2*2.5*2.2 |
16.2*2.8*2 |
21.6*3.2*2 |
Overall length for quick freezing device(m) |
10.1 |
14.6 |
18.2 |
18.2 |
23.6 |
Refrigerate capacity(t.=-40℃)kw |
58 |
85 |
122 |
132 |
185 |
Features |
Carbon steel hot deep galvanized evaporator, stainless steel mesh belt, additional thermal insulation foundation is unnecessary. |
Aluminium evaporator, stainless steel mesh belt transfer, additional themal insulation foundatior is unneceesary. |
|||
What product can be frozen by TS quick freezing of Aerospace Xinyang?
1. Prepared foods: dumplings, spring rolls, steamed dumplings with openings at the top, meat ball and other.
2. Seafood: shrimp, headless shrimp, scallop, fish etc.
3. Segmentation of meat: pork, chicken etc.
1. We guarantee that the commodity hereof is made of the best materials and new brand with top workmanship, and in accordance with quality specification stipulated in product Contract and Appendix.
2. Guarantee period shall be within 12 months from the date of acceptance. During this period, if there are quality problems, we will provide solution by verbal or written communication. If the problem is unsolved, our engineers will repair for you on site as soon as possible. The maintenance is free when there are non-operation errors; otherwise it is for the buyer’s account.
Training plan: We will provide training for those who operate and maintain the freeze-drying machines. Trained by supplier of the equipment in the process of installation and debugging, people can operate and solve the basic mechnical problems independently. In addition, the persons who work in general engineering such as refrigeration, boiler, and transformer substation shall be undertaken by skilled workers.
Shenyang Aerospace Xinyang Quick freezing Equip. Manuf. Co., Ltd was founded in 1985, a leading enterprise incorporating the research, manufacturing, sales and services of food processing equipment and freezing technology. Freeze drying equipment and IQF freezing equipment are widely used around the world.
Xinyang Company closely cooperated with Atlas Company in Denmark, Harbin Commerce University, Zhejiang University and Northeastern University, etc., supporting over 1,000 food engineering projects both domestically and abroad.
It is one of the earliest, largest and most influential professional manufacturers in China. Our products have been exported to USA, Canada, Germany, Netherland, Singapore, Thailand, Malaysia, Indonesia, Korea, Myanmar, Chile, Nigeria etc. The company pays highly attention to food quick freezing, vacuum freeze drying, vacuum frying solution and pre-processing system.
Now Xinyang Company aims to give all of our customers best products and services.
