air filter and cooler,polyester air filter material pleated cylinder air cartridge
Xinxiang City Huahang Filter Co.,Ltd is professional filter manufacturer in China.And our products have been exported to many countries,
such as Australia,Russia,USA,Asia etc
our favourable filters are
replace oil filters
air filter cartridge
replacement water filter
swimming pool filter

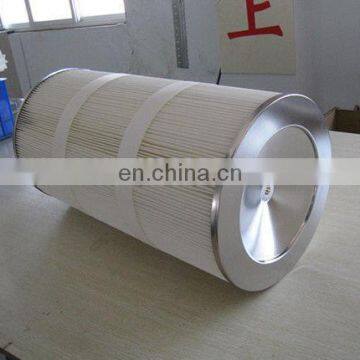

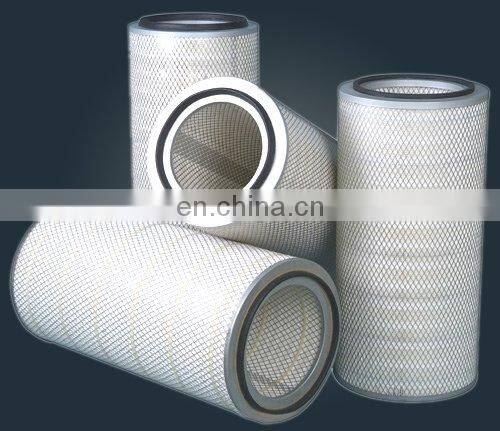

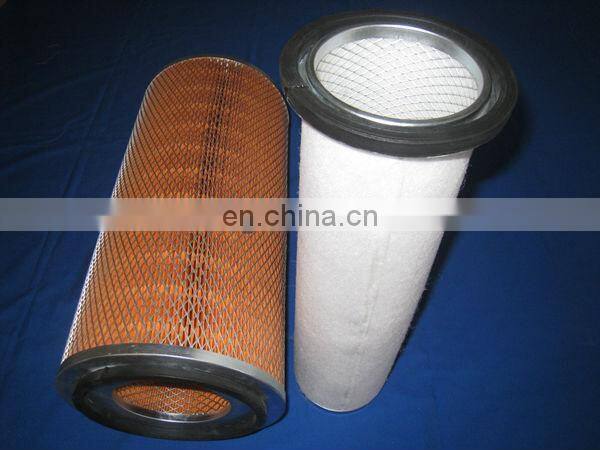

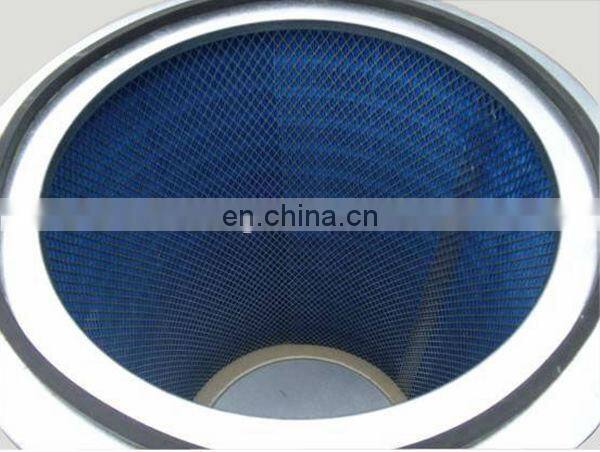

Air filter cartridge--------Introduction
| Features and Advantages |
1) Imported long fiber polyester filter media,fiber interwoven,evenly distributed. 2) Filter material surface do waterproof and oil processing. 3) Good abrasion resistance,and the capability of withstand airflow pulse inverse blow is better than traditional filter media. 4) Smooth filter media surface,not sticky. 5) Excellent chemical resistance. 6) Electro-galvanized / stainless steel cover, central skeleton. 7) Professional sealing obturator elastic neoprene. 8) Good filter material stiffness,can be repeated washed. 9) Operating temperature ≤ 135 ° C. 10) Greatly increase the effective filtration area. 11) Ensure a low steady differential pressure, improve the circulation of air flow. 12) Small filter cartridge element, easy to install. 13) Especially suitable for large dust concentration industry. |
| Specifications |
1. Type: Pleated cartridge filter 2. Size: 660mmheight X324diameter 3. Filter media: Microfiber 4. Efficiency: 99.99% 5. Inside frame and outer frame:metal mesh 6. We can make different sizes and precision as your need. |
Applicable to gas turbines, compressors, sand blasting, tobacco volume wiring, fly ash, filter dust drift.
Polyester fiber Donaldson air filter cylinder cartridge ---- Features
1. An imported special air filtration, dust composite filter paper to ensure the filtration effect
2. Two wide-pleated design, filtering area
3. Galvanized end caps, will not rust
4. Galvanized diamond mesh center frame, opening higher
5. Special sealed closed-cell flexible neoprene
6. Working temperature 65 °c
7. Additional cartridge jacket, can effectively extend the service life of cartridge
Polyester fiber Donaldson air filter cylinder cartridge ---- Some Models for your chioces
Cartridge Model |
OD Size |
Internal diameter |
Height measurements |
Filter area |
H*/Z3266 |
Φ324mm |
Φ213mm |
660 mm |
21m² |
H*/Z3566 |
Φ352mm |
Φ241mm |
660 mm |
23m² |
H*/Z3275 |
Φ324mm |
Φ213mm |
750 mm |
26m² |
H*/Z3288 |
Φ324mm |
Φ213mm |
880 mm |
27m² |
H*/Z3290 |
Φ324mm |
Φ213mm |
915 mm |
28m² |
Details
Delivery (as your choices)
Our products services
1) Pre-sale service
Offer you the best price of the products you need
2) Medium-sales service
All filter element will be test before delivery .
3) After-sales service
Technical advisory for any time
If the products have the quality question ,and because of our ,we will return make the new products to you .
4) More Service
1.We can delivery the products by sea ,by air ,or the express,
such as DHL ,TNT ,UPS ,SF,EMS and so on .
2.Our customer can pay for by TT, Western Union ,or paypal .
3.If the amount is large ,customer can 30%T/T As Down Payment Remaining 70% when goods are ready to ship.
4. Sample is avilable for your testment
5. Small order can be accepted
6. We support custom - made
Welcome old & new clients come and visit our factory at any time!!!
Contact us: Monica Wang
Xinxiang City Huahang filter Co.,Ltd.
Skype: lanxiaoxiang0707
Tel: 0086-373-5471699
Fax: 0086-373-547026
About our company
Xinxiang City Huahang Filter Co., Ltd. specializes in producing air filter, diesel filter, oil filter, water filter, high quality service, advanced technology and superior quality to win the favor of the new and old customers, we hope that new and old customers can negotiate with our company. We will return consistent quality service to you.
If you are interested in our products or have any query, please contact us without hesitate. We will response you in the first time and try our best to make you satisfied with our products quality and prodcucts' service.
