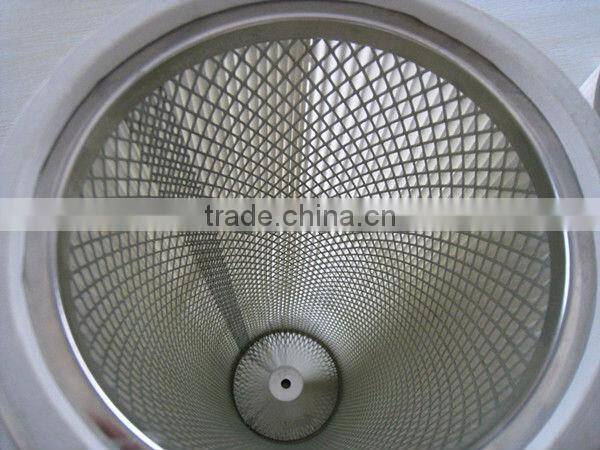

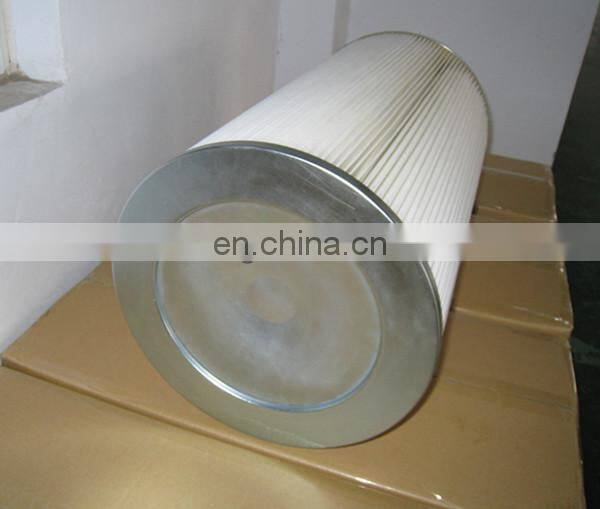

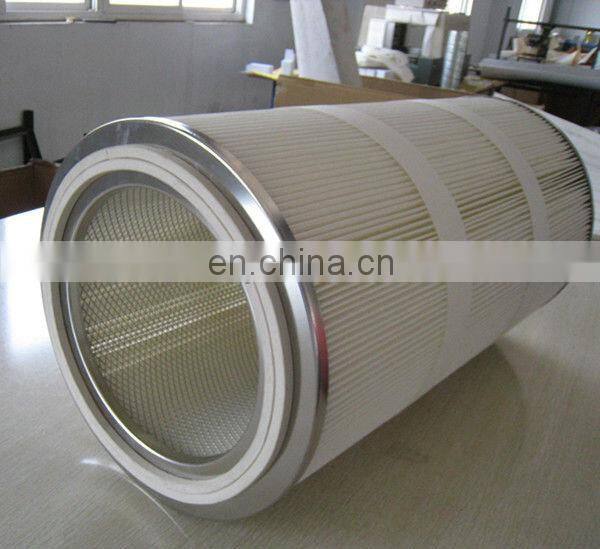

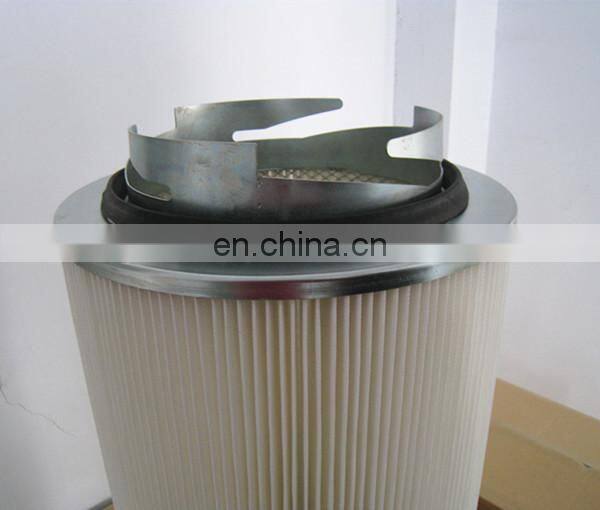

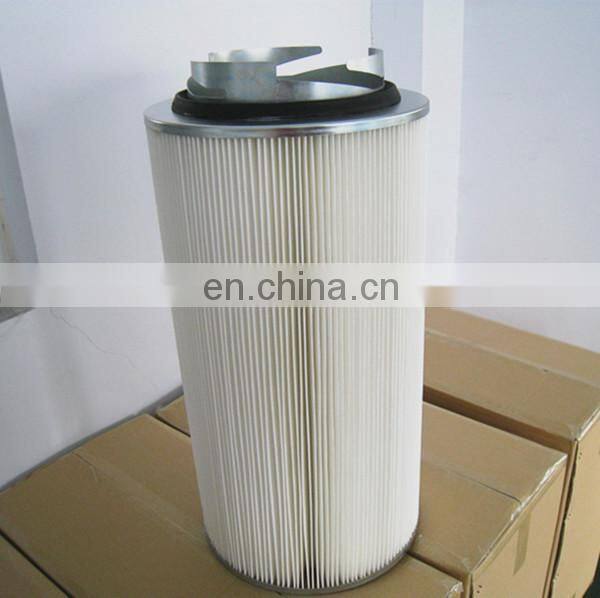

Self-cleaning polyester air filter,air filters manufacturers in China
Specifications
1. Air filter cartridge material: Synthetic fiber or as your need.
2. Precision: 3-100 micron.
3. Efficiency: 99.7 %
4. Size: 600mm Height X 290mm OD (as your need)
5. Type: Pleated air filter cartridge
6. Optional caps
1. Top open and rubber seal, Bottom open and rubber seal, and grid cover inside and outside.
2. Top open and rubber seal, Bottom closed slope, hole X mm. and grid cover inside and outside
Custom made and sample is aviliable.
Contact us: Monica
Skype: lanxiaoxiang0707
Mobile: +86-1352386018
Tel: +86-373-5471699
Applications
Mainly used in the plasma laser cutting of large-scale steel,shipbuilding,automative,metal processing industry,welding smoke,thermal spray industry and other special conditions,and other products.
Advantages
1.The most professional manufacturer of filter cartridge apparatus in China.
2.One of the suppliers that has passed Andrew certification in China.
3.The quality of our PU material is the same with GE products.
More details
| Standard Construction | Unique plastic coating anti-rust caps and metal frame | ||||||
| Wide pleat spacing,easy-cleaning design | |||||||
| Unique plastic rotation,effectively separate the pleats,protect the filter media from abrasion by inner mesh | |||||||
| Specific gasket | |||||||
| Top open, bottom open/bottom close with deflating bolt hole | |||||||
| Options | A variety of installation methods | ||||||
| Optional no outer mesh | |||||||
| Optional temperature at 130 °C | |||||||
| Optional stainless steel mesh and end caps | |||||||

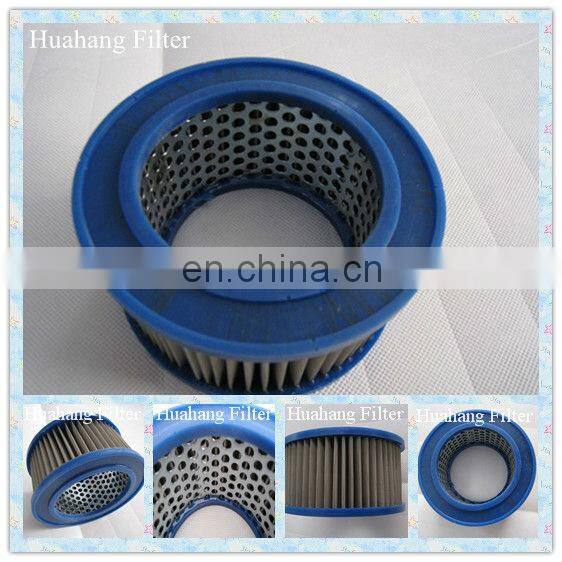

More air filter cartridges for your references
More air filter cartridge sizes for example
| Code | Weight | Thickness | Filter Precision | Continuous Temperature | Peaks Temperature |
| (g/m²) | (mm) | (µm) | |||
| HL/PE | 170 | 0.45 | 5(μm) | 65 (°C) | 130 (°C) |
| 240 | 0.6 | ||||
| 260 | 0.64 | ||||
| HL/LR | 170 | 0.45 | 5(μm) | 65 (°C) | 130 (°C) |
| 240 | 0.6 | ||||
| 260 | 0.64 | ||||
| HL/AL | 240 | 0.6 | 5(μm) | 65 (°C) | 110 (°C) |
| 260 | 0.64 | ||||
| 240 | 0.6 | ||||
| HL/FM | 170 | 0.45 | 0.3(μm) | 65 (°C) | 130 (°C) |
| 240 | 0.6 | ||||
| 260 | 0.64 | ||||
| HL/HV | 125 | 0.3 | 5(μm) | 65 (°C) | 65 (°C) |
| TE/ FM | 240-340 | 0.33-0.83 | 0.3-5(μm) | 135 (°C) | 135 (°C) |

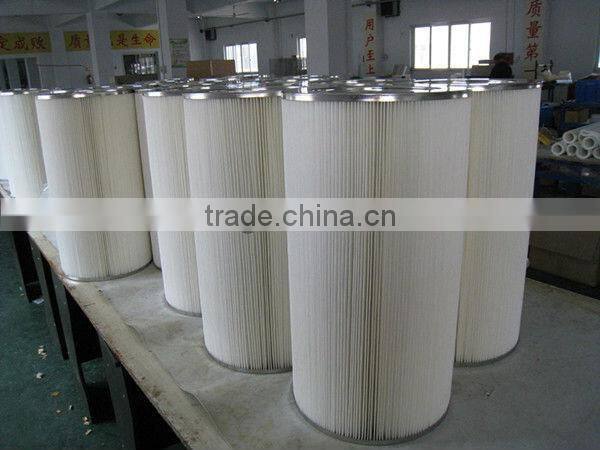

Other more air filters of our company
We are manufacturer of varies filters for more than 14 years. We can make different models and sizes as your requiremenst. Welcome old and new client inquiry and visit our factory at any time!!!
