Swimming &pool & spa filter cartridge equipment,water filtration system
High-flux Folded Filter Element, which is made of polythylene terephthalate (PET) nonwovens, has the speciality of durability.High Water Flow means less shells, low turnover rate and larger sewage capacity.
It is much faster, easier and safer for renewal with the handmade design.
O-ring insures the complete filtration.
The filter element can be used in both aqueous and non-aqueous medium by using the material of PET.
The large folded area can reduce much pressure than other filter elements do and gain the longer working life.
Features of Swimming pool water filter cartridge
1) Pleated design maximizes dirt-bolding capacity
2) Increased filter area longer filtration runs
3) Able to clean and reuse most applications
4) Designed for general water filtration purposes
5) Economicaly priced
Specifications of swimming pool water filter cartridge
1) Material: resin-impregnated cellulose, Reemay&polyester fabrc,etc.
2) Core: PP
3) Filteration rate: 1-50 micron
4) Outer diameter: 2.5",2-3/4"
5) Inner diameter: 1-1/9"
6) Length: 5"-40"
This is our standard dimension , we can manufacture accoriding you need.
| Model Number | OD | Top | Bottom | Media | Length | Sq.ft | Pleat Count | Manufacturer | Replaces |
| 20035 | 2-3/4" | 1-1/16" open | 1-1/16" open | 3 | 5-1/8" | 3.5 | 76 | 3.5 sq.ft. Spa-In-A-Box | C-2305 |
| 20041 | 2-3/4" | 1-1/16" open | closed | 3 | 6" | 3.7 | 75 | 3.7 sq.ft. Skim Filter | C-2304 |
| 20042 | 2-7/8" | 1-1/16" open | 1-1/16" open | 6 | 9-3/4" | 4 | 41 | 4 sq.ft.Rainbow, Pac-Fab | C-2604 |
| 20043 | 2-7/8" | Hose Fitting | closed | 6 | 9-3/4" | 4 | 41 | 4 sq.ft. fill filter | C-2699 |
| 20044 | 2-5/8" | 1-1/16" open | 1-1/16" open | 3 | 14-11/16" | 6 | 41 | 6 sq.ft filter | NA |
| 20061 | 2-5/8" | 1-1/16" open | 1-1/16" open | 6 | 14-11/16" | 6 | 41 | 6 sq.ft. Wet Institute | C-2601 |
| 20062 | 2-3/4" | 1-1/16" open | 1-1/16" open | 4 | 9-3/4" | 6 | 75 | 6 sq.ft. Harmsco ST/6,American,Pac-Fab,Premier,Rainbow,Swimquip.Swimrite | T-380R |
| 20062 | 2-3/4" | 1-1/16" open | 1-1/16" open | 4 | 9-3/4" | 6 | 75 | 6 sq.ft. Harmsco ST/6,American,Pac-Fab,Premier,Rainbow,Swimquip.Swimrite | T-380 |
| 20063 | 2-3/4" | 1-1/16" open | 1-1/16" open | 3 | 9-3/4" | 6 | 75 | 6 sq.ft. Harmsco OTC/6-4 | C-2306 |
| 20065 | 2-7/8" | 1-1/16" open | 1-1/16" open | 6 | 9-3/4" | 6 | 62 | 6 sq.ft.American,Pac-Fab,Premier,Rainbow,Swimquip.Swimrite | C-2606 |
| 20066 | 2-7/8" | 1-1/16" open | 1-1/16" open | 4 | 14-11/16" | 6 | 41 | 6sq.ft. Wet Institute | C-2607 |
| 20081 | 2-7/8" | 1-1/16" open | 1-1/16" open | 3 | 9-3/4" | 8 | 84 | 8sq.ft. American, Rainbow | C-2308 |
| 20082 | 2-7/8" | 1-1/16" open | 1-1/16" open | 4 | 19-1/2" | 8 | 41 | 8 sq.ft. Rainbow 19 | C-2608 |
| PP6903 | 2-3/4" | Hose Fitting | Closed | PP | 10" | n/a | n/a | Disposable filter with hose adapter | FC-3128 |
| 20101 | 2-5/8" | 1-1/16" open | 1-1/16" open | 6 | 19-15/16" | 10 | 62 | 10 sq.ft. Encon Spa | C-2610 |
| 20131 | 2-7/8" | 1-1/16" open | 1-1/16" open | 3 | 14-11/16" | 12 | 84 | 12 sq.ft. Rainbow | C-2912 |
| 20132 | 2-7/8" | 1-1/16" open | 1-1/16" open | 4 | 19-1/2" | 12 | 62 | 12 sq.ft. Rainbow 19X | C-2612 |
| 20133 | 2-7/8" | 1-1/16" open | 1-1/16" open | 4 | 29-1/4" | 12 | 41 | 12 sq.ft. Rainbow 29 | C-2613 |
| 20151 | 2-7/8" | 1-1/16" open | 1-1/16" open | 3 | 17-1/16" | 14.5 | 84 | 14.5 sq.ft.Rainbow-Hi Flow | C-2302 |
| 20181 | 2-7/8" | 1-1/16" open | 1-1/16" open | 4 | 29-1/4" | 18 | 62 | 18 sq.ft. Rainbow 29X | C-2618 |
| 20191 | 2-7/8" | 2-1/8" open | 2-1/8" open | 3 | 17-1/16" | 8.5 | 150 | 8.5 sq.ft. Rainbow-Chloro |

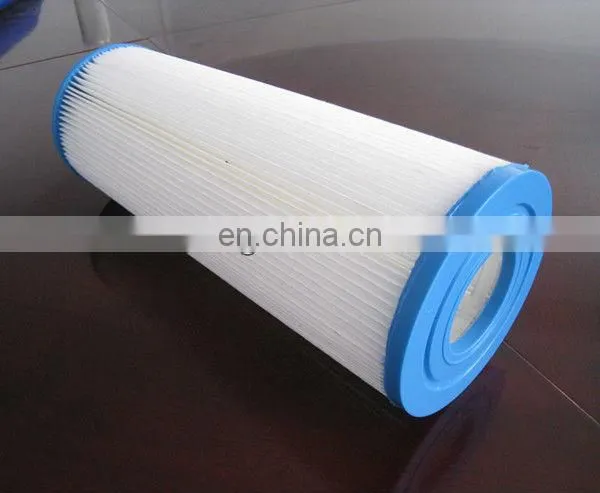

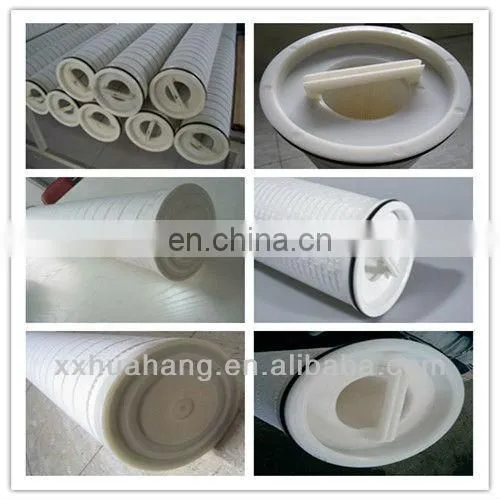

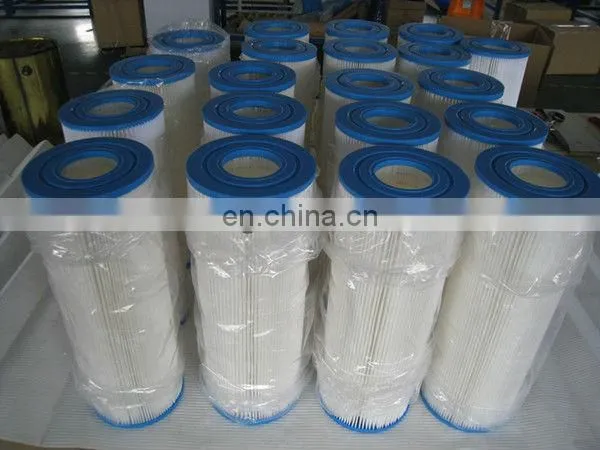

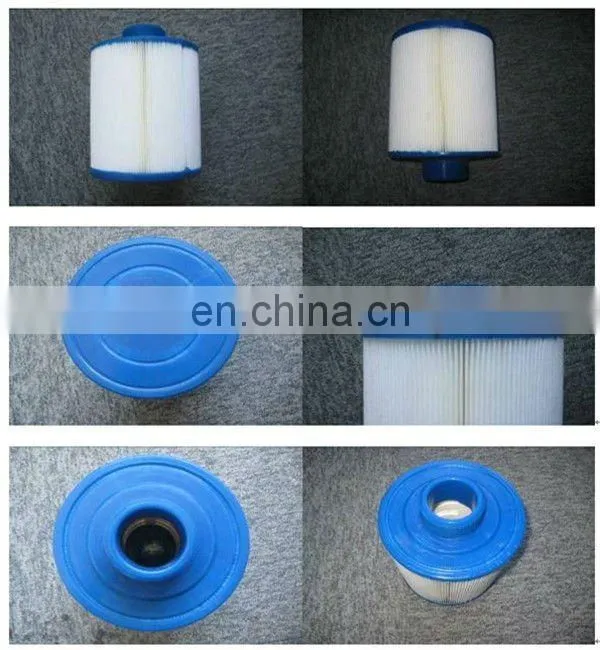

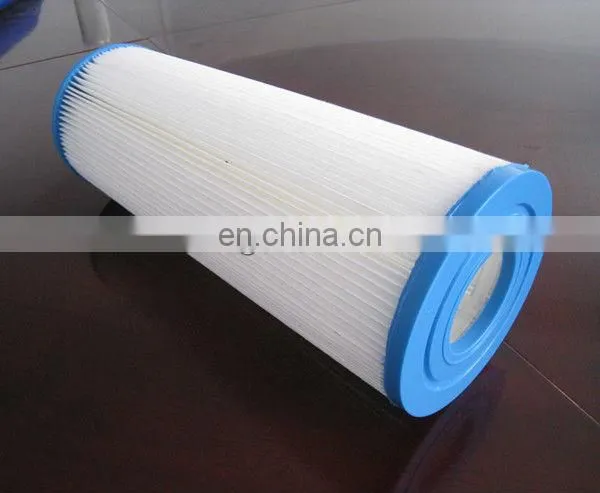

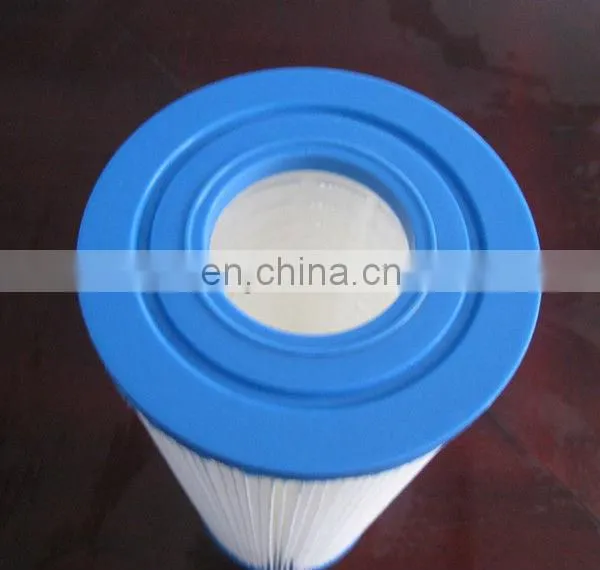

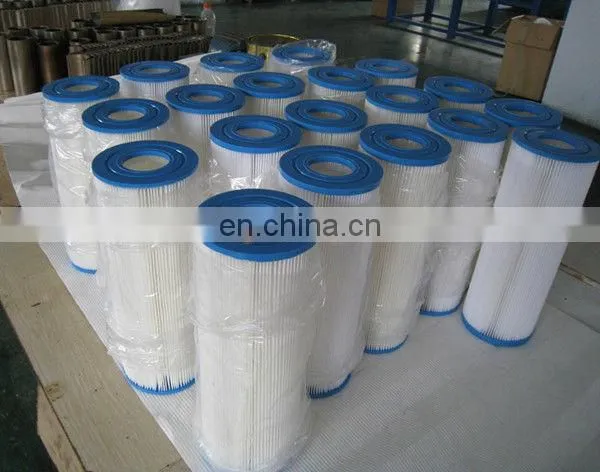

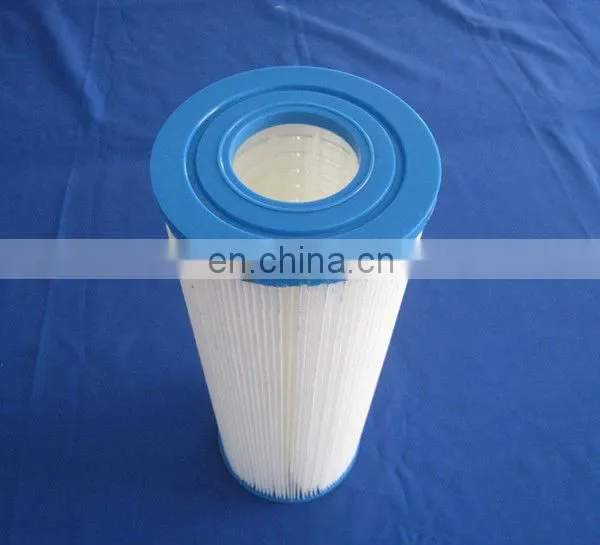

Pictures of simming pool water filter cartridge for your choices
If you are interested in any of our filters,or have any question,please contact me freely. We will response you within 12hs. Welcome old and new clients inquiry and visit our factory any time!Waiting for your inquiry and orders soon!!!
|
|
Monica Wang manager-sales |
Xinxiang City Huahang Filter Co., Ltd. | ||
|
Tel:+86-373-5471699 Fax: +86-373-5471026 M: +86-13523856018 Email:monicawang@huahangfilter.cn | ||
Skype: lanxiaoxiang0707 | ||
W:http:// www.huahangfilter.com | ||
|
