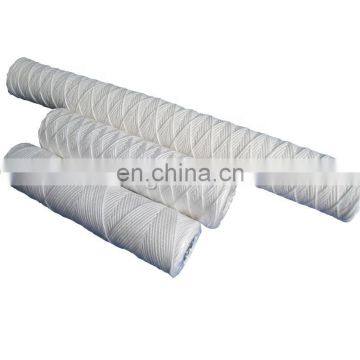

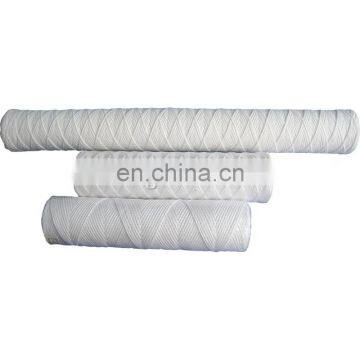

10 inch 5 micron pp yarn string wound filter for sediment polypropylene wound filter cartridge

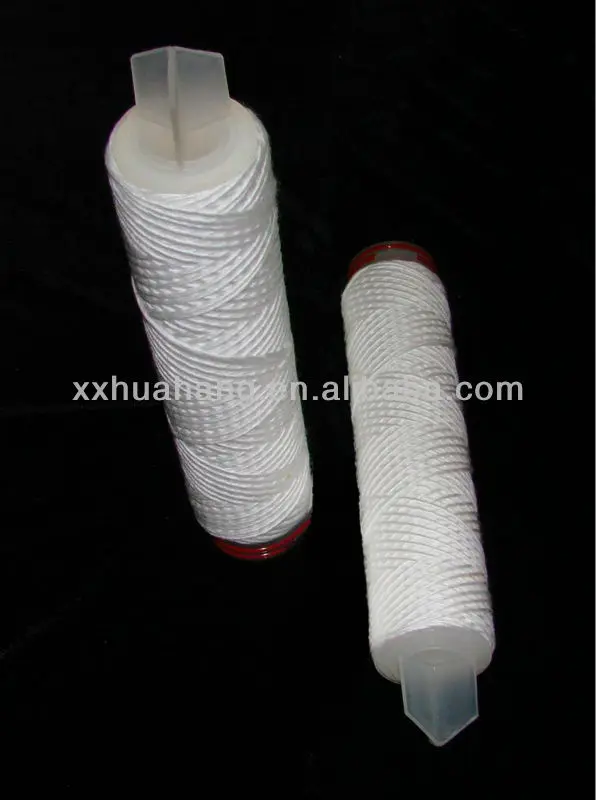

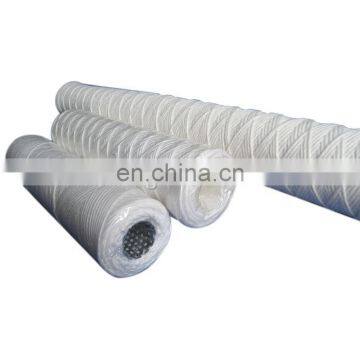

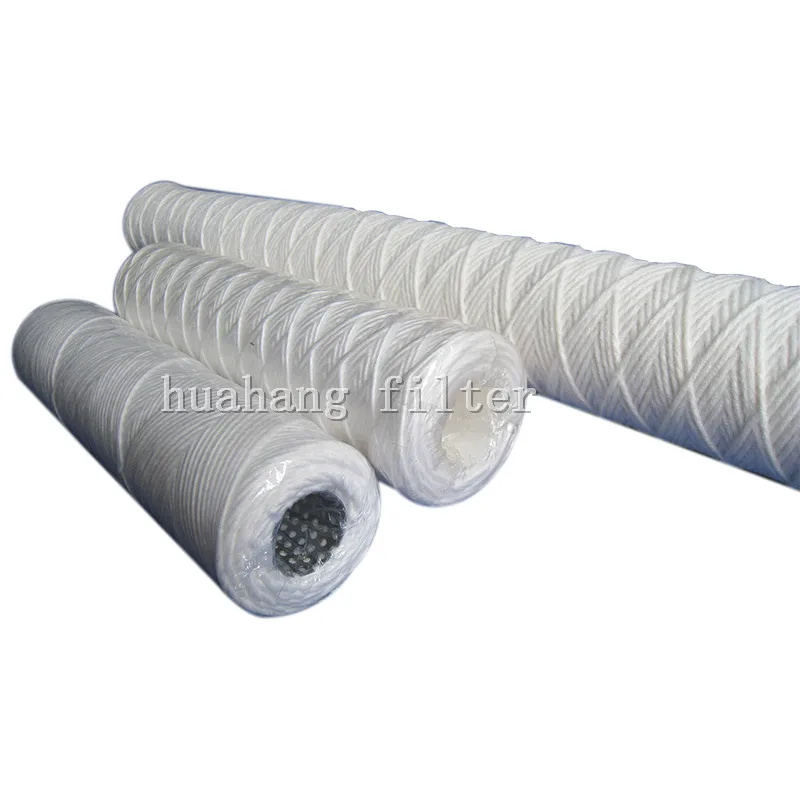

The string wound filter cartridges are composed of two-layers with loose outer layers and tight inner layers wrapping on a porous skeleton (PP or SS)which can offer depth filtration for high dirt holding capacity and extremely low media migration to ensure temperature and chemical compatibility. The main advantage of the string wound filter cartridge is its exceptionally high structural strength, therefore, they can withstand severe operating conditions.
Specifications
items |
Details |
||
Filter fineness |
1μm,5μm,10μm,20μm,30μm,50μm,75μm,100μm |
||
Filter length |
10,20,30,40 inch |
||
Core diameter |
φ28mm,φ30mm,φ32mm |
||
Filter inside |
φ2.5'' |
||
maximum resistance temperature |
polypropylene |
60°C |
|
degreasing cotton |
120°C |
||
maximum pressure |
0.4MPa@120°C |
||
Connection Type |
Surface pressure |
||
material attached |
absorbent cotton |
||
Characteristics
2. Multi layer deep structure is available, absorb large amount of pollution;
3. Large filtration flow and small pressure difference;
4. No chemical adhesive, more hygienic and safe;
5. It is resistant to acid, alkali, organic solution and oil and has good chemical stability;
6. It integrates surface, deep layer, coarse and fine filtration, with large flow, corrosion resistance, high pressure and low
cost. It is used to block the rust, sand, insect eggs and other large particles in the water.
Advantages
Stainless steel support has good heat resistance, maxiumum operating
Fits all the standard housings
Low pressure drop, high dirt holding capacity and long service life
Loose outer layers and tight inner layers offers effective depth filtration
Various filter media fit with various applications
Applications
Pretreatment of general drinking water
Plating solution, metak etching solution
Filtration of chemicals, organic solvents
RO pre-filtration
1.Carton inside,wooden outside,neutral packaging
2.As your requirements
3.By international express,air and sea
4.Shipment port:Qingdao or any other chinese ports
5.7-15 working days after confirming payment
Factory
Workshop
Our Workshop
Warehouse
Our Warehouse
Team
Our Team
Contact Us
Linda zhang
Skype:Linda zhang128315
Wechat:zy474016972 QQ:2791607714
Tel: +86-18339530218
Address: Industrial Park, Dazhaoying Town,Xinxiang City ,Henan Province ,China
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
