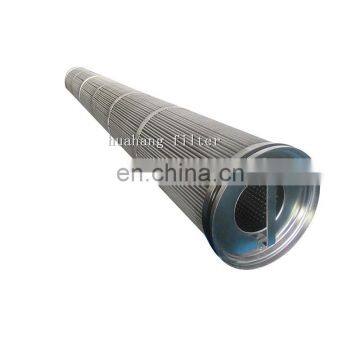

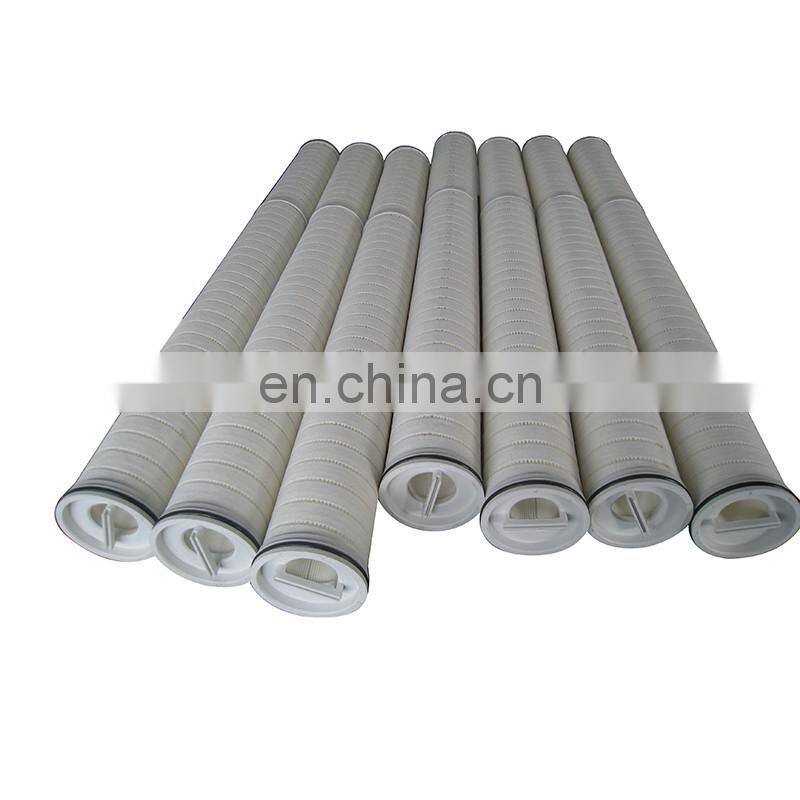

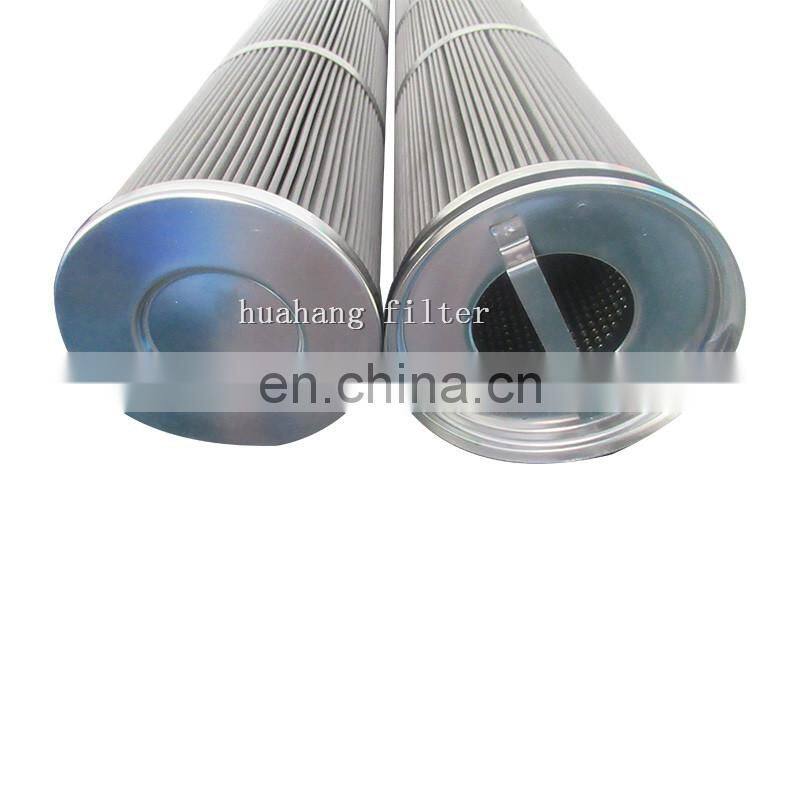

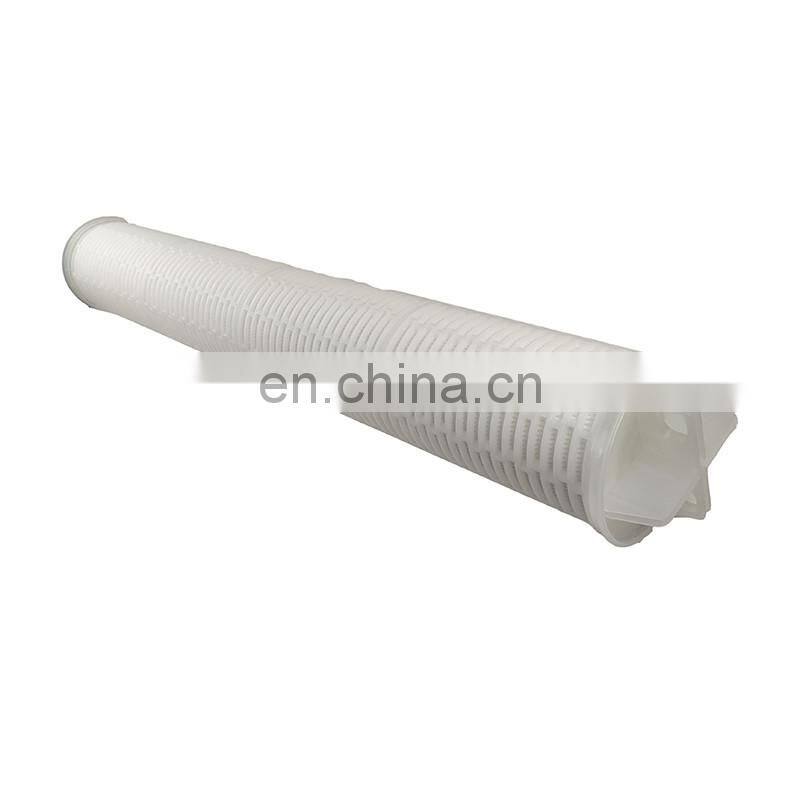

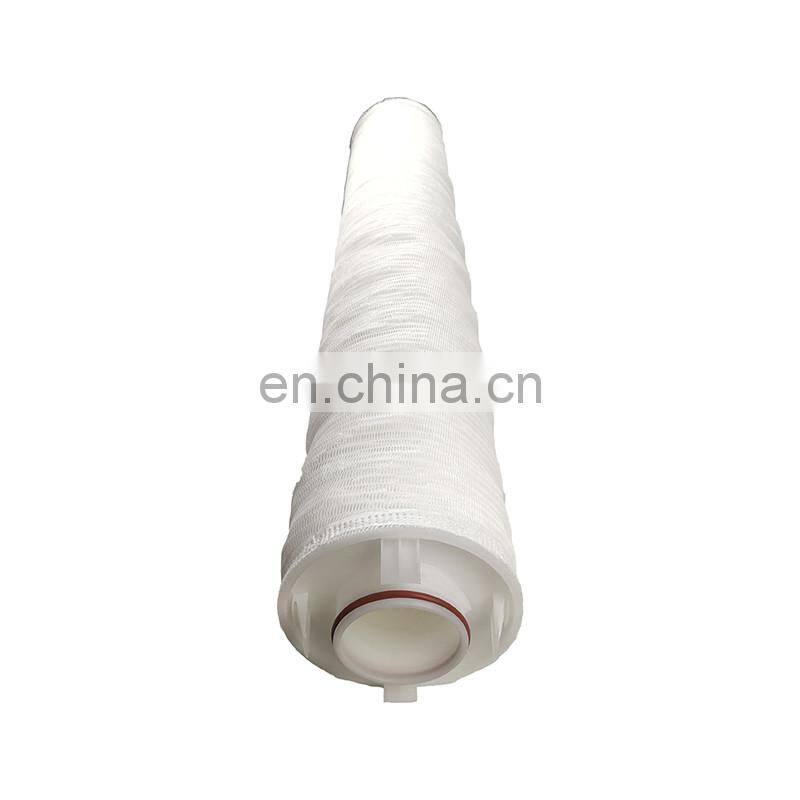

Replacement HFU640GFK100H1 stainless steel metal mesh pleated high flow rate particulate water filter cartridge
Product description
High Flow Pleated Filter Cartridge is single open ended which design for the direction from an inside to outside flow pattern. T
he large filter area ensure the high dirt holding capacity. The low cost save the number of filter cartridge. Long service life and
superior flow rates are the main characteristics. All contaminants can be removed efficiently.
Appearance description of high flow water filter
High Flow Rate Pleated Filter Cartridges are made of pleated filter madia and designed for applations requiring low pressure drop and high folw capacity.
Manufactured by high quality polymer media,the cartridges exhibit highly effective retention efficiency as well as reusable convenience. The design of great surface area ectends service life and makes the cartridge one of the most economic options in water treatment.
Advantage&Features
1.Pleated surface area results in great filtration area,providing longer service life and more competitive
2.Fewer change outs and less maintenance are reequired.
3.Manufactured by high quality polymer media, the cartridges exhibit highly effective retention efficiency and reusable convenience.
4. Available in a variety of length to meet diffent needs and equirement requiremetns.
Details
Specifications of water filter cartridge
Filter Media | stainless steel wire mesh |
Filter Grades | 1.5,3,4,5,10,20,30,70 micron |
Center Core(60’length only) | carbon steel |
End caps | carbon steel |
Support | carbon steel |
O-ring Options | Nitrile,NBR |
Cartridge Length | 20”, 40”, 60” |
Cartridge max OD | 6.3” |
Applations
1.Water Systems
2.Chemicals
3.Petrochmical
4.Food and Beverage
5.Pre RO
Other type replace high flow filter cartridge
3M
| Micron | 1μm,5μm,10μm,15μm,20μm,40μm,70μm,100μm |
| Cartridge Length: | 20" (508mm) /40" (1016mm)/60" (1524mm) |
| Cartridge Max.OD: | 6.5"(165mm)/6"(152mm) |
| Filter Medium: | Polypropylene , Cellulose , Melt Blown PP |
| Support: | Polypropylene |
| End Caps: | Glass Fiber Reinforced Polypropylene |
| O-ring Seal options: | EPDM,NBR,Viton |
| Polypropylene: | 3.44bar@82°C,50psi@180°F |
| Glass Fiber: | 3.44bar@121°C,50psi@180°F |
| Suggestion Flow: | 20" 660LPM |
| 40" 1300LPM | |
| 60" 1900LPM |
Parker
| Micron | 1μm,5μm,10μm,15μm,20μm,40μm,70μm,100μm |
| Cartridge Length: | 40" (1016mm) |
| Cartridge Max.OD: | 6.0"(152mm) |
| Filter Medium: | Polypropylene , Cellulose , Melt Blown PP |
| Support: | Polypropylene |
| End Caps: | Glass Fiber Reinforced Polypropylene |
| O-ring Seal options: | EPDM,NBR,Viton, |
| Polypropylene: | 3.44bar@82°C,50psi@180°F |
| Glass Fiber: | 3.44bar@121°C,50psi@180°F |
| Suggestion Flow: | 40" 1300LPM |
PAL
| OD | 6” (152mm) |
| Length | 20"/40"/60" |
| Micron | 0.1um~100 um |
| Maximum operating temperature | Pleated/melt-blown pp: 82℃ |
| Pleated glass fiber: 121℃ | |
| Maximum operating differential pressure | Pleated/melt-blown pp: 3.44bar@82℃ |
| Pleated glass fiber: 3.44bar@121℃ | |
| Suggestion design flow | 40": ≤15m3/h |
| 60": ≤25m3/h |
Production Process
Packaging&Delivery
About Our Company
Certifications
If you need any filters, please contact us in time .
