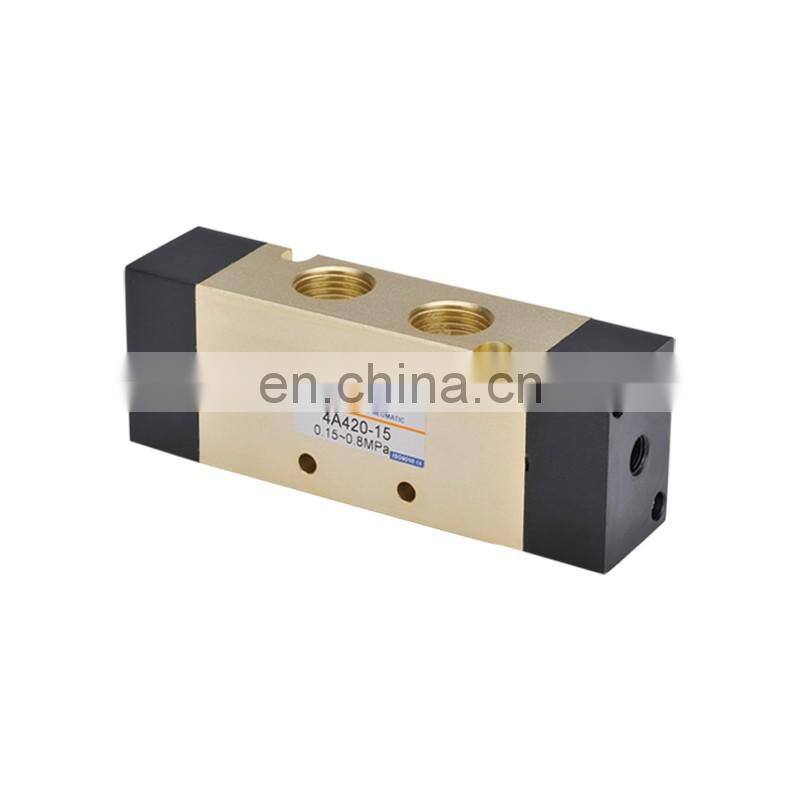

2 Position 5 Way Pneumatic Solenoid Valve 4A420-15

2 Position 5Way Pneumatic Solenoid Valve 4A420-15

1.Pilot-oriented mode:optional for internal or external;

2.Stucture in sliding column mode:good tightness and sensitive reaction;

3.Three position solenoid valves have three kinds of central function for your choice;

4.Double control solenoid valves have memory function;

5.Internal hole adopts special processing technology which has little attrition friction,low star pressure and long service life;

6.No need to add oil for lubrication;

7.It is available to form integrated valve group with the base to save installation space;

8.Affiliated manual devices are equipped to facilitate installation and debugging;

9.Several standard voltage grades are optional.



Model:3V210-08

Position and way NO:3 port 2 position (2/3way)

Port size:1/4”

Fluid:Air

Operation:Inside pilot type

Operating Pressure:0.15~0.8MPa

Max. Proof Pressure:1.2MPa

Temperature:5~50 C

Allowable Voltage:±10% of rated voltage

Power Consumption:AC:2.5VA DC:2.5W

Coil insulation &Protection Grade:Class F.IP65

Electrical Entry:Connector

Highest Action Frequency:5 cycle/second

Shortest Excitation Time:0.05 second

Working Voltage:DC12V DC24V AC110V AC220V

Package:1x solenoid valve
