2W040-10 AC220V 2/2 Way Direct Acting Normally Closed 3/8 Inch Water Solenoid Valve

2W040-10 AC220V 2/2 Way Direct Acting Normally Closed 3/8 Inch Water Solenoid Valve thumbnail-1
2W040-10 AC220V 2/2 Way Direct Acting Normally Closed 3/8 Inch Water Solenoid Valve thumbnail-2
2W040-10 AC220V 2/2 Way Direct Acting Normally Closed 3/8 Inch Water Solenoid Valve thumbnail-3
2W040-10 AC220V 2/2 Way Direct Acting Normally Closed 3/8 Inch Water Solenoid Valve thumbnail-4
2W040-10 AC220V 2/2 Way Direct Acting Normally Closed 3/8 Inch Water Solenoid Valve thumbnail-5
2W040-10 AC220V 2/2 Way Direct Acting Normally Closed 3/8 Inch Water Solenoid Valve thumbnail-6
2W040-10 AC220V 2/2 Way Direct Acting Normally Closed 3/8 Inch Water Solenoid Valve thumbnail-7
2W040-10 AC220V 2/2 Way Direct Acting Normally Closed 3/8 Inch Water Solenoid Valve photo-1

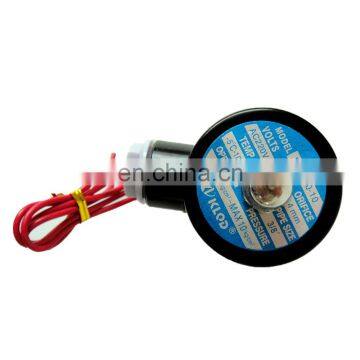

2W040-10 AC220V 2/2 Way Direct Acting Normally Closed 3/8 Inch Water Solenoid Valve photo-2

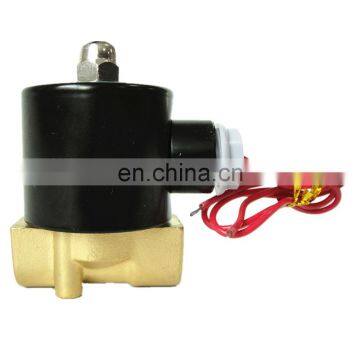

2W040-10 AC220V 2/2 Way Direct Acting Normally Closed 3/8 Inch Water Solenoid Valve photo-3

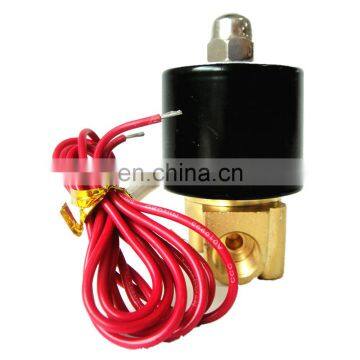

2W040-10 AC220V 2/2 Way Direct Acting Normally Closed 3/8 Inch Water Solenoid Valve photo-4

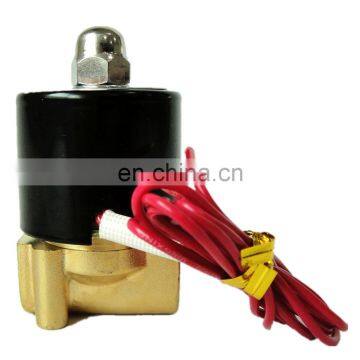

2W040-10 AC220V 2/2 Way Direct Acting Normally Closed 3/8 Inch Water Solenoid Valve photo-5

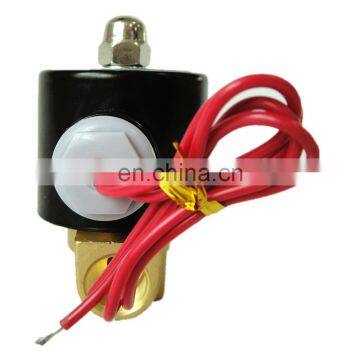

2W040-10 AC220V 2/2 Way Direct Acting Normally Closed 3/8 Inch Water Solenoid Valve photo-6

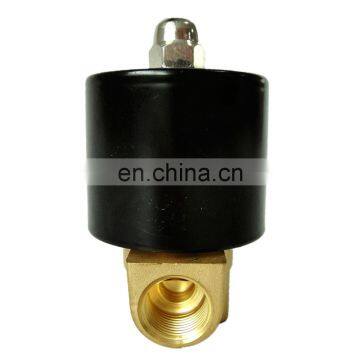

2W040-10 AC220V 2/2 Way Direct Acting Normally Closed 3/8 Inch Water Solenoid Valve photo-7
US$ 11.8 - 12.6 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
KLQD
Place of Origin:
Zhejiang, China
Model Number:
2W040-10
Contact Supplier Request Quote Chat Now
Ningbo Kailing Pneumatic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name KLQD
Place of Origin Zhejiang, China
Model Number 2W040-10
Material Brass
Application General
Structure Control
Standard or Nonstandard Standard
Pressure Medium Pressure
Power Solenoid
Port Size ZG3/8''
Media Water
Temperature of Media Medium Temperature
Product Description

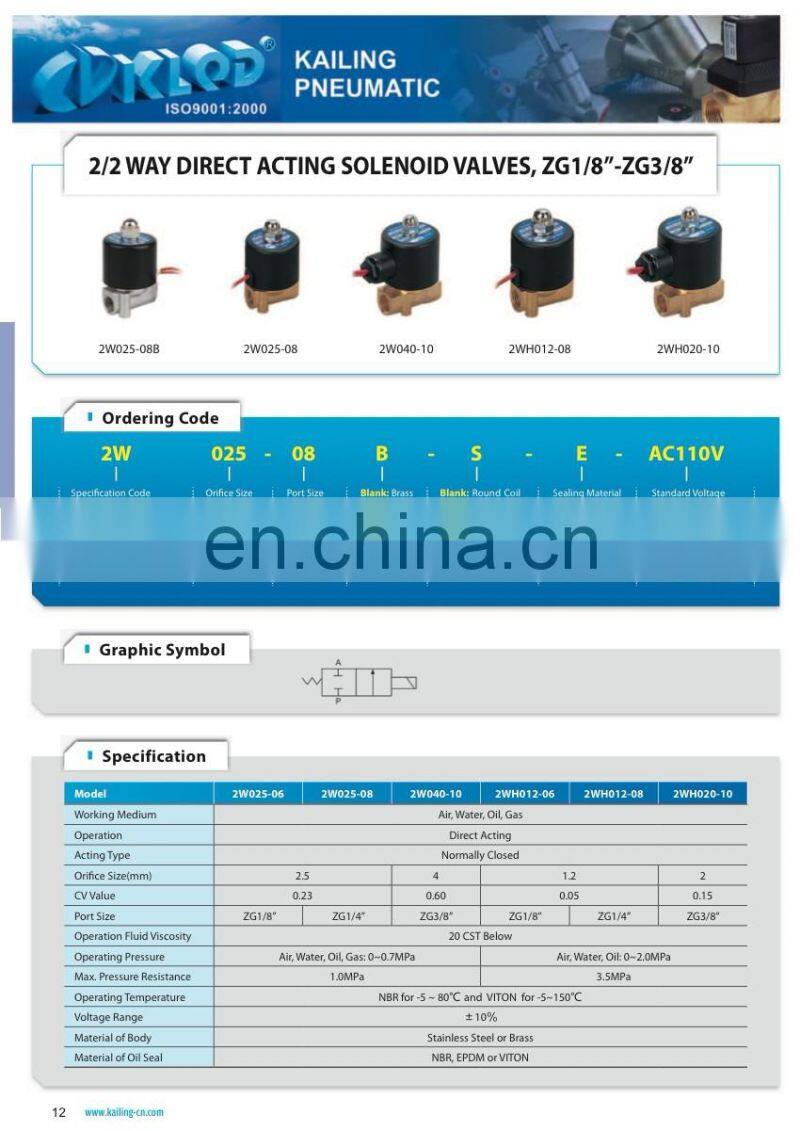

Ordering Code
2W
025
08
B
S
E
AC110V
Specification Code
2W:2/2Way Direct Acting
2WH:2/2Way Solenoid Valve for High Pressures
Orifice Size
012:1.2mm
020:2mm
025:2.5mm
040:4mm
Port Size
06:ZG1/8''
08:ZG1/4''
10:ZG3/8''
Blank:Brass
B:Stainless Steel
Blank:Round Coil
S:Square Coil IP65
Sealing Material
Blank:NBR
E:EPDM
V:VITON
S:SI
Standard Voltage
DC12V
DC24V
AC24V 50Hz/60Hz
AC110V 50Hz/60Hz
AC220V 50Hz/60Hz
AC380V 50Hz/60Hz
2W040-10 AC220V 2/2 Way Direct Acting Normally closed 3/8 inch Water Solenoid Valve
Specification
Model
2W025-06
2W025-08
2W040-10
2WH012-06
2WH012-08
2WH020-10
Working Medium
Air,Water,Oil,Gas
Operation
Direct Acting
Acting Type
Normally Closed
Orifice Size(mm)
2.5
4
1.2
2
CV Value
0.23
0.60
0.05
0.15
Port Size
ZG1/8''
ZG1/4''
ZG3/8''
ZG1/8''
ZG1/4''
ZG3/8''
Operation Fluid Viscosity
20CST Below
Operating Pressure
Air,Water,Oil,Gas:0~0.7MPa
Air,Water,Oil:0~0.2MPa
Max.Pressure Resistance
1.0MPa
3.5MPa
Operating Temperature
NBR for -5~80℃ and VITON for -5~150℃
Voltage Range
-10% or +10%
Material of Body
Stainless Steel or Brass
Material of Oil Seal
NBR,EPDM or VITON

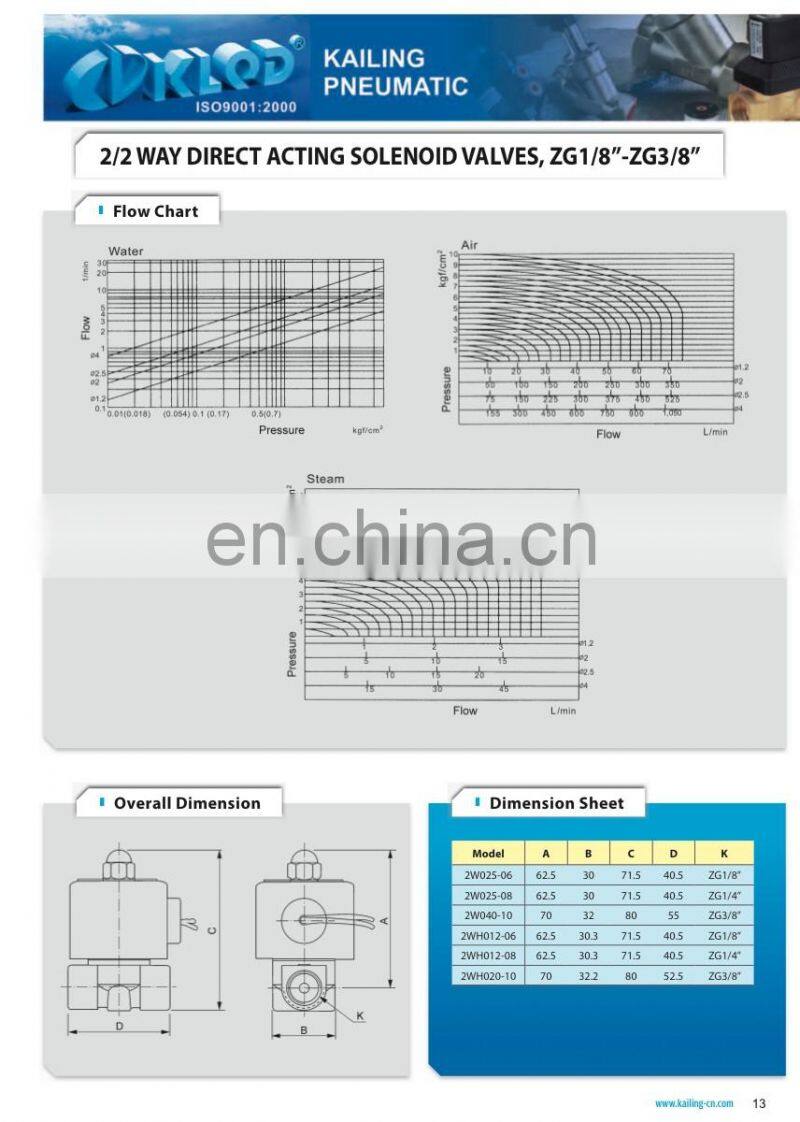

Detailed Images
Packing & Delivery
Our Company
Payment
FAQ

Q1. Is sample order acceptable?
A: Yes.It's ok.

Q2. How to place the order?
A: You can send us email or inquiry at alibaba directly.

Q3. How many days for delivery?
A: We have stock for standard products.

Q4. How to make the payment?
A: We accept BankT/T,Western Union,Paypal,or L/C,

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the courier cost.

Q7: How Will You Make the Shipment?
A.Sea Shipment by Pallet Packing.
B.Air
C.Express Service

Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
