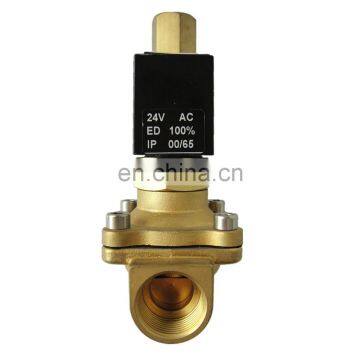

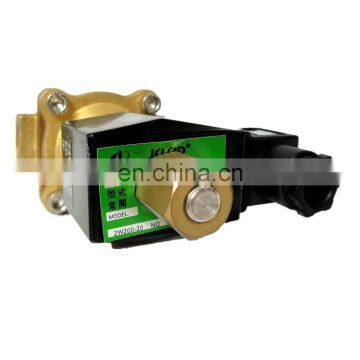

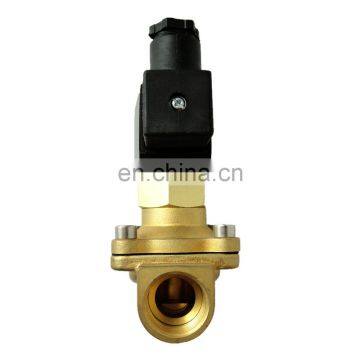

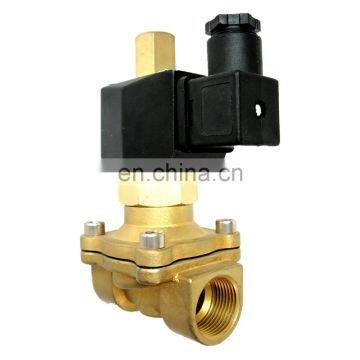

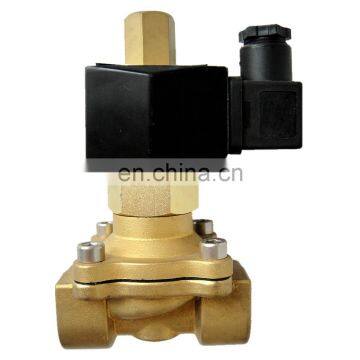

2W Series 2W200-20NO Brass Body Normally Open 3/4 Inch Air Water Solenoid Valve

2W Series 2W200-20NO Brass Body Normally Open 3/4 Inch Air Water Solenoid Valve thumbnail-1
2W Series 2W200-20NO Brass Body Normally Open 3/4 Inch Air Water Solenoid Valve thumbnail-2
2W Series 2W200-20NO Brass Body Normally Open 3/4 Inch Air Water Solenoid Valve thumbnail-3
2W Series 2W200-20NO Brass Body Normally Open 3/4 Inch Air Water Solenoid Valve thumbnail-4
2W Series 2W200-20NO Brass Body Normally Open 3/4 Inch Air Water Solenoid Valve thumbnail-5
2W Series 2W200-20NO Brass Body Normally Open 3/4 Inch Air Water Solenoid Valve thumbnail-6
2W Series 2W200-20NO Brass Body Normally Open 3/4 Inch Air Water Solenoid Valve thumbnail-7
2W Series 2W200-20NO Brass Body Normally Open 3/4 Inch Air Water Solenoid Valve photo-1
2W Series 2W200-20NO Brass Body Normally Open 3/4 Inch Air Water Solenoid Valve photo-2
2W Series 2W200-20NO Brass Body Normally Open 3/4 Inch Air Water Solenoid Valve photo-3
2W Series 2W200-20NO Brass Body Normally Open 3/4 Inch Air Water Solenoid Valve photo-4
2W Series 2W200-20NO Brass Body Normally Open 3/4 Inch Air Water Solenoid Valve photo-5
2W Series 2W200-20NO Brass Body Normally Open 3/4 Inch Air Water Solenoid Valve photo-6
2W Series 2W200-20NO Brass Body Normally Open 3/4 Inch Air Water Solenoid Valve photo-7
US$ 22 - 22 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
KLQD
Place of Origin:
Zhejiang, China
Model Number:
2W200-20NO
Contact Supplier Request Quote Chat Now
Ningbo Kailing Pneumatic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name KLQD
Place of Origin Zhejiang, China
Model Number 2W200-20NO
Material Brass
Application General
Structure Diaphragm
Standard or Nonstandard Standard
Pressure Medium Pressure
Power Solenoid
Port Size 3/4''
Media Water
Temperature of Media Medium Temperature
Product Description

2W Series 2W200-20NO Brass Body Normally Open 3/4 inch Air Water Solenoid Valve

Ordering Code
2W
160
15
A
E
AC110V
Specification
Code
2w: 2/2Way Solenoid Valve
Orifice Size
160: 16mm
200: 20mm
250: 25mm
350: 35mm
400: 40mm
500: 50mm
Port Size
10: ZG3/8''
15: ZG1/2''
20: ZG3/4''
25: ZG1''
35: ZG1-1/4''
40: ZG1-1/2''
50: ZG2''
A:Waterproof Coil
Blank:Round Coil
S:Square Coil IP65
H:Mamual
NO:Normally Open
NC:Normally Close
Z:Ex-proof
Sealing Material
Blank:NBR
E:EPDM
V:VITON
S:SI
Standard Voltage
DC12V
DC24V
AC24V 50Hz/60Hz
AC110V 50Hz/60Hz
AC220V 50Hz/60Hz
AC380V 50Hz/60Hz
Specification
Model
2W160-10
2W160-15
2W200-20
2W250-25
2W350-35
2W400-40
2W500-50
Working Medium
Air, Water,Oil,Gas
Operation
Direct Acting
Acting Type
Normally Closed
Orifice Size(mm)
16
20
25
35
40
50
CV Valve
4.8
4.8
12
24
29
48
Port Size
ZG3/8''
ZG1/2''
ZG3/4''
ZG1''
ZG1-1/4''
ZG1-1/2''
ZG2''
Operation Fluid Viscosity
20CST Below
Operating Pressure
Air:0~1.0Mpa ; Water:0~0.7Mpa ; Oil:0~0.9Mpa
Max.
Pressure Resistance
1.0Mpa (Normal open type ure 0.8Mpa)
Operating Temperation
NBR for -5~80℃ and VITON for -5~150℃
Voltage Range
-10% or +10%
Material of Body
Brass
Material of Oil Seal
NBR or VITON
Detailed Images
Packing & Delivery
Payment
FAQ

Q1. Is sample order acceptable?
A: Yes.It's ok.

Q2. How to place the order?
A: You can send us email or inquiry at alibaba directly.

Q3. How many days for delivery?
A: We have stock for standard products.

Q4. How to make the payment?
A: We accept BankT/T,Western Union,Paypal,or L/C,

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the courier cost.

Q7: How Will You Make the Shipment?
A.Sea Shipment by Pallet Packing.
B.Air.
C.Express Service.

Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
