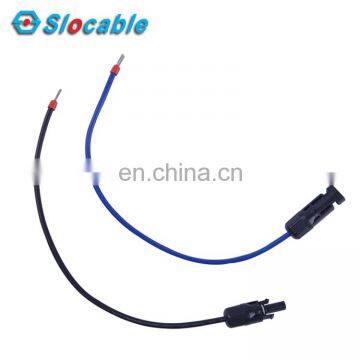

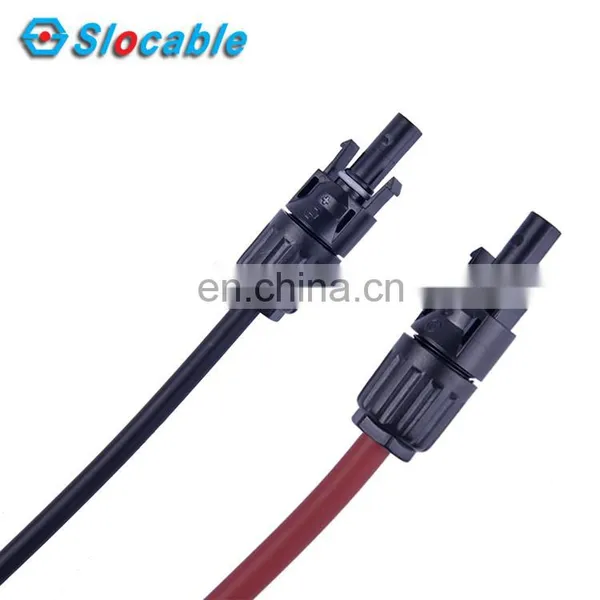

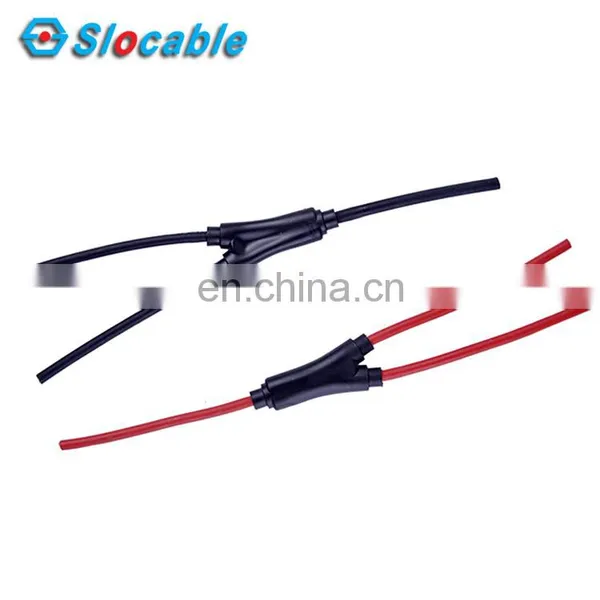

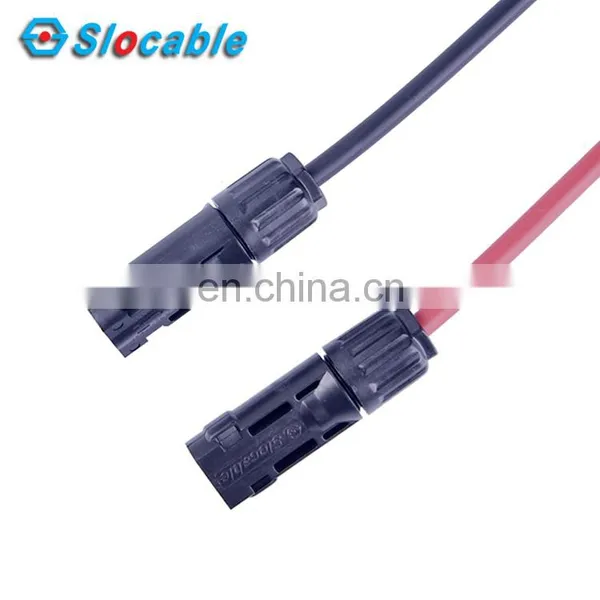

Waterproof DC Solar Branch Cable Assembly Extension Cable PV Harness
US$ 3.5 - 7.5
MOQ: 50 Sets
Key Specifications
Get Latest Price
Brand Name:
Slocable
Place of Origin:
Guangdong, China
Model Number:
Solar cable assembly
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2.5mm2 4mm2 1000V IP68 CN40 Connector Solar AccessoriesUS$ 4.6 - 4.8MOQ: 30 Sets -
Slocable Waterproof Assembly Extension Cable With Male and Female ConnectorsUS$ 0.5 - 15MOQ: 2 Sets
-
Anti-abrasion Branch Wiring Harness With PV Solar ConnectorUS$ 1 - 7MOQ: 30 Meters
-
Weather Resistance Branch Wiring Harness Solar Connector WireUS$ 1 - 7MOQ: 30 Meters
-
Slocable PV1 F Solar Cable 4mm2 6mm2 and Solar PV Connector 10cm Examples PV Cable AssemblyUS$ 0.7 - 15MOQ: 2 Sets
Brand Name
Slocable
Place of Origin
Guangdong, China
Model Number
Solar cable assembly
Type
High Voltage
Conductor Material
Copper
Product Description
Waterproof DC solar branch cable assembly Extension cable PV harness
| Size | Cross Section |
Conductor Structure |
Outer Diameter |
Max. DC Resistance at 20℃ |
Rated Voltage |
Rated Current |
| mm² | mm | mm | Ω/km | V DC | A | |
| 1 x 2.5mm² | 2.5mm² | 49 x ∅0.25 | 5.4 | 8.06 | 1000/1500 | 30A |
| 1 x 4.0mm² | 4.0mm² | 56 x ∅0.285 | 6.1 | 4.97 | 1000/1500 | 50A |
| 1 x 6.0mm² | 6.0mm² | 78 x ∅0.30 | 6.4 | 3.52 | 1000/1500 | 70A |
| 1 x 10.0mm² | 10.0mm² | 74 x ∅0.40 | 7.3 | 2.12 | 1000/1500 | 95A |
Technical Date
