Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Wire Harness > Slocable 1500V Panel 10AWG Solar Extension Cable With Connector

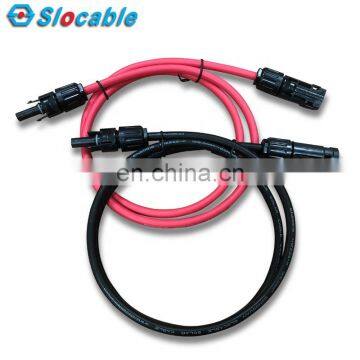

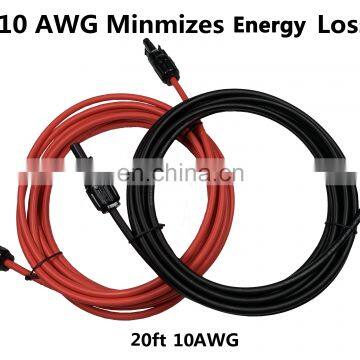

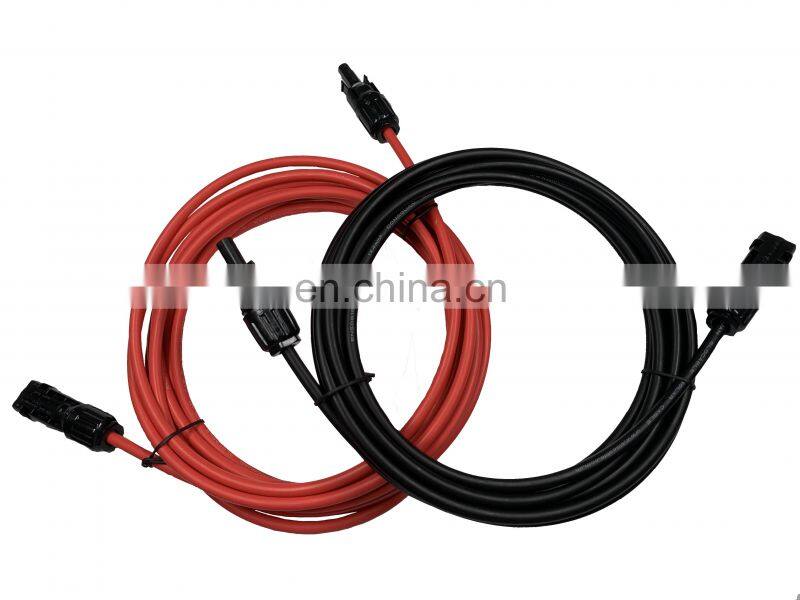

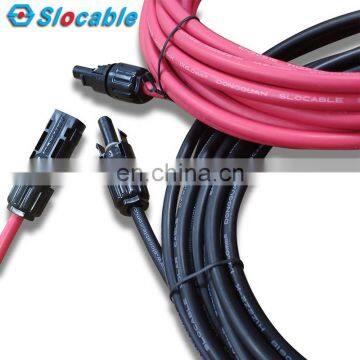

Slocable 1500V Panel 10AWG Solar Extension Cable With Connector
US$ 6.2 - 8.5
MOQ: 50 Pairs
Key Specifications
Get Latest Price
Brand Name:
Slocable
Place of Origin:
Guangdong, China
Model Number:
L type Cable Assembly
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Guangdong China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Slocable TUV Approved UV Resistance 1m Premade PV Power Cable With MC Wiring Harness Solar Panel Extension CableUS$ 1.4 - 2MOQ: 10 Sets -
Two 10 FT 10 AWG 6mm2 Solar Extension Cables With Hard PPO Plastic IP68 PV Male and Female Connectors at Each EndUS$ 6.2 - 8.5MOQ: 50 Pairs
-
China Slocable 3 to 1, 4 to 1 and 5 to 1 X Type Solar Cable Assembly With CN40 ConnectorUS$ 6.5 - 8MOQ: 100 Sets
-
2in 1out Solar Y Branch Connector for Shunt Current 2 to 1 DC ConnectorUS$ 1 - 7.5MOQ: 20 Sets
-
Slocable PV1-F or EN50618 6mm2 and 4mm2 10cm Solar Cable With Solid Copper PV Connector 3to1 Wire AssemblyUS$ 6.96 - 7MOQ: 2 Pairs
Brand Name
Slocable
Place of Origin
Guangdong, China
Model Number
L type Cable Assembly
Slocable 1500V Panel 10AWG Solar Extension Cable With Connector
| Size |
Cross Section |
Connductor Structure | Outer Diameter |
Max.DC. Resistance (20°C) |
Rated Voltage | Rated Current |
| mm2 | mm | mm | Ω/Km | V | A | |
| 1*2.5mm2 | 2.5mm2 | 49*Ø0.25 | 5.4 | 8.06 | 1500 | 30 |
| 1*4mm2 | 4mm2 | 56* Ø0.285 | 6.1 | 4.97 | 1500 | 50 |
| 1*6mm2 | 6mm2 | 78* Ø0.30 | 6.4 | 3.52 | 1500 | 70 |
| 1*10mm2 | 10mm2 | 74*Ø0.40 | 7.3 | 2.12 | 1500 | 95 |
| Technical Data | |
|
Copper wire : 99.9% copper,tinned |
UV resistant |
| Insulation material : XLPE(XLPO) | High voltage and High current |
| Double walls insulated | Temperature range : -40°C+90°C |
| Halogen-free material | Color : Black / Red / Blue |
|
Flame test according to : DIN EN 50265-2-1 / UL 1571(VW-1) |
Smallest permissible Bending Radius : 5*D |
| Technical data | |
| Insulation material | PPO |
| Rated current | 50A |
| Rated voltage | 1500 V DC |
| Test voltage | 8KV(50HZ,1 min) |
| Contact resistance | < 0.5mΩ |
| Contact material |
Copper,Tinned |
| Degree of protection |
IP68 |
| Safety class | II |
| Overvoltage category/Pollution | CATIII/2 |
| Flame class | UL94-10 |
| Inserlation force | Max.50N |
| Withdrawal force | Min.50N |
| Ambient temperature range | -40 - +85 ºC |
