Slocable UV Resistance XLPE Twin Cores 4mm2 Electrical Cable Wire
Details of Electrical Cable Wire:
1. Dual wall insulation. Electron beam cross-linked
2. Excellent resistance to U.V, oil, greases, oxygen and ozone
3. Excellent resistance to abrasion
4. Halogen free, flame retardant,low toxicity
5. Excellent flexibility and stripping performance
6. High current carrying capacity
7. CE and TUV certificate
Technical Data of Electrical Cable Wire:
| Type | Cross Section | Strand Design | Conductor Diameter |
Conductor Resistance | Outer Diameter (AxB) | Rated Voltage | Rated Current |
| PV2x4mm2 | 4mm2 | 56xφ0.3mm | 2.6mm | 4.97Ω/Km | 6.90x11.30mm | 1000V | 50A |
We also produce 2x2.5mm2 and 2x6mm2 cables, as well as single cores cables,
you can consult me if necessary.
Wire: Copper (Class 5, tinned) |
UV resistance |
Insulation Material: XLPE |
High wear and abrasion resistance |
Double insulation |
Flame test according to: DIN EN 20265-2-1 UL1571(VW-1) |
Halogen-free |
Smallest permissible bending radius: 5 x D |
High resistance against oil, greases, oxygen and ozone |
Temperature range: -40℃ ~ +90℃ |
Microbe-resistant |
Colours: Black |

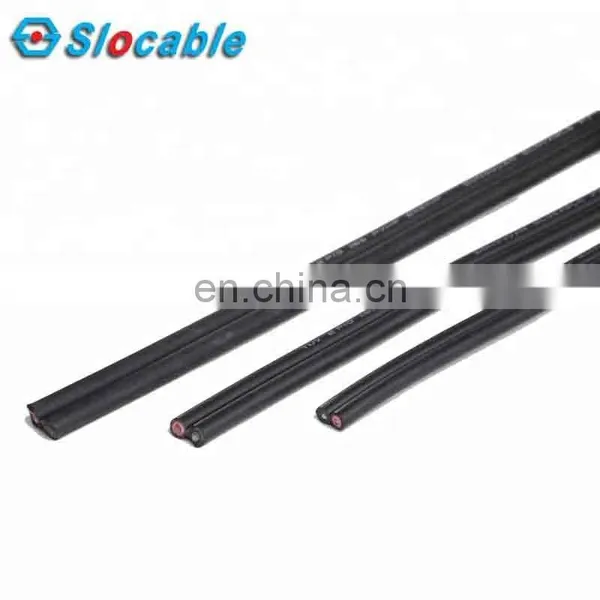

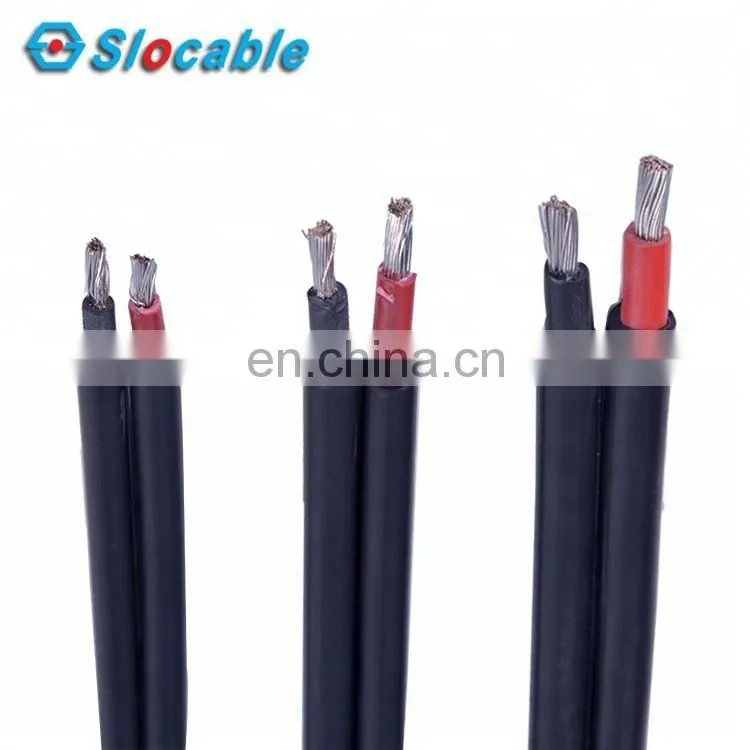

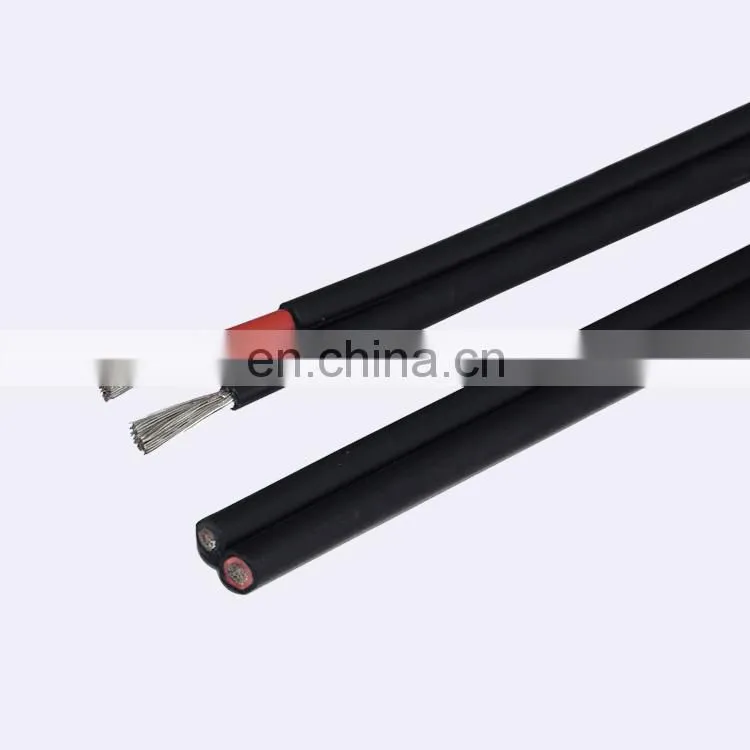

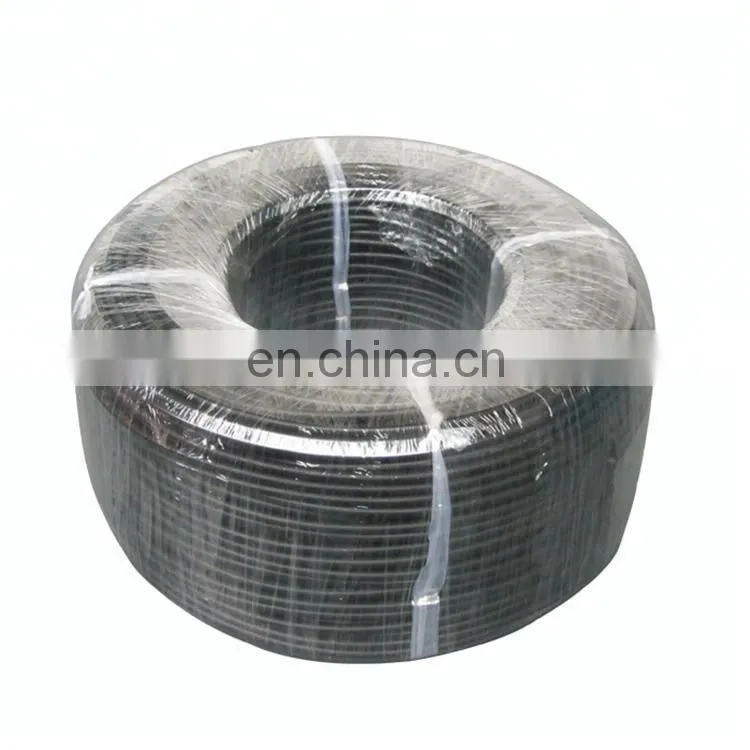

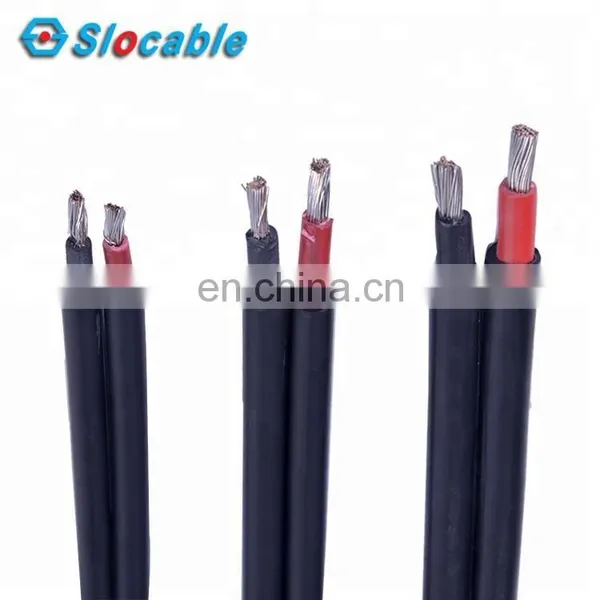

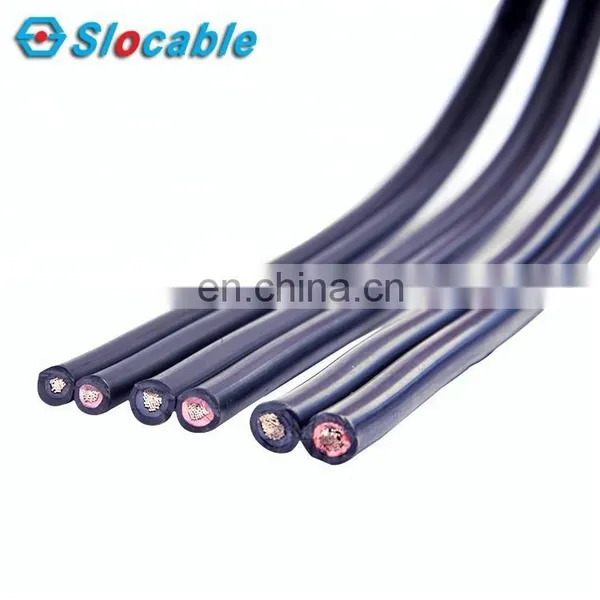

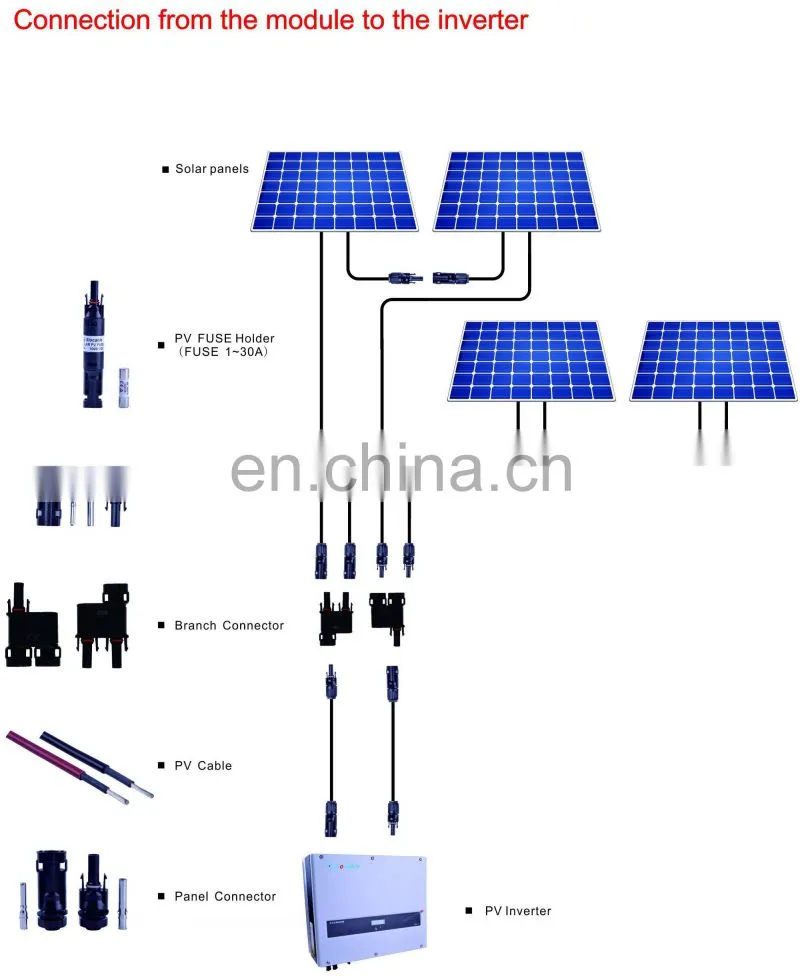

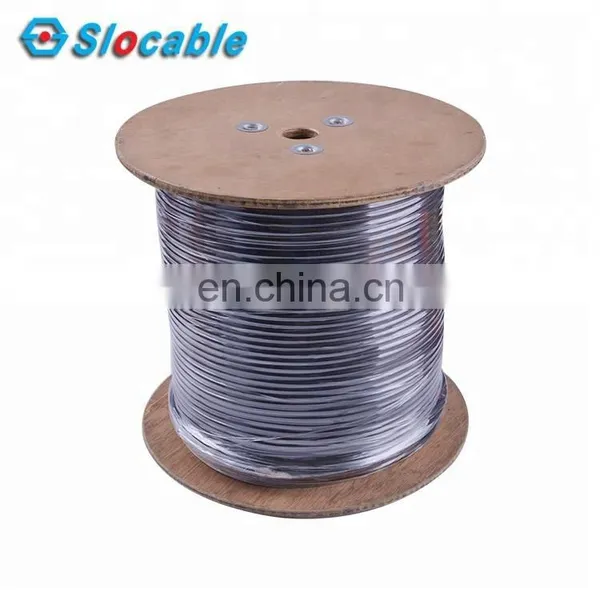

Pictures of Electrical Cable Wire:

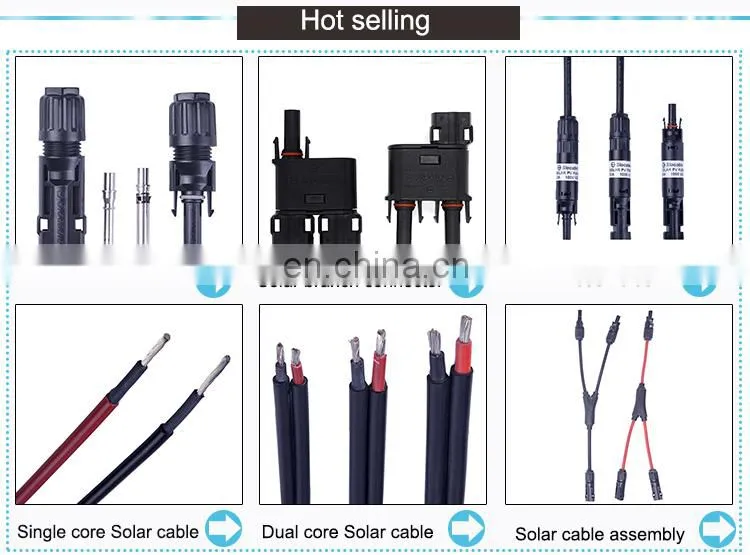

Click the following pictures to get more Slocable products:
IF any inquiry, do not hesitate to contact me!
