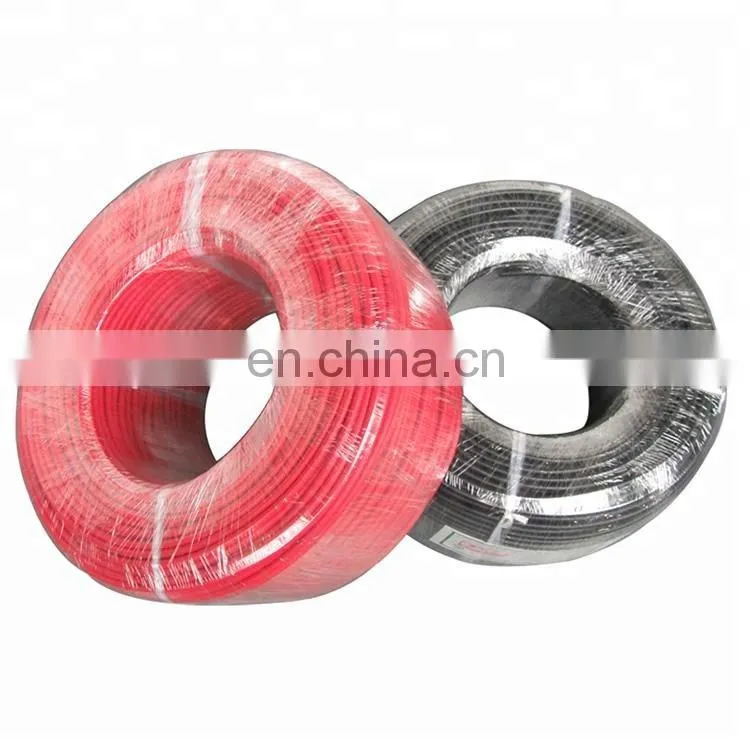

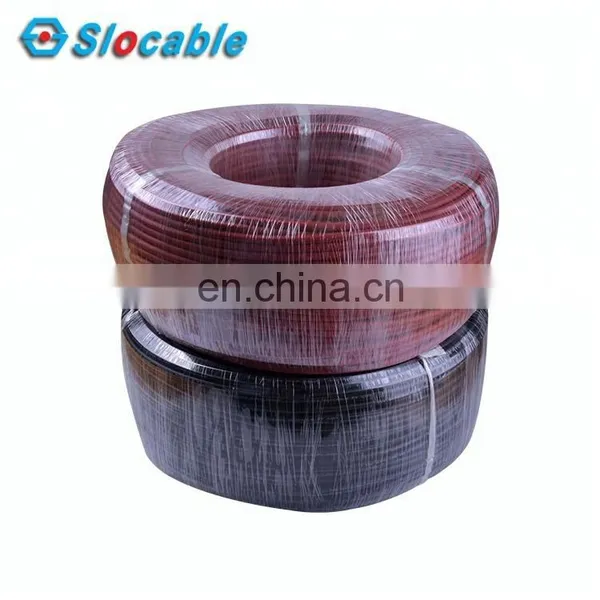

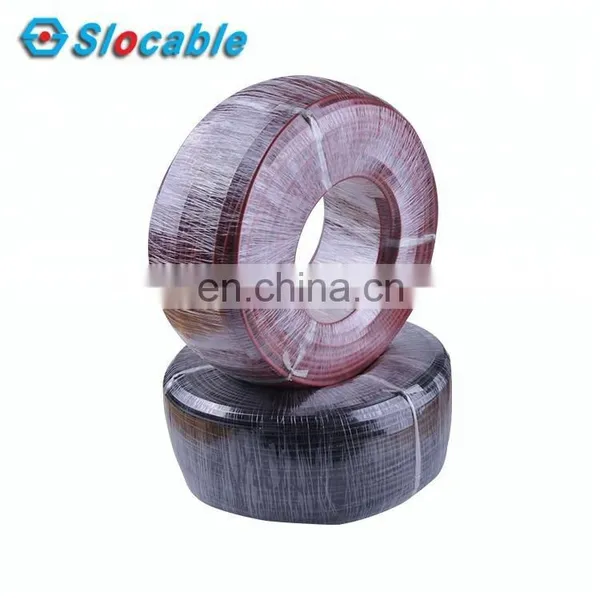

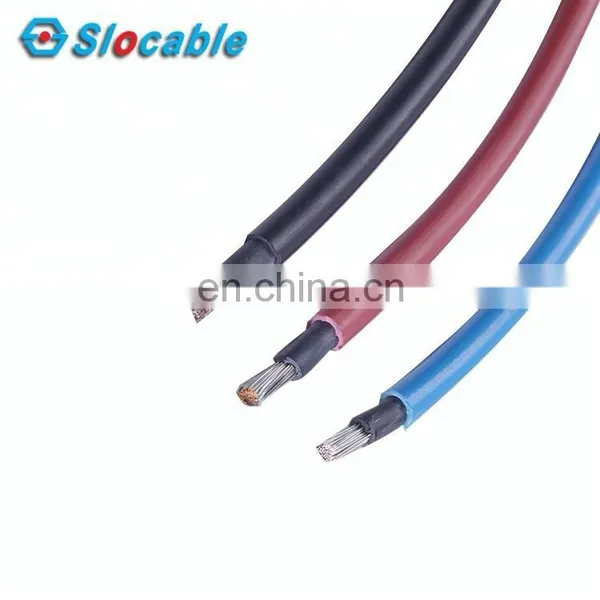

Slocable TUV approved solar power energy system pv solar cable dc 2.5mm2 scrap
1.Dual wall insulation,Electron beam cross-linked.
2.Excellent resistance to U.V,water,ozone,fluids,salt,general weathering
3.Excellent resistance to abrasion
4.Halogen free,flame retardant,low toxicity
5.High current carrying capacity
6.TUV approved
Solar cable PV solar cable Data sheet
Wire: Class 5,tinned |
UV resistant |
PE Insulation material: XLPE |
High wear and abrasion resistance |
Double insulated |
Flame test according to: DIN EN 50265-2-1 UL1571(VW-1) |
Halogen-free |
Smallest permissible Bending Radius : 5 x D |
High resistance against oil, greases, oxygen and ozone |
Temperature range: -40~+90 ℃ |
Microbe-resistant |
Colours: Black, Red |
Type |
Cross section |
Wire struct No.OD(mm) |
Conductor diameter |
Conductor diameter |
Conductor resistance |
Rated voltage |
Rated current |
mm2 |
No.OD(mm) |
mm |
mm |
Ω/Km |
V AC/DC |
A |
|
1x2.5mm2 |
2.5 |
48X0.25 |
2.0 |
5.3 |
8.06 |
1000/1800 |
30 |
1X4.0mm2 |
4.0 |
56X0.30 |
2.6 |
6.2 |
4.97 |
1000/1800 |
50 |
1X6.0mm2 |
6.0 |
81X0.30 |
3.3 |
7.2 |
3.52 |
1000/1800 |
70 |
1X10.0mm2 |
10.0 |
74X0.40 |
4.4 |
8.3 |
2.12 |
1000/1800 |
95 |
2X2.5mm2 |
2.5 |
48X0.25 |
2.0 |
5.40X10.90 |
8.06 |
1000/1800 |
30 |
2X4.0mm2 |
4.0 |
56X0.30 |
2.6 |
6.20x12.50 |
4.97 |
1000/1800 |
50 |
2X6.0mm2 |
6.0 |
81X0.295 |
3.3 |
7.10x14.30 |
3.52 |
1000/1800 |
70 |

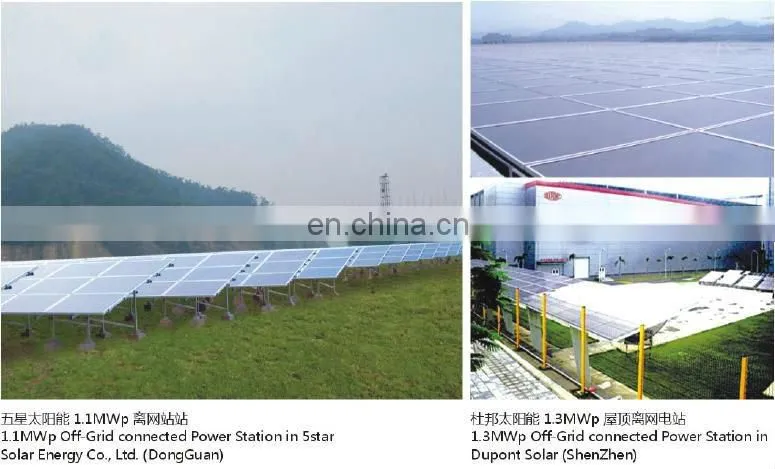

Application project:
