UV Resistance XLPE Dual Core 14 AWG 2.5mm2 Electrical Solar Cable
- 2000000 Meter / Meters per Month
- Shenzhen
- T/T Credit Card
- Slocable Solar Wire Twin Core 12AWG PV Solar Cable 2 x 4 mm2
- High Voltage 6mm2 Copper Wire PV 1000V/1500V Solar Cable
- 2 PfG 1169 PV1F Solar Cable Single Core 1x2.5mm2 Wire for PV
- Slocable Photovoltaic 95A DC Solar Wire Single Core 10mm2 Cable for Solar System
- High Voltage Solar Tracker Copper Wire 10AWG 6mm2 1000V 1500V PV Cable
- Slocable Photovoltaic DC 132A 1000V 1500V Single Core Solar Cable 16mm2
Product Details
Brand Name: | Slocable | Place of Origin: | Guangdong, China | Model Number: | CA202B--PE |
Type: | High Voltage | ||||
Jacket: | PE | Conductor Material: | Copper |
Product Description
solar cable 6mm
UV Resistance XLPE Dual Core 14 AWG 2.5mm2 Electrical Solar Cable
Advantages for Electrical Solar Cable
|
Technical Data of Electrical Solar Cable
Type | Cross Section |
Conductor Diameter |
Conductor Resistance |
Outer Diameter A x B |
Rated Voltage | Rated Current | Strand Design |
mm2 | mm | Ω/km | mm | V DC | A | NO.x φ(mm) | |
PV-2*2.5mm2 | 2.5 | 2.0 | 8.06 | 6.20 x 9.90 | 1500 | 30 | 48* φ0.25 |
(We also produce twin core of 4mm2, 6mm2, as well as single core,
please consult me directly if necessary)

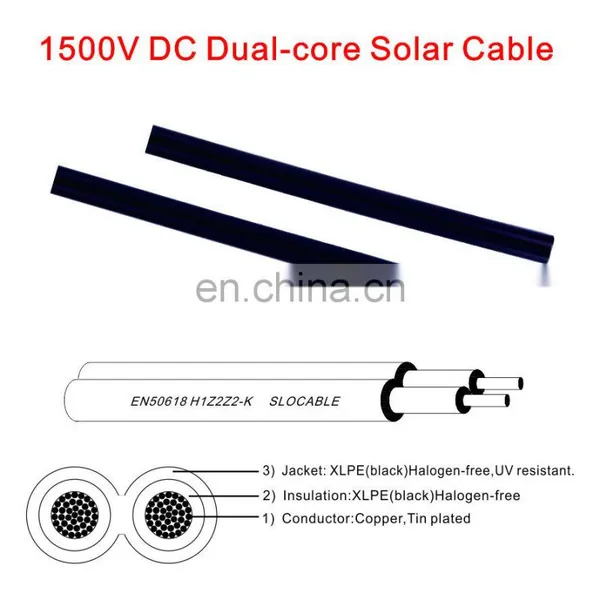

Wire: Copper (Class 5, tinned) |
UV resistance |
Insulation material:XLPE |
High wear and abrasion resistance |
Double insulated |
Flame test according to: DIN EN 50265-2-1 UL1571(VW-1) |
Halogen-free |
Smallest permissible bending radius: 5 x D |
High resistance against oil, greases, oxygen and ozone |
Temperature range: -40~+90℃ |
Microbe-resistant |
Colours: Black, Red |

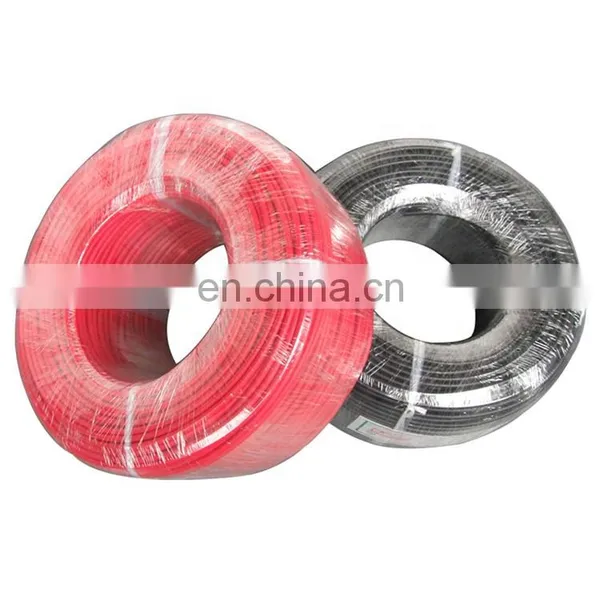

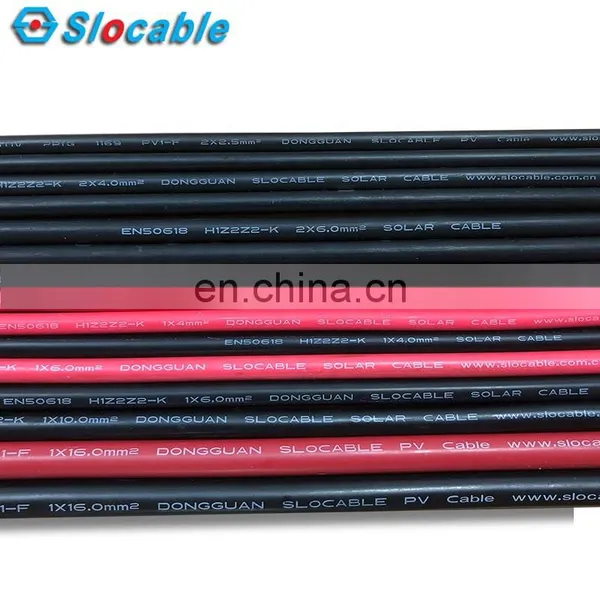

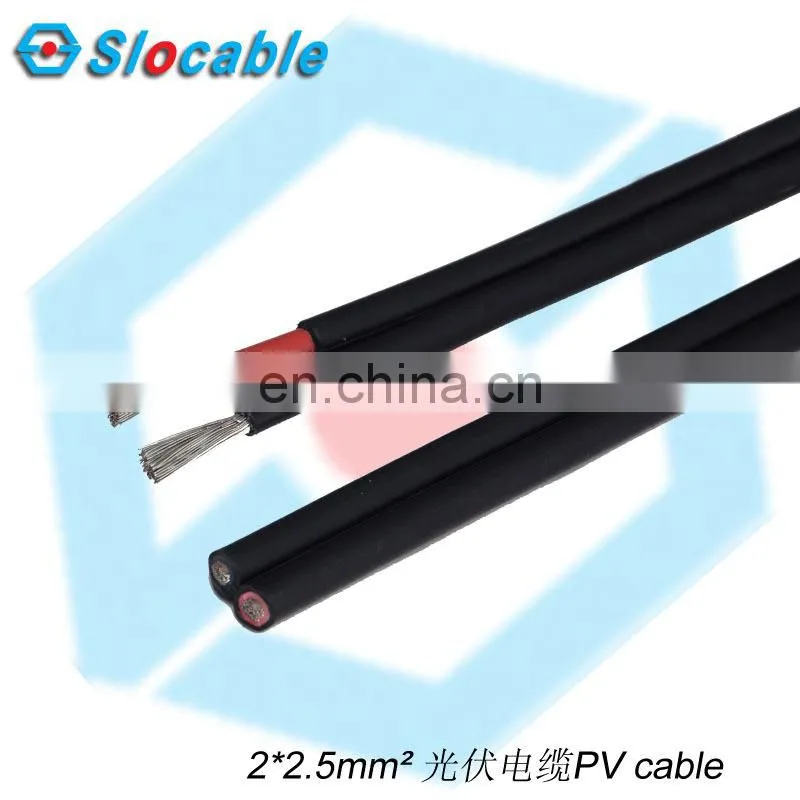

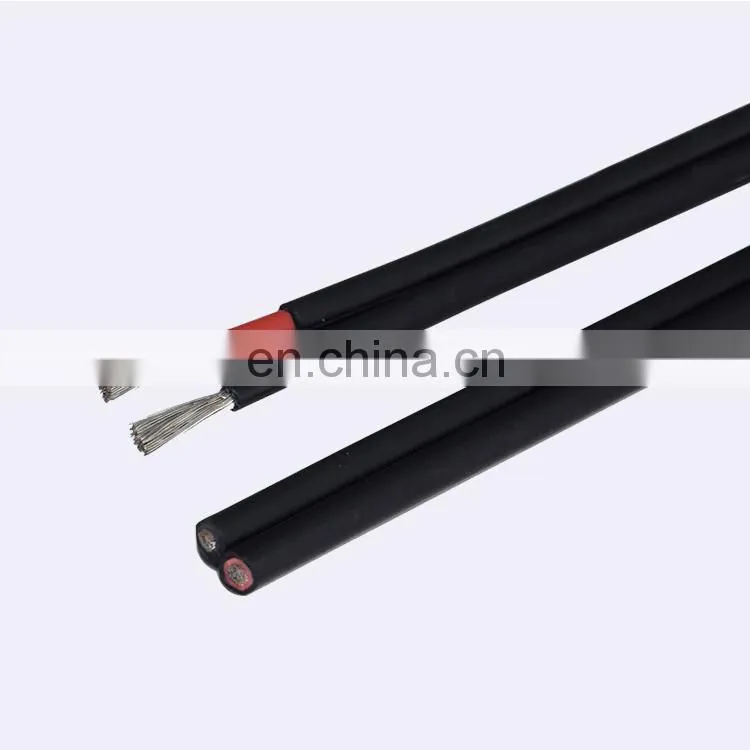

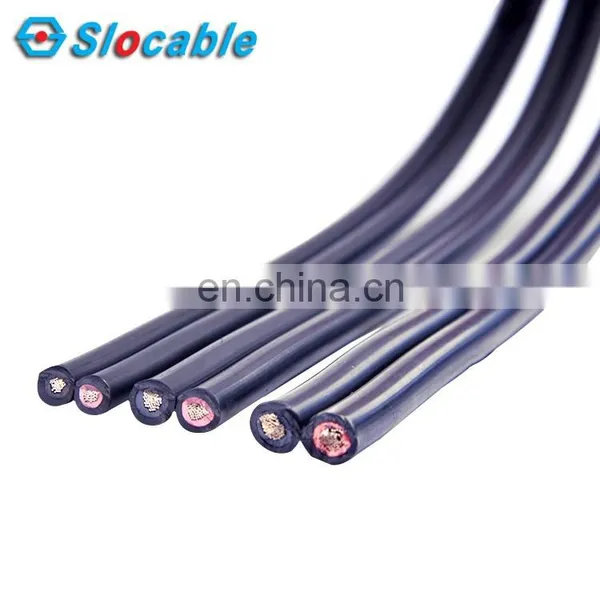

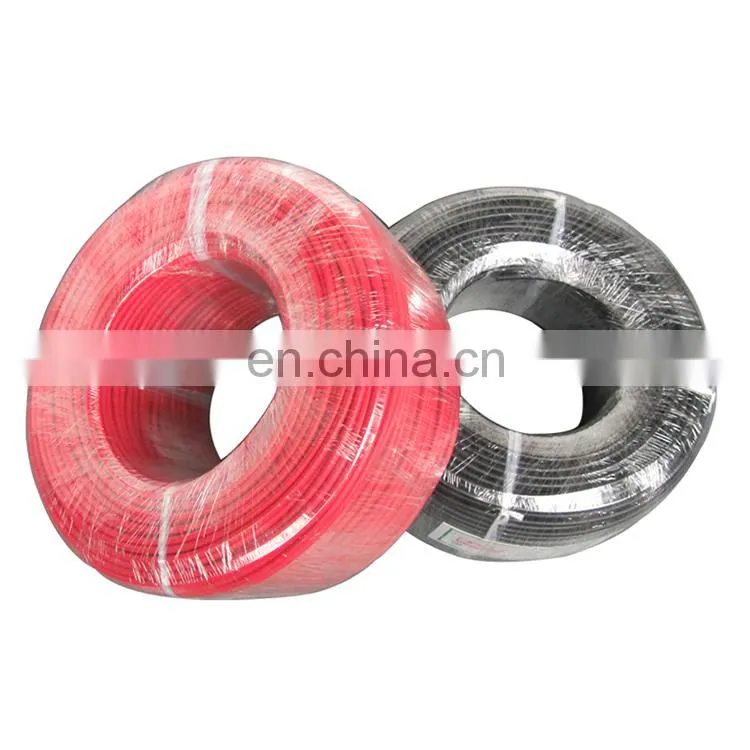

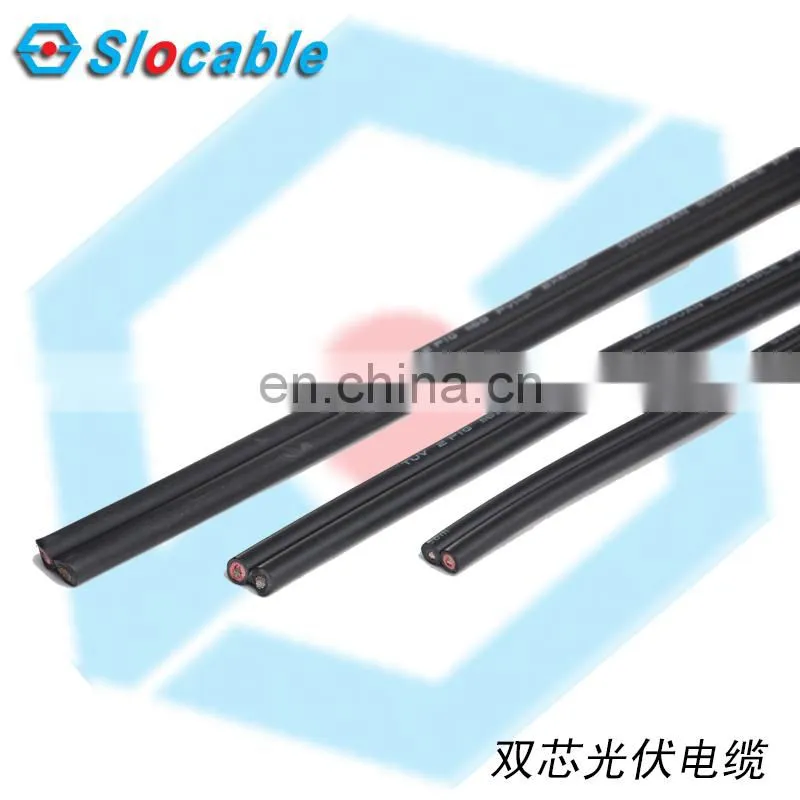

Pictures of Electrical Solar Cable
