Slocable 1000V High Voltage Solar Cables for PV Combiner Box and Solar Panel
solar ca
Advantages of Solar Cable
1. Dual wall insulation. Electron beam cross-linked
2. Excellent resistance to U.V, oil, greases, oxygen and ozone
3. Excellent resistance to abrasion
4. Halogen free, flame retardant, low toxicity
5. Excellent flexibility and stripping performance
6. High current carrying capacity
7. CE, ISO, TUV approval

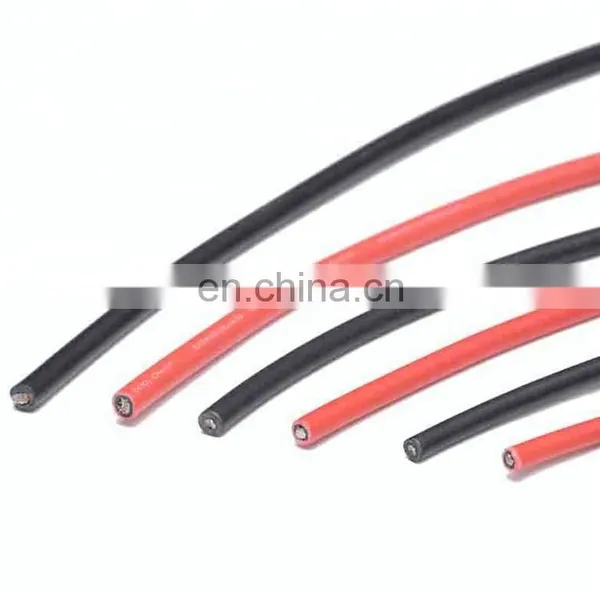

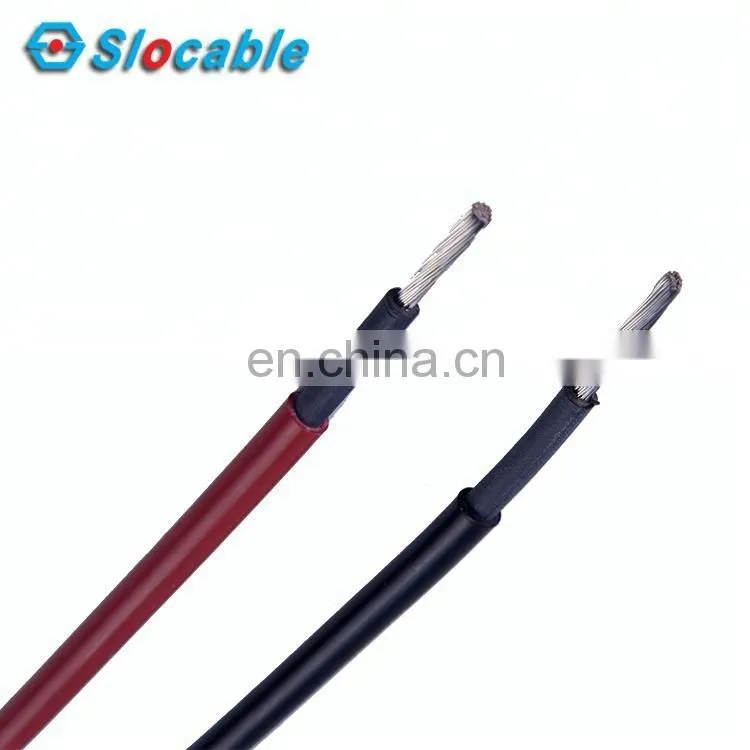

Single Core Solar Cable

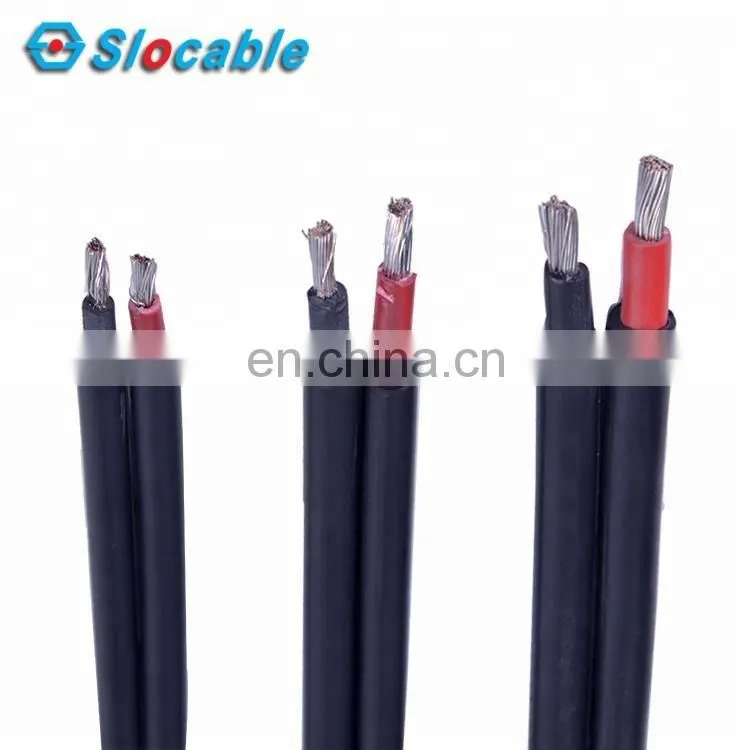

Dual Cores Solar Cable
TYPE |
Cross Section |
Wire Strand |
Conductor Diameter |
Outer Diameter |
Conductor Resistance |
Rated Voltage |
Rated Current |
mm2 |
No.OD (mm) |
mm |
mm |
Ω/Km |
V DC |
A |
|
1X2.5mm2 |
2.5 |
48XΦ0.25 |
2.0 |
5.2 |
8.06 |
1000 |
30 |
1X4.0mm2 |
4.0 |
56XΦ0.30 |
2.6 |
6.2 |
4.97 |
1000 |
50 |
1X6.0mm2 |
6.0 |
81XΦ0.30 |
3.3 |
7.2 |
3.52 |
1000 |
70 |
1X10mm2 |
10 |
74XΦ0.40 |
4.4 |
7.8 |
2.12 |
1000 |
95 |
2X2.5mm2 |
2.5 |
48XΦ0.25 |
2.0 |
6.2*9.90 |
8.06 |
1000 |
30 |
2X4.0mm2 |
4.0 |
56XΦ0.30 |
2.6 |
6.9*11.30 |
4.97 |
1000 |
50 |
2X6.0mm2 |
6.0 |
81XΦ0.30 |
3.3 |
7.1*14.50 |
3.52 |
1000 |
70 |
Technical Data of Solar Cable
Certificate |
CE, TUV, ISO |
Wire |
Copper, (Class5, tinned) |
Insulation Material |
XLPE |
Rated Voltage |
DC 1000V |
Cores |
1-2 cores |
Standard |
TUV 2PfG 1169 |
Temperature Range |
-40℃ ~ +90°C |
Flame Test standard |
DIN EN50265-2-1 UL 1571(VW-1). |
Smallest Permissible Bending Radius |
5*D |
Colors |
Black / Red / Blue |

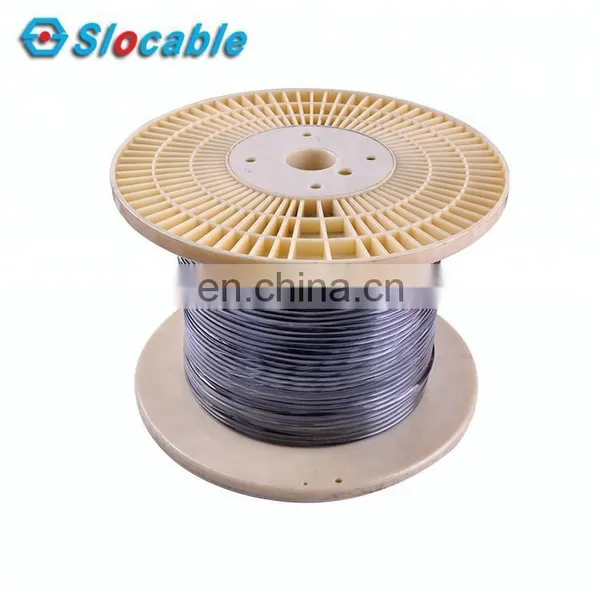

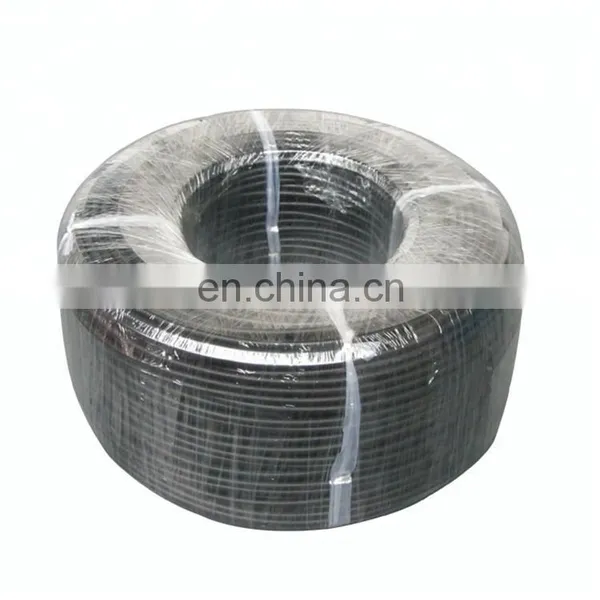

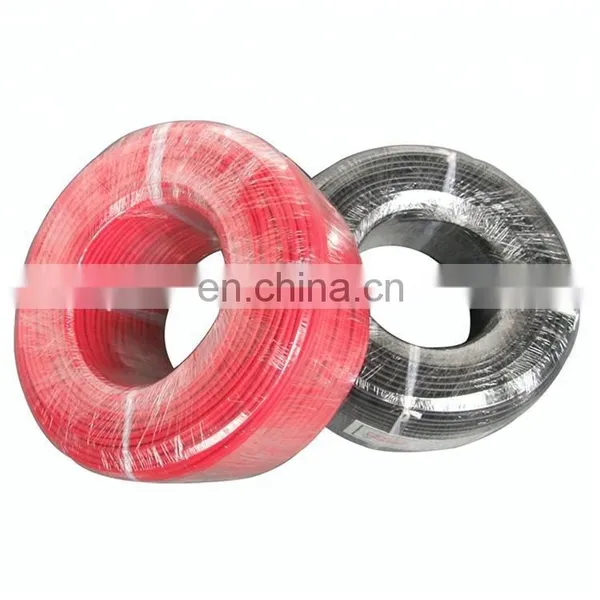

Packing of solar cable |
100 meter/roll for small size, wooden drum for big size, or as per requirement |
Delivery Time |
According to the order (3-15 Working days) |
Application of solar cable |
These cables are used for solar power plant and solar energy power station. |

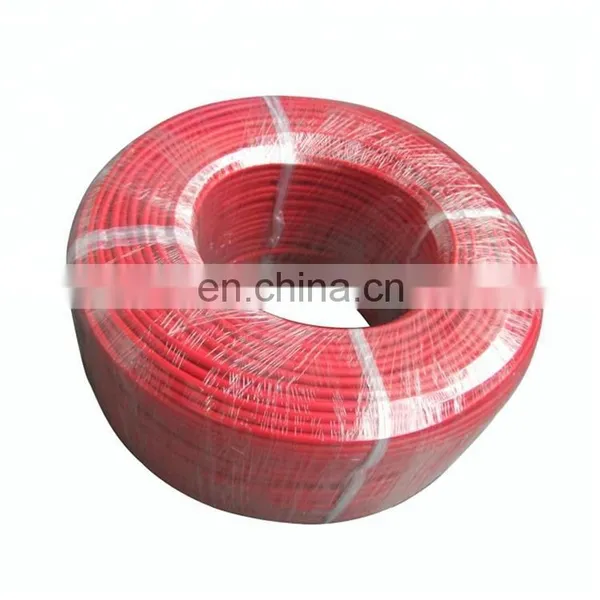

Pictures of Solar Cable
Dongguan Slocable Photovoltaic Technology Co., Ltd
IF any inquiry, please do not hesitate to contact us!
