Home > Products > Outdoor Snow Melting > Outdoor Snow Melting 12-380v ice mat

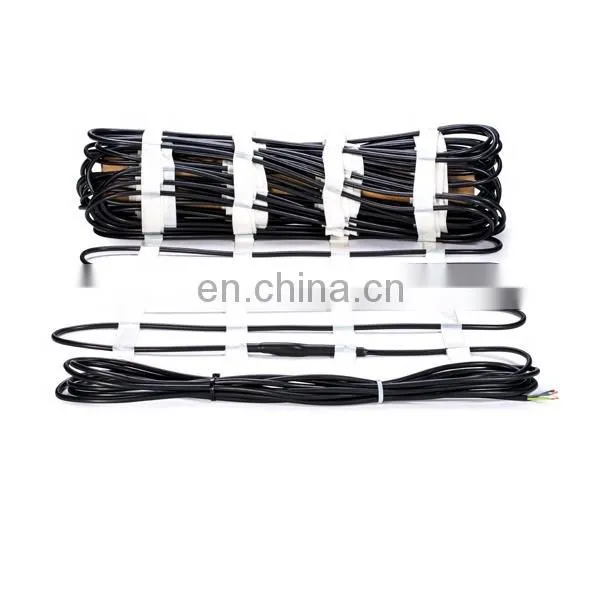

Outdoor Snow Melting 12-380v ice mat
- 10000 Square Meter / Square Meters per Month
- Shanghai or any port in China
- T/T Credit Card
-
Ev charging cable 25mm2 --- 70mm2 Orange 1000/1500V Double insulated HV cable electric vehicle shielded cable
-
HDMI CABLE
-
PTC temperature sensing wire, pvc double insulation.
-
UL1285 PVC or silicone rubber spiral heating wire
-
PE outer layer black 2.5mm aluminum core or Galvanized steel wire electric fence underground cable
-
High quality Copper Conductor Flexible PVC RVVP Control Cable
Product Details
| Brand Name: | Youyu | Place of Origin: | Anhui, China | Model Number: | Customized |
| Application: | Road melting |
Product Description
Low Price Outdoor Snow Melting Heat Mats
Product Dispaly
Single conductor heating cable | Twin conductor heating cable |
| 1.Nickel alloy wire | 1.Nickel alloy wire |
| 2.8 tinned copper wire | 2.8 tinned copper wire |
| 3.Cross-linked PE insulation | 3.Cross-linked PE insulation |
| 4.Armored shield | 4.Armored shield |
5.PVC jacket | 5.PVC jacket |
Product Application
The single-conductor industrial heating system assembly use an implicit connector, the core of the industrial heating system is composed of a hot-cold wire, and the outside is made up of an insulating layer, a earth wire, a shielding layer and a sheath layer.After the industrial heating system is energized, the heating wire generates heat, running between the temperature 40-60 ℃, buried in the filler layer of industrial heating system, through the way of heat conduction and far-infrared radiation to the heated body.Twin conductor industrial heating system with implicit connector, industrial heating system core by the cold and hot cable, the outside by the insulation layer, earth wire, shielding and outer sheath composition. After the industrial heating system is energized, the heating wire generates heat and runs at a temperature between 40 and 60 degrees. The industrial heating system embedded in the filling layer will be transmitted to the heating body through heat conduction and far-infrared radiation. Twin conductor industrial heating system is mainly used for floor heating, soil heating, snow melting , livestock breeding.
Installation Steps
Technical Parameter
TXLP/1single conductor industrial heating system 220V 18.5W/M
| Power(W) | Type | Voltage(V) | Standard Length(m) | Power /Per Meter(W/M) | Resistance(Ω) |
3150 | TXLP/1/18.5 | 220 | 170.3 | 18.5 | 15.4 | |
3000 | TXLP/1/18.5 | 220 | 162 | 18.5 | 16.1 | |
2800 | TXLP/1/18.5 | 220 | 151.4 | 18.5 | 17.3 | |
2600 | TXLP/1/18.5 | 220 | 140.5 | 18.5 | 18.6 | |
2400 | TXLP/1/18.5 | 220 | 129.7 | 18.5 | 20.2 | |
2200 | TXLP/1/18.5 | 220 | 118.9 | 18.5 | 22.0 | |
2000 | TXLP/1/18.5 | 220 | 108.1 | 18.5 | 24.2 | |
1760 | TXLP/1/18.5 | 220 | 95.1 | 18.5 | 27.5 | |
1600 | TXLP/1/18.5 | 220 | 86.5 | 18.5 | 30.3 | |
1400 | TXLP/1/18.5 | 220 | 75.7 | 18.5 | 34.6 | |
1200 | TXLP/1/18.5 | 220 | 64.9 | 18.5 | 40.3 | |
1000 | TXLP/1/18.5 | 220 | 54.1 | 18.5 | 48.4 | |
850 | TXLP/1/18.5 | 220 | 45.9 | 18.5 | 56.9 | |
700 | TXLP/1/18.5 | 220 | 37.8 | 18.5 | 69.1 | |
600 | TXLP/1/18.5 | 220 | 32.4 | 18.5 | 80.7 | |
500 | TXLP/1/18.5 | 220 | 27.0 | 18.5 | 96.8 | |
400 | TXLP/1/18.5 | 220 | 21.8 | 18.5 | 121.0 | |
300 | TXLP/1/18.5 | 220 | 16.2 | 18.5 | 161.3 |
TXLP/2twin conductor industrial heating system 220V 17W/M
| Power(W) | Type | Voltage(V) | Standard Length(M) | Power /Per Meter(W/M) | Resistance(Ω) |
3300 | TXLP/2/17 | 220 | 194.1 | 17 | 14.7 | |
2800 | TXLP/2/17 | 220 | 164.7 | 17 | 17.3 | |
2600 | TXLP/2/17 | 220 | 152.9 | 17 | 18.6 | |
2400 | TXLP/2/17 | 220 | 141 | 17 | 20.2 | |
2100 | TXLP/2/17 | 220 | 123.5 | 17 | 23.0 | |
1700 | TXLP/2/17 | 220 | 100.0 | 17 | 28.6 | |
1370 | TXLP/2/17 | 220 | 80.6 | 17 | 35.3 | |
1250 | TXLP/2/17 | 220 | 73.5 | 17 | 38.7 | |
1000 | TXLP/2/17 | 220 | 58.8 | 17 | 48.4 | |
840 | TXLP/2/17 | 220 | 49.4 | 17 | 57.6 | |
700 | TXLP/2/17 | 220 | 41.2 | 17 | 68.1 | |
600 | TXLP/2/17 | 220 | 35.3 | 17 | 80.7 | |
500 | TXLP/2/17 | 220 | 29.4 | 17 | 96.8 | |
400 | TXLP/2/17 | 220 | 23.5 | 17 | 121.0 | |
300 | TXLP/2/17 | 220 | 17.6 | 17 | 161.3 |
Product Structure | Technical Data | Product Structure | Technical Data |
Out Jacket | PVC | Outside Diameter | 7.5*6.5mm |
Earth Wire | Tinned Copper Wire | Rated Voltage | 220V(customize) |
Shield | Copper Foil + Copper Wire | Power Output | 17w/m (customize) |
Conductor | Alloy Resistance Wire | Cold Length | 2.25m |
Conductor Insulation | XLPE | Max Surface Temperature | 65℃ |
Connector | Injection Connector | Min Bending Coefficient | 5D |
| 1. How much electricity is consumed per hour? |
| Consider an average room size of 100m2 . The heated area is approximately 80%, or 80m2 . |
| In the case of the 150W mats, when the heater is ON, the hourly consumption is 1500W times 80m2. |
| When the recommended thermostat is turned on, take 100m2 as an example. The room is filled with heat about 20min~30min, which is between 450W and 750W. Of course, the specific cost depends on your electricity consumption and electricity unit price. |
| 2. Do I use insulation materials? |
| We recommend that you use insulation materials. On the one hand, it is for your safety considerations, on the other hand, because it can lock the heat, the preheating will be faster, and the power consumption will be reduced. |
| 3. Is it safe to use in a humid place? |
| Yes, our products are of high quality and have a grounding wire. |
| 4. How long is the warranty time? |
| 25 years for heating cable & heating mat. |
| 2 years for for constant wattage/self-regulating heating cable and thermostats. |
| 5. Can I crop it? |
| Yes, you can crop the grid |
| 6. What is the thickness of the cable? |
| The cable is 3.5mm thick. |
