Help CenterHot Dip Galvanised Steel Electrical Conduit IMC
Related Products
-
Galvanized Carbon Steel Coupling With UL ListedUS$ 0.99 - 0.99MOQ: 3000 Pieces -
Hot di Galvanized IMC ConduitUS$ 600 - 800MOQ: 20 Metric Tons
-
Electrical Conduit UL1242US$ 600 - 800MOQ: 20 Metric Tons
-
IMC Conduit PipesUS$ 600 - 800MOQ: 50 Metric Tons
-
UL1242 Listed Electrical Intermediate Metal Conduit IMCUS$ 600 - 800MOQ: 10 Metric Tons
1.Standard:UL1242 & ANSI C80.6
2.Tade Size : from 1/2” to 4”
3.Length: 3050mm or according to customer’s requirement
4.Both ends: threaded both ends with one coupling and plastic cap
5.Usage: through the electrical wires with the purpose of protection for the electrical raceway system
6.Surface finished: Hot dip galvanized(HDG).
7.Material : carbon steel coil

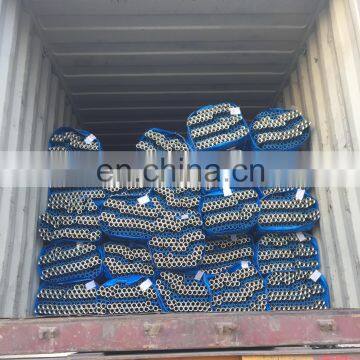

8.Package: the conduits coverd with pvc paper then tied with steel straps
9.Delivery time: 20 to 30 days after we receive your advance payment or copy of L/C
10.Payment Term: L/C at sight or T/T
Dimension and Weight Chart
|
Trade Size |
Nominal Wt. per 100Ft(30.5M) |
Nominal Outside Diameter |
Nominal Wall Thickness |
||||
|
U.S. |
Metric |
Lbs |
Kg |
In. |
mm |
In. |
mm |
|
1/2 |
16 |
62 |
28.1 |
0.815 |
20.70 |
0.070 |
1.79 |
|
3/4 |
21 |
84 |
38.1 |
1.029 |
26.13 |
0.075 |
1.90 |
|
1 |
27 |
119 |
54.0 |
1.290 |
32.76 |
0.085 |
2.16 |
|
1-1/4 |
35 |
158 |
71.7 |
1.638 |
41.60 |
0.085 |
2.16 |
|
1-1/2 |
41 |
194 |
88.0 |
1.883 |
47.82 |
0.090 |
2.29 |
|
2 |
53 |
256 |
116.1 |
2.360 |
59.94 |
0.095 |
2.41 |
|
2-1/2 |
63 |
441 |
200.0 |
2.857 |
72.56 |
0.140 |
3.56 |
|
3 |
78 |
543 |
246.3 |
3.476 |
88.29 |
0.140 |
3.56 |
|
3-1/2 |
91 |
629 |
285.3 |
3.971 |
100.86 |
0.140 |
3.56 |
|
4 |
103 |
700 |
317.5 |
4.466 |
113.43 |
0.140 |
3.56 |
Applicable tolerances:
Length: 10Ft (3.05m) ± ¼” (±6.35mm).
Outside Diameter: ½”-1” ±0.005” (±0.13mm); 1¼-”-2” ±0.0075” (±0.19mm);2½”-4” ±0.10” (±0.25mm);
Wall thickness tolerances: ½-”-2” ±0.15” (±0.38mm);2½”-4” ±0.20” (±0.51mm)
