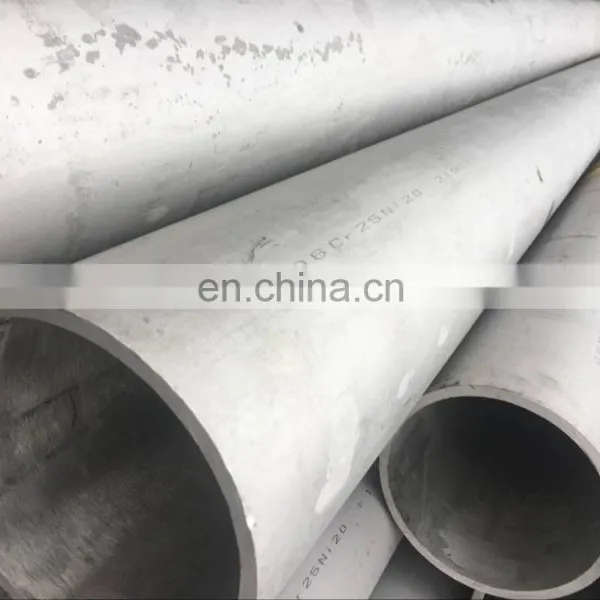

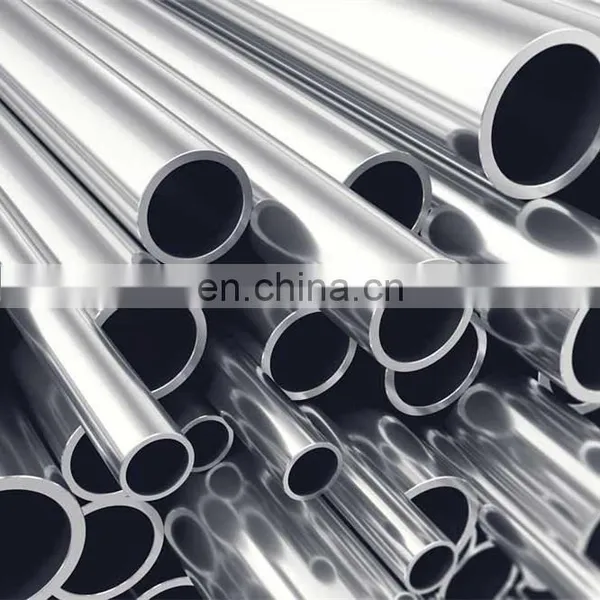

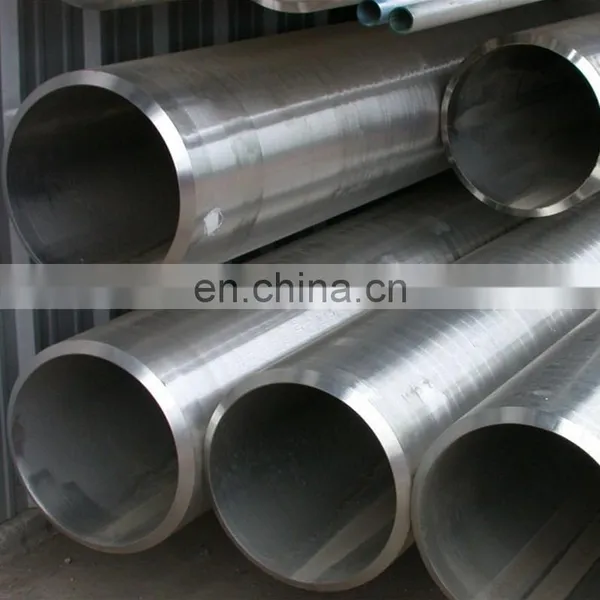

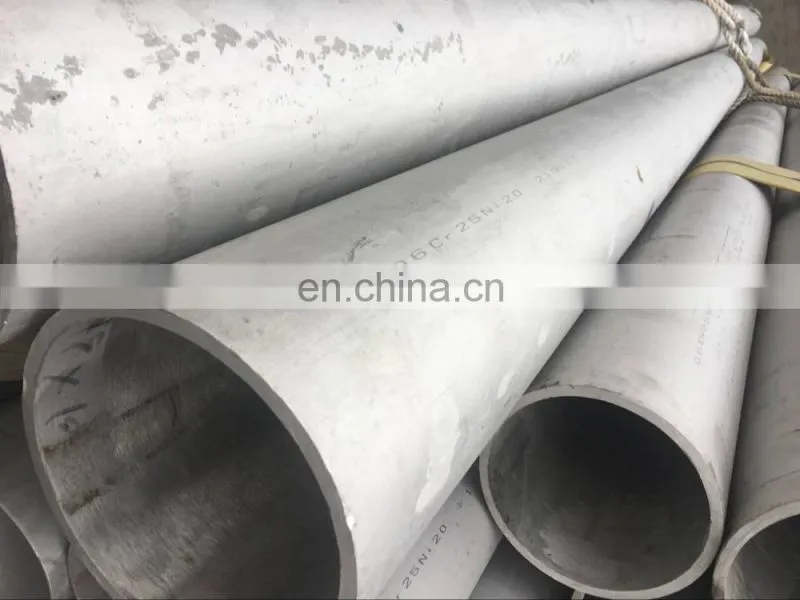

Help CenterMaterial No 1.4571 AISI SA312 316Ti Stainless Steel Seamless Pipe SS TP316Ti
Related Products
-
High Pressure ASME SA335 P11 Chrome Moly Alloy Seamless Tube for BoilerUS$ 900 - 1,350MOQ: 5 Tons -
ASME SA213 GR.T22 Rifled Pipe/P91 Ribbed Steel Boiler TubeUS$ 1,250 - 3,150MOQ: 5 Tons
-
High Pressure Boiler Rifled Tube,Ribbed Pipe,Internal Thread PipeUS$ 1,250 - 3,150MOQ: 5 Tons
-
Internal Thread High Pressure Boiler Pipe With Multi Rifled RibsUS$ 790 - 3,150MOQ: 5 Tons
-
JIS G3445 Cold Drawn Precision Seamless Tube STKM13C for Auto PartsUS$ 900 - 1,250MOQ: 25 Tons
ASTM A312 TP316Ti, ASTM A312 uns S31635, ASME SA312 TP316Ti, 316Ti Stainless Steel Pipe Supplier, Stainless Steel 316Ti Square Pipe, SS 316Ti Rectangular Pipe, SS 316Ti Pipe Supplier, Stainless Steel 316Ti Electropolished Pipe, 316Ti Stainless Steel Exhaust Pipe.
316Ti (UNS S31635) is a titanium stabilised version of 316 molybdenum-bearing austenitic stainless steel. The 316 alloys are more resistant to general corrosion and pitting/crevice corrosion than the conventional chromium-nickel austenitic stainless steels such as 304. They also offer higher creep, stress-rupture and tensile strength at elevated temperature. High carbon Alloy 316 stainless steel can be susceptible to sensitisation, the formation of grain boundary chromium carbides at temperatures between approximately 900 and 1500°F (425 to 815°C) which can result in intergranular corrosion. Resistance to sensitisation is achieved in Alloy 316Ti with titanium additions to stabilise the structure against chromium carbide precipitation, which is the source of sensitisation. This stabilisation is achieved by an intermediate temperature heat treatment, during which the titanium reacts with carbon to form titanium carbides. This significantly reduces susceptibility to sensitisation in service by limiting the formation of chromium carbides. Thus, the alloy can be used for extended periods at elevated temperatures without compromising its corrosion resistance. 316Ti has equvilent corrosion resistance to sensitisation as the low carbon version 316L.
Typical Applications of 316Ti Stainless steel pipe:
Chemical processes
High temperature
Automotive
Control lines
Typical manufacturing specifications
ASTM A213
BS EN 10216 part 5
Also individual customer specifications.
Industries predominantly using this grade
Chemical processes
Oil and Gas
Automotive
Stainless Steel 316L, 316Ti, 316H Pipes and Stainless Steel 316L Tubes Specification and Inventory:
Outside Diameter: 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock, OD Size Steel Tubes available Ex-stock
Thickness Range: 0.3mm – 50 mm, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS
Type: Seamless / ERW / Welded / Fabricated / CDW

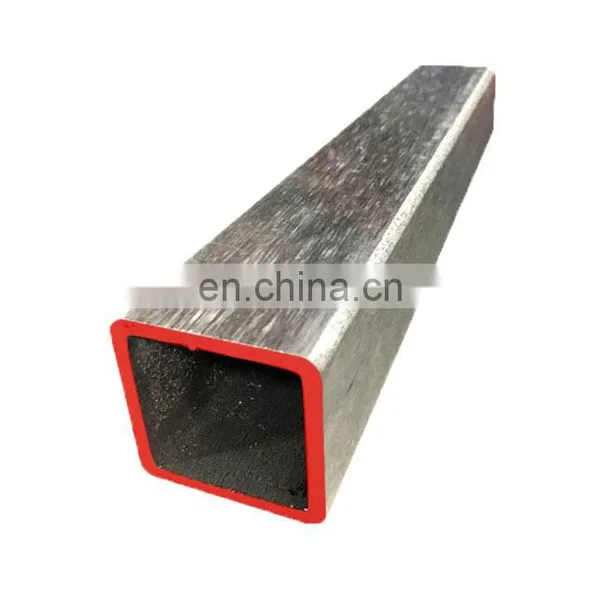

Form: Round Pipes/Tubes, Square Pipes/Tubes, Rectangular Pipe/Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tubes
Length: Single Random, Double Random & Required Length End: Plain End, Beveled End, Treaded

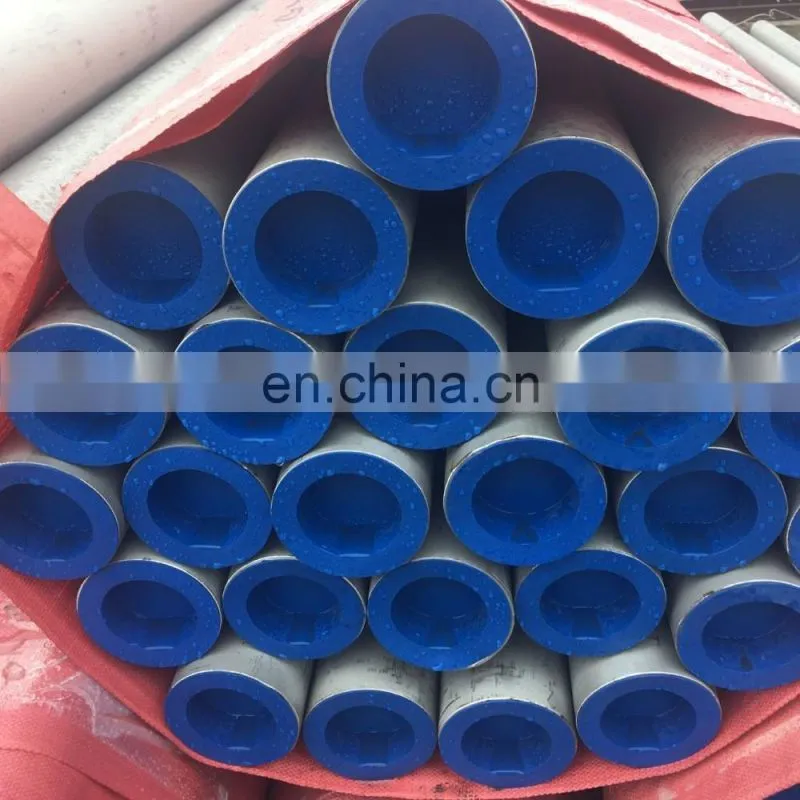

End Protection: Plastic Caps | Outside Finish: 2B, No.4, No.1, No.8 Mirror Finish for Stainless Steel Pipes, Finish as per customer Requirements
Delivery Condition: Annealed and Pickled, Polished, Bright Annealed, Cold Drawn
Inspection, Test Reports: Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports, Destructive Test Report, Non Destructive Test Reports
Packing: Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests
Specials: Sizes and Specifications other than above can be manufactured on request
