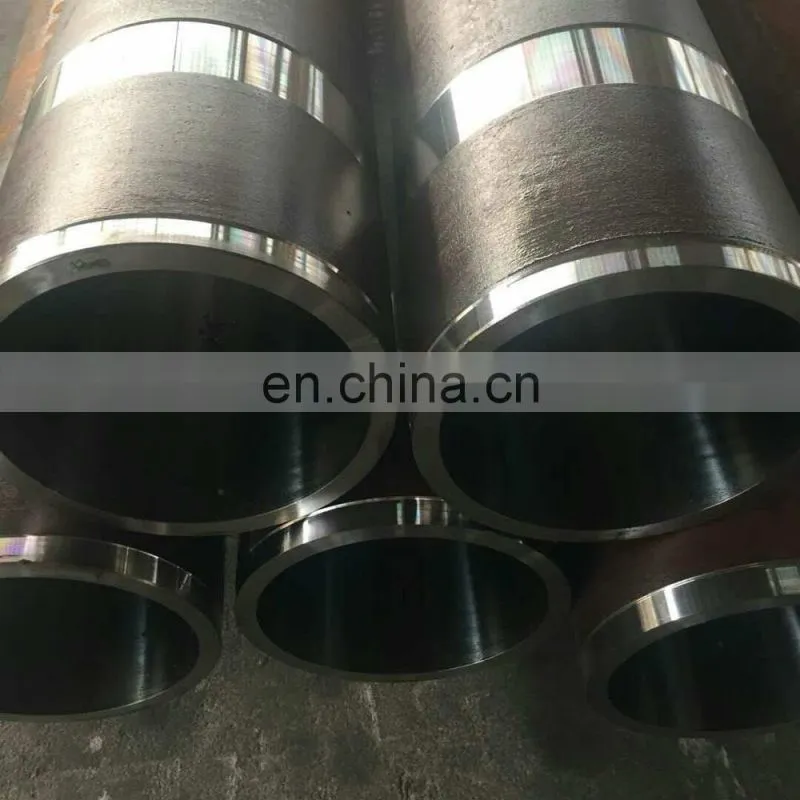

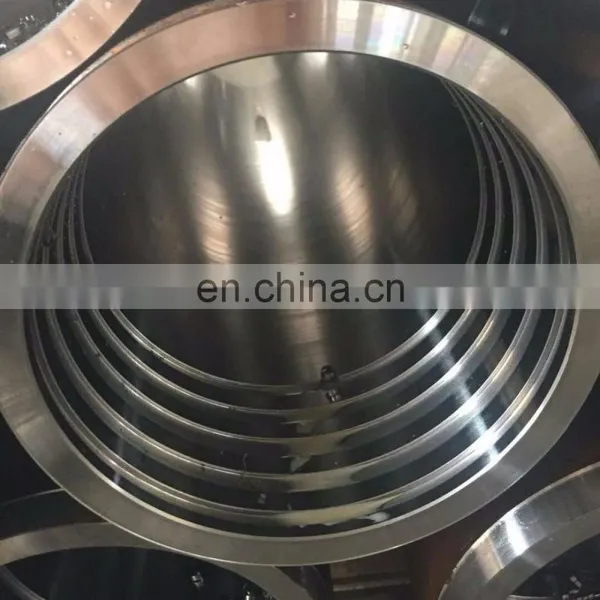

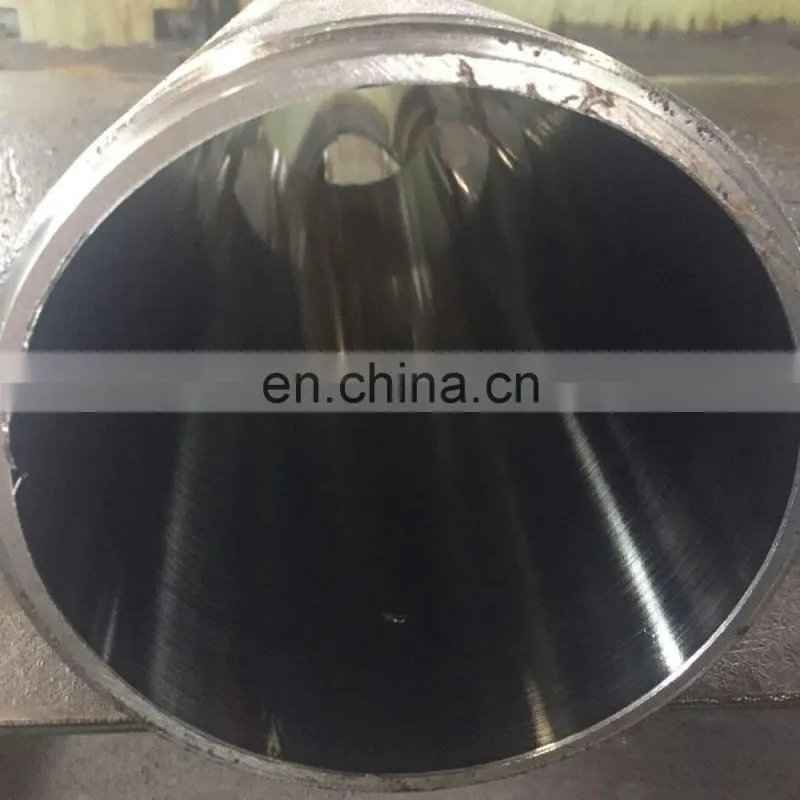

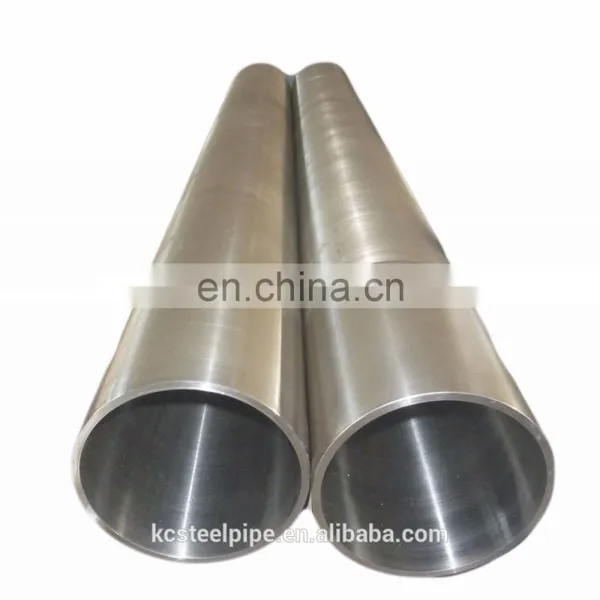

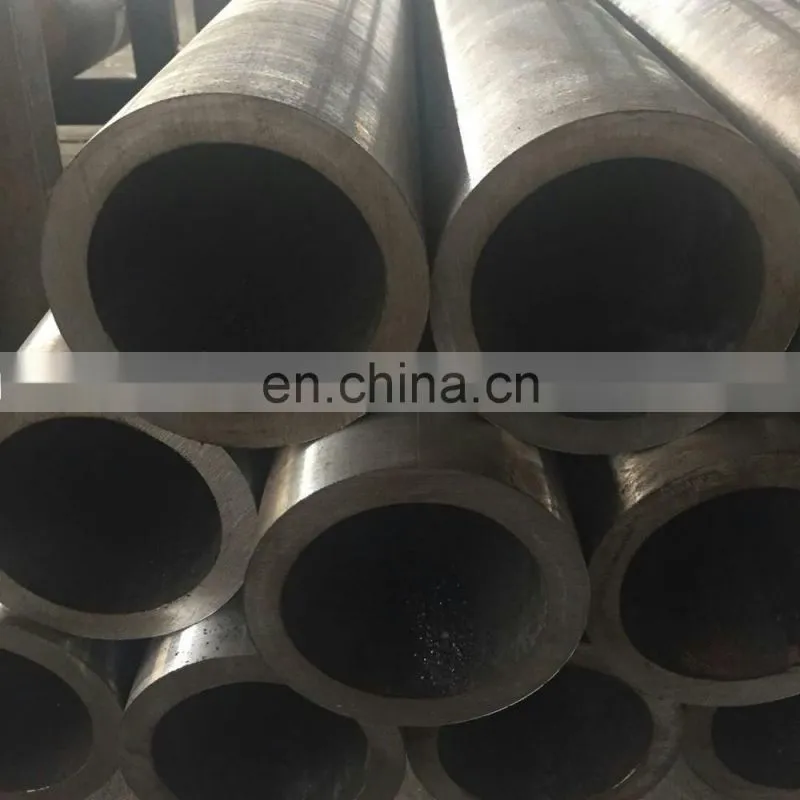

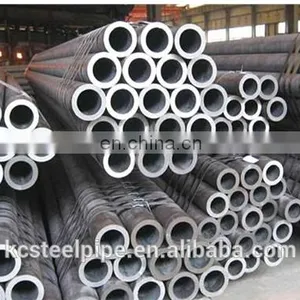

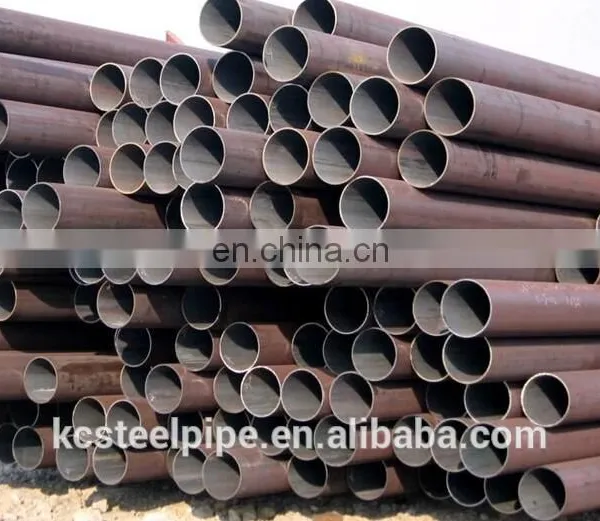

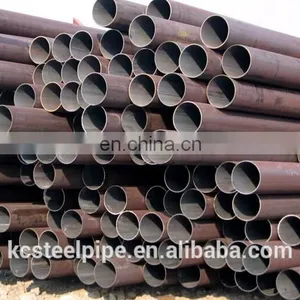

Help CenterFine Machining DIN 17200 CK45 (1.1191) Material Precision Seamless Steel Pipe GB 45# STEEL
Related Products
-
EN10216 16Mo3 (1.5415) Seamless Steel Tube for the Pipelines of Boiler Industry.US$ 450 - 1,000MOQ: 25 Tons -
ASTM A334 Grade 6 Seamless Steel Pipe /tube for Low Temperature ServiceUS$ 500 - 2,900MOQ: 5 Tons
-
Hot Rolled EN 10225 Grade S195T (1.0026) Seamless Steel TubeUS$ 500 - 1,000MOQ: 5 Tons
-
Cold Drawn Precision Seamless STKM11A Carbon Steel Round TubeUS$ 300 - 700MOQ: 25 Tons
-
Alloy Pipe 10CrMo910 (1.7380) Boiler Seamless Steel TubeUS$ 656 - 969MOQ: 25 Tons
1.1191, DIN Ck45, AISI 1045
We can produce 1.1191, DIN Ck45, AISI 1045 stainless steel round rods, 1.1191, DIN Ck45, AISI 1045 forging,sheet,coil,and profiledstrip,Deformed steel,flat steel,mould,steel wire,have all specifications. With DuoNian production experience, strict control 1.1191, DIN Ck45, AISI 1045 chemical composition and 1.1191, DIN Ck45, AISI 1045 mechanical properties.From casting, forging, steel to hot and cold rolling process, heat treatment, etc, we have the control of professional engineers. We have advanced precision machining equipment, according to the requirements of users machining. in order to achieve the most satisfied with the user requirements.
Production specification
Round bar steel: 1mm to 3500mm
Square-shape steel: 1mm to 4000mm
Plate steel:0.1mm to 4000mm
Width: 10mm to 2500mm
Lenth: We can supply any lenth based on the customer's requirement.
Forging: Shafts with flanks/pipes/tubes/slugs/donuts/cubes/other shapes
Tubings: OD: φ6-1800mm, with wall thickness ranging from 1-35 mm.
Finished goods condition: hot forging/hot rolling + annealing/normalizing + tempering/quenching + tempering/any conditions based on the customer's requirement
Surface conditions: scaled (hot working finish)/ground/rough machining/fine machining/based on the customer's requirement
Furnaces for metallurgical processing: electrode arc + LF/VD/VOD/ESR/Vacuum consumable electrode.
Ultrasonic inspection: 100% ultrasonic inspection for any inperfections or based on the customer's requirementExcellent service for all kinds of industries,with advantages of technologies, equipment and price.
We serve you with our honesty, integrity, and professionality.
1.1191, DIN Ck45, AISI 1045
Designation by Standards
| Brand Name | LH No. | Mat. No. | DIN | EN | AISI |
| CK45 | 620 | 1.1191 | Ck45 | C45E | 1045 |
Chemical Composition (in weight %)
| C | Si | Mn | Cr | Mo | Ni | V | W | Others |
| 0.46 | max. 0.40 | 0.65 | max. 0.40 | max. 0.10 | max. 0.40 | - | - | (Cr+Mo+Ni)=max. 0.63 |
Description
1045 is a medium carbon steel is used when greater strength and hardness is desired than in the "as rolled" condition. Extreme size accuracy, straightness and concentricity combine to minimize wear in high speed applications. Turned, ground and polished.
Applications
Component parts for vechiles, shafts, bushings, crankshafts, connecting rods and parts for the machine building industry and steel for axes, knives, hammers, etc.
Physical properties (avarage values) at ambient temperature
Modulus of elasticity [103 x N/mm2]: 190-210
Density [g/cm3]: 7.84
Thermal conductivity [W/m.K]: 15.1
Coefficient of Linear Thermal Expansion 10-6 oC-1
| 20-100oC | 20-200oC | 20-300oC | 20-400oC | 20-500oC | 20-600oC | 20-700oC |
| 11.6 | 12.3 | 13.1 | 13.7 | 14.2 | 14.7 | 15.1 |
Soft Annealing
Heat to 650-700oC, cool slowly. This will produce a maximum Brinell hardness of 207.
Hardening
Harden from a temperature of 820-850oC, 830-860oC followed by water or oil quenching.
Normalizing
Normalizing temperature (oC): 840-870oC.
Tempering
Tempering temperature: See the data bellow.
Tempering Temperature (oC) vs. Hardness (HRC)
| 20oC | 50oC | 100oC | 150oC | 200oC | 250oC | 300oC |
| 56 | 56 | 56 | 54 | 52 | 49 | 45.5 |
Mechanical Properties vs. Diameter
| Diameter | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Reduction in Area (%) |
| cold drawn, round bar (16-22 mm) | 655 | 585 | 12 | 35 |
| cold drawn, round bar (32-50 mm) | 585 | 515 | 10 | 30 |
| cold drawn, round bar (50-75 mm) | 515 | 485 | 10 | 30 |
| cold drawn, round bar (22-32 mm) | 620 | 550 | 11 | 30 |
| cold drawn, round bar (19-32 mm) | 625 | 530 | 12 | 30 |
| cold drawn, annealed, round bar (19-32 mm) | 585 | 505 | 12 | 45 |
| cold drawn, high temperature, stress relieved, round bar (16-22 mm) | 655 | 515 | 15 | 45 |
| cold drawn, high temperature, stress relieved, round bar (50-75 mm) | 550 | 450 | 12 | 35 |
| cold drawn, high temperature, stress relieved, round bar (32-50 mm) | 585 | 485 | 15 | 40 |
| cold drawn, high temperature, stress relieved, round bar (22-32 mm) | 620 | 515 | 15 | 40 |
| cold drawn, low temperature, stress relieved, round bar (22-32 mm) | 655 | 585 | 11 | 30 |
| cold drawn, low temperature, stress relieved, round bar (16-22 mm) | 690 | 620 | 12 | 35 |
| cold drawn, low temperature, stress relieved, round bar (50-75 mm) | 585 | 515 | 10 | 25 |
| cold drawn, low temperature, stress relieved, round bar (32-50 mm) | 620 | 550 | 10 | 30 |
| hot rolled, round bar (19-32 mm) | 565 | 310 | 16 | 40 |
| turned, ground and polished, round bar (19-32 mm) | 675 | 405 | 24 | 45 |
Forging
Hot forming temperature: 1050-850oC.
Machinability
Machinability is good, rated at 80% that of the AISI 1112 alloy used as a 100% machining rated steel.
Mechanical properties
Heat treatment
Machining
Welding performance
we are professional and experienced supplier of steel products in china. We will provide you with high quality and low price, and we also offer good service. If our products can meet your needs, please contact us freely. We are looking forward to cooperating with you, and welcome your inquiry!
Contact Us:
If you are interested in our seamless steel pipe,please contact me immediately.So we can give you a reply as soon as possible with the best quality and reasonable price.
Tel(Fax):0086-0635-2930669
whatsapp:+8613184174934
Skepe: live:mrhrc
