stainless steel a276 hastelloy B3 nickel alloy steel wire rod
1)material: Hastelloy ,nickel alloy steel
2)certificate:Material warranty book
Other common names: Alloy B-3
Hastelloy B2 is a solid solution strengthened, nickel-molybdenum alloy, with significant resistance to reducing environments like hydrogen chloride gas, and sulfuric, acetic and phosphoric acids. Molybdenum is the primary alloying element which provides significant corrosion resistance to reducing environments. This nickel steel alloy can be used in the as-welded condition because it resists the formation of grain-boundary carbide precipitates in the weld heat-affected zone.
This nickel alloy provides excellent resistance to hydrochloric acid at all concentrations and temperatures. In additions, Hastelloy B2 has excellent resistance to pitting, stress corrosion cracking and to knife-line and heat-affected zone attack. Alloy B2 provides resistance to pure sulfuric acid and a number of non-oxidizing acids.
What are the characteristics of Hastelloy B-3?
- Great resistance to stress corrosion cracking and pitting
- Significant resistance to reducing conditions like hydrogen chloride, sulfuric, acetic and phosphoric acids
- Resistance to hydrochloric acid at all concentrations and temperatures
Chemical Composition, %
Ni |
Mo |
Fe |
C |
Co |
Cr |
Mn |
Si |
|---|---|---|---|---|---|---|---|
Balance |
26.0-30.0 |
2.0 max |
.02 max |
1.0 max |
1.0 max |
1.0 max |
.10 max |
P |
S |
||||||
.040 max |
.030 max |
In what applications is Hastelloy B-2 used?
- Chemical processes
- Vacuum furnaces
- Mechanical components in reducing environments
For information on machining, click here.
ASTM Specifications
Pipe Smls |
Pipe Welded |
Tube Smls |
Tube Welded |
Sheet/Plate |
Bar |
Forging |
Fitting |
|---|---|---|---|---|---|---|---|
B622 |
B619 |
B622 |
B626 |
B333 |
B335 |
B564 |
B366 |
Mechanical Properties
Annealed Material
| Product | Tensile Min. (ksi) | .2% Yield Min. (ksi) | Elongation Min. |
|---|---|---|---|
| Rod & Bar | 110 |
51 | 40 |
| Sheet/Plate | 110 |
51 | 40 |
| Welded Pipe & Tube | 110 |
51 | 40 |
| Seamless Pipe & Tube | 110 |
45 | 40 |

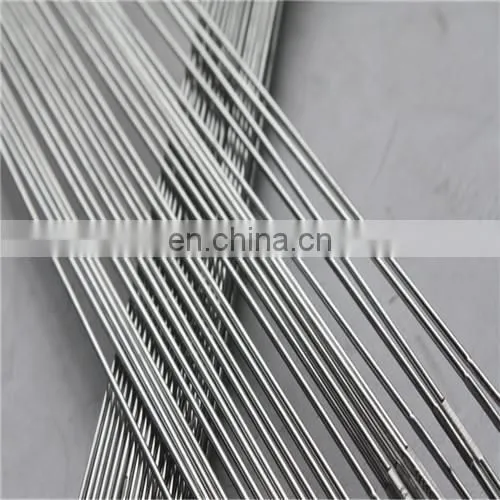

Steel wire rod picture
Characteristics
1.Highly resistant to various reducing chemicals
2.Excellent resistance to caustic alkalies
3.High electrical conductivity
4.Excellent corrosion resistance to distilled and natural waters
5.Resistance to neutral and alkaline salt solutions
6.Excellent resistance to dry fluorine
7.Widely used to handle caustic soda
8.Good thermal, electrical and magnetostrictive properties
9.Offers some resistance to hydrochloric and sulfuric acids at modest temperatures and concentrations
Our quality control
QA / QC Introduction :
All of our orders will be inspected by our QC team. We will check the quality during the production time .Also check the quality before shipping .
1.Before production, we will use spectrometer to test raw material to prevent mistakes
2.Every step QC department will record ,such as raw material cutting dimension, semi-finished product size, quantity , finished item detailed size
3.Before delivery ,detailed inspection report of finished products will present .
4. Beside size, we will check 10% to 20% of total quantity products whether have thread broken ,greasy, marking.packing ect.
5.Before delivery ,we will provide our mill test certificate together with inspection report.
6.Our mechanical property always shows tensile strength ,yield strength ,elongation,hardness, if you need more, just let us know in advance.
