Heat Exchanger High Pressure Stainless Steel Tubing / Pipe ASTM A312 TP321
Alloy 321 stainless steel is a titanium-stabilized version of alloy 304, used in particular applications within the sensitizing temperature range. It’s resistance to sensitization, coupled with it higher strength, at high temperatures makes it suitable in application where alloy 304 will become sensitized, or where 304L has insufficient hot strength.
1. Available Size Range
| OD | |||
| mm | inch | mm | SCH |
| 21.3~60.3 | 1/2''~ 2'' | 1.65 ~ 5.54 | SCH5S ~ 80S |
| *If the steel grades and size you are looking for are not listed above, please contact us for further information. | |||
2. Standards:
ASTM A312 Standard Specification for Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes
3. Steel pipes No. of main production:
TP201, TP304, TP304L, TP316L
4. Chemical Requirements
| Chemical Composition % | ||||||||||
| Grade | UNS Designation | C | Mn | P | S | Si | Cr | Ni | Mo | Other |
| TP304 | S30400 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | … | |
| TP304L | S30403 | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-13.0 | … | |
| TP304H | S30409 | 0.04-0.10 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | … | |
| TP316 | S31600 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 11.0-14.0 | 2.00-3.00 | |
| TP316L | S31603 | 0.035 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.00-3.00 | |
| TP316H | S31609 | 0.04-0.10 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 11.0-14.0 | 2.00-3.00 | |
| TP321 | S32100 | 0.08 | 2 | 0.045 | 0.03 | 1 | 17.0-19.0 | 9.0-12.0 | … | N: 0.1 |
| TP321H | S32109 | 0.04-0.10 | 2 | 0.045 | 0.03 | 1 | 17.0-19.0 | 9.0-12.0 | … | N: 0.1 |
| Ti: 4(C+N) min; | ||||||||||
| 0.70 max | ||||||||||
| TP347 | S34700 | 0.08 | 2 | 0.045 | 0.03 | 1 | 17.0-19.0 | 9.0-13.0 | … | |
| TP347H | S34709 | 0.04-0.10 | 2 | 0.045 | 0.03 | 1 | 17.0-19.0 | 9.0-13.0 | … | |
5. Mechanical Properties
| Mechanical Properties | |||
| Grade | UNS Designation | Tensile Strength, min ksi [Mpa] | Yield Strength, min ksi [Mpa] |
| TP304 | S30400 | 75 [515] | 30 [205] |
| TP304L | S30403 | 70 [485] | 25 [170] |
| TP304H | S30409 | 75 [515] | 30 [205] |
| TP316 | S31600 | 75 [515] | 30 [205] |
| TP316L | S31603 | 70 [485] | 25 [170] |
| TP316H | S31609 | 75 [515] | 30 [205] |
| TP321 | S32100 | 75 [515] | 30 [205] |
| TP321H | S32109 | 75 [515] | 30 [205] |
| TP347 | S34700 | 75 [515] | 30 [205] |
| TP347H | S34709 | 75 [515] | 30 [205] |

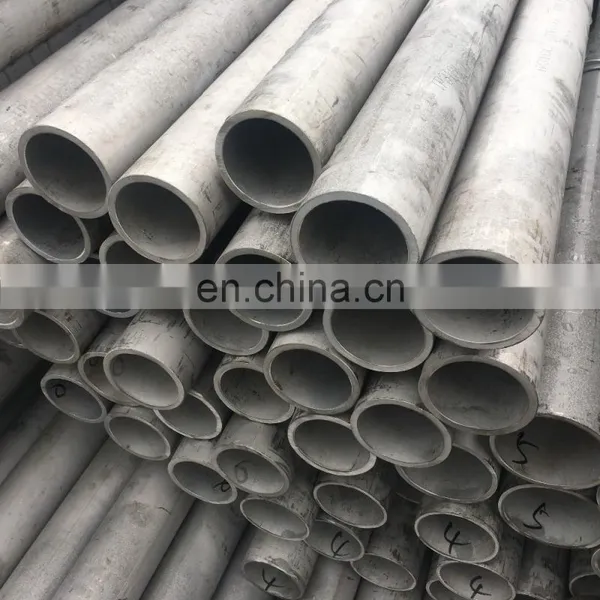

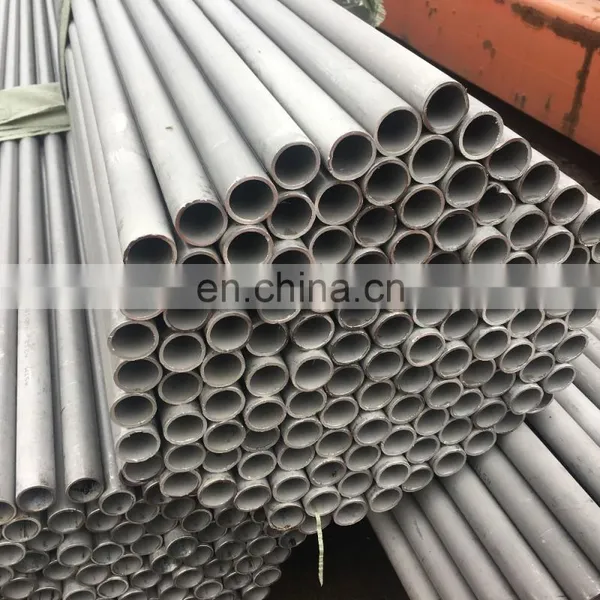

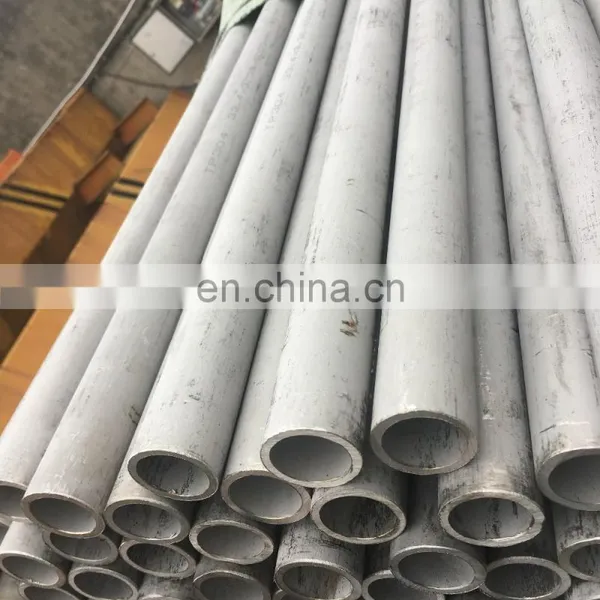

Heat Exchanger High Pressure Stainless Steel
Heat Exchanger High Pressure Stainless Steel U Tubing / Pipe ASTM A312 TP321
Packing of Straight Tubing / Pipe ASTM A312 TP321
Packing of U Tubing / Pipe ASTM A312 TP321
Types of Packaging:
- Bundles (hexagonal)
- Wooden Boxes
- Crates (steel/wooden)
- Special crates for U-Bend tubes with each radius separated
- Packaging for SS 304L ASTM A312 Seamless Pipe as per customer's requirements
LIAOCHENG KUNCHENG PIPE CO.,LTD
Mobile&Whatsapp:+8613184174934(Wechat)
Tel&Fax:0086-0635-2930669
Skype:mrhrc
PRODUCTS MENU:
Honed Tube : JIS STKM13C, DIN ST52, SAE1020 ,DIN CK45 etc.
Alloy Seamless Tube: ASME SA-335 (P5, P9, P11, P22 P91) A213 -T22/T12 etc.
Hollow seamless bar :AISI 4130 ,ASTM 4140 etc.
Carbon steel pipe :ASTM A106 Gr.B
Stainless steel pipe : 304, 316, 316L & H grades etc.
Hollow section :S235JR, S275JR, S355JR, P265GH, P355N
SERVICES MENU:
Machining:Turning , Threading , Milling , Boring , Grooving , Skiving , Trepanning , Sawing , Straightening , honing etc
