Heat Exchanger High Pressure Stainless Steel Tubing / Pipe ASTM A312 TP347
Alloy 347 seamless pipe can withstand high mechanical stress and high pressure; can work in high temperatures and corrosive environments. Stainless steel seamless pipe is formed by drawing a solid metal billet over a piercing rod to create a hollow tube. Seamless pipe is then processed and finished as per dimension standard ANSI B36.10 and ANSI B36.19 and B36.19M in different wall thickness and sizes ranging from SCH 10 to XXS. 347 seamless pipes have varied applications in the oil and gas, chemical, pharmaceutical, fertilizer, argo-chemical, aerospace, desalination, food and beverage, sugar, distillery, power generation, cement, petroleum refinery, mechanical and structural, food processing , etc.
1. Available Size Range
| OD | Thickness | ||
| mm | inch | mm | SCH |
| 21.3~60.3 | 1/2''~ 2'' | 1.65 ~ 5.54 | SCH5S ~ 80S |
| *If the steel grades and size you are looking for are not listed above, please contact us for further information. | |||
2. Standards:
ASTM A312 Standard Specification for Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes
3. Steel pipes No. of main production:
TP201, TP304, TP304L, TP316L,TP347
4. Chemical Requirements
| Chemical Composition % | ||||||||||
| Grade | UNS Designation | C | Mn | P | S | Si | Cr | Ni | Mo | Other |
| TP304 | S30400 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | … | |
| TP304L | S30403 | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-13.0 | … | |
| TP304H | S30409 | 0.04-0.10 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | … | |
| TP316 | S31600 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 11.0-14.0 | 2.00-3.00 | |
| TP316L | S31603 | 0.035 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.00-3.00 | |
| TP316H | S31609 | 0.04-0.10 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 11.0-14.0 | 2.00-3.00 | |
| TP321 | S32100 | 0.08 | 2 | 0.045 | 0.03 | 1 | 17.0-19.0 | 9.0-12.0 | … | N: 0.1 |
| TP321H | S32109 | 0.04-0.10 | 2 | 0.045 | 0.03 | 1 | 17.0-19.0 | 9.0-12.0 | … | N: 0.1 |
| Ti: 4(C+N) min; | ||||||||||
| 0.70 max | ||||||||||
| TP347 | S34700 | 0.08 | 2 | 0.045 | 0.03 | 1 | 17.0-19.0 | 9.0-13.0 | … | |
| TP347H | S34709 | 0.04-0.10 | 2 | 0.045 | 0.03 | 1 | 17.0-19.0 | 9.0-13.0 | … | |
5. Mechanical Properties
| Mechanical Properties | |||
| Grade | UNS Designation | Tensile Strength, min ksi [Mpa] | Yield Strength, min ksi [Mpa] |
| TP304 | S30400 | 75 [515] | 30 [205] |
| TP304L | S30403 | 70 [485] | 25 [170] |
| TP304H | S30409 | 75 [515] | 30 [205] |
| TP316 | S31600 | 75 [515] | 30 [205] |
| TP316L | S31603 | 70 [485] | 25 [170] |
| TP316H | S31609 | 75 [515] | 30 [205] |
| TP321 | S32100 | 75 [515] | 30 [205] |
| TP321H | S32109 | 75 [515] | 30 [205] |
| TP347 | S34700 | 75 [515] | 30 [205] |
| TP347H | S34709 | 75 [515] | 30 [205] |

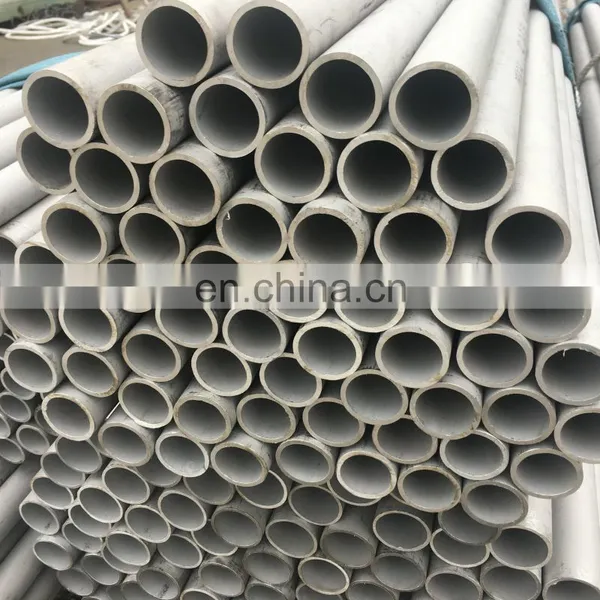

TP347 Heat Exchanger High Pressure Stainless Steel

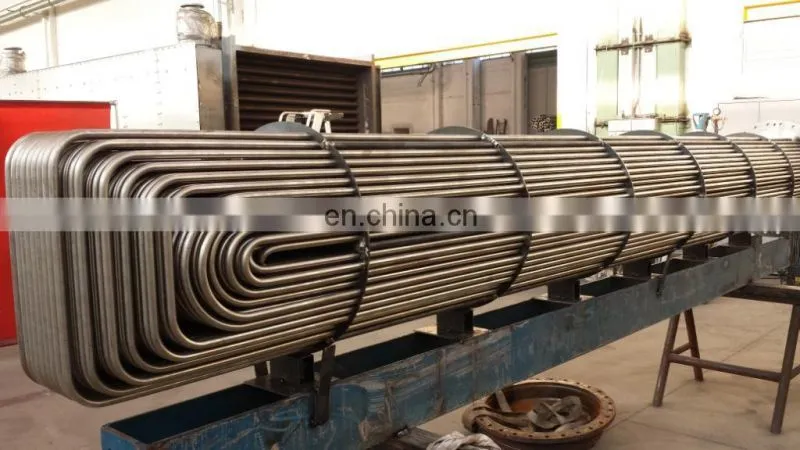

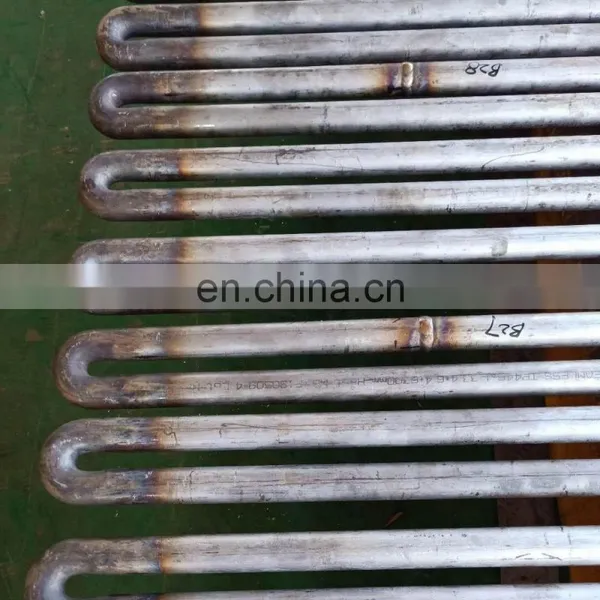

Heat Exchanger High Pressure Stainless Steel U Tubing / Pipe ASTM A312 TP347

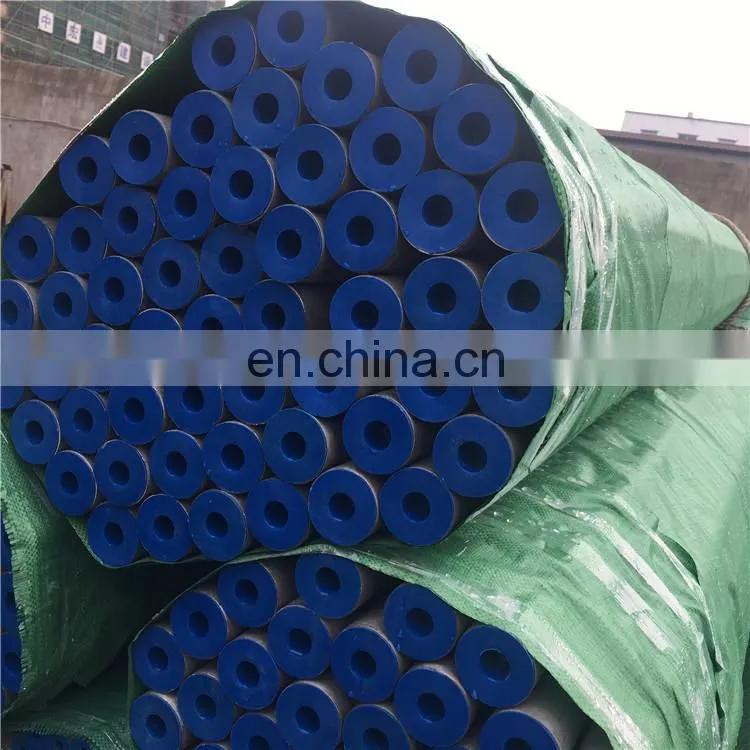

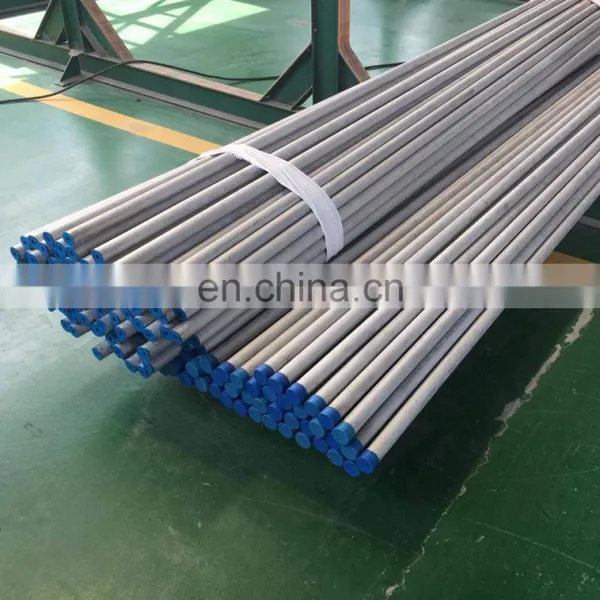

Packing of Straight Tubing / Pipe ASTM A312 TP347

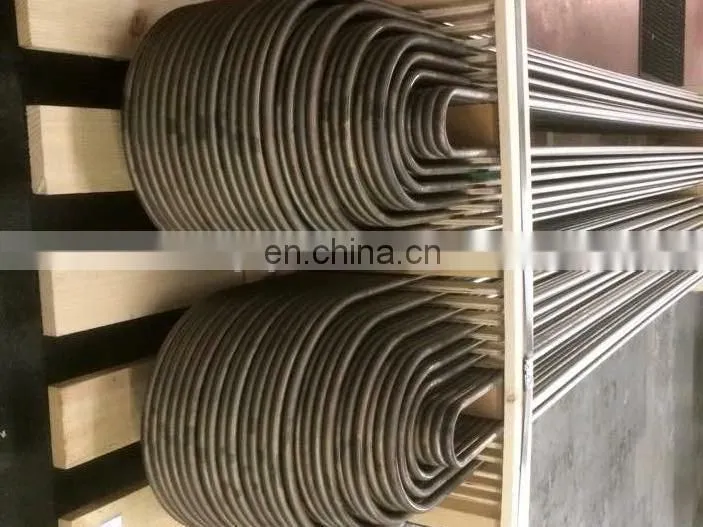

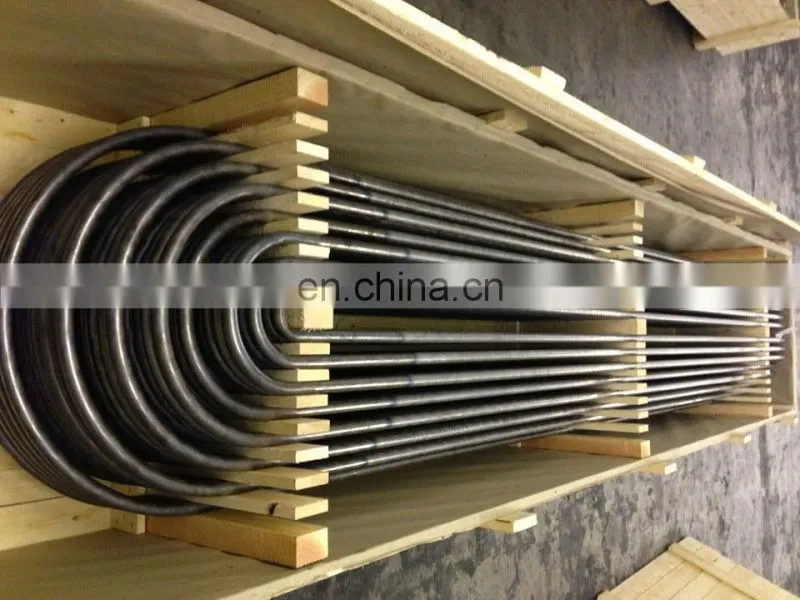

Packing of U Tubing / Pipe ASTM A312 TP347
Types of Packaging:
- Bundles (hexagonal)
- Wooden Boxes
- Crates (steel/wooden)
- Special crates for U-Bend tubes with each radius separated
- Packaging for SS 304L ASTM A312 Seamless Pipe as per customer's requirements
LIAOCHENG KUNCHENG PIPE CO.,LTD
Mobile&Whatsapp:+8613184174934(Wechat)
Tel&Fax:0086-0635-2930669
Skype:mrhrc
PRODUCTS MENU:
Honed Tube : JIS STKM13C, DIN ST52, SAE1020 ,DIN CK45 etc.
Alloy Seamless Tube: ASME SA-335 (P5, P9, P11, P22 P91) A213 -T22/T12 etc.
Hollow seamless bar :AISI 4130 ,ASTM 4140 etc.
Carbon steel pipe :ASTM A106 Gr.B
Stainless steel pipe : 304, 316, 316L & H grades etc.
Hollow section :S235JR, S275JR, S355JR, P265GH, P355N
SERVICES MENU:
Machining:Turning , Threading , Milling , Boring , Grooving , Skiving , Trepanning , Sawing , Straightening , honing etc
