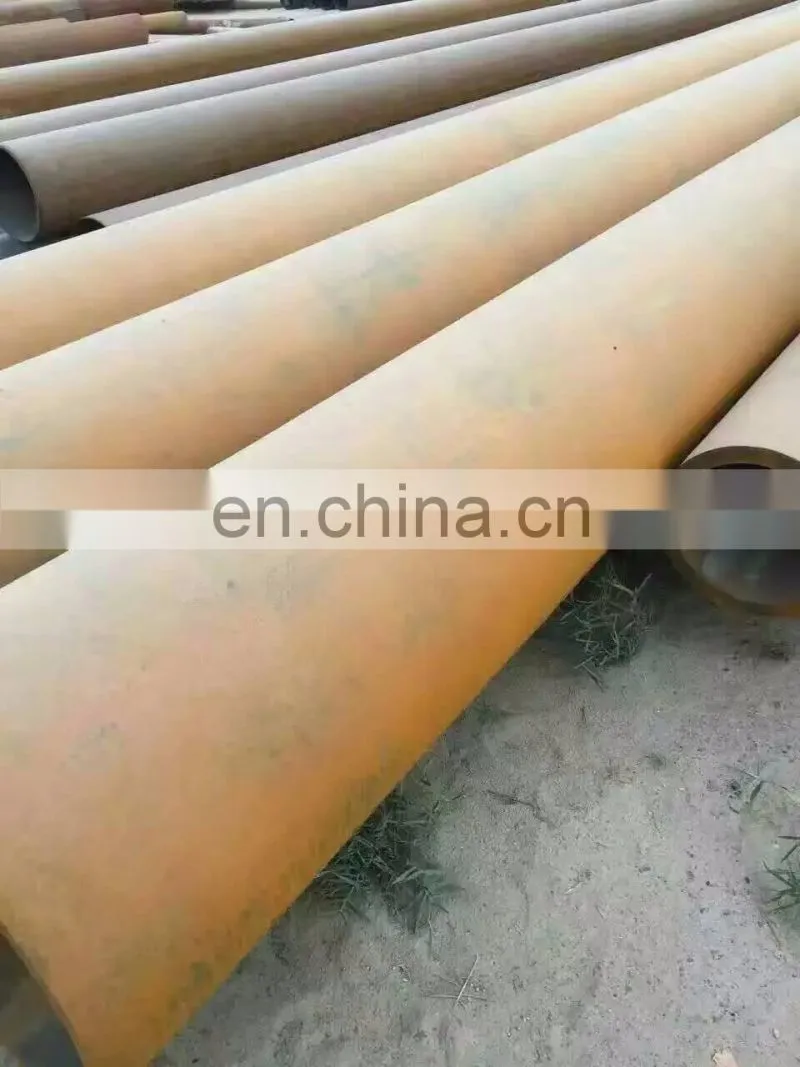

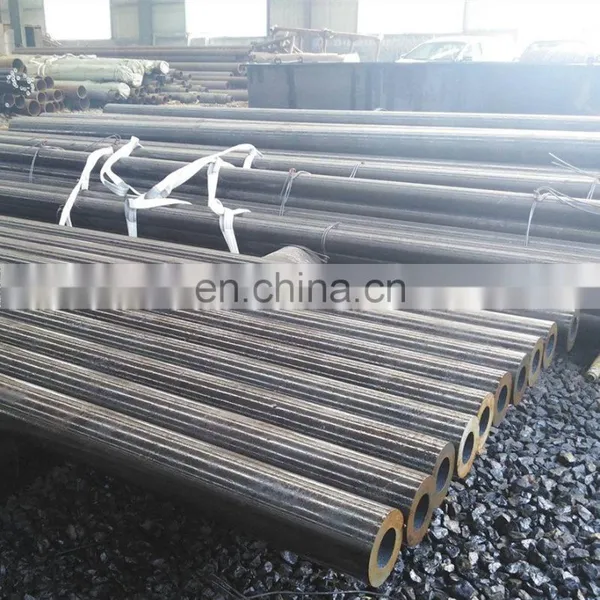

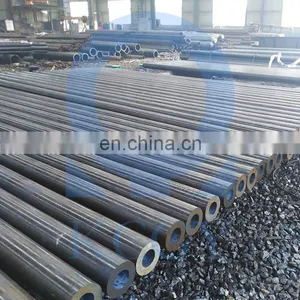

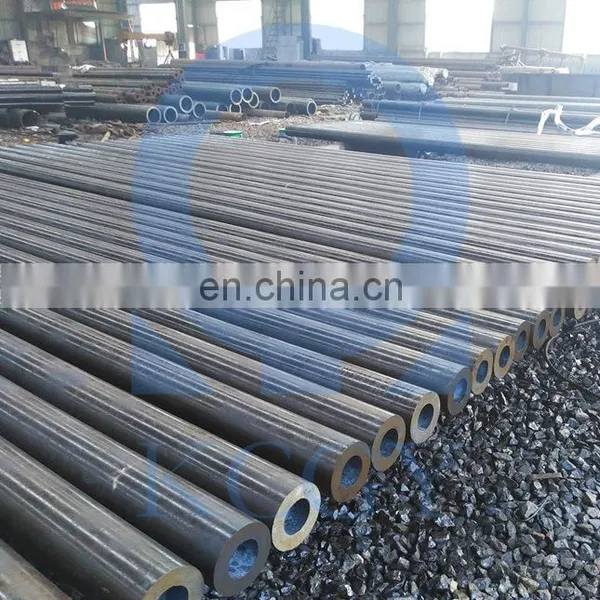

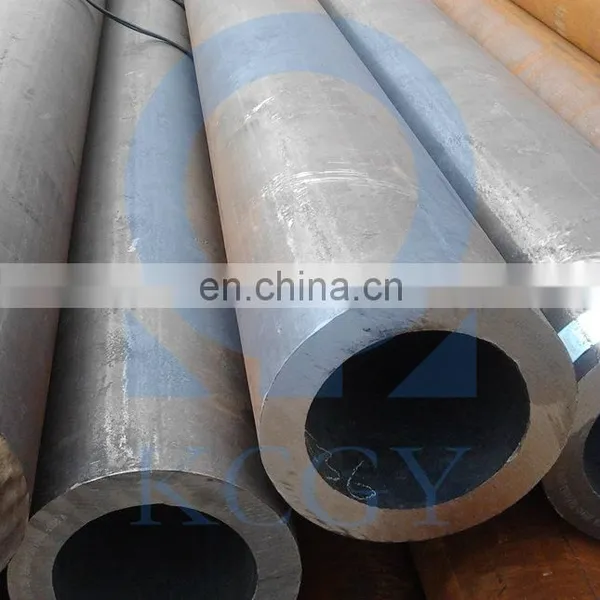

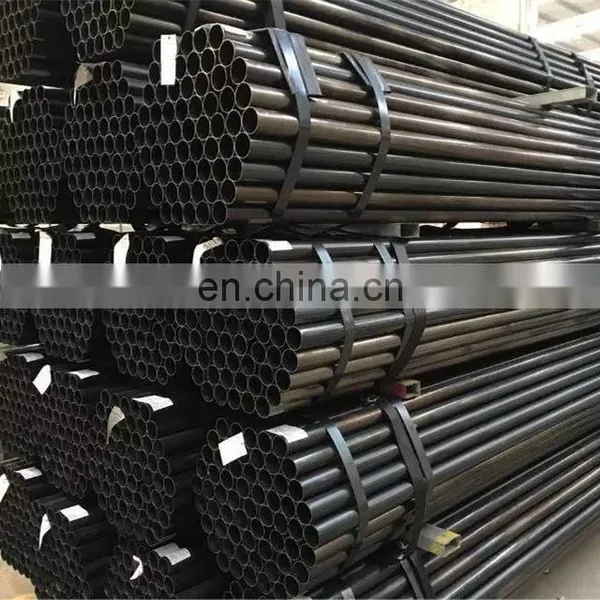

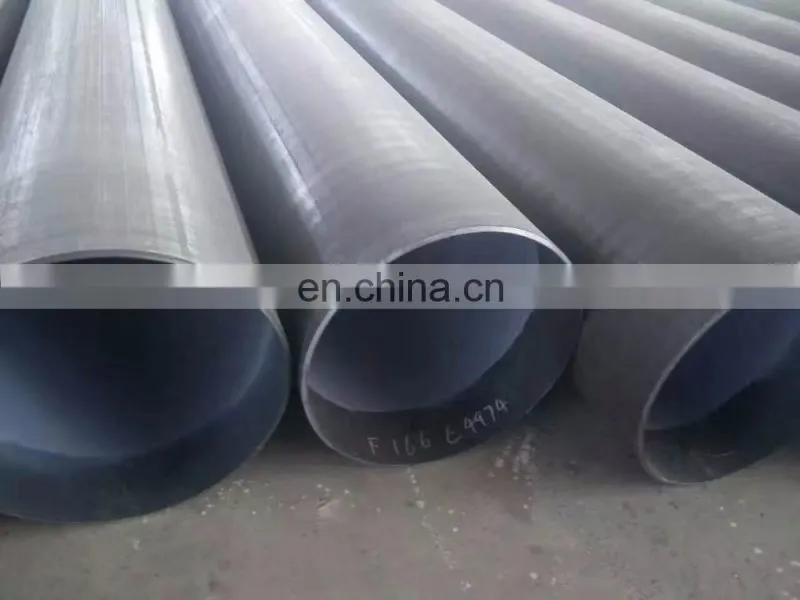

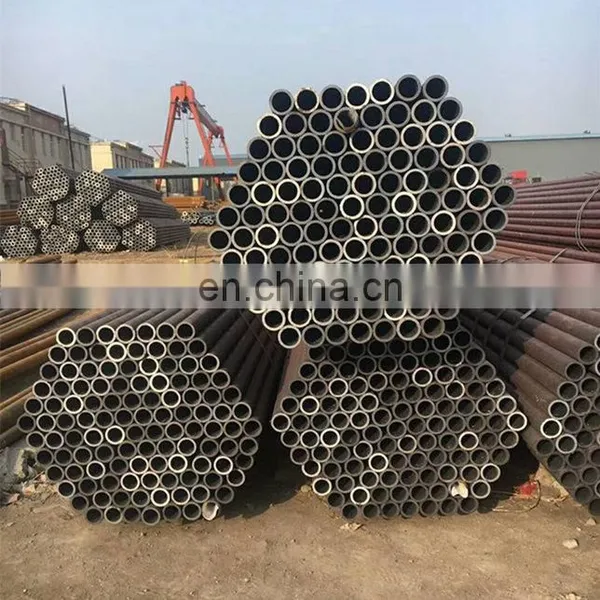

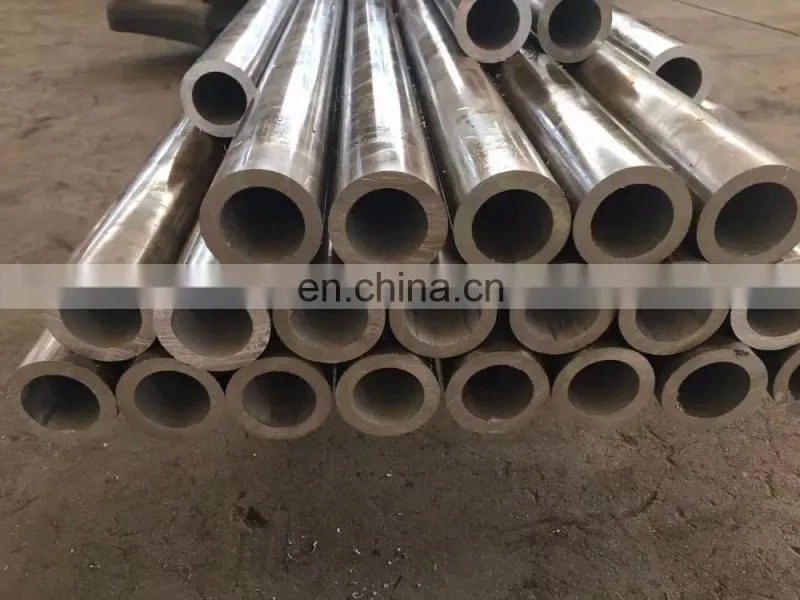

Help CenterMaterial No 1.1151 DIN CK22 Carbon Seamless Steel Pipe & Tube for Structure
Related Products
-
JIS G3461 STB340 Carbon Steel Tubes for Boiler and Heat ExchangerUS$ 658 - 786MOQ: 5 Tons -
JIS G3461 STB340 ST37 (1.0254) Seamless Carbon Steel Pipe Used for Exchanger HeatUS$ 658 - 786MOQ: 25 Tons
-
Cold Drawn ASTM1020 Octagonal Tubing Special Carbon Steel Pipe (Q235 Q295) Ex-StockUS$ 660 - 1,060MOQ: 5 Tons
-
ASTM A106Gr.B Carbon Steel Seamless/Welded Rubber Lined/Ceramic-Lined Pipe/TubeUS$ 632 - 779MOQ: 5 Tons
-
ASTM A53Gr.B Carbon Steel PE Coated Rubber Lined PipeUS$ 650 - 950MOQ: 5 Tons
| Product Specification |
Chemical composition of CK22
| C(%) | 0.17~0.24 | Si(%) | 0.40 max | Mn(%) | 0.40~0.70 | P(%) | 0.035 max |
| S(%) | 0.0350 max | Cr(%) | 0.40 max | Mo(%) | 0.10 max | Ni(%) | 0.40 max |
Equivalent Of C22Carbon Steel
| USA | Germany | China | Japan | France | England | Austria | Sweden | Spain |
| ASTM/AISI/UNS/SAE | DIN,WNr | GB | JIS | AFNOR | BS | ONORM | SS | UNE |
| 1020/ G10200 | C22E/Ck22/1.1151 | 20 | S20C | C22E / XC18 | C22E/ 070M20 | 1435 | ||
Heat treatment Related
Annealing of CK22 Carbon steel
The heat treatment temperature / ℃ | annealing: 650-700, then Hold until the temperature is uniform
Cool in furnace. Hardness after annealing ≤HBS: 156
Hardening of CK22 Carbon steel
- The heat treatment temperature / ℃ | normalizing: 880 to 910
- The heat treatment temperature / ℃ | quenching: 860 ~ 890 water
- The heat treatment temperature / ℃ | Tempering: 540 to 680
- After quenching and mechanical properties | σb≥ / MPa: 550 ~ 700
- After quenching and mechanical properties | σs≥ / MPa: 350
- Mechanical properties after quenching | δ5≥ / (%): 20
- Mechanical properties after quenching | ψ≥ / (%): 50
- After quenching and mechanical properties | AKV≥ / J: 55
- Steel Dimensions / mm: ≤16
Forged of CK22 mild Carbon steel
- Thermal processing temperature / ℃: 1100 ~ 900
Mechanical Properties of DIN CK22 steel
The mechanical properties of annealed DIN CK22 carbon steel are outlined in the table below
- Tensile strength σb (MPa): ≥600 (61)
- Yield strength σs (MPa): ≥355 (36)
- Elongation δ5 (%): ≥16
- Reduction of area ψ (%): ≥40
- Impact energy Akv (J): ≥39
- Impact toughness αkv (J / cm2): ≥49 (5)
- Hardness: no heat treatment, ≤229HB; annealed steel, ≤197HB
- Sample size: Sample size is 25mm
Applications of mild carbon steel CK22
DIN CK22 steel is widely used for all industrial applications requiring more wear resistance and strength. Typical applications as Gears Pins Rams
Shafts Rolls Sockets Axles Spindles Worms Bolts Ratchets Light gears Studs Crankshafts Guide rods Connecting rods Torsion bars, Hydraulic clamps
Regular size and Tolerance of mild carbon 1.1151 flat steel bar
Steel round bar: Diameter Ø 5mm – 3000mm
Steel plate/ steel flat bar: Thickness 5mm – 3000mm x Width 100mm – 3500mm
Steel Hexagonal bar: Hex 5mm – 105mm
Others 1.1151 steel have not specified size, pls contact our experienced sales team.
Product Applications | |||
|
1. Widely used in fencing, scaffolding, engineering 2. Greenhouse, low medium pressure fluid, coal gas or oil 3. Sewage conveying, heating steam, project pressure, bridge 4. Fire fighting, gas pipes, water transport and water supply projects Feature: 1. Economy Benefit: ERW steel pipe is less expensive than seamless steel pipe. 2. High Precision: ERW steel pipe has a closer tolerance of wall thickness when compared with seamless steel pipe.
|
Honed Tube : JIS STKM13C, DIN ST52, SAE1020 ,DIN CK45 etc.
Alloy Seamless Tube: ASME SA-335 (P5, P9, P11, P22 P91) A213-T22/T12 etc.
Hllow seamless bar :ASTM 4130 ,ASTM 4140 etc.
Carbon steel pipe :ASTM A106 Gr.B
Stainless steel pipe : 304, 316, 316L & H grades etc.
Hollow section :S235JR, S275JR, S355JR, P265GH, P355N
