ASTM A106Gr.B Carbon Steel Seamless/Welded Rubber Lined/Ceramic-Lined Pipe/Tube
Details
Carbon steel rubber lined/Ceramic Lined pipe can inspecting &controlling, in plain carbon steel as matrix, lined with good chemical stability of thermoplastic plastic pipe, the cold tensile or roll forming, it has both the mechanical properties of steel pipe and plastic pipe corrosion resistance, low scale, the characteristics of the microbial growth, not easily is transportation acid, alkali, salt, corrosive gases such as ideal medium pipeline.
Steel Materails
Standard |
Grade |
C |
Si |
Mn |
P |
S |
Cu |
Ni |
Cr |
Mo |
V |
|
ASTM A106 |
A |
≤0.25 |
≤0.10 |
0.27-0.93 |
0.035 |
0.035 |
0.40 |
0.40 |
0.40 |
0.15 |
0.08 |
B |
≤0.30 |
≤0.10 |
0.29-1.06 |
0.035 |
0.035 |
0.40 |
0.40 |
0.40 |
0.15 |
0.08 |
|
C |
≤0.35 |
≤0.10 |
0.29-1.06 |
0.035 |
0.035 |
0.40 |
0.40 |
0.40 |
0.15 |
0.08 |
|
|
ASTMA53 |
A |
≤0.252 |
/ |
≤0.95 |
≤0.50 |
≤0.60 |
≤0.40 |
≤0.40 |
≤0.40 |
≤0.15 |
≤0.08 |
B |
≤0.35 |
/ |
≤1.20 |
≤0.50 |
≤0.60 |
≤0.40 |
≤0.40 |
≤0.40 |
≤0.15 |
≤0.08 |
Technical parameters
OD(DN) |
OD(mm) |
Inner lining(tk) |
D (Flang) |
L |
DN25 |
φ32 |
1.5-2 |
68 |
6000mm |
DN32 |
φ38 |
1.5-2 |
78 |
6000mm |
DN40 |
φ48 |
1.5-2 |
88 |
6000mm |
DN50 |
φ57 |
2-2.5 |
102 |
6000mm |
DN65 |
φ76 |
2-2.5 |
122 |
6000mm |
DN80 |
φ89 |
2-2.5 |
138 |
6000mm |
DNl00 |
φ108 |
2.5-3 |
158 |
6000mm |
DNl25 |
φ133 |
2.5-3 |
188 |
6000mm |
DNl50 |
φ159 |
2.5-3 |
212 |
6000mm |
DN200 |
φ219 |
2.5-3 |
268 |
6000mm |
DN250 |
φ273 |
3-3.5 |
320 |
6000mm |
DN300 |
φ325 |
3-3.5 |
370 |
6000mm |
DN350 |
φ377 |
3-3.5 |
430 |
6000mm |
DN400 |
φ426 |
3.5-4 |
485 |
6000mm |
DN450 |
φ477 |
3.5-4 |
532 |
6000mm |
DN500 |
φ520 |
3.5-4 |
585 |
6000mm |
DN600 |
φ630 |
4-5 |
685 |
6000mm |
DN700 |
φ720 |
4-5 |
6000mm |
|
DN800 |
φ820 |
4-5 |
6000mm |

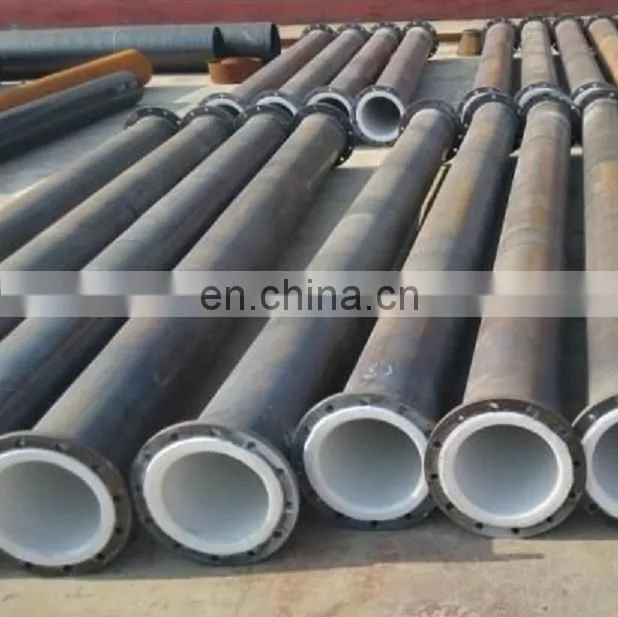

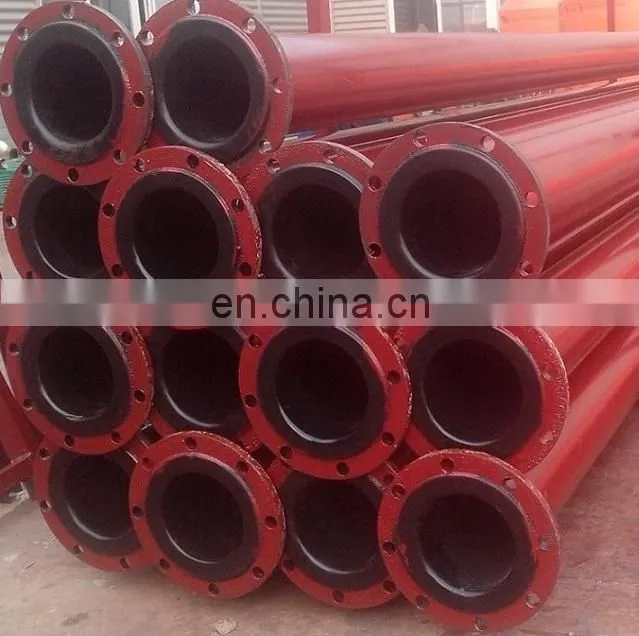

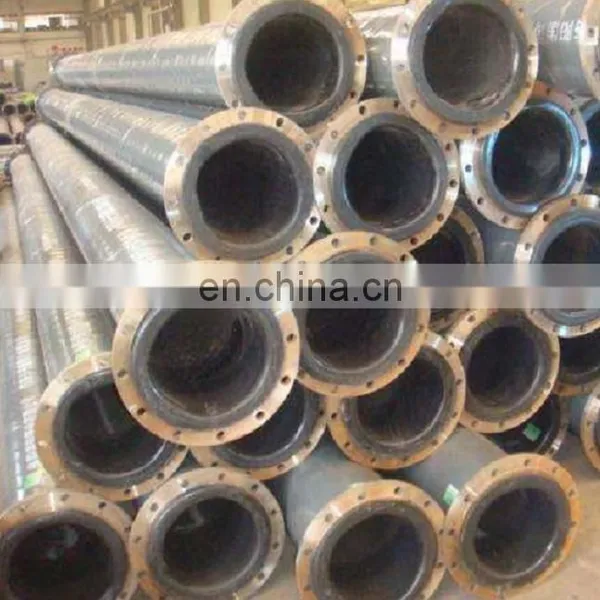

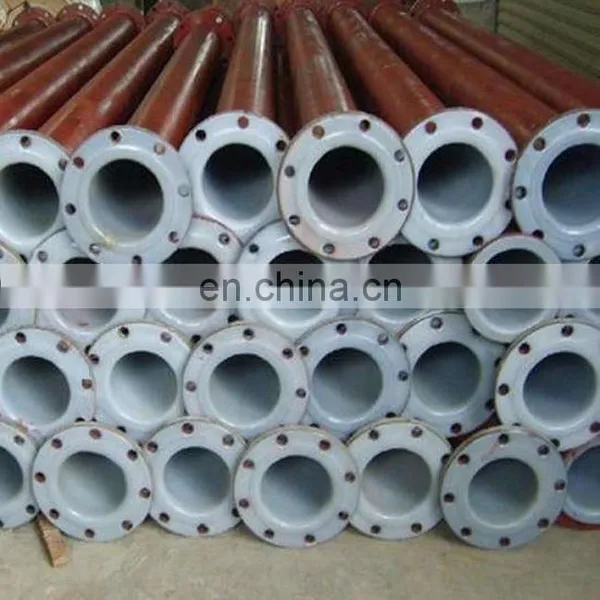

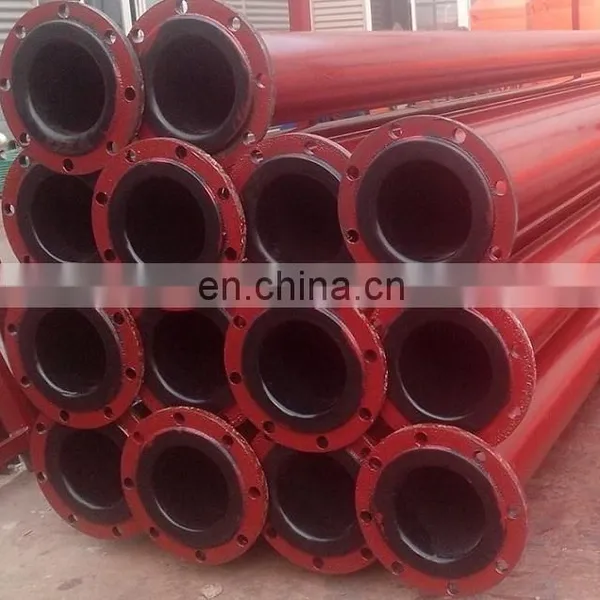

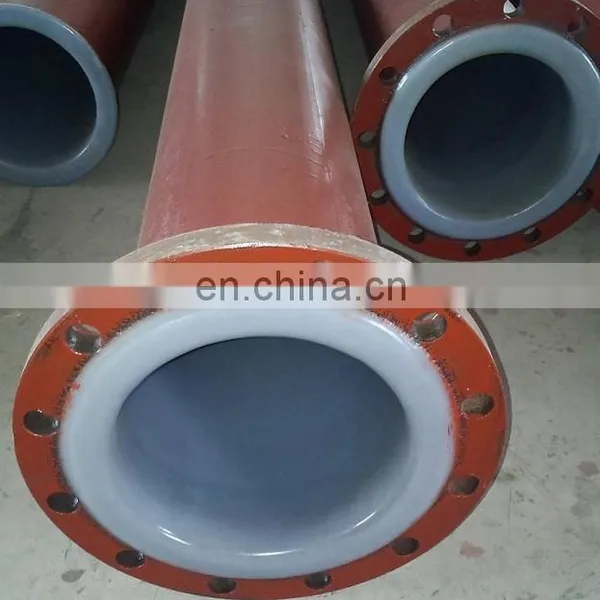

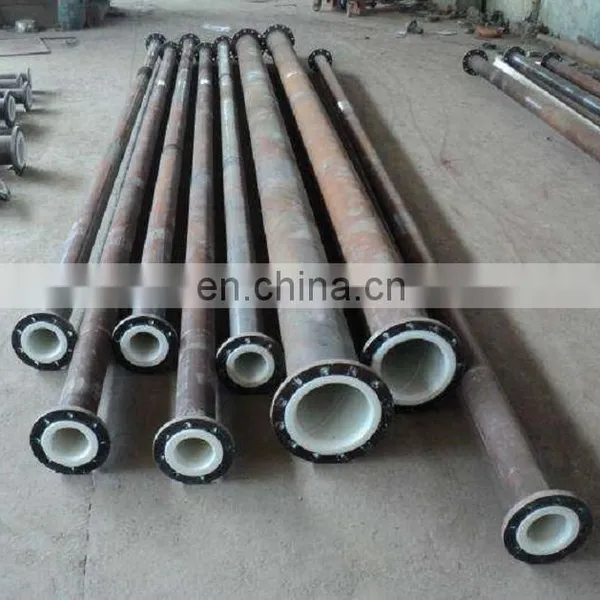

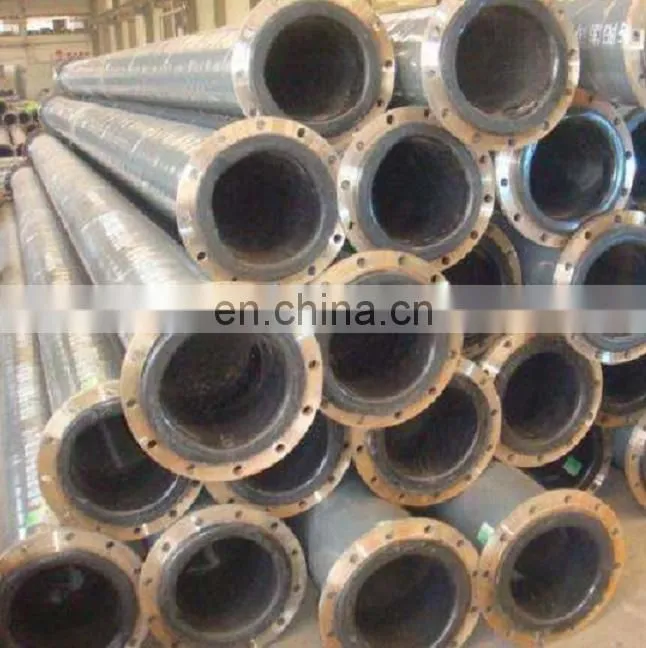

Pictures
Company profile
Liaocheng kuncheng pipe co.,ltd,founded in 2002,was located in Liaocheng,shandong province,Thebiggest steel pipe market of China.We are one professinal group company which
have annuel produciton capacity of 400,000tons and 50,000tons stock of seamless pipes,galvanized pipe,square rectangular tubes and so on.Theseproducts have been exported
to more than 20 countries®ions and earned very good reputation in the worldwide.
