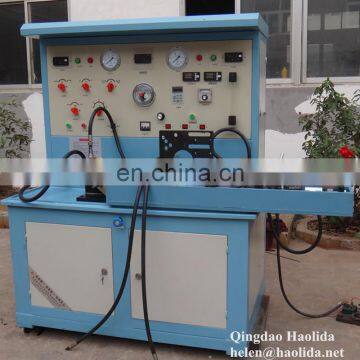

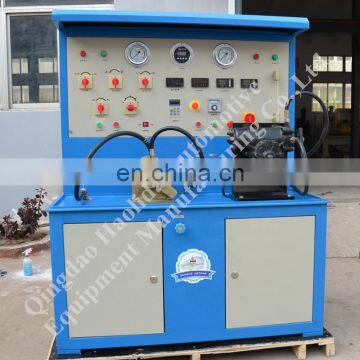

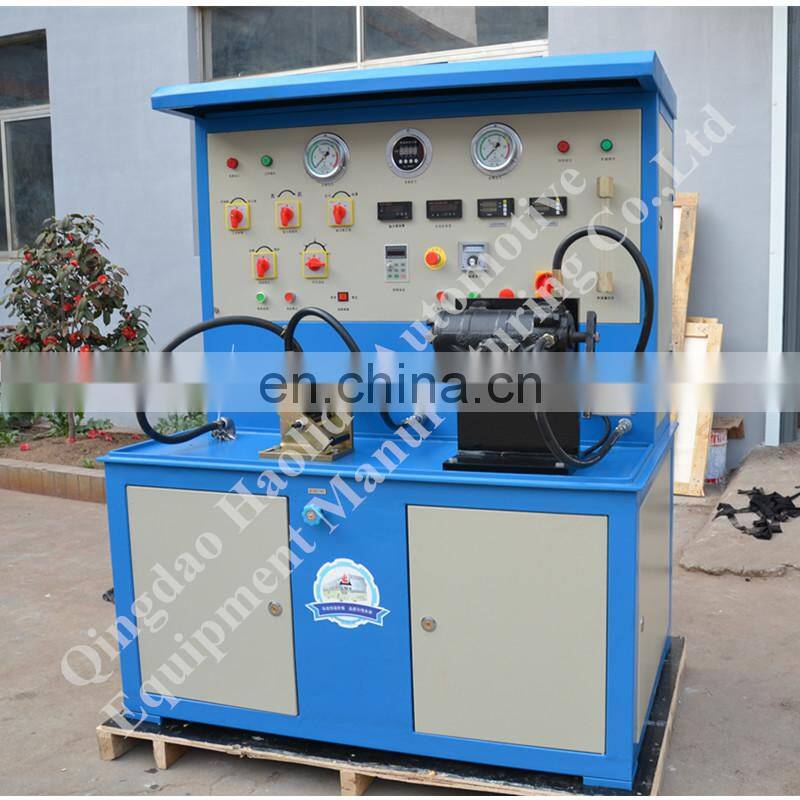

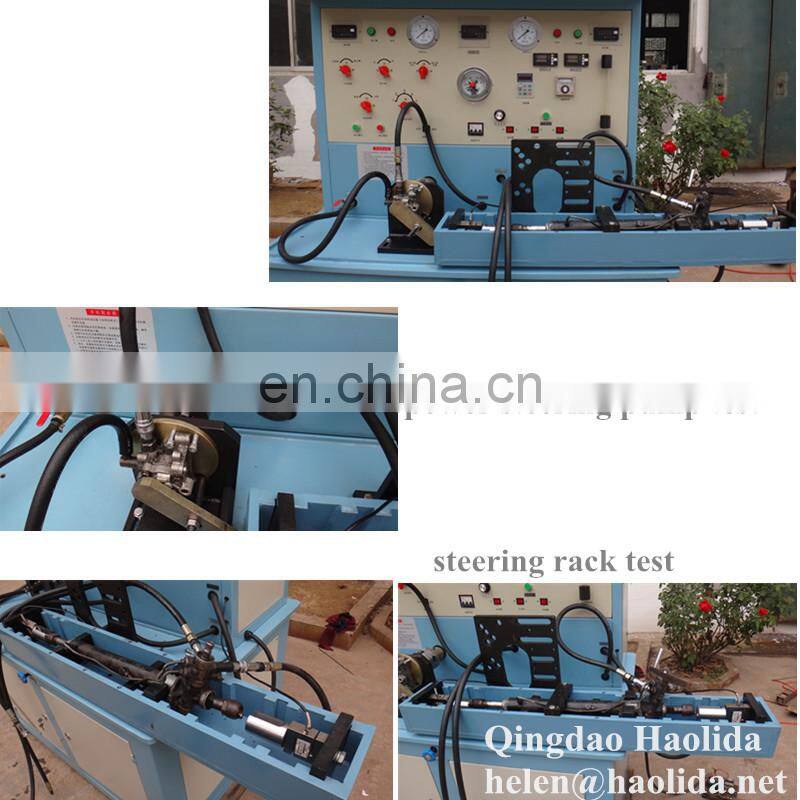

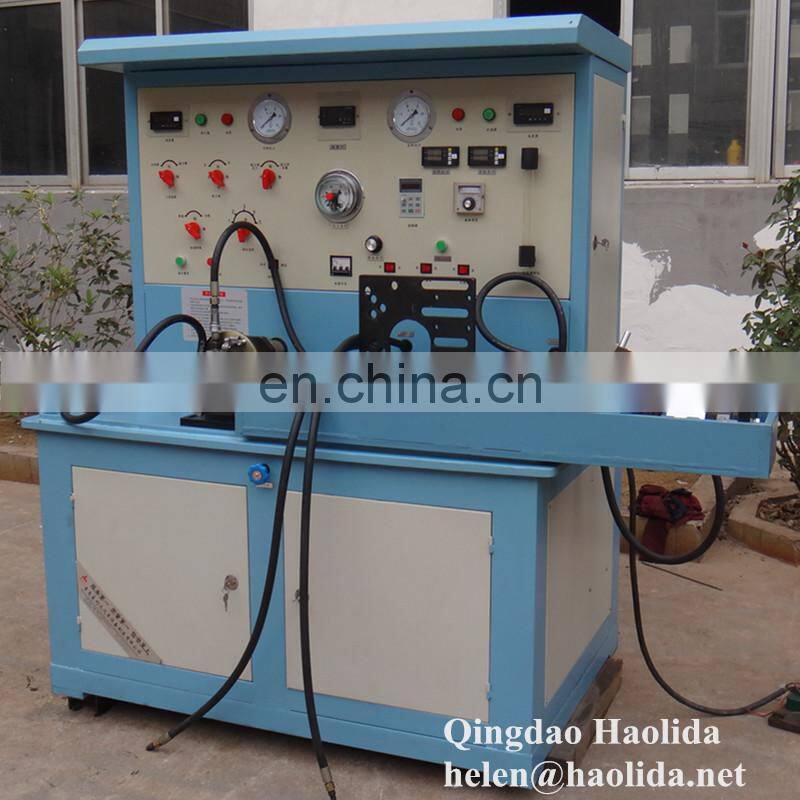

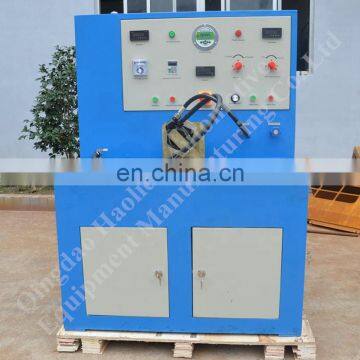

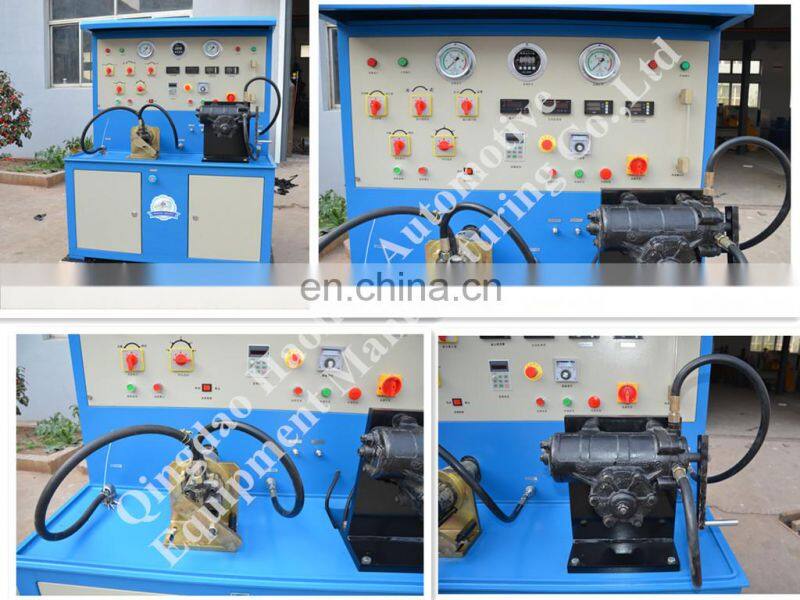

QFY-3 model steering gear and power steering pump test bench
General introduction
This steering gear and power steering pump test bench is used for testing steering wheels and power pumps of various models trucks in steering system.
Test items:
l Pressure of power steering pump, can preset the rated pressure, automatic unloading
l Oil flow of power steering pump
l Revolving speed of power steering pump
l Input and output leakage of steering gear
l Free stroke of steering gear
l Working angle of steering gear
l Performance of conversion valve assembly of steering gear
Technical parameter:
Model no | QFY-3 |
Language | English, etc |
Material | Metal plate |
Painting | Powder painting, durable and beautiful |
Color | Blue |
Voltage | 380V 50Hz |
Motor power | 7.5KW |
Frequency converter power | 7.5KW |
Speed | 0-2400rpm(frequency regulation) |
Direction | Clockwise, anti-clockwise |
Power of heater | 1000W 220V |
Rated heating temperature | 40℃(adjustable) |
Working pressure range of power pump | 0-18Mpa (adjustable) |
Accessories: | |
Accessory wires, etc. | |
Others you may want to know: | |
MOQ | 1set |
Warranty period | 12 months |
Payment term | T/T 50% in advance, the balance should be paid before delivery (negotiable) |
Delivery time | 35 days after receiving downpayment |
HS code | 90312000.90 |
Packing sizes | 1560*1050*1870mm=3.06CBM |
Click for more detail:
https://haolida.en.china.cn/productgrouplist-209500596/Auto_Hydraulic_System_Testing_Series.html?spm=a2700.icbuShop.prup15aafb.16.55be3efeyeEIyB
Why Choose us:
1. 32 years’ design,development and produce experience
2. Professional R&D team
3. Strict QC
4. A good pre-sale and after-sale service
5. Can design and make according to customer’s requests
