QFY-2 Model Automobile Power Steering Pump Test Bench
- Qingdao/Shanghai China
- T/T Credit Card
You May Like
Product Details
| Brand Name | Haolida | Place of Origin | Shandong, China | |
| Model Number | QFY-2 | Power | Hydraulic |
Product Description

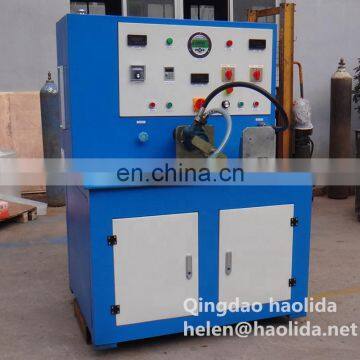

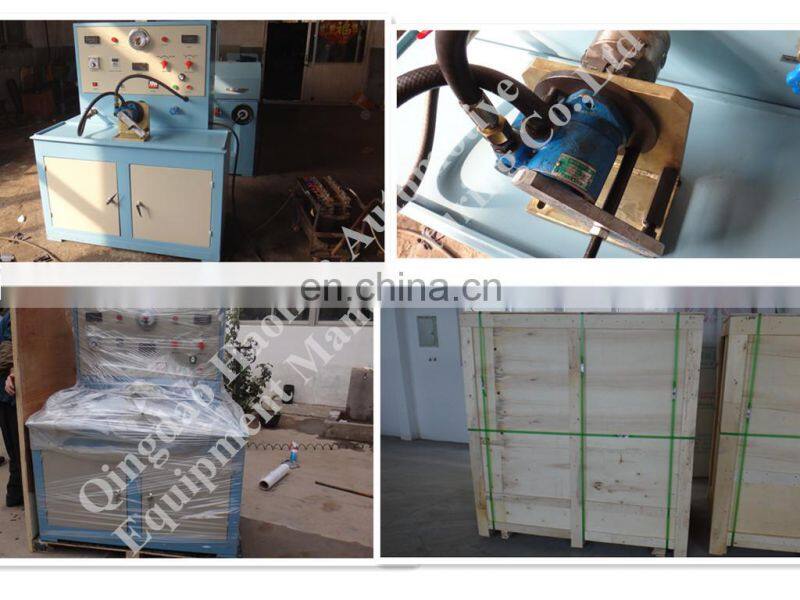

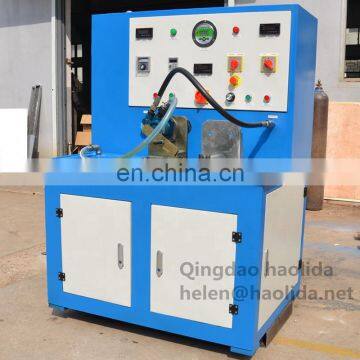

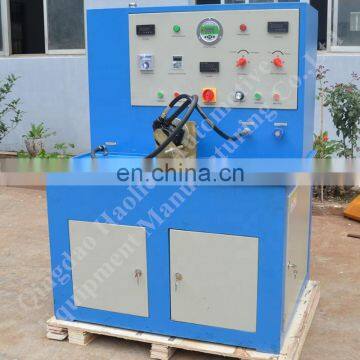

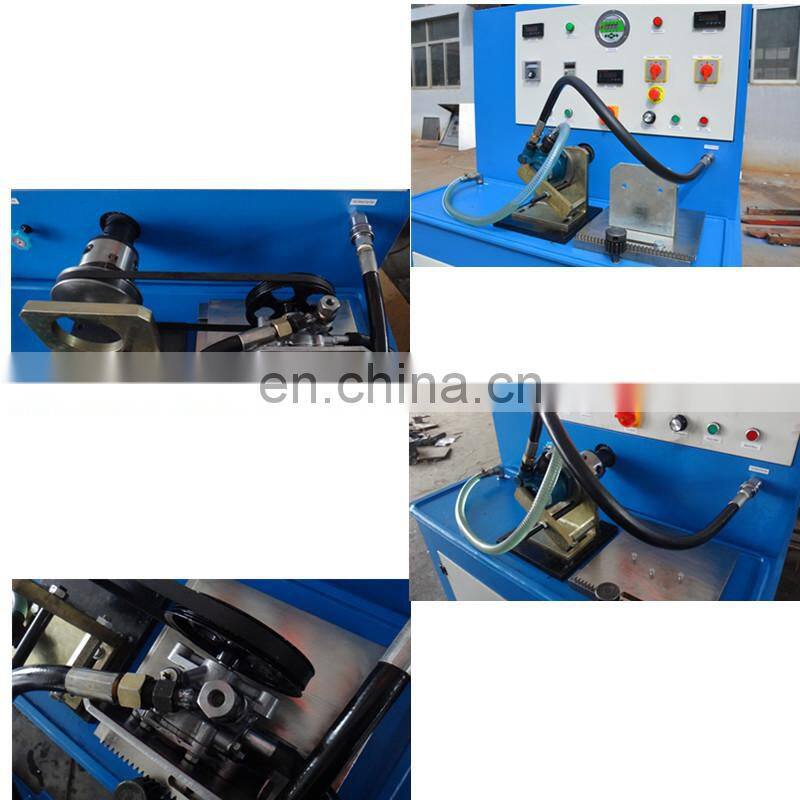

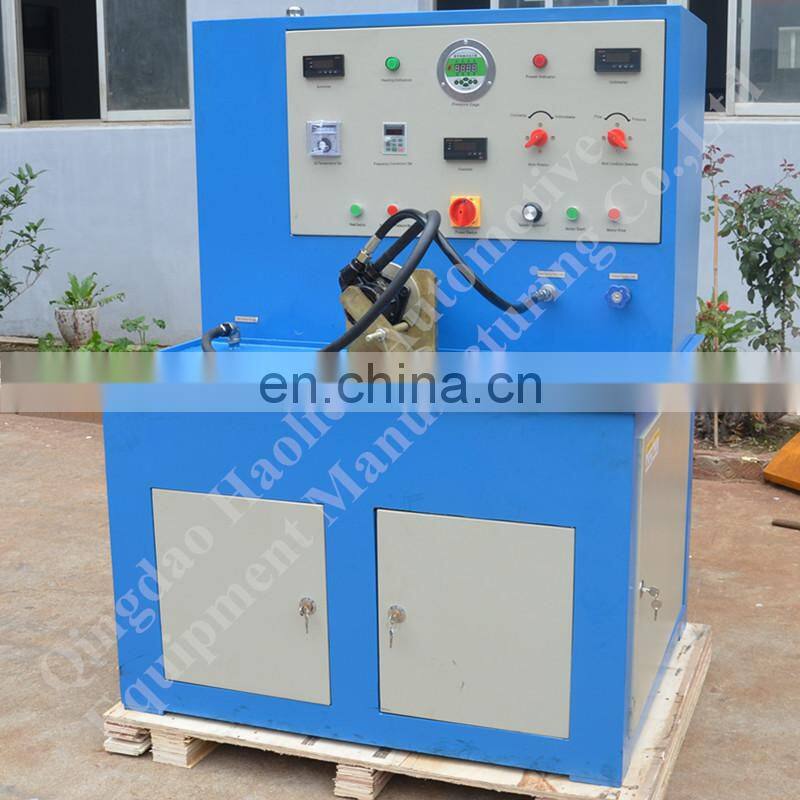

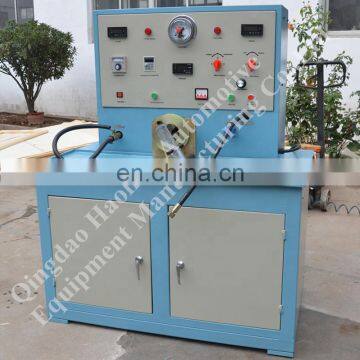

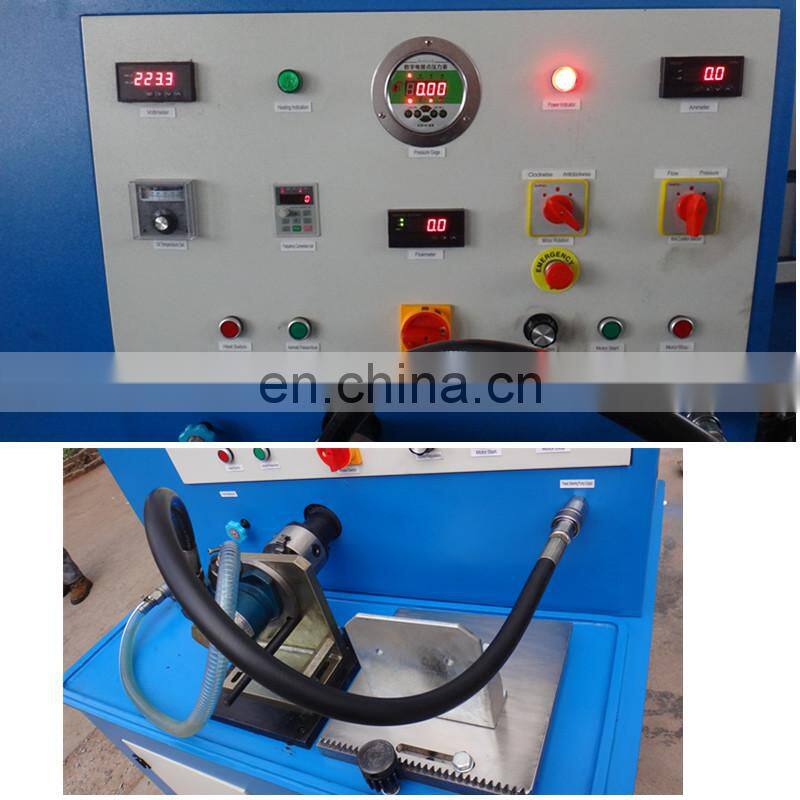

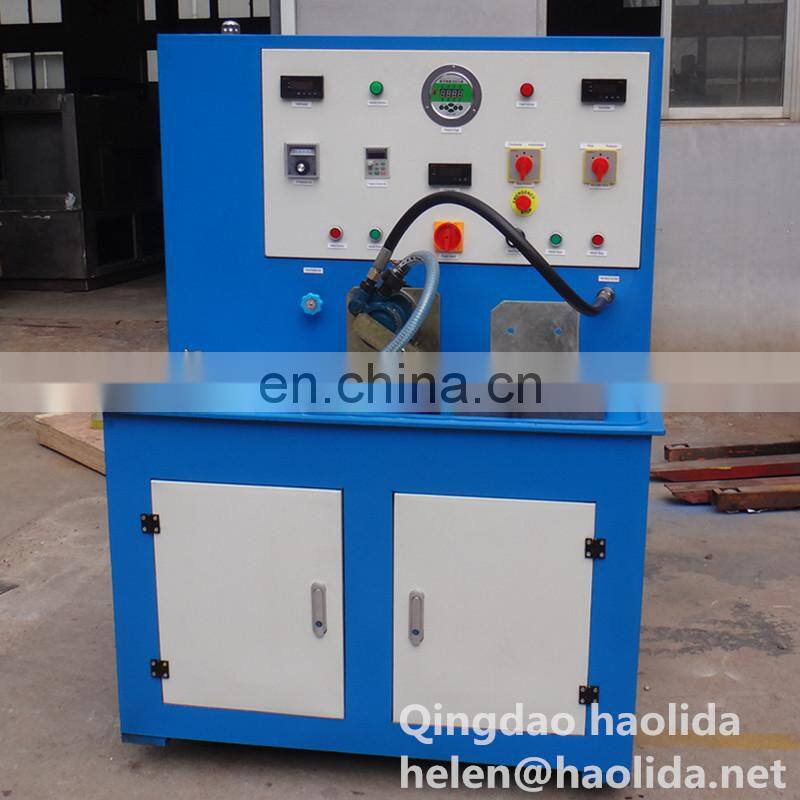

QFY-2 model power steering pump test bench
General introduction
This power steering pump test bench is used for testing and repairing hydraulic steering pumps of various trucks in steering system. Regulating speed by frequency converter to drive the pump work. Adopting high precision press regulating valve and sensor, it possesses convenient operation and reliable data.
Test items:
l pressure of the power pump, can preinstall the rated pressure and disassembling automatically
l the flow of the power pump
l the rotating speed of the power pump
Technical parameter:
Model no | QFY-2 |
Language | English, etc |
Material | Metal plate |
Painting | Powder painting, durable and beautiful |
Color | Blue |
Voltage | 380V 50Hz |
Motor power of power steering pump | 7.5KW |
Frequency converter power | 7.5KW |
Speed | 0-2400rpm(frequency regulation) |
Direction | Clockwise, anti-clockwise |
Working pressure range of power pump | 0-18Mpa |
Accessories: | |
Accessory wires , etc. | |
Others you may want to know: | |
MOQ | 1set |
Warranty period | 12 months |
Payment term | T/T 50% in advance, the balance should be paid before delivery (negotiable) |
Delivery time | 30 days after receiving downpayment |
HS code | 90312000.90 |
Packing sizes | 1140x860x1630mm=1.6CBM N.W:250kgs G.W:295kgs |
Why Choose us:
1. 32 years’ design, development and produce experience
2. Professional R&D team
3. Strict QC
4. A good pre-sale and after-sale service
5. Can design and make according to customer’s requests
