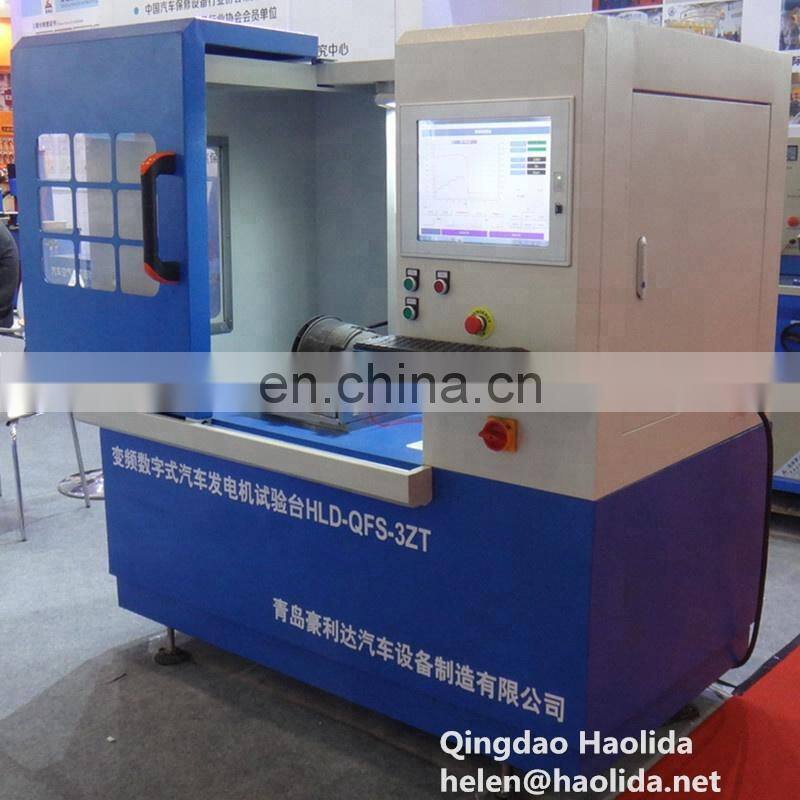

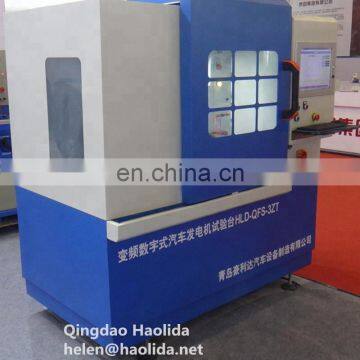

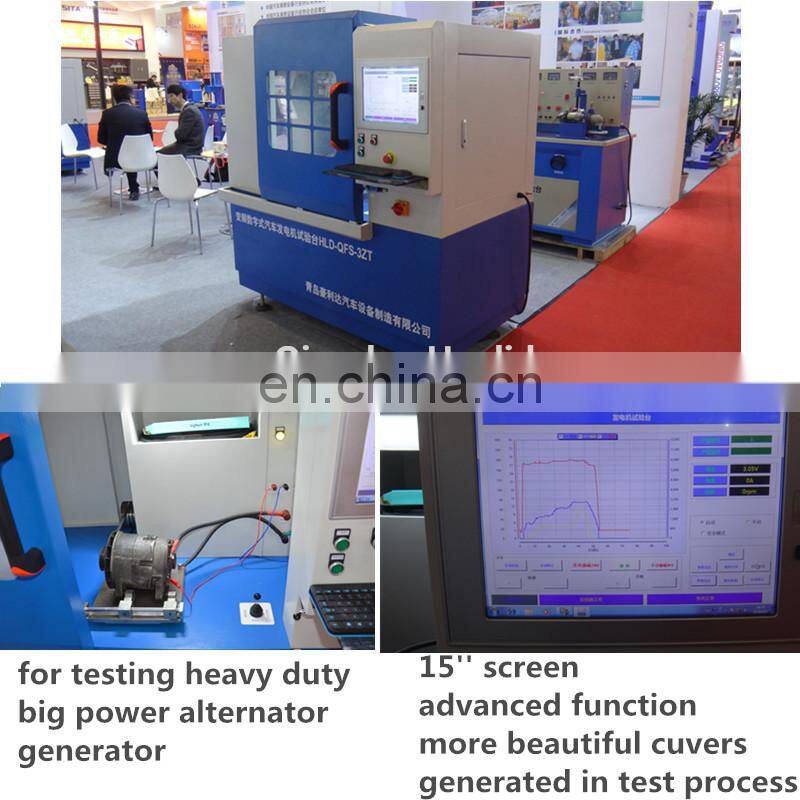

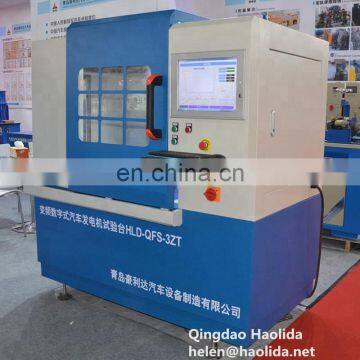

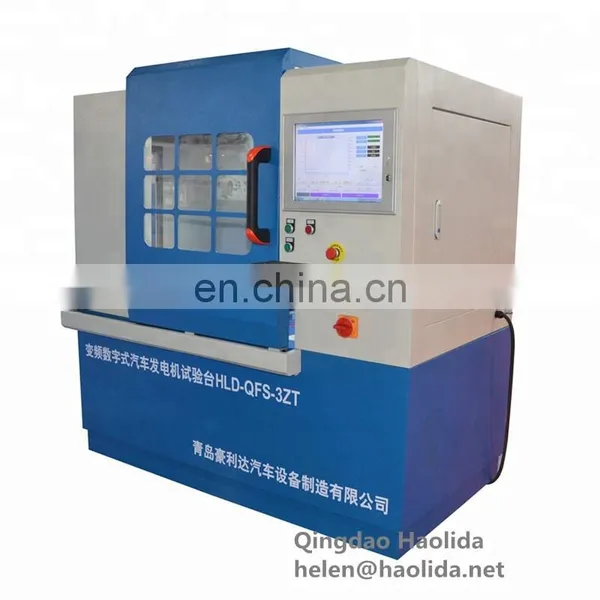

HLD-QFS-3ZT model Windows System Computer control Alternator Test Bench
General introduction
1. It can be used to test Alternators of various large vehicles (Truck, Bus, Tractor, Excavator, trailer,etc);
2. Test Alternator (Generator): 5.5KW, 0-200A, 12V or 24V, 10000RPM
Test item: Speed, Voltage, Current (Load or no-load)
Technical parameter:
Model no | HLD-QFS-3Z |
Language | English/Spanish, etc |
Material | Metal plate |
Painting | Powder painting, durable and beautiful |
Color | Blue |
Voltage | 380V 50 Hz 3P |
Motor power | 7.5KW |
Motor speed | 0-3600Rpm |
Frequency converter power | 11KW |
Alternator testing: | |
Maximum power | 7.5KW |
Maximum current | 200A |
Maximum voltage | 50V |
External battery | No |
Excitation voltage | DC12V/24V |
Speed range | No load:0-12000Rpmad; Load:0-10000Rpm |
Load mode | Electronic module (advanced) DA 0-200A DC 0-50V |
Alternator clamps | Pneumatic lock |
Accessories: | |
Accessory wires, belt, fuses, etc. | |
Others you may want to know: | |
MOQ | 1set |
Warranty period | 12 months |
Payment term | T/T 50% in advance, the balance should be paid before delivery (negotiable) |
Delivery time | 30 days after receiving downpayment |
HS code | 90312000.90 |

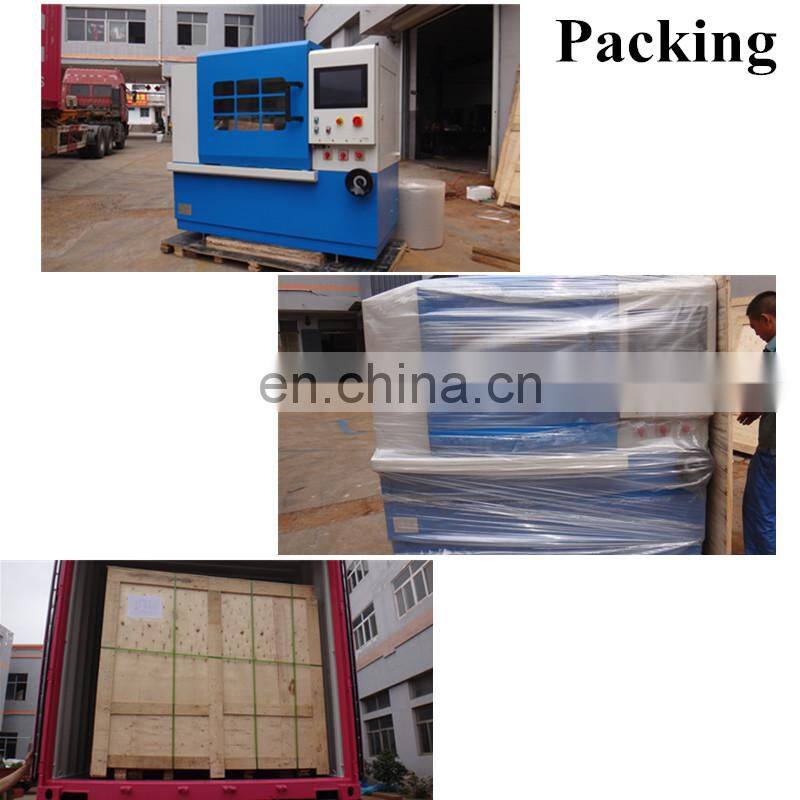

Packing sizes | 1870*1020*1660mm=3.17CBM |
Similar test benches for reference:
Click for more detail about the similar alternator starter test benches:
https://haolida.en.china.cn/productgrouplist-802632698/Alternator_Starter_Test_Bench.html?spm=a2700.8304367.prup15aafb.3.342f7f4cRdZjss
Why Choose us:
32 years’ design,development and produce experience
Professional R&D team
Strict QC
A good pre-sale and after-sale service
Can design and make according to customer’s requests
