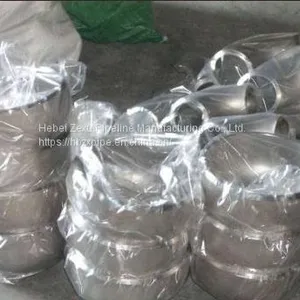

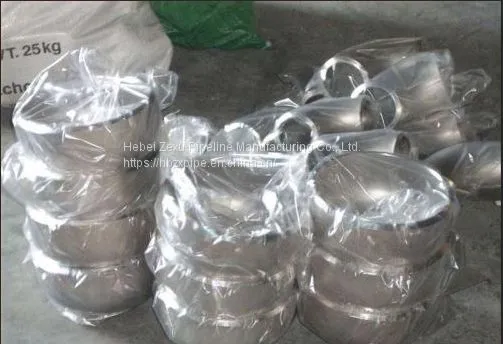

Product name: Pipe cap, head
Material: carbon steel, stainless steel, alloy steel
Brand: Zexu
Model No. : DIAMETER DN15-DN1200, wall thickness SCH5-SCH160
Price: 3-118
Role: The cap is generally used at the end of the pipe, and the head is used at the top and bottom (vertical equipment) or left and right ends (horizontal equipment) of the container equipment.
Product Introduction:
Pipe cap, also known as cap, plug, cap, pipe cover, muffler, welded to the pipe end or installed on the pipe end of the external thread to cover the pipe. It is used to close pipes and acts as a pipe plug.
The form of the blind plate is similar, but the blind plate is detachable plugging, while the welded pipe cap is not detachable. The pipe cap includes the design of convex pipe cap, conical shell, reducing section, flat cover and tightening mouth.
Convex pipe caps include hemispherical pipe caps, elliptic pipe caps, saucer pipe caps and spherical cap caps. From the point of view of stress, hemispherical cap in convex pipe cap is gradually bad, but from the point of manufacture difficulty, it is gradually easier to manufacture.
When splicing, the weld direction should only be radial and annular. In the future, large caps may be removed from this requirement. The splicing distance should be greater than 3 and not less than 100mm (the welding heat affected area is a high stress area, and the chemical composition in this area will be burnt. So avoid areas of high stress, which are related to thickness. According to practical experience, the stress attenuation length is greater than 3 and not less than 100mm). But refrigeration equipment is difficult to achieve this requirement, has its particularity.
For the head formed after splicing, splicing weld shall be inspected by 100% ray or ultrasonic. The qualified level shall follow the equipment shell. The final welding seam detection level and proportion are the same as the equipment shell, which results in high waste.
