Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > 2/0 3x2.5mm 10mm2 Rubber Soft Welding Power Cable
US$ 0.3 - 77
MOQ: 1000 Meters
Key Specifications
Get Latest Price
Brand Name:
RMjT
Place of Origin:
Henan, China
Model Number:
Rubber Welding Cable
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
3x2.5 Mm2 H05rr-f Cable Flexible Rubber Sheathed Power CableUS$ 1 - 30MOQ: 500 Meters -
H07rn-h Rubber Cable H07rn-f 4g x 35sqmmUS$ 1 - 3MOQ: 500 Meters
-
Hot Sale in Turkey 25mm2 35mm2 Mig Welding CableUS$ 0.1 - 29.9MOQ: 100 Meters
-
70mm Welding Cable Flexible Copper Conductor Rubber Insulation Electrical CableUS$ 3.7 - 7.8MOQ: 500 Meters
-
H05RR-F H05RN-F H07RN-F Silicone Rubber Flexible Copper Wire Welding CableUS$ 0.27 - 9.83MOQ: 1000 Meters
Brand Name
RMjT
Place of Origin
Henan, China
Model Number
Rubber Welding Cable
Type
Low Voltage
Application
Construction
Insulation Material
Rubber
Jacket
Rubber
Conductor Material
Copper
Product Description
Conditions of use for rubber flexible cables
1.Standard: ISO9001:2000. CCC certificates, CE certified
2.Specification: solid or stranded copper conductor.PVC insulated and PVC and sheathde wire.
3. Conductor: bare copper, IEC class 5 ,flexible type
4. Insulation: PVC Rubber XLPE
5. ated Voltage Uo / U: 300/500V, 450/750V
6. Working temperature: -40°C to + 70 °C
7. Maximum permitted operating temperature of conductor is 60°C.
8. Permitted lowest working temperature is -35°C.
9. Cables can be used at places contaminated by mineral oil and fuel oil.
10. D>25mm , The minimum bending radius is over 6 times of cable diameter.
D≤25mm , The minimum bending radius is over 4 times of cable diameter.
11. Various colors are available
12. Application: cables for energy supply suitable for use in lighting system, mechanical system. Suitable for surface wiring, indoor or outdoor.
YQ ; NR/SBR rubber insulated NR/SBR rubber sheathed flexible cables (wires) for light duty
YQW ; NR/SBR rubber insulated neoprene rubber sheathed flexible cables (wires) for light duty
YZ ; NR/SBR rubber insulated NR/SBR rubber sheathed flexible cables (wires) for middle duty
YZW ; NR/SBR rubber insulated neoprene rubber sheathed flexible cables (wires) for middle duty
YC ; NR/SBR rubber insulated NR/SBR rubber sheathed flexible cables (wires) for heavy duty
YCW ; NR/SBR rubber insulated neoprene rubber sheathed flexible cables (wires) for heavy duty
YH ; NR/SBR rubber sheathed arc welding cable
THF ; Neoprene rubber sheathed arc welding cable
YQW ; NR/SBR rubber insulated neoprene rubber sheathed flexible cables (wires) for light duty
YZ ; NR/SBR rubber insulated NR/SBR rubber sheathed flexible cables (wires) for middle duty
YZW ; NR/SBR rubber insulated neoprene rubber sheathed flexible cables (wires) for middle duty
YC ; NR/SBR rubber insulated NR/SBR rubber sheathed flexible cables (wires) for heavy duty
YCW ; NR/SBR rubber insulated neoprene rubber sheathed flexible cables (wires) for heavy duty
YH ; NR/SBR rubber sheathed arc welding cable
THF ; Neoprene rubber sheathed arc welding cable
Technicial Parameters
Nominal section area (mm2) | No./diameter of stranding (mm) | Nominal sheath thickness (mm) | Overall diameter (mm) | Max. conductor resistance at 20℃ (Ω/km) | ||||||||
Min. | Max | Without tinned | With tinned | |||||||||
10 | 322/0.20 | 1.8 | 7.5 | 9.7 | 1.91 | 1.95 | ||||||
16 | 513/0.20 | 2 | 9.2 | 11.5 | 1.16 | 1.19 | ||||||
25 | 798/0.20 | 2 | 10.5 | 13 | 0.758 | 0.78 | ||||||
35 | 1121/0.20 | 2 | 11.5 | 14.5 | 0.536 | 0.552 | ||||||
50 | 1596/0.20 | 2.2 | 13.5 | 17 | 0.379 | 0.39 | ||||||
70 | 2214/0.20 | 2.4 | 15 | 19.5 | 0.268 | 0.276 | ||||||
95 | 2297/0.20 | 2.6 | 17 | 22 | 0.198 | 0.204 | ||||||
120 | 1702/0.30 | 2.8 | 19 | 24 | 0.161 | 0.164 | ||||||
150 | 2135/0.30 | 3 | 21 | 27 | 0.129 | 0.132 | ||||||
185 | 1443/0.40 | 3.2 | 22 | 29 | 0.106 | 0.108 | ||||||
240 | 1908/0.40 | 3.8 | 25 | 35 | 0.0801 | 0.0817 | ||||||
............ | ||||||||||||
Size | Strands No. | Insulation thickness |
0.5mm2 | 16/0.2mm | 0.6mm |
0.75mm2 | 24/0.20mm | 0.6mm |
1.0mm2 | 32/0.20mm | 0.6mm |
1.5mm2 | 48/0.20mm | 0.7mm |
2.5mm2 | 49/0.25mm | 0.8mm |
4mm2 | 56/0.30mm | 0.8mm |
6mm2 | 84/0.30mm | 0.8mm |
10mm2 | 84/0.39mm | 1.0mm |
16mm2 | 133/0.39mm | 1.0mm |
Attention: We can provide more information than above data, if needed.The above are just some examples.

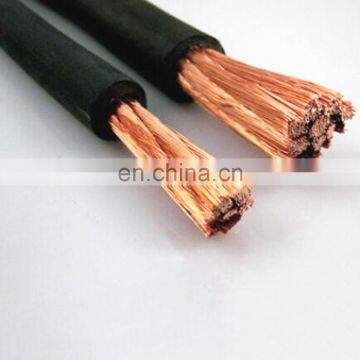

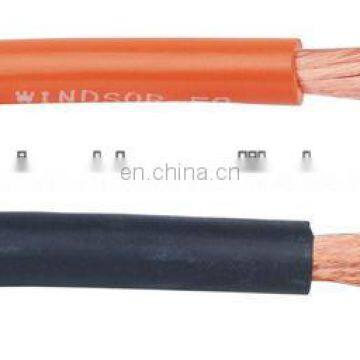

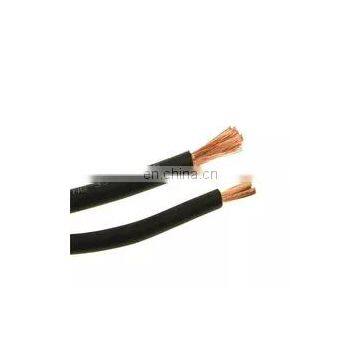

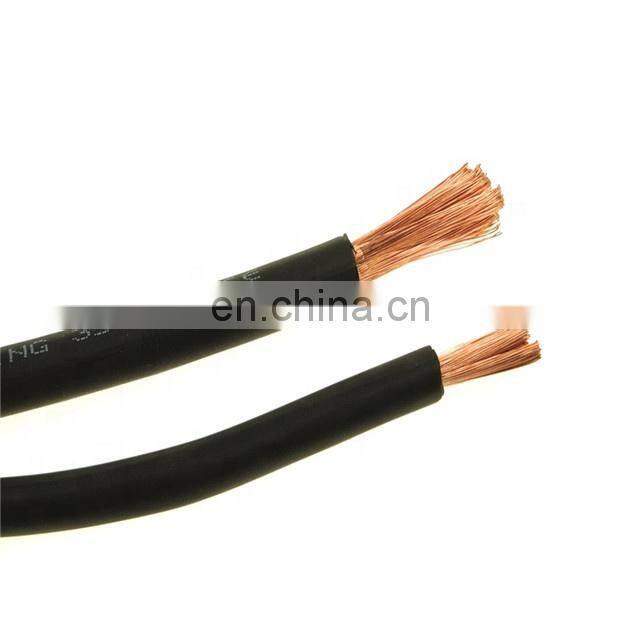

2/0 3x2.5mm 10mm2 Rubber Soft Welding Power Cable

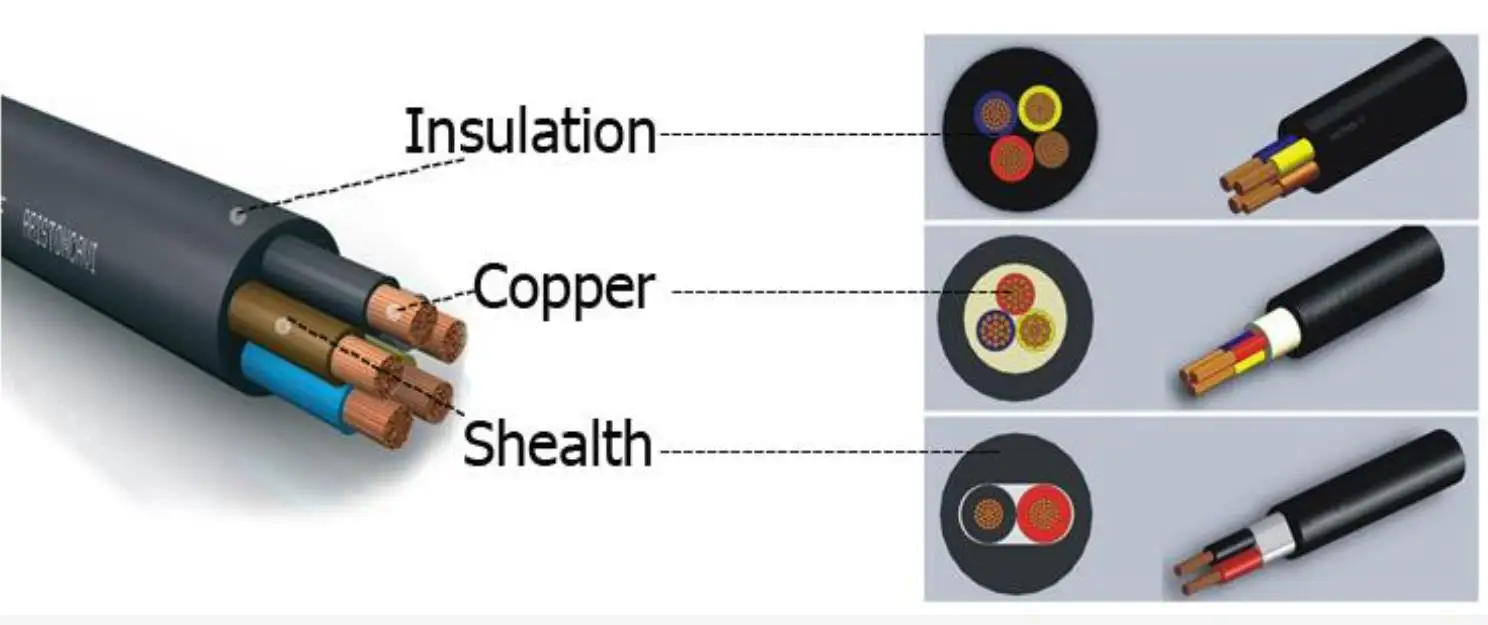

Rubber sheathed cables are widely used in various electrical equipment, such as household appliances, motors, electrical equipment and mobile power cords for household appliances, and can be used in indoor or outdoor environments.
Rubber Cable Model Usage
According to the mechanical external force on the cable, the product structure can be divided into three categories: light, medium and heavy, with proper connection on the cross section.
NAME | MODEL | USAGE | FEATURE |
Light weight rubber cable | YQ、YQW | Household appliances, small electric equipment | Soft, light and good bending performance; YQW has weather resistance and certain oil resistance |
Medium-sized rubber cable | YZ、YZW | Industry, widely used in agricultural electrification | YZW has weather resistance and certain oil resistance |
Heavy rubber cable | YC、YCW | Used in port machinery, searchlights, large-scale water conservancy irrigation and drainage stations, etc. | Has good versatility, complete series specifications, good performance and stability; YCW has weather resistance and certain oil resistance |
Waterproof rubber cable | JHS、JHSB | Diving motor | Good bending performance, can withstand frequent movement |
Welding machine rubber cable | YH、YHF | Electric welding machine | / |
/ | YHD | Tinned power cable for field use | / |
