Aluminum Conductor Alloy Reinforce IEC61089 ASTM B524 ACAR cable
Applications:
ACAR cable used as bare overhead transmission cable and as primary and secondary distribution cable. A good strength-to-weight ratio makes ACAR cable applicable where both ampacity and strength are prime considerations in line design. For equal weight ACAR cable offers higher strength and ampacity than ACSR.
specifications:
ACAR cable bare conductor meets or exceeds the following ASTM specifications:
B-230 Aluminium Wire, 1350-H19 for Electrical Purposes
B-398 Aluminium Alloy 6201-T81 for Electrical Purposes
B-524 Concentric-Lay-Stranded Aluminium Conductors, Aluminium Alloy Reinforced
| Code number | Diameter | No. of wires | Areas | Linear mass | Rated strength | D.C resistance | ||||
| Wire | Cond. | A1 | A2 | A1 | A2 | Total | ||||
| mm | mm | mm2 | mm2 | mm2 | kg/km | kN | Ohm/km | |||
| 16 | 1.76 | 5.29 | 4 | 3 | 9.78 | 7.33 | 17.1 | 46.8 | 4.07 | 1.7896 |
| 25 | 2.21 | 6.62 | 4 | 3 | 15.3 | 11.5 | 26.7 | 73.1 | 6.29 | 1.1453 |
| 40 | 2.79 | 8.37 | 4 | 3 | 24.4 | 18.3 | 42.8 | 117.0 | 9.82 | 0.7158 |
| 63 | 3.5 | 10.5 | 4 | 3 | 38.5 | 28.9 | 67.4 | 184.3 | 14.8 | 0.4545 |
| 100 | 4.41 | 13.2 | 4 | 3 | 61.1 | 45.8 | 107 | 292.5 | 23.49 | 0.2863 |
| 125 | 2.98 | 14.9 | 12 | 7 | 83.7 | 48.8 | 132 | 364.1 | 29.29 | 0.2302 |
| 160 | 3.37 | 16.8 | 12 | 7 | 107 | 62.5 | 170 | 466.0 | 36.95 | 0.1798 |
| 200 | 3.77 | 18.8 | 12 | 7 | 134 | 78.1 | 212 | 582.5 | 44.78 | 0.1439 |
| 250 | 4.21 | 21.1 | 12 | 7 | 167 | 97.6 | 265 | 728.1 | 55.98 | 0.1151 |
| 250 | 3.05 | 21.4 | 18 | 19 | 132 | 139 | 271 | 746.0 | 64.67 | 0.1154 |
| 315 | 3.34 | 23.4 | 30 | 7 | 263 | 61.4 | 325 | 894.4 | 62.4 | 0.0916 |
| 315 | 3.43 | 24 | 18 | 19 | 166 | 175 | 341 | 940.0 | 81.48 | 0.0916 |
| 400 | 3.77 | 26.4 | 30 | 7 | 334 | 78 | 412 | 1135.8 | 76.82 | 0.0721 |
| 400 | 3.86 | 27 | 18 | 19 | 211 | 222 | 433 | 1193.7 | 100.3 | 0.0721 |
| 450 | 3.99 | 28 | 30 | 7 | 376 | 87.7 | 464 | 1277.8 | 86.42 | 0.0641 |
| 450 | 4.1 | 28.7 | 18 | 19 | 237 | 250 | 487 | 1342.9 | 112.84 | 0.0641 |
| 500 | 4.21 | 29.5 | 30 | 7 | 418 | 97.5 | 515 | 1419.8 | 96.03 | 0.0577 |
| 500 | 4.32 | 30.2 | 18 | 19 | 263 | 278 | 542 | 1492.1 | 125.38 | 0.0577 |
| 560 | 4.46 | 31.2 | 30 | 7 | 468 | 109 | 577 | 1590.1 | 107.55 | 0.0515 |
| 560 | 3.45 | 31.1 | 54 | 7 | 505 | 65.5 | 570 | 1573.9 | 103.53 | 0.0516 |
| 630 | 3.72 | 33.4 | 42 | 19 | 456 | 206 | 662 | 1826.0 | 134.59 | 0.0458 |
| 630 | 3.8 | 34.2 | 24 | 37 | 272 | 420 | 692 | 1909.0 | 169.14 | 0.0458 |
| 710 | 3.95 | 35.5 | 42 | 19 | 514 | 232 | 746 | 2057.8 | 151.68 | 0.0407 |
| 710 | 4.03 | 36.3 | 24 | 37 | 307 | 473 | 780 | 2151.4 | 190.61 | 0.0407 |
| 800 | 4.19 | 37.7 | 42 | 19 | 579 | 262 | 840 | 2318.7 | 170.9 | 0.0361 |
| 800 | 4.28 | 38.5 | 24 | 37 | 346 | 533 | 879 | 2424.2 | 214.78 | 0.0361 |
| 900 | 4.44 | 40 | 42 | 19 | 651 | 294 | 945 | 2608.5 | 192.27 | 0.0321 |
| 900 | 3.66 | 40.3 | 54 | 37 | 569 | 390 | 959 | 2649.5 | 207.79 | 0.0321 |
| 1000 | 3.8 | 41.8 | 72 | 19 | 818 | 216 | 1034 | 2855.4 | 195.47 | 0.0289 |
| 1000 | 3.86 | 42.5 | 54 | 37 | 632 | 433 | 1066 | 2943.9 | 230.88 | 0.0289 |
| 1120 | 4.02 | 44.3 | 72 | 19 | 916 | 242 | 1158 | 3198.1 | 218.92 | 0.0258 |
| 1120 | 4.09 | 45 | 54 | 37 | 708 | 485 | 1194 | 3297.2 | 258.58 | 0.0258 |
| 1250 | 4.25 | 46.8 | 72 | 19 | 1022 | 270 | 1292 | 3569.3 | 244.33 | 0.0231 |
| 1250 | 4.32 | 47.5 | 54 | 37 | 791 | 542 | 1332 | 3679.9 | 288.6 | 0.0231 |
| 1400 | 4.5 | 49.5 | 72 | 19 | 1145 | 302 | 1447 | 3997.6 | 273.65 | 0.0207 |

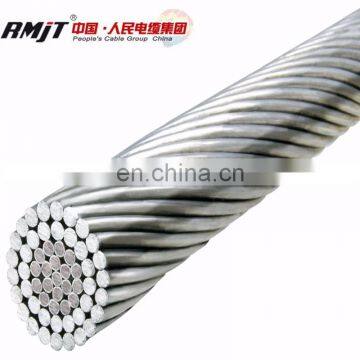

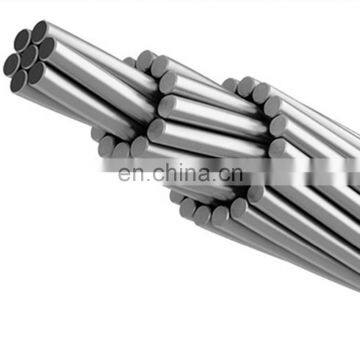

Construction
Aluminium alloy 1350-H19 wires, concentrically stranded about an Aluminium alloy 6201 core. Although the alloy strands generally comprise the core of the cable, in some constructions they are distributed in layers throughout the Aluminium alloy 1350-H19 strands.
Our factory People`s Cable Group ,.Ltd., is a China non-aera group company,providing professional
manufacturing, R&D and sale of cables and wires.Now it has five core subsidiaries, with more than 80
cooperative enterprise and over 100 sales outlets in our country.Our products have been exported to
more than 80 countries,such as Southeast Asia, the Middle East ,Africa,South America and korea
Specialized in manufactured high, medium and low voltage XLPE ,fire-resisitant cable,flame-retardant
cable,control cable,rubber cable, Insulated aerial cables,shielded cable,bare aluminum conductor
ACSR,AAC AAAC ACAR and ABC cabl
Our products Acar cable meet standards of GB/T, ASTM B232, ASTM B711, ASTM B524,ASTMB549-88,ASTMB415,BS215 Part2 , CSA C49 ,DIN48204, DIN48206, IEC61089
and so on.As first rank of the supplier in China, we have obtained ISO9001, ISO14001 and CCC certificates.
Are you factory or trading company?
We are factory Acar cable with 27 years manufacturing experiences.
When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
How can I get a sample to check your quality?
After price confirmation, you can require for samples Acar cable to check our quality.
Sample Acar cable is free,but the freight charge should be paid.
How long can I expect to get the sample?
After you pay the freight charge Acar cable and send us confirmed files, the samples Acar cable will be ready for delivery in 3-7 days. The samples Acar cable will be sent to you via express and arrive in 3-5 days.
You can use your own express account or prepay us if you do not have an account.
What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.
The best record we keep is delivering 10 kilometers cable within a week.
Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
What is your terms of delivery?
We accept EXW, FOB, CFR, CIF, DDU, DDP, etc. You can choose the one Acar cable which is the most convenient or cost effective for you.
