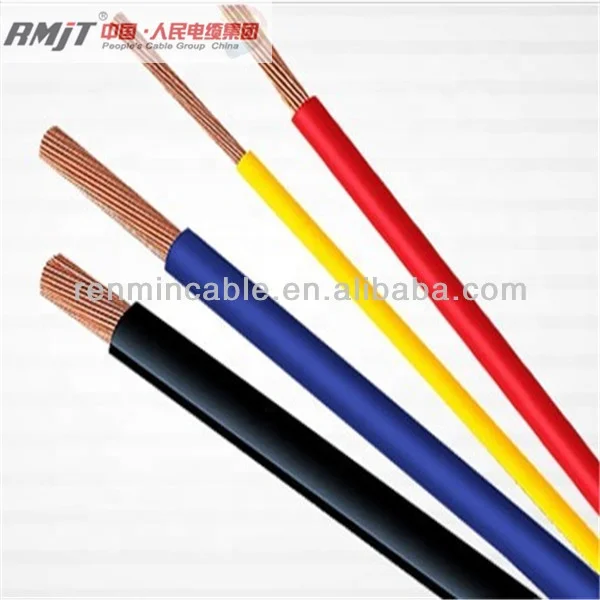

Price 6mm Copper Cable Electrical Wire

Name: Price 6mm Copper Cable Electrical Wire
Brand: RMjT
Availability: InStock

FOB Price

US$ 0.07 - 9 / Meter

500 Meters(Min. Order)

Port Qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	RMjT	Place of Origin	Henan, China
Model Number	BV, BVR, RVV, RVVB, BVVB	Type	Insulated
Insulation Material	PVC
Conductor Type	Stranded

Product Description

_Application

^{PVC insulated wires belong to the series of laying electric wires, which are mainly suitable for placing at the fixed places. It is widely used as connectors of drive, Lighting, electronic equipment, instrument and telecommunication equipmentwith rated voltage 450/750V (U0/U) or below. Parts of the plastic wires are used at the equipment with AC rated voltage 300/300V or below.}

^Standard

^{GB5023, BS 6004, IEC 60227, VDE}

^{Specification}

^{H05V-U Specification}

_{300/500V,Copper Conductor PVC Insulated Wire}
_{Nominal Cross Section}	_{Conductor Construction}			_{Insulation Thickness}	_{Overall Diameter}	_{Approx. Net Weight}
_mm2	_No	_Diameter	_mm	_mm	_kg/km
_{1 X 0.5}	₁	_0.8	_0.6	_2.00	_8.16
_{1 X 0.75}	₁	_0.97	_0.6	_2.17	_10.71
_{1 X 1.0}	₁	_1.13	_0.6	_2.33	_13.48

H05V-R Specification

_{300/500V,Copper Conductor PVC Insulated Wire}
Nominal Cross Section	Conductor Construction			Insulation Thickness	Overall Diameter	Approx. Net Weight
_mm2	_No.	_mm	_mm	_mm	_kg/km
_{1 X 0.75}	₇	_0.37	_0.6	_2.31	_11.3
_{1 X 1.0}	₇	_0.43	_0.6	_2.49	_14.2

H05V-K Specification

_{300/500V,Copper Conductor PVC Insulated Flexible Connecting Wire}
_{Nominal Cross Section}	_{Conductor Construction}			_{Insulation Thickness}	Overall Diameter	Approx. Net Weight
mm2	No.	Diameter	mm	mm	kg/km
1 X 0.5	28	0.15	0.6	2.16	8.65
1 X 0.75	40	0.15	0.6	2.40	11.22
1 X 1.0	32	0.20	0.6	2.54	14.32
_{300/500V, Copper Conductor Heat Resistant PVC Insulated Connecting Wire at 90ºC}
_{Nominal Cross Section}	_{Conductor Construction}			_{Insulation Thickness}	_{Overall Diameter}	_{Approx. Net Weight}
_mm2	_No.	_Diameter	_mm	_mm	_kg/km
_{1 X 0.5}	₂₈	_0.15	_0.6	_2.16	_8.65
_{1 X 0.75}	₄₀	_0.15	_0.6	_2.40	_11.22
_{1 X 1.0}	₃₂	_0.20	_0.6	_2.54	_14.32
_{1 X 1.5}	₃₀	_0.25	_0.7	_3.00	_20.58
_{1 X 2.5}	₄₉	_0.25	_0.8	_3.70	_32.24

_{H03VVH2-F Specification}

_{300/500V,Copper Conductor PVC Insulated PVC Sheathed Flat Wire}
_{Nominal Cross Section}	_{Conductor Construction}	_{Insulation Thickness}	_{Sheath Thickness}	_{Overall Diameter}	Approx. Net Weight
_mm2	_No./mm	_mm	_mm	_{mm x mm}	_kg/km
_{2 X 0.75}	_1/0.97	_0.6	_0.9	_{3.97 x 6.14}	_39.0
_{2 X 1.0}	_1/1.13	_0.6	_0.9	_{4.13 x6.46}	_45.6
_{2 X1.5}	_1/1.37	_0.7	_0.9	_4.57x7.34	_60.5
_{2 X2.5}	_1/1.76	_0.8	_1.0	_5.36x8.72	_89.9
_{2 X4}	_1/2.24	_0.8	_1.0	_5.84x9.68	_123.5
_{2 X4}	_7/0.85	_0.8	_1.0	_6.15x10.30	_130.6
_{2 X6}	_1/2.74	_0.8	_1.1	_6.54x10.88	_169.4
_{2 X6}	_7/1.04	_0.8	_1.1	_6.92x11.64	_179.2
_{2 X10}	_7/1.35	_1.0	_1.2	_9.45x14.50	_286.5
_{2 X16}	_7/1.70	_1.0	_1.2	_9.50x16.60	_412.3
_{3 X0.75}	_1/0.97	_0.6	_0.9	_3.97x8.31	_55.2
_{3 X1.0}	_1/1.13	_0.6	_0.9	_4.13x8.79	_65.0
_{3 X1.5}	_1/1.38	_0.7	_0.9	_4.58x10.14	_87.7
_{3 X2.5}	_1/1.76	_0.8	_1.0	_5.36x12.08	_129.9
_{3 X4}	_1/2.24	_0.8	_1.1	_6.04x13.72	_184.7
_{3 X 4}	_7/0.85	_0.8	_1.1	_6.35x14.65	_195.4
_{3 X6}	_1/2.74	_0.8	_1.1	_6.54x15.22	_247.7
_{3 X 6}	_7/1.04	_0.8	_1.1	_6.92x16.36	_262.0
_{3 X10}	_7/1.35	_1.0	_1.2	_8.45x20.55	_420.8

Packing & Delivery

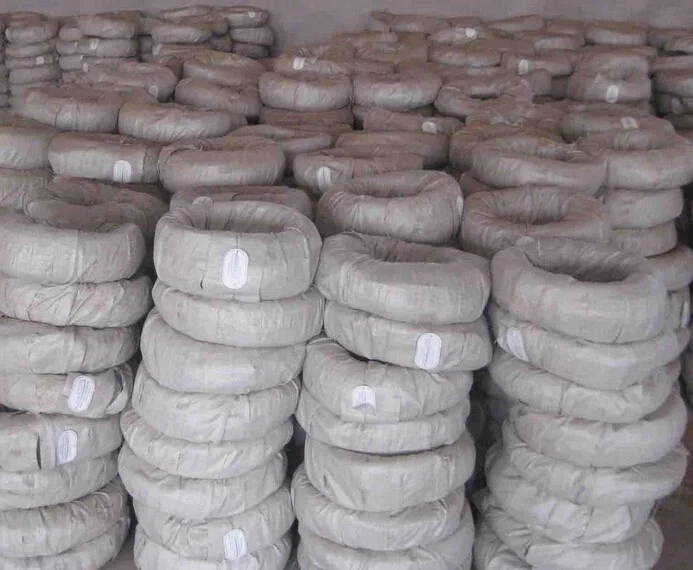

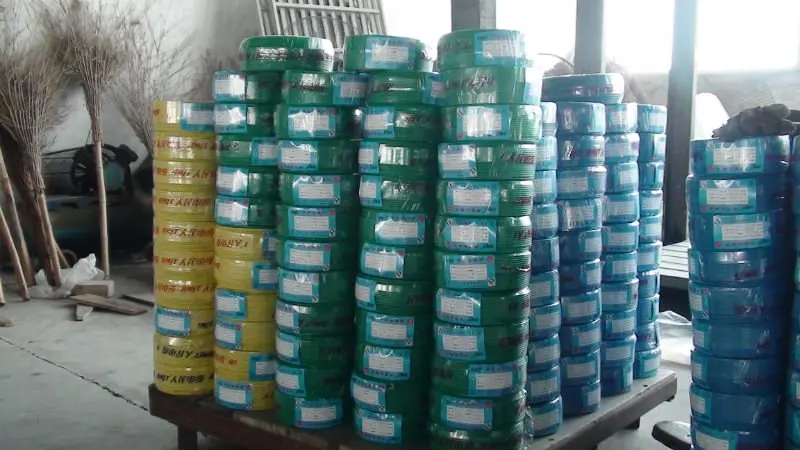

^{Packing in plastic reel, paper reel ,wooden drum,steel wooden drum or as customer's requirement.}

Company Profie

People's Cable Group Co., Ltd. was founded in 2007, located in Zhengzhou Gongyi economic development zone. Our company has 2 factories (Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters. The real capital assets more than USD 10 million , with total 500 staff members, 65 of which are professional and technical experts.

As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.

We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the
comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win relationship!

FAQ

Q1: When can I get the price? We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority. Q2: How can I get a sample to check your quality? After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid. Q3: How long can I expect to get the sample? After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days. Q4: What about the lead time for mass production? Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
