Application
PVC insulated wires belong to the series of laying electric wires, which are mainly suitable for placing at the fixed places. It is widely used as connectors of drive, Lighting, electronic equipment, instrument and telecommunication equipmentwith rated voltage 450/750V (U0/U) or below. Parts of the plastic wires are used at the equipment with AC rated voltage 300/300V or below.an 0°C.
(3)When it is flexible structure, not armored but with screen, the minimum bending radius is ≥6D; When it is armored or with copper tape screen, the bending radius is ≥ 12D(D is the cable overall diameter).

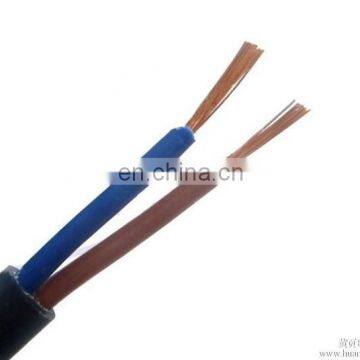

Construction
Standard
GB5023, BS 6004, IEC 60227, VDE ,UL
Specification
| Code Designation by IEC | Code Designation by GB | Rated Voltage | Name | Application | Rated Temperature |
| 60227 IEC 01 | BV | 300/500V | Copper conductor PVC insulated rigid cable (electrical wire) | Fixed laid indoors Instrument etc. | 0°C to +70°C |
| 60227 IEC 05 | BV | 450/750V | |||
| BLV | 450/750V | Aluminum conductor PVC insulated rigid cable (electrical wire) | |||
| BVR | 450/750V | Copper conductor PVC insulated semi-flexible cable (electrical wire) | Be for laying permanent place where flexible required. | 0°C to +70°C | |
| 60227 IEC10 | BVV | 300/500V | Copper Conductor,PVC insulated and PVC Sheathed Round Wire. | Fixed laid, fit for the places with high mechanical protection and moisture place, can be laid in the air or underground. | 0°C to +70°C |
| BLVV | 300/500V | Aluminum conductor PVC insulated PVC sheathed round cable (electrical wire) | |||
| BVVB | 300/500V | Copper conductor PVC insulated PVC sheathed flat cable (electrical wire) | |||
| BLVVB | 300/500V | Aluminum conductor PVC insulated PVC sheathed flat cable (electrical wire) | |||
| 60227 IEC 02 | RV | 450/750V | Copper conductor PVC insulated flexible connector cable (electrical wire) | Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required | 0°C to +70°C |
| 60227 IEC 06 | RV | 300/500V | |||
| 60227 IEC 42 | RVB | 300/300V | Copper conductor PVC insulated flat flexible connector cable (electrical wire) | ||
| RVS | 300/300V | Copper conductor PVC insulated flexible twisting connector cable (electrical wire) | |||
| 60227 IEC 52 | RVV | 300/300V | Copper conductor PVC insulated PVC sheathed round flexible connector cable (electrical wire) | ||
| 60227 IEC 53 | RVV | 300/500V |

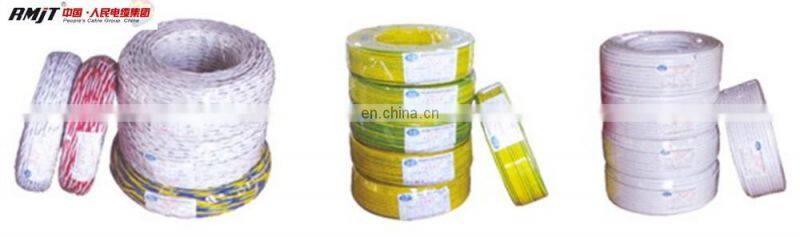

Package
Packing in plastic reel, paper reel ,wooden drum,steel wooden drum or as customer's requirement.
Our Factory
People's Cable Group Co., Ltd. was founded in 2007, located in Zhengzhou Gongyi economic development zone. Our company has 2 factories (Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters. The real capital assets more than USD 10 million , with total 500 staff members, 65 of which are professional and technical experts.
Certificate
As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
Customer Visit
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win relationship!
1. What is our company's main advantage?
We have produced cables for many years and have rich experience in exporting, and our quality can meet different standards including ASTM, BS, EN, IEC, DIN etc.
2. What is our payment term?
Generally our payment term is T/T or L/C at sight in trial business.
3. What is the package of the cable ?
The package is strong wooden drum, steel wooden drum or coil, and we can also provide special packing according to customer’s requirment.
4. What is the delivery time?
Normally we could send the shipment within 20 days after confirmation. It relates to the cable type, quantity, if you need the specific delivery time or you are urgent, kindly advise us your special needs when you contact us for better checking.
5.Can we provide customers free sample for checking?
Yes, free sample is available for checking, normally courier charge is on customers.
