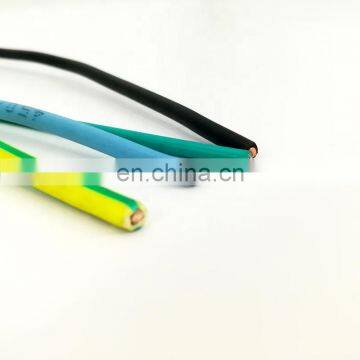

Copper or Aluminum Conductor PVC Insulated Electrical cable wire
- Qingdao China
- T/T Credit Card
You May Like
-
PVC Insulated electric wire 05mm power cable
-
Best selling H03VVH2-F RVVB two cores flat PVC insulated flexible soft copper conductor electric wire
-
PVC Insulated gauge Flexible Flat Wire/ RVB Wire
-
PVC Insulated electric wire 6mm2 cable
-
Dc cable pvc insulated power cable wire 2.5mm/4mm/6/mm/10mm aluminium/copper conductor electrical cable
-
PVC Insulated electric wire copper conductor 2.5mm2 cable
Product Details
| Brand Name | RMjT | Place of Origin | Henan, China | |
| Model Number | cable wire | Type | Insulated | |
| Insulation Material | PVC | |||
| Conductor Material | Copper |
Product Description
Application:
The PVC Insulated Wires belong to the series of laying wires, which are mainly suitable for laying at the fixed places. They are widely used as connectors of driving, lighting, electric equipment, instrument and telecommunication equipment with rated voltage up to 450/750V( Uo /U). Part of the plastic insulated wires are used at the equipment with AC rated voltage up to 300/300V.
Construction:
(1).Conductor: bare solid/stranded copper,or Aluminum.
(2).Insulation: PVC rated at 70°C
(3).Color Code:red,orange,yellow,yellow-green,blue,purple,grey,white or as your requirment.
(4).Outer sheath: PVC tapes ST2 to IEC.
Standards of Cable Wire:
The products can be produced according to standard GB/T 5023, IEC60227, BS6004, JB8734, and more we have extended the range of the type to fit for the requirement of the consumers.
Type, Name and Application Cable Wire.
| Type | Name | Application | Long-time Permissible Working Temperature (°C) |
| 60227IEC01 05 BV BLV | Copper/Aluminum conductor PVC insulated wires | Fixed laid in the circumstance of indoors, Conduit etc. | 70 |
| 60227IEC07 (BV-90) | Heat resistant copper conductor PVC insulated wire at 90°C | Mainly be laid at the places of high temperature environment and can be laid indoors ,conduits. | 90 |
| BVR | Copper conductor PVC insulated flexible cable | Be for laying permanent place where flexible required. | 70 |
| 60227IEC10 (BVV) | Copper conductor PVC insulated PVC sheathed round wire | Fixed laid, fit for the places with high mechanical protection and moisture place, can be laid in the air or underground. | 70 |
| BLVV | Aluminum conductor PVC insulated PVC sheathed round wires | ||
| BVVB | Copper conductor PVC insulated PVC sheathed flat wires | ||
| BLVVB | Aluminum conductor PVC insulated PVC sheathed flat wires | ||
| 60227IEC02(RV) | Copper conductor PVC insulated flexible connector wire | Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required | 70 |
| 60227IEC42(RVB) | Copper conductor PVC insulated flat flexible connector wire | ||
| RVS | Copper conductor PVC insulated flexible twisting connector wire | ||
| 60227IEC52(RVV) 60227IEC53 | Copper conductor PVC insulated PVC sheathed round flexible connector wire | ||
Specification Size and Technical Data of Cable Wire.
| Copper Conductor PVC Insulated Flexible Wire with Voltage 450/750V | ||||||
| Nominal Sectional Area | Conductor No/Dia. | Nominal Insulated thick | Max overall Dia. | Condcutor Resistance at 20°C | Min insulated resistance at 70°C | Weight |
| mm² | mm | mm | mm | Ω/km | mΩ/km | Kg/km |
| 2.5 | 9/0.41 | 0.8 | 4.2 | 7.41 | 0.011 | 33 |
| 4 | 19/0.52 | 0.8 | 4.8 | 4.61 | 0.009 | 48 |
| 6 | 19/0.64 | 0.8 | 5.6 | 3.08 | 0.0084 | 68 |
| 10 | 49/0.52 | 1 | 7.6 | 1.83 | 0.0072 | 115 |
| 16 | 49/0.64 | 1 | 8.8 | 1.15 | 0.0062 | 176 |
| 25 | 98/0.58 | 1.2 | 11 | 0.727 | 0.0058 | 272 |
| 35 | 133/0.58 | 1.2 | 12.5 | 0.524 | 0.0052 | 384 |
| 50 | 133/0.68 | 1.4 | 16.5 | 0.387 | 0.0051 | 510 |
| 70 | 189/0.68 | 1.4 | 16.5 | 0.268 | 0.0045 | 714 |
| 95 | 259/0.68 | 1 | 19.5 | 0.139 | 0.0035 | 965 |
| 120 | 259/0.76 | 1.8 | 22 | 0.153 | 0.0032 | 1210 |
| 150 | 259/0.85 | 1.8 | 25 | 0.124 | 0.0032 | 1510 |
Packaged by wooden drum, wooden-steel drum, or steel drum.
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win establish relationship!
1. What is our company's main advantage?
We have produced cables for many years and have rich experience in exporting, and our quality can meet different standards including ASTM, BS, EN, IEC, DIN etc.
2. What is our payment term?
Generally our payment term is T/T or L/C at sight in trial business.
3. What is the package of the cable ?
The package is strong wooden drum, steel wooden drum or coil, and we can also provide special packing according to customer’s requirment.
4. What is the delivery time?
Normally we could send the shipment within 20 days after confirmation. It relates to the cable type, quantity, if you need the specific delivery time or you are urgent, kindly advise us your special needs when you contact us for better checking.
5.Can we provide customers free sample for checking?
Yes, free sample is available for checking, normally courier charge is on customers.
