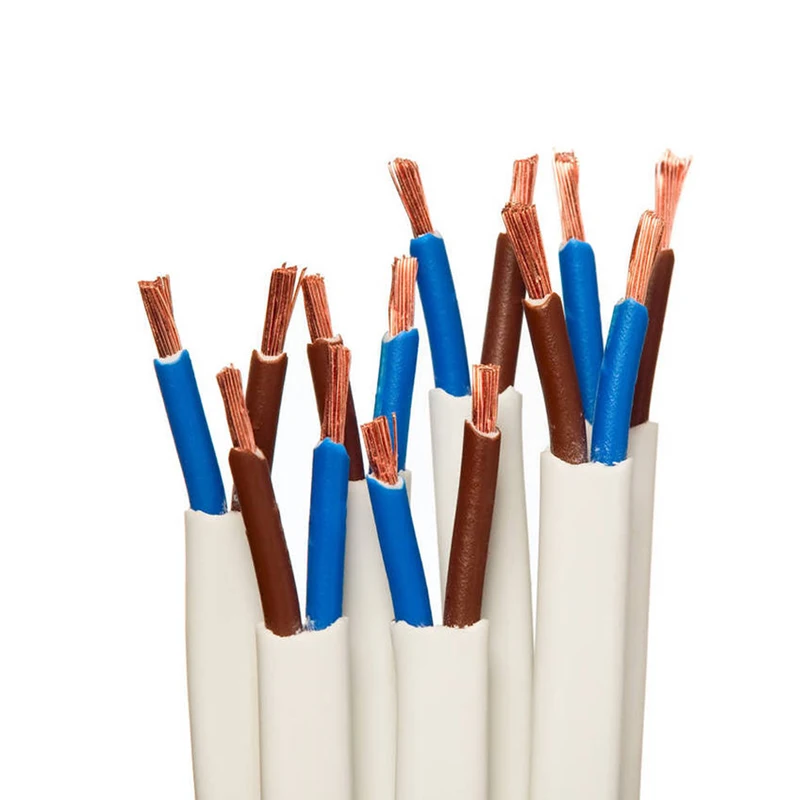

2 Core 4 Sq.mm Gauge PVC Flexible Copper Cable Electrical Wire

FOB Price

US$ 27 - 63 / Roll

5 Rolls(Min. Order)

Port Qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	RMJT	Place of Origin	Henan, China
Model Number	BVR	Type	Insulated
Insulation Material	PVC
Conductor Material	Copper	Conductor Type	Stranded

Product Description

Product Construction

_{1.Conductor: bare/tinned copper,or Aluminum.
2.Insulation: PVC rated at 70°C
3.Color Code: red,orange,yellow,yellow-green,blue,purple,gray,white or as your requirement
4.Outer sheath: PVC tapes ST2 to IEC.}

_{Service Performance Of Copper Wire}

^{1. Rated voltage: 300/300V ; 300/500V ;450/750V
2. Long-term working temperature: not be higher than 70°C
3. When laying the cable, the ambient temperature should not lower than 0°C
4. Minimum bending radius: Bending radius ≥ 4D as cable overall diameter ≤ 25mm; Bending radius ≥ 6D ascable overall diameter > 25mm.}

^{European Standard Electric Wire}

^{H07V-U , 450/750 PVC Insulated Building Wire, BS Standard}

^{H03VH-H , 300/300V PVC Insulated Flexible Parallel Wire}

^{H03VVH2-F , H05VVH2-F , PVC insulated PVC sheathed flat wire}

^{300/300V PVC Insulated Flexible Twisted Cord}

^{H05V-K , H07V-K , PVC Insulated Flexible Wire}

^{H07Z-U , 450/750 LSHF Compound Insulated Building Wire.BS Standard}

^{H05Z-K , H07Z-K , LSHF Compound Insulated Flexible WirefBS Standard}

^{Flat Twin and Earth Wire-ECC Cables, BS Standard}

Product Model

^Model	^Name	^Usage
BVR	^{copper core PVC insulated flexible cable (wire)}	suitable for power lines with AC rated voltage 450 / 750V and below, household appliances, instruments and telecommunications equipment, etc., and is mostly used in various mechanical equipment with strong flexibility. Used for indoor application, tube wearing, etc.
BVR-ZR	^{copper core flame retardant PVC insulated flexible wire}		^/
BVR-ZR-105	^{copper core heat-resistant 105 ℃ flame-retardant vinyl chloride insulated PVC sheathed round flexible cable}		^/

_{Part Production Range of Insulated Electrical Wire}

_Model	_{Voltage level (v)}	_{Cross-sectional area} _(mm2)	_{Number / diameter (mm)}	_{Outer diameter (mm)}	_{20 ℃ conductor resistance} _{≤ (Ω / km)}
_BVR	_{450/ 750V}	₄	_{19/0. 52}	_4.8	_4.61
_BVR	_450/750V	₆	_19/0.64	_5.6	_3.08
_BVR	_{450/ 750V}	₁₀	_49/0.52	_7.6	_1.83
_BVR	_{450/ 750V}	₁₆	_49/0.64	_8.8	_1.15
_BVR	_{450/ 750V}	₂₅	_{98/0. 58}	₁₁	_0.727
_BVR	_{450/ 750V}	₃₅	_{133/0. 8}	_12.5	_0.524
_BVR	_{450/ 750V}	₅₀	_{133/0. 68}	_14.5	_0.387
_BVR	_{450/ 750V}	₇₀	_189/0.68	_16.5	_0.268

^{Nominal sectional area mm2}

^{Conductor No/Dia. Mm}

^{Nominal Insulated thick mm}

^{Max overall Dia. Mm}

^{Condcutor Resistance at 20}

^{Min insulated resistance at 70MΩ/km}

^Weight

^Kg/km

^Cu

^Al

^Cu

^Al

^1.5

^1/1.38

^0.7

^3.3

^12.1

^0.011

^19.2

^1.5

^7/0.52

^0.7

^3.5

^12.1

^0.01

^20.6

^2.5

^1/1.78

^0.8

^3.9

^7.41

^11.8

^0.01

^30.8

¹⁵

⁴

^1/2.25

^0.8

^4.4

^4.61

^7.39

^0.0085

^45.5

²¹

⁶

^1/2.76

^0.8

^4.9

^3.08

^4.91

^0.007

⁶⁵

²⁹

¹⁰

^7/1.35

⁷

^1.83

^3.08

^0.0065

¹¹⁰

⁵²

¹⁶

^7/1.70

⁸

^1.15

^1.91

^0.005

¹⁷⁰

⁷⁰

²⁵

^7/2.14

^1.2

¹⁰

^0.727

^1.2

^0.005

²⁷⁰

¹¹⁰

³⁵

^7/2.52

^1.2

^11.5

^0.524

^0.868

^0.004

³⁶⁴

¹⁵⁰

⁵⁰

^19/1.78

^1.4

¹³

^0.387

^0.641

^0.0045

⁵⁰⁰

²⁰⁰

⁷⁰

^19/2.14

^1.4

¹⁵

^0.268

^0.443

^0.0035

⁶⁸⁸

²⁶⁹

⁹⁵

^19/2.52

^1.6

^17.5

^0.193

^0.32

^0.0035

⁹⁵³

³⁶⁰

¹²⁰

^37/2.03

^1.6

¹⁹

^0.153

^0.253

^0.0032

¹¹⁶⁸

⁴⁴⁹

¹⁵⁰

^37/2.25

^1.8

²¹

^0.124

^0.206

^0.0032

¹⁴⁶⁶

⁵⁵¹

¹⁸⁵

^37/2.52

^32.5

^0.099

^0.164

^0.0032

¹⁸⁰⁸

⁶⁶⁸

_Notice

_{In addition, we have other models and sizes, please contact us if you need, thank you.}

Packaging and Shipping

_{People's Cable Group Co., Ltd.}

People's Cable Group Co., Ltd. Was founded in 2007, with good transport facilities which adjacent to the 310 national highway-Lian Huo highway. Our company had 2 factories(Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters. The real capital assets more than 10 million USD, with 630 staff members, 65 of which are professional and technical experts.

_{Our mainly products as follow:}

_{1.PVC insulated electric wire whatever copper conductor,aluminum conductor,CCA(copper clad
aluminum),CCS(copper clad steel).
2.PVC insulated power cable and xlpe insulated power cable with or without armor upto 35kv.
3.Rubber cable like welding cable, mining cable, control cable and so on.
4.Aerial bundled cable(ABC cable) up to 10kv, like Duplex ABC cable, Triplex ABC cable, Quadruplex ABC cable and so on.
5.Bare conductor like AAC, AAAC, ACSR, AACSR, ACAR, ACSR/AW, aluminum clad steel wire, galvanized steel wire and so on.}

FAQ

Q1: When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in
your email so that we will regard your inquiry priority.
Q2: How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
Q3: How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days.
The samples will be sent to you via express and arrive in 3~5 days.
Q4: What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
