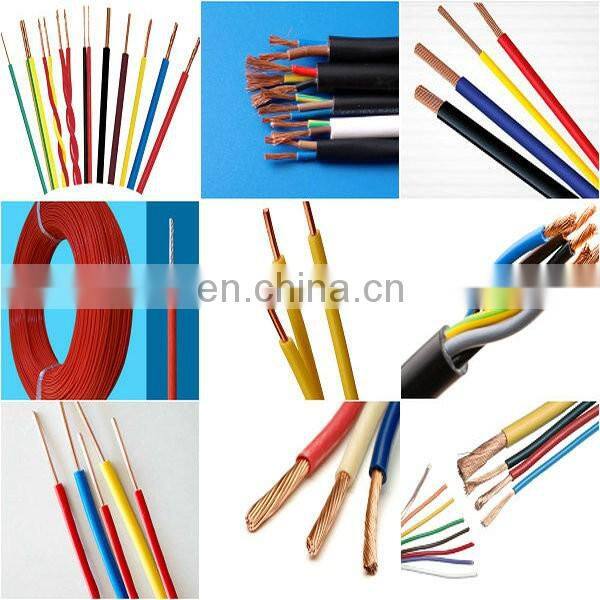

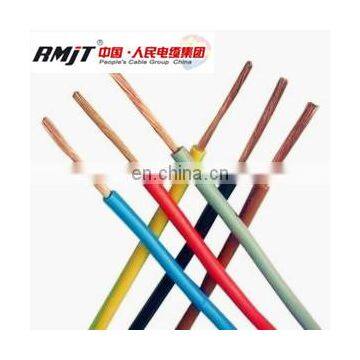

Flexible Enameled Cable PVC insulated wire electrical building wires

electrical cable wire/building wire 300/500V & 450/750V
Description

1. Conductor: Copper/Aluminum

2. Number of cable cores: One core, two cores, three cores, four cores, five cores.

3. Product characteristics

1). Rated voltage U0/U 300/500V and 450/750V

2). The long-time permissible temperature of cable: BV-105 below 105°C,and the other below 70°C.

3). Conductor maximum short circuit(not more than 5 seconds)temperature shall not be higher than 160°c.

4). The power cable is not limited by drop in level when being laid, and the ambient temperature shall not be lower than 0°c.
5). The bend radius: the external diameter of cable <25mm, and the bend radius is above 4 times of the external diameter of cable. And the other is above 6 times of the external diameter of cable.

6). Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame.
7). Light weight, perfect bending properties, installed and maintained easily and conveniently.

8). Insulation sheath material and color: PVC in red, black, blue, and any color as required.

9). Type: Single or twin cables with different colors Provides OEM according to requests of customer.

4. Usage

This product is applied for fixedly laid with alternating current rated voltage 450/750V and below in power route.It is used as wire for household appliance, mechanic equipment installation and dynameic light, etc.

5. Specification

All models:

BV,BLV,BVR,BVV,BVVB,BLVV,BLVVB,RV,RVB,RVS,RVV

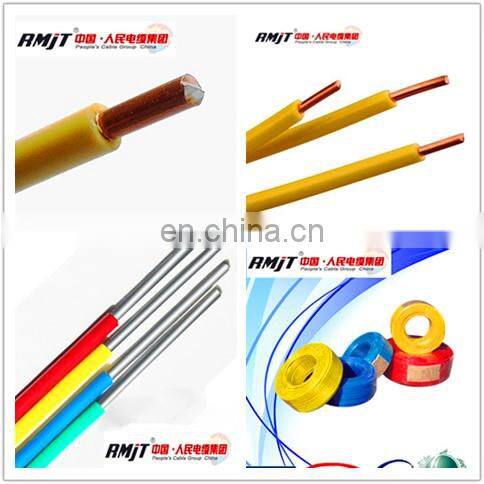

6 Our products of building wire

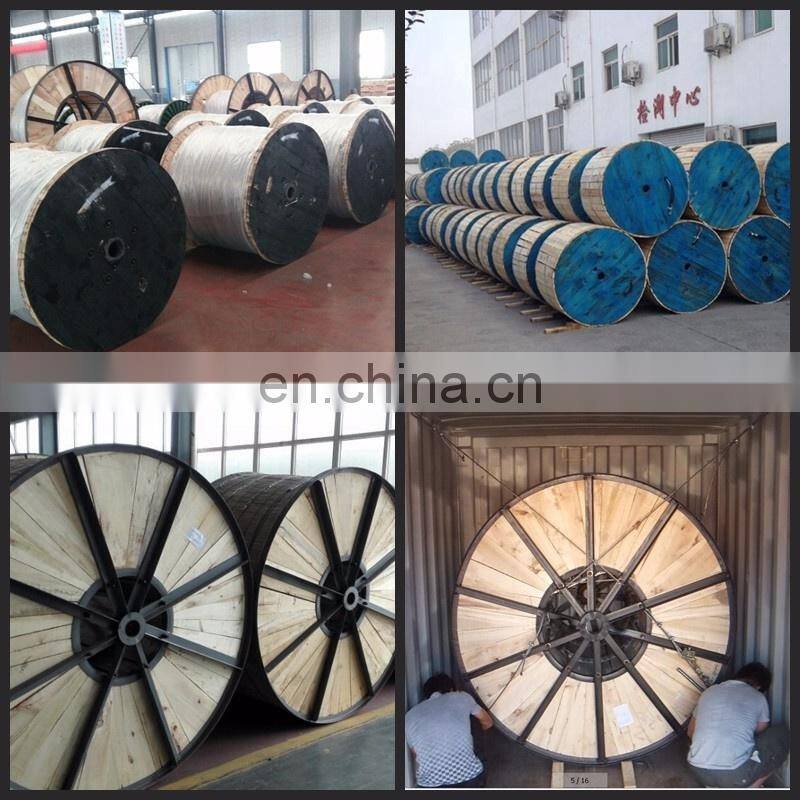

7 our package :

About us :

8.Why you choose us?
1) Your inquiry will be replied to within the hour
2) Your label design according to your requirements ready in 2days
3) 25 years OEM/ODM experience
4) Goods are sold with rerun or refund guarantee due to quality issue!
5) prompt shipment by reputed shipping line and professional documents
6) cargoes photo before and after loading into container after shipment with e-mail

7)10 years after-sale service
