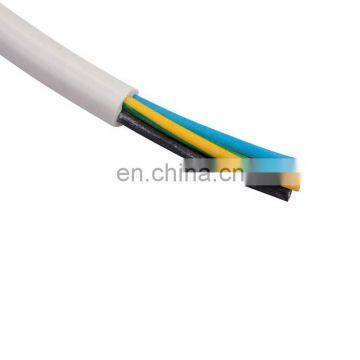

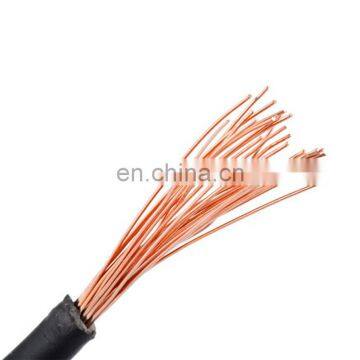

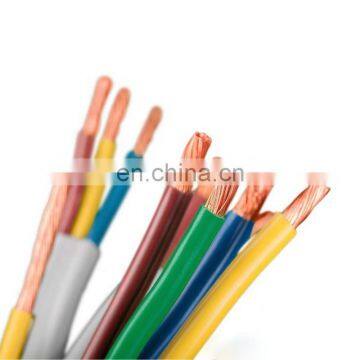

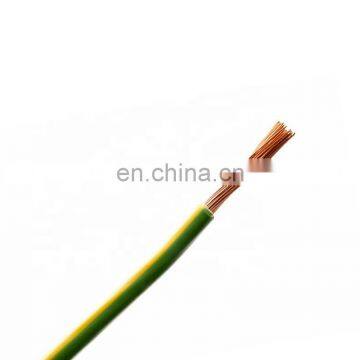

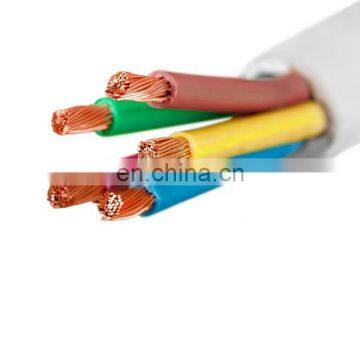

16mm 25mm2 2mm Electric Cable Wire Copper Core XLPE Insulated PVC Cable

FOB Price

US$ 0.3 - 1.79 / Meter

500 Meters(Min. Order)

Port Qingdao Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	RMjT	Place of Origin	Henan, China
Model Number	electrical wire	Type	Insulated
Application	Heating	Insulation Material	PVC
Conductor Material	Copper

Product Description

_{Product Construction}

^{1. Conductor : bare/tinned copper,or Aluminum.
2. Insulation : PVC rated at 70°C
3. Color Code : red,orange,yellow,yellow-green,blue,purple,gray,white or as your requirement
4. Outer sheath : PVC tapes ST2 to IEC.}

Service Performance Of Copper Wire

^{1. Rated voltage : 300/300V ; 300/500V ;450/750V
2. Long-term working temperature : not be higher than 70°C
3. When laying the cable, the ambient temperature should not lower than 0°C
4. Minimum bending radius : Bending radius ≥ 4D as cable overall diameter ≤ 25mm; Bending radius ≥ 6D ascable overall diameter > 25mm.}

Product Model

HO7V-U

450/750 PVC Insulated Building Wire, BS Standard

H03VVH2-F、HO5VVH2-F

PVC Insulated/PVC Sheathed Flat Wire

H05V-K、H07V-K

PVC Insulated Flexible Wire

HO3VVH2-F、H05VVH2-F

PVC Insulated/PVC Sheathed Flat Wire

HO7Z-U

450/750 LSHF Compound Insulated Building Wire. BS Standard

HO5Z-K、HO7Z-K

LSHF Compound Insulated Flexible Wire，BS Standard

ECC Cables

Flat Twin and Earth Wire-ECC Cables, BS Standard

HOUSE WIRE

PVC Insulated Single Core Electric Wire

BULDING WIRE

3 Core Flat Electrical Wire Cable

_{Specification for BV BLV electrical wire cable}

_{Nominal sectional area mm2}	_{Conductor No/Dia. Mm}	_{Nominal Insulated thick mm}	_{Max overall Dia. Mm}	_{Condcutor Resistance at 20}			_{Min insulated resistance at 70MΩ/km}	_Weight _Kg/km
_{Nominal sectional area mm2}	_{Conductor No/Dia. Mm}	_{Nominal Insulated thick mm}	_{Max overall Dia. Mm}				_{Min insulated resistance at 70MΩ/km}		Cu	Al	_Cu	_Al
1.5	1/1.38	0.7	3.3	12.1	-	0.011	19.2	-
1.5	7/0.52	0.7	3.5	12.1	-	0.01	20.6	-
2.5	1/1.78	0.8	3.9	7.41	11.8	0.01	30.8	15
4	1/2.25	0.8	4.4	4.61	7.39	0.0085	45.5	21
6	1/2.76	0.8	4.9	3.08	4.91	0.007	65	29
10	7/1.35	1	7	1.83	3.08	0.0065	110	52
16	7/1.70	1	8	1.15	1.91	0.005	170	70
25	7/2.14	1.2	10	0.727	1.2	0.005	270	110
35	7/2.52	1.2	11.5	0.524	0.868	0.004	364	150
50	19/1.78	1.4	13	0.387	0.641	0.0045	500	200
70	19/2.14	1.4	15	0.268	0.443	0.0035	688	269
95	19/2.52	1.6	17.5	0.193	0.32	0.0035	953	360
120	37/2.03	1.6	19	0.153	0.253	0.0032	1168	449
150	37/2.25	1.8	21	0.124	0.206	0.0032	1466	551
185	37/2.52	2	32.5	0.099	0.164	0.0032	1808	668

Attention: We can provide more information than above data, if needed.The above are just some examples.
