Home > Products > Power Cable > 4mm Copper Twisted Pair Armoured Cable Price Per Meter Weight Copper Cable

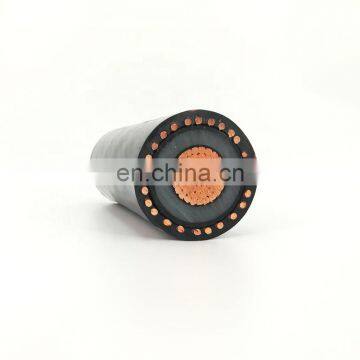

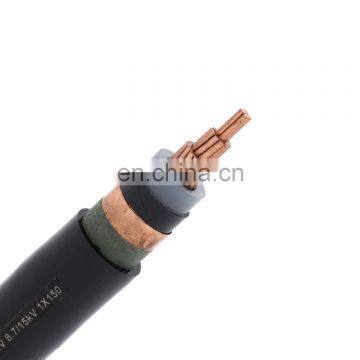

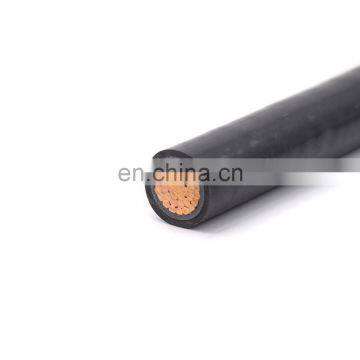

4mm Copper Twisted Pair Armoured Cable Price Per Meter Weight Copper Cable
US$ 0.3 - 7.97
/ Meter
500 Meters(Min. Order)
- Qingdao
- T/T Credit Card
You May Like
-
Prices XLPE Insulated Armoured Copper Core Cable
-
XLPE Insulated 4 Core Armoured 25mm Copper Cable
-
Price List 4 Core 25mm XLPE Armoured Marine Cable
-
132kv XLPE Insulated Sheath AWA Armoured Cable Copper Wire
-
XLPE Insulated PVC Sheath 600 sq mm Armoured Cable Wire Electrical Copper Cable
-
110kv XLPE Insulated Armoured 95mm Copper Cable
Product Details
| Brand Name | RMJT | Place of Origin | Henan, China | |
| Model Number | 16mm pvc cable | |||
| Insulation Material | PVC | |||
| Jacket | PVC |
Product Description
Product Description
16mm 25mm cu pvc single core cable
1.Specificiation
Conductor: Copper or Aluminum, stranded
Insulation: PVC(polyvinyl chloride)
Sheath: PVC
Rated voltage: 0.6/1KV
Number of cores: One, two, three, four, five.
Reliable quality,lowest price,factory direct sell,fast delivery,best and sincere service.
2.Standard
16mm PVC cable can be produced and provided according to Chinese standard GB/T12706-2002(equivalent to IEC 60502).
The factory can also manufacture the products that are based on British Standard (BS) and other standards.
In addition,under the requirement of customers we can design and manufacture 16mm pvc cable that have special performance.
The products are used in fixed laying on transmission and distribution electrical lines of 50 HZ AC rated voltage up to 6 kV.
3.Specific Property for Using
1).The long-time permissible working temperature of 16mm pvc cable conductive core is not more than 70°C.
2).During short circuit (max permanent time is not more than 5 seconds),the max temperature of 16mm pvc cable conductor is not more than 165°C.
3).The difference level of laying cable is not restricted.When laying the cable,ambient temperature is not lower than 0°C.
4).Our 16mm pvc cable have good chemical stability, and properties of acid resistance, alkali resistance, salt resistance, oil resistance, solvent resistance and flame resistance.
5).Light weight, good bending property and easy installation and maintenance.
Conductor: Copper or Aluminum, stranded
Insulation: PVC(polyvinyl chloride)
Sheath: PVC
Rated voltage: 0.6/1KV
Number of cores: One, two, three, four, five.
Reliable quality,lowest price,factory direct sell,fast delivery,best and sincere service.
2.Standard
16mm PVC cable can be produced and provided according to Chinese standard GB/T12706-2002(equivalent to IEC 60502).
The factory can also manufacture the products that are based on British Standard (BS) and other standards.
In addition,under the requirement of customers we can design and manufacture 16mm pvc cable that have special performance.
The products are used in fixed laying on transmission and distribution electrical lines of 50 HZ AC rated voltage up to 6 kV.
3.Specific Property for Using
1).The long-time permissible working temperature of 16mm pvc cable conductive core is not more than 70°C.
2).During short circuit (max permanent time is not more than 5 seconds),the max temperature of 16mm pvc cable conductor is not more than 165°C.
3).The difference level of laying cable is not restricted.When laying the cable,ambient temperature is not lower than 0°C.
4).Our 16mm pvc cable have good chemical stability, and properties of acid resistance, alkali resistance, salt resistance, oil resistance, solvent resistance and flame resistance.
5).Light weight, good bending property and easy installation and maintenance.
Model Specifications
Some power cable models and usage scenarios
Model | Application | ||
Copper | Aluminum | ||
VV | VLV | ||
VY | VLY | ||
VV22 | VLV22 | ||
VV23 | VLY23 | Lay underneath, able to withstand external mechanical forces | |
YJV | YJLV | Laying aerial, indoor, cable trench, tunnel, underground | |
YJY | YJLY | Laying indoor, cable trench, tunnel, underground | |
YJV22 | YJLV22 | Fixedly laid in the place with external pressure | |
YJV23 | YJLV23 | Fixedly laid in places where external forces are often applied | |
YJV32 | YJLV32 | Fixed installation in places that can withstand tensile forces | |
YJV33 | YJLV33 | ||
YJV42 | YJLV42 | Fixedly laid underwater, in a shaft or in a place that can withstand tensile forces | |
YJV43 | YJLV43 | Fixed installation in places that can withstand large tensile forces | |
ZR-VV | ZR-VLV | Lay indoors, tunnels, pipes | |
ZR-VV22 | ZR-VLV22 | Laid indoors, in tunnels, directly buried in the soil, able to withstand pressure and other external forces | |
ZR-VV32 | ZR-VLV32 | Laid indoors, mines, can withstand considerable tension | |
ZR-VV42 | AR-VLV42 | Laid indoors, mines, can withstand considerable axial tension | |
SPEC (mm2) | Conductor structure | Insulation | Insulation | Approx overall | Approx | ||
Phase | Neutral | Thickness (mm) | diameter (mm) | weight (mm) | |||
(compacted Al) | (alloy) | ||||||
No./mm | No./mm | ||||||
1*16+1*16 | 7/1.72 | 7/1.72 | XLPE (HDPE) | 1.2 | 12.5 | 110.1 | |
1*25+1*25 | 7/2.15 | 7/2.15 | 1.2 | 14.9 | 163.9 | ||
1*35+1*35 | 7/2.54 | 7/2.54 | 1.4 | 17.5 | 229 | ||
1*50+1*50 | 7/2.92 | 7/2.92 | 1.4 | 20.1 | 300 | ||
1*70+1*70 | 19/2.15 | 19/2.15 | 1.4 | 23.6 | 423.2 | ||
1*95+1*95 | 19/2.54 | 19/2.54 | 1.6 | 27.6 | 585.4 | ||
2*16+1*16 | 7/1.72 | 7/1.72 | 1.2 | 14.2 | 175.8 | ||
2*25+1*25 | 7/2.15 | 7/2.15 | 1.2 | 16.7 | 258.4 | ||
2*35+1*35 | 7/2.54 | 7/2.54 | 1.4 | 19.7 | 361.2 | ||
2*50+1*50 | 7/2.92 | 7/2.92 | 1.4 | 22.5 | 472.1 | ||
2*70+1*70 | 19/2.15 | 19/2.15 | 1.4 | 26.1 | 658.3 | ||
2*95+1*95 | 19/2.54 | 19/2.54 | 1.6 | 30.5 | 908.2 | ||
3*16+1*16 | 7/1.72 | 7/1.72 | 1.2 | 16.3 | 241.5 | ||
3*25+1*25 | 7/2.15 | 7/2.15 | 1.2 | 19.1 | 353.6 | ||
3*35+1*35 | 7/2.54 | 7/2.54 | 1.4 | 22.5 | 493.5 | ||
3*50+1*50 | 7/2.92 | 7/2.92 | 1.4 | 25.7 | 644.1 | ||
3*70+1*70 | 19/2.15 | 19/2.15 | 1.4 | 29.7 | 895.2 | ||
3*95+1*95 | 19/2.54 | 19/2.54 | 1.6 | 34.6 | 1233.5 | ||
Packing & Delivery
Packing
Material:
Steel wooden drum (fumigation)
Cable length in each drum: 500m/1000m or as per actual cable length requirements.
Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Delivery:
Port: Tianjin, or other ports as per your requirements.
Sea freight: FOB/C&F/CIF quotation are all available.
*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency.
Our Company
People's Cable Group Co., Ltd
People's Cable Group Co., Ltd. Was founded in 2007, with good transport facilities which adjacent to the 310 national highway-Lian Huo highway. Our company had 2 factories(Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters. The real capital assets more than 10 million USD, with 630 staff members, 65 of which are professional and technical experts.
Our mainly products as follow:
Our mainly products as follow:
1.PVC insulated electric wire whatever copper conductor,aluminum conductor,CCA(copper clad aluminum),CCS(copper clad steel).
2.PVC insulated power cable and xlpe insulated power cable with or without armor upto 35kv.
3.Rubber cable like welding cable, mining cable, control cable and so on.
4.Aerial bundled cable(ABC cable) up to 10kv, like Duplex ABC cable, Triplex ABC cable, Quadruplex ABC cable and so on.
5.Bare conductor like AAC, AAAC, ACSR, AACSR, ACAR, ACSR/AW, aluminum clad steel wire, galvanized steel wire and so on.
2.PVC insulated power cable and xlpe insulated power cable with or without armor upto 35kv.
3.Rubber cable like welding cable, mining cable, control cable and so on.
4.Aerial bundled cable(ABC cable) up to 10kv, like Duplex ABC cable, Triplex ABC cable, Quadruplex ABC cable and so on.
5.Bare conductor like AAC, AAAC, ACSR, AACSR, ACAR, ACSR/AW, aluminum clad steel wire, galvanized steel wire and so on.
FAQ
Q1: When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in
your email so that we will regard your inquiry priority.
Q2: How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
Q3: How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days.
The samples will be sent to you via express and arrive in 3~5 days.
Q4: What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in
your email so that we will regard your inquiry priority.
Q2: How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
Q3: How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days.
The samples will be sent to you via express and arrive in 3~5 days.
Q4: What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
