Home > Products > Power Cable > XLPE Insulated PVC Sheath 600 sq mm Armoured Cable Wire Electrical Copper Cable
XLPE Insulated PVC Sheath 600 sq mm Armoured Cable Wire Electrical Copper Cable
US$ 0.3 - 7.93
/ Meter
500 Meters(Min. Order)
- Qingdao
- T/T Credit Card
You May Like
-
110kv XLPE Insulated Armoured 95mm Copper Cable
-
Medium / Low Voltage 500mm2 Single Core Armoured XLPE Underground Cable
-
IEC Standard 061kv XLPE Overhear 4 Core 95mm ABC Cable Aluminum Triplex Service Drop Cable
-
IEC ASTM BS Brazil Standard 4 Core ABC Aerial Bundle 04 kv 35mm2 ACSR XLPE Insulation Aerial Cable
-
ASTM Standard XLPE PVC Insulation 11kv Aluminum Conductor Low Voltage Twisted PE Insulated ABC Cable
-
33kv 35mm2 Aluminum Core Duplex XLPE Insulated Power Cable
Product Details
| Brand Name | RMjT | Place of Origin | Henan, China | |
| Model Number | VV22 YJV22 | Type | High Voltage | |
| Jacket | PVC |
Product Description
Product Description
price high voltage power cable 25mm 35mm 50mm 120mm 300mm copper armored cable
Copper Armoured cable is used for AC 35kV and below power distribution circuit,especially for the important places havin high requiremet for cables flame retardancy, like railway, tunnel, power station, petroleum, chemical industry and high building.
Product Description
1). Conductors: copper or aluminum.
2). Both armored and non-armored type copper power cables are available.
3). Voltage rating: 0.6/1kV 3.6/6kV 6/10kV 8.7/15kV 26/35kV.
4). PVC or XLPE sheathed.
5). Number of cable cores: one core (Single core),two cores(Double cores),three cores,
Four cores (Four Equal-section-area cores or three equal-section-area cores and one smaller section area neutral core),
Five cores (Five equal-area cores or three equal-section-area cores and two smaller section area neutral cores).
6). Standards: IEC 60502.IEC, BS, DIN, ASTM, CSA, NFC, AS, GOST etc. Or other special characteristics as customers request.
2). Both armored and non-armored type copper power cables are available.
3). Voltage rating: 0.6/1kV 3.6/6kV 6/10kV 8.7/15kV 26/35kV.
4). PVC or XLPE sheathed.
5). Number of cable cores: one core (Single core),two cores(Double cores),three cores,
Four cores (Four Equal-section-area cores or three equal-section-area cores and one smaller section area neutral core),
Five cores (Five equal-area cores or three equal-section-area cores and two smaller section area neutral cores).
6). Standards: IEC 60502.IEC, BS, DIN, ASTM, CSA, NFC, AS, GOST etc. Or other special characteristics as customers request.
Characteristics
1).Max Long-time operating temperature of PVC insulated copper armoured cable is 70°C,XLPE 90°C
2).Installing temperature of copper armoured cable should not be less than 0°C
3).Max short-circuit temperature is:PVC not exceed 160°C,XLPE 250°C,Not more than5 Sec.
4).Permitting bending radius cable: Not less than 10 D times (D:external diameter of cable)
5).Perfect chemical stability, resistant against acids, alkali, grease and organic solvents, and flamer retardant.
2).Installing temperature of copper armoured cable should not be less than 0°C
3).Max short-circuit temperature is:PVC not exceed 160°C,XLPE 250°C,Not more than5 Sec.
4).Permitting bending radius cable: Not less than 10 D times (D:external diameter of cable)
5).Perfect chemical stability, resistant against acids, alkali, grease and organic solvents, and flamer retardant.
Minimum bending radius | ||||||||
Project | Single core | Multi-core | ||||||
Unarmored | Armored | Unarmored | Armored | |||||
Mounting the cable minimum bend radius | 20D | 15D | 15D | 12D | ||||
Minimum bending radius near the connection box and termination cable | 15D | 12D | 12D | 10D | ||||
Power Cable Advantages
1. Occupies a small area. It is usually buried in the soil or laid indoors. In trenches and tunnels, the insulation distance between the lines is small, no towers are used, it occupies less land, and basically does not occupy space on the ground.
2. High reliability. Affected by climatic conditions and surrounding environment, transmission performance is stable and reliability is high.
3. It has more favorable conditions for the development of ultra-high voltage and large capacity, such as low temperature and super-conducting cables.
4. Large distributed capacitance.
5. Low maintenance workload.
6. The possibility of electric shock is small.
Model Specifications
PVC Insulation copper armoured Cable
TYPE | Description of Cable | Applications | ||
copper | aluminum | |||
VV | VLV | Copper/Aluminium core,PVC insulated,PVC sheathed power cable | Non-armoured PVC cable are suited for laying indoors,In cable trench,On cable racks and in pipes. Unable bear external pressures and tensions. | |
VY | VLY | Copper/Aluminium core,PVC insulated,PVC sheathed power cable | ||
VV22 | VLV22 | Copper/Aluminium core,PVC insulated,steel tape armored,PVC sheathed power cable | Steel-tape armoured PVC cables are suited for vertical burial.Can bear moderate positive pressures,Unable bear tension forces. | |
VV23 | VLV23 | Copper/Aluminium core,PVC insulated,steel tape armored,PE sheathed power cable | ||

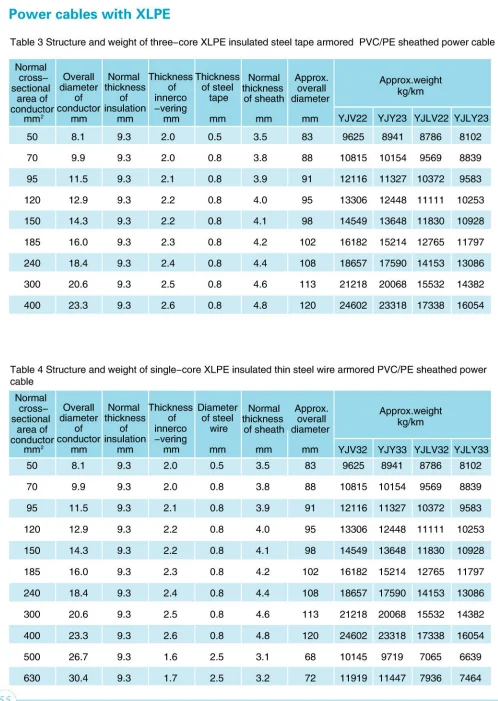

XLPE Insulated copper armoured cable
TYPE | Description of Cable | Applications | ||
copper | aluminum | |||
YJV | YJLV | Cu(Al)Core, XLPE Insulated, PVC Sheathed Power Cable | Can be laid in indoor, outdoor, tunnels, cable channels, reinforced concrete pipelines and loose soil. Cable should not bear outer mechanic force, but can bear a certain tractional force. | |
YJV22 | YJLV22 | Cu(Al)Core, XLPE Insulated, Steel Tape Armored and PVC Sheathed Power Cable | Laid underground. Cable can bear outer mechanic force, but should not bear large tractional force. | |
Packing & Delivery
Packing
Material:
Steel wooden drum (fumigation)
Cable length in each drum: 500m/1000m or as per actual cable length requirements.
Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Delivery:
Port: Tianjin, or other ports as per your requirements.
Sea freight: FOB/C&F/CIF quotation are all available.
*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency.
People's Cable Group Co., Ltd
People's Cable Group Co., Ltd. Was founded in 2007, with good transport facilities which adjacent to the 310 national highway-Lian Huo highway. Our company had 2 factories(Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters. The real capital assets more than 10 million USD, with 630 staff members, 65 of which are professional and technical experts.
Our mainly products as follow:
Our mainly products as follow:
1.PVC insulated electric wire whatever copper conductor,aluminum conductor,CCA(copper clad aluminum),CCS(copper clad steel).
2.PVC insulated power cable and xlpe insulated power cable with or without armor upto 35kv.
3.Rubber cable like welding cable, mining cable, control cable and so on.
4.Aerial bundled cable(ABC cable) up to 10kv, like Duplex ABC cable, Triplex ABC cable, Quadruplex ABC cable and so on.
5.Bare conductor like AAC, AAAC, ACSR, AACSR, ACAR, ACSR/AW, aluminum clad steel wire, galvanized steel wire and so on.
2.PVC insulated power cable and xlpe insulated power cable with or without armor upto 35kv.
3.Rubber cable like welding cable, mining cable, control cable and so on.
4.Aerial bundled cable(ABC cable) up to 10kv, like Duplex ABC cable, Triplex ABC cable, Quadruplex ABC cable and so on.
5.Bare conductor like AAC, AAAC, ACSR, AACSR, ACAR, ACSR/AW, aluminum clad steel wire, galvanized steel wire and so on.
FAQ
Q1: When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in
your email so that we will regard your inquiry priority.
Q2: How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
Q3: How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days.
The samples will be sent to you via express and arrive in 3~5 days.
Q4: What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in
your email so that we will regard your inquiry priority.
Q2: How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
Q3: How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days.
The samples will be sent to you via express and arrive in 3~5 days.
Q4: What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
