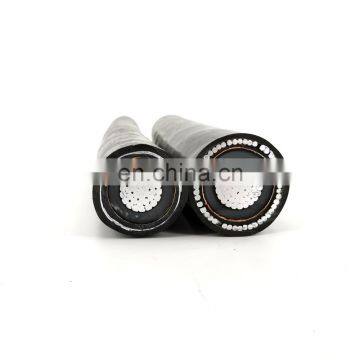

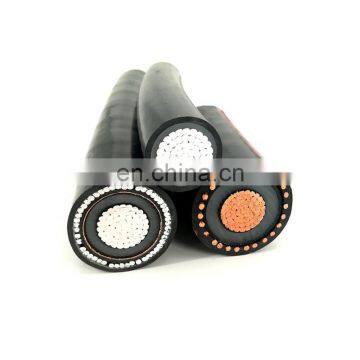

150mm Armoured Xlpe Insulated 4 Core Aluminum Copper Cable Price
US$ 2 - 3.7
MOQ: 500 Meters
Key Specifications
Get Latest Price
Brand Name:
RMjT
Place of Origin:
Henan, China
Model Number:
copper power cable
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
XLPE Insulated Armoured Electrical Copper Cable ZR YJV22 061kvUS$ 4.3 - 8.3MOQ: 100 Meters -
95mm 4 Core Armoured XLPE Insulated Electrical CableUS$ 1 - 20MOQ: 100 Meters
-
35 sq mm Copper Cable Price Steel Tape Armoured Insulated Power CableUS$ 0.7 - 7MOQ: 500 Meters
-
Mineral Insulated Copper Clad Cable 6mm Armoured Electrical Wire Copper CableUS$ 0.3 - 7MOQ: 1000 Meters
-
115kv XLPE Insulated 4c Armoured Stranded Copper CableUS$ 1 - 2MOQ: 1000 Meters
Brand Name
RMjT
Place of Origin
Henan, China
Model Number
copper power cable
Application
Underground
Conductor Material
Copper
Conductor Type
Stranded
Product Description
PVC/XLPE Insulated PVC/PE Sheath Power Cable Armored Optional
Standard: IEC60502, VDE0276-603, ICEAS-95-658, ect.
Application: Distribution, NetworkPower, Station, Underground
Conductor: Aluminum, Aluminum-Alloy, Copper, CCA
Insu/Jacket: XLPE/PVC
Voltage: Low and Medium
PVC insulated PVC/PE sheathed power cables for rated voltages up to 0.6/1kV
single core power cable
2 core power cable
3 core power cable
4 core power cable
5 core power cable
3+1 core power cable
3+2 core power cable
4+1 core power cable
2 core power cable
3 core power cable
4 core power cable
5 core power cable
3+1 core power cable
3+2 core power cable
4+1 core power cable
XLPE insulated PVC/PE sheathed power cables for rated voltages up to 0.6/1kV
single core power cable
2 core power cable
3 core power cable
4 core power cable
5 core power cable
3+1 core power cable
3+2 core power cable
4+1 core power cable
2 core power cable
3 core power cable
4 core power cable
5 core power cable
3+1 core power cable
3+2 core power cable
4+1 core power cable
Instruction of appliction:
* rated voltages: 0.6/1kV
* the ambient temperature for cable installation: ≥0℃
* maximum conductor temperature in normal operation: ≤90℃
* max operating temperature of conductor when cable short-circuited (5s maximum duration): 250℃.
* rated voltages: 0.6/1kV
* the ambient temperature for cable installation: ≥0℃
* maximum conductor temperature in normal operation: ≤90℃
* max operating temperature of conductor when cable short-circuited (5s maximum duration): 250℃.
Part Production Range of XLPE insulated power cable
Model |
Name |
Application |
||
Cu |
Al |
|||
YJV |
YJLV |
XLPE insulated PVC sheathed power cable |
For laying aerial indoors , in-tunnel or cable trench |
|
YJY |
YJLY |
XLPE insulated PE sheathed power cable |
||
YJV22 |
YJLV22 |
XLPE insulated steel tape armored PVC sheathed power cable |
For laying indoors , intunnel or cable trench |
|
YJV23 |
YJLV23 |
XLPE insulated steel tape armored PE sheathed power cable |
||
YJV32 |
YJLV32 |
XLPE insulated thin steel wire armored PVC sheathed power cable |
For laying high-drop, well or underwater |
|
YJV33 |
YJLV33 |
XLPE insulated thin steel wire armored PE sheathed power cable |
||
YJV42 |
YJLV42 |
XLPE insulated thick steel wire armored PVC sheathed power cable |
Able to bear external mechanical forces, for laying in silo into sea |
|
YJV43 |
YJLV43 |
XLPE insulated thick steel wire armored PE sheathed power cable |
||
Company Profile
People's Cable Group Co., Ltd. was founded in 2007, With good transport facilities which adjacent to the 310 national highway-Lian Huo highway. Our company had 2 factories(Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters. The real capital assets more than 10 million USD, with more than 600 staff members, 15 of which are professional and technical experts.
Production Line
As one of top rank cables manufacturers in China, our Zhitian factory is mainly specialized in PVC Insulated Building Wire, PVC and XLPE Insulated Power Cable with Voltage up to 35kV, Rubber Cable and Welding Cables. And the Zhulin factory is mainly specialized in Aerial Bundled Cable(ABC Cable), Bare Overhead Power Transmission Line such as All Aluminum Conductor(AAC Conductor), All Aluminum Alloy Conductor(AAAC Conductor), Aluminum Conductor Steel Reinforced(ACSR Conductor), Aluminum Conductor Aluminum Clad Steel Reinforced (ACSR/AW), All Aluminum Alloy Steel Reinforced(AACSR), and Aluminum Conductor Aluminum Alloy Reinforced(ACAR).
Certifications
Our products meet standards of GB, IEC DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on. As first rank of the supplier in China, we have obtained ISO9001, ISO14001 and CCC certificates.
Our market
With the perfect quality and after sales service, our products are very popular both in domestic and international market,whatever in civil using and the government projects. For oversea market, till now we have expanded our market to South America like Chile, Colombia, Bolivia, Brazil and so on, Euro-American market like U.S.A.Germany, Spain,U.K. and so on. Middle East,Africa, Southeast Asia, Mongolia and some other areas.
