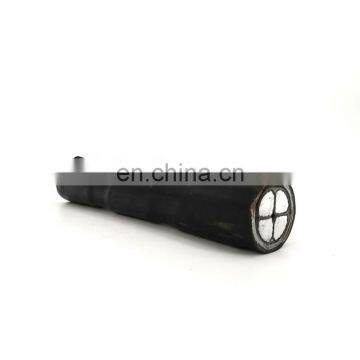

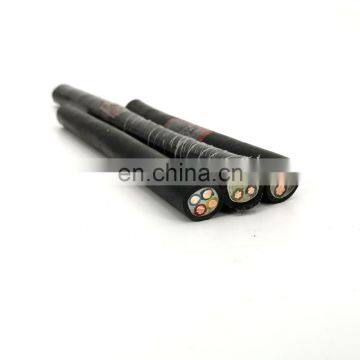

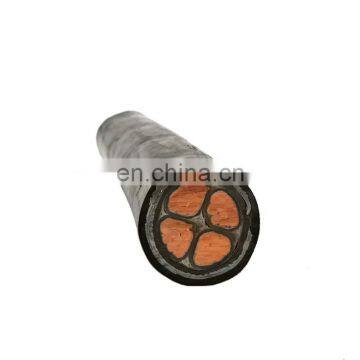

95mm 4 Core Armoured XLPE Insulated Electrical Cable

FOB Price

USD $1 - $20 / Meter

100 Meters(Min.Order)

Supply Ability 10000 Metric Ton / Metric Tons per Month
Port Qingdao Tianjin or Shanghai port as your requirement
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	RMJT	Place of Origin	Henan, China
Model Number	XLPE insulated power cable
Application	Overhead

Product Description

95mm 4 Core Armoured XLPE Insulated Electrical Cable

The description of Multicore power cable : 1. Conductors: copper or aluminum. 2. Both armored and non-armored type power cables are available. 3. Voltage rating: 0.6/1kv 3.6/6kv 6/10kv 8.7/15kv 26/35kv 4. PVC or XLPE Insulated. 5. Standards:IEC, BS, ASTM, NFC, AS, GOST etc. or other special characteristics as customers request. 6.Max Long-time operating temperature of PVC insulated cable is 70°C,XLPE 90°C 7 .Installing temperature of cable should not be less than 0°C 8.Max short-circuit temperature is:PVC not exceed 160°C,XLPE 250°C,Not more than5 Sec. 9.Permitting bending radius cable: Not less than 10 D times (D:external diameter of cable)

Technical Performance of power cable

1. PVC insulated cable conductor maximum temperature rating of 70 ℃, when a short circuit occurs (the longest duration of no more than 5S), the conductor temperature does not exceed 160 ℃.

2. The maximum rated temperature of XLPE insulated cable conductor is 90 ℃, short (the longest duration of no more than 5S) occurs, the conductor temperature does not exceed 250 ℃.

3. when installing PVC insulated or jacketed cable ambient temperature not below 0 ℃.

4. Perfect chemical stability, resistant against acids, alkali, grease and organic solvents, and flamer retardant.

Minimum bending radius
Project	Single core cable			Multi-core cable
Project		Unarmored	Armored	Unarmored	Armored
Mounting the cable minimum bend radius	20D	15D	15D	12D
Minimum bending radius near the connection box and termination cable	15D	12D	12D	10D

Power Cable Advantages

1. Occupies a small area. It is usually buried in the soil or laid indoors. In trenches and tunnels, the insulation distance between the lines is small, no towers are used, it occupies less land, and basically does not occupy space on the ground.

2. High reliability. Affected by climatic conditions and surrounding environment, transmission performance is stable and reliability is high.

3. It has more favorable conditions for the development of ultra-high voltage and large capacity, such as low temperature and super-conducting cables. 4. Large distributed capacitance. 5. Low maintenance workload. 6. The possibility of electric shock is small.

Model Specifications

SPEC (mm2)	Conductor structure			Insulation	Approx overall	Approx
		Phase	Neutral	Thickness (mm)	diameter (mm)	weight (mm)
		(compacted Al)	(alloy)
		No./mm	No./mm
		No./mm	No./mm
116+116	7/1.72	7/1.72	1.2	12.5	110.1
125+125	7/2.15	7/2.15	1.2	14.9	163.9
135+135	7/2.54	7/2.54	1.4	17.5	229
150+150	7/2.92	7/2.92	1.4	20.1	300
170+170	19/2.15	19/2.15	1.4	23.6	423.2
195+195	19/2.54	19/2.54	1.6	27.6	585.4
216+116	7/1.72	7/1.72	1.2	14.2	175.8
225+125	7/2.15	7/2.15	1.2	16.7	258.4
235+135	7/2.54	7/2.54	1.4	19.7	361.2
250+150	7/2.92	7/2.92	1.4	22.5	472.1
270+170	19/2.15	19/2.15	1.4	26.1	658.3
295+195	19/2.54	19/2.54	1.6	30.5	908.2
316+116	7/1.72	7/1.72	1.2	16.3	241.5
325+125	7/2.15	7/2.15	1.2	19.1	353.6
335+135	7/2.54	7/2.54	1.4	22.5	493.5
350+150	7/2.92	7/2.92	1.4	25.7	644.1
370+170	19/2.15	19/2.15	1.4	29.7	895.2
395+195	19/2.54	19/2.54	1.6	34.6	1233.5

Packing & Delivery

Packing

Material:
Steel wooden drum (fumigation)
Cable length in each drum: 500m/1000m or as per actual cable length requirements.

Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!

Delivery:

Port: Tianjin, or other ports as per your requirements.

Sea freight: FOB/C&F/CIF quotation are all available.
*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency.

Our Company

People's Cable Group Co., Ltd

People's Cable Group Co., Ltd. Was founded in 2007, with good transport facilities which adjacent to the 310 national highway-Lian Huo highway. Our company had 2 factories(Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters. The real capital assets more than 10 million USD, with 630 staff members, 65 of which are professional and technical experts.
Our mainly products as follow:

1.PVC insulated electric wire whatever copper conductor,aluminum conductor,CCA(copper clad aluminum),CCS(copper clad steel).
2.PVC insulated power cable and xlpe insulated power cable with or without armor upto 35kv.
3.Rubber cable like welding cable, mining cable, control cable and so on.
4.Aerial bundled cable(ABC cable) up to 10kv, like Duplex ABC cable, Triplex ABC cable, Quadruplex ABC cable and so on.
5.Bare conductor like AAC, AAAC, ACSR, AACSR, ACAR, ACSR/AW, aluminum clad steel wire, galvanized steel wire and so on.

FAQ

Q1: When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in
your email so that we will regard your inquiry priority.
Q2: How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
Q3: How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days.
The samples will be sent to you via express and arrive in 3~5 days.
Q4: What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
