0.6/1kV PVC/ XLPE insulated single core muti cores copper aluminum electrical cable wire

FOB Price

USD $2 - $50 / Meter

500 Meters(Min.Order)

Supply Ability 50000 Meter / Meters per Month
Port QingDao TianJin ShangHai Port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	RMJT	Place of Origin	Henan, China
Model Number	YJV YJLV YJY YJLY	Type	Low Voltage
Application	Power Station	Insulation Material	XLPE
Conductor Material	Aluminum

Product Description

* More than 36 years history.

* Export more than 60 countries in the world.
* More than 1000 employees.
* Produce kinds of electrical wire and kinds of power cable up to 35KV.
* Nominated supplier of State Grid Corporation of China.
* More than 70 patents which include 10 National Invention Patent.
* CE, ISO9001 & ISO 14001,CCC Certificate company.

Product Description

Standards of 0.6/1kV 4 Core Copper Conductor PVC/ XLPE insulated single core muti cores copper aluminum electrical cable wire
The products are manufactured according to the standards of GB/T 12706.1 in low voltage power cable with extruded insulation and their accessories for rated voltages from 1Kv(Um=1.2kV) up to 35kV(Um=40.5kV) in part 1 cables for rated voltages from 1kV(Um=1.2kV) and3kV(Um=3.6kV).

Properties and Functions of 0.6/1kV 4 Core Copper Conductor PVC/ XLPE insulated single core muti cores copper aluminum electrical cable wire
For 0.6/1kV 4 cores XLPE insulated aluminum electrical cable wire,silane water cure method has been employed to transform the molecular structure of PE into three-dimensional network i.e. transforming thermoplastic PE into thermosetting XLPE. After cross linking,the heat and mechanical properties of the cable have been greatly improved while its electrical properties are still maintained.

The conductor operating temperature of XLPE insulated low voltage electrical cable wire is 90℃.Comparing to the conductor of the same cross section, the long-term permissible current rating will be raised 25% more than than of PVC insulated. The cable has the advantages of simplicity in construction, lightness in weight and antichemical corrosion in properties. It can also be laid with no limitation of level difference along the route. The cable is used for fix-installed electiric power transmission and distribution systems, operating at rated voltage 1000V and below. Five cores cross-linked polyethylene(XLPE) insulatedelectric power cable is applicable on the circuit of three phases and five line, the earthing conductor and neutral conductor are divided, so it can ensure safety of the body.

Application of 0.6/1kV 4 Core Copper Conductor PVC/ XLPE insulated single core muti cores copper aluminum electrical cable wire
1.Max.permissible operating temperature of conductor is 90℃.
2.Conductor short-circuit temperature shall not exceed 250℃ Max. sustaining period shall not exceed 5 seconds.
3.Bending radius
Bending radius of single core cable:20(D+d)±5%
Bending radius of single core cable:15(D+d)±5%
D-Actual outer diameter of cable sample(mm);
d-Actual diameter of the conductor(mm).
4.No restriction of level difference along the route for installation.
5.Installation temperature
It shall be heated when ambient temperature is below 0℃

Specification

Model	Name	Application
YJV	Copper or aluminium conductor, XLPE insulated PVC sheathed electric cable	For laying indoor,tunnel,channel and underground .unable to bear external mechanical force,but bear the traction force during laid
YJLV
YJV22	Copper or aluminum conductor XLPE insulated steel tape armoured PVC sheathed electric cable.	For laying indoor,tunnel,channel and underground.able to bear external mechanincal force,but unable to bear large pulling force
YJLV22
YJV32 42	Copper or aluminum,XLPE insulated steel tape armoured PVC sheathed electric cable.	For laying in shaft with large difference of level,able to bear external mechanical force, and moderate pulling force
YJLV32 42

DC resistance: conductor resistance of finished cable at 20ºC per kilometer is not more than the following values.

Nominal section area (mm2)	1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300 400 500 630 800
Copper core	12.1 7.41 4.61 3.08 1.83 1.15 0.727 0.524 0.387 0.268 0.193 0.153 0.124 0.0991 0.0754 0.0601 0.0470 0.0366 0.0283 0.0221
Aluminum core	18.1 12.1 7.41 4.61 3.08 1.91 1.20 0.868 0.641 0.443 0.320 0.253 0.206 0.164 0.125 0.100 0.778 0.0605 0.0469 0.0367

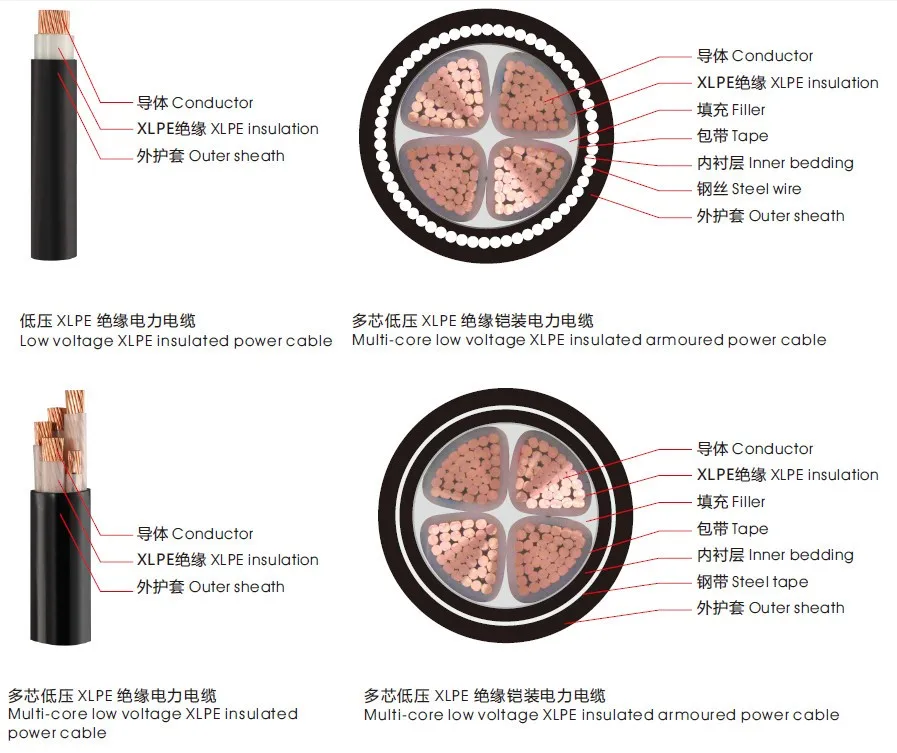

Construction of 0.6/1kV 4 Core Copper Conductor PVC/ XLPE insulated single core muti cores copper aluminum electrical cable wire

Technical parameter of 0.6/1kV 4 Core Copper Conductor PVC/ XLPE insulated single core muti cores copper aluminum electrical cable wire

Normal cross-sectional area of conductor	Overall diameter of conductor	Normal thickness of insulation	Normal thickness of sheath	Approx. overall diameter	Approx. weight kg/km
mm²	mm	mm	mm	mm	YJV	YJY	YJLV	YJLY
1.5	1.38	0.7	1.8	11	153	130	117	93
2.5	1.78	0.7	1.8	12	204	177	142	109
4	2.25	0.7	1.8	13	274	245	175	146
6	2.76	0.7	1.8	14	363	330	214	181
10	4.05	0.7	1.8	17	559	518	307	266
16	5.01	0.7	1.8	20	815	767	416	368
25	6.0	0.9	1.8	25	1208	1151	585	528
35	7.0	0.9	1.8	27	1612	1549	747	684
50	7.77	1.0	1.9	28	2057	1983	886	812
70	9.36	1.1	2.0	32	2883	2794	1193	1104
95	11.03	1.1	2.1	36	3914	3808	1567	1461
120	12.55	1.2	2.3	39	4902	4775	1941	1814
150	15.94	1.4	2.4	44	6033	5886	2380	2233
185	15.59	1.6	2.6	48	7526	7348	2955	2777
240	17.6	1.7	2.8	54	9781	9565	3778	3562
300	19.96	1.8	3.0	60	12184	11929	4646	4391

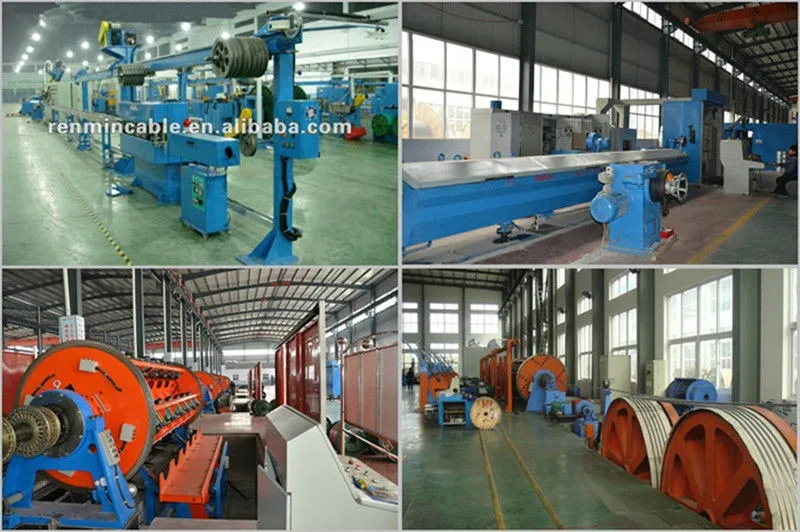

Work shop

Our Company

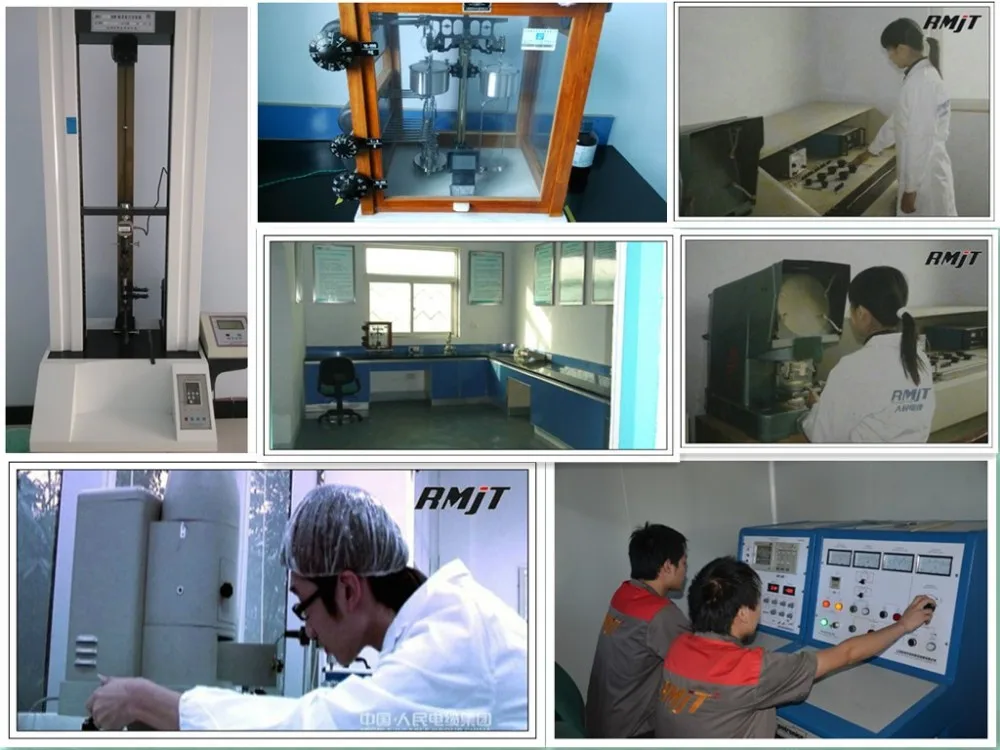

Testing machines

Our customers
