PVC Sheathed ac Concentric Power Cable Electrical Cable Prices

Characteristics of Cable
1.Max Long-time operating temperature of PVC insulated cable is 70°C, XLPE 90°C
2.Installing temperature of cable should not be less than 0°C
3.Max short-circuit temperature is: PVC not exceed 160°C,XLPE 250°C,Not more than5 Sec.
4.Permitting bending radius cable: Not less than 10 D times (D:external diameter of cable)
5.Perfect chemical stability, resistant against acids, alkali, grease and organic solvents, and flamer retardant.

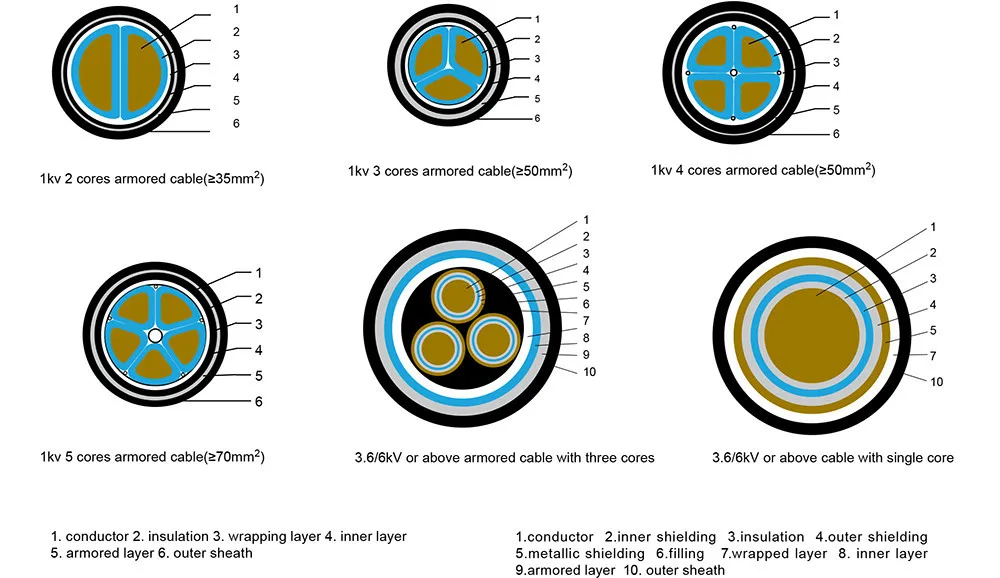

The construction of the power cable for different voltage grade

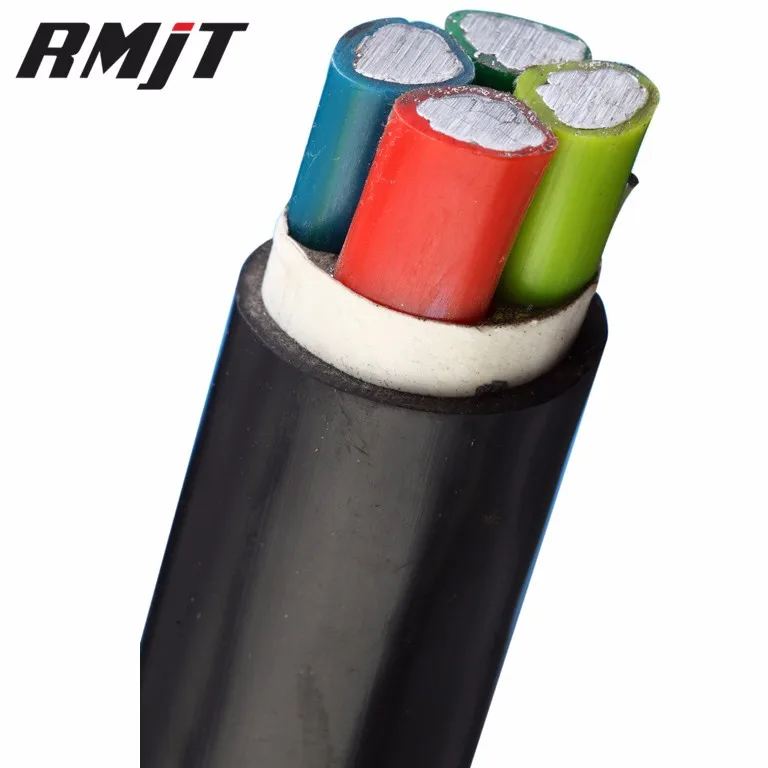

1.low voltage cable power cable

Low voltage (0.6/1Kv)
Single core or multi-core
Copper or aluminium conductor
PVC insulation
Steel tape armored or galvanized steel wire armored or unarmored
PVC outer sheath
Power cable

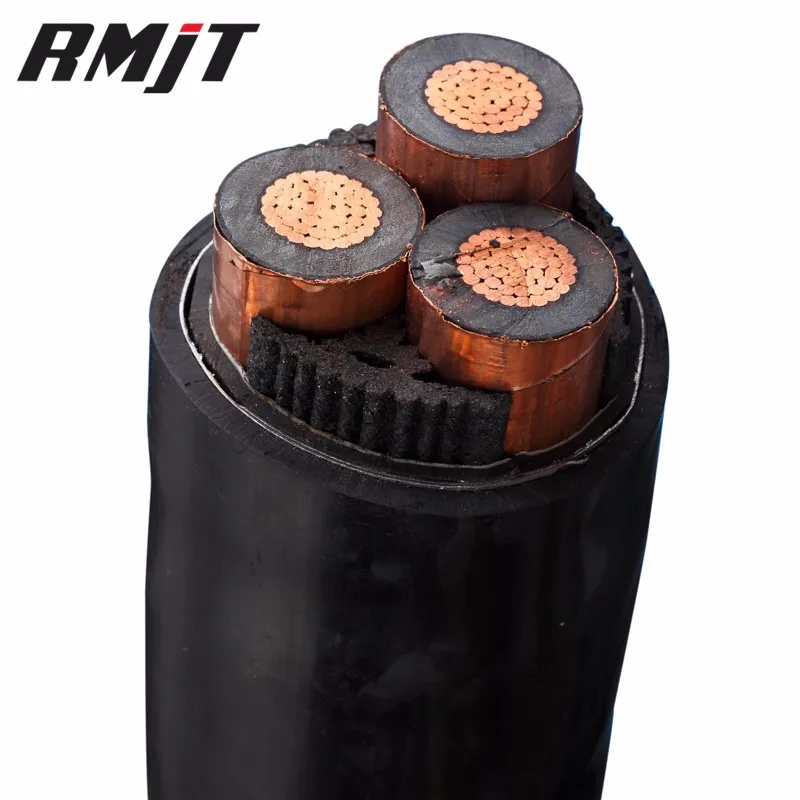

2.Medium voltage cable power cable
Voltage grade is up to 35kv
Cross-section area can be up to 1000 sqmm  (copper or aluminium conductor).
Conductor long-time  operating temperature is 90 degrees.
In short circuit, conductor  highest temperature should be not more than 250 degrees.
1kv-35kv
multi-cores
copper or aluminium conductor
XLPE insulation
copper tape or copper wire screen
Galvanized steel wire armored
PVC or PE sheath
Power cable
3.High voltage cable power cable
High voltage (35kv~220kv)
Copper or aluminium conductor
XLPE insulation
Metal sheath (lead or corrugated aluminium)
HDPE or PVC outer sheath power cable.
Laying conditions

For laying  under ground with large different altitude, be able to bear external machanical force and moderate pulling forced

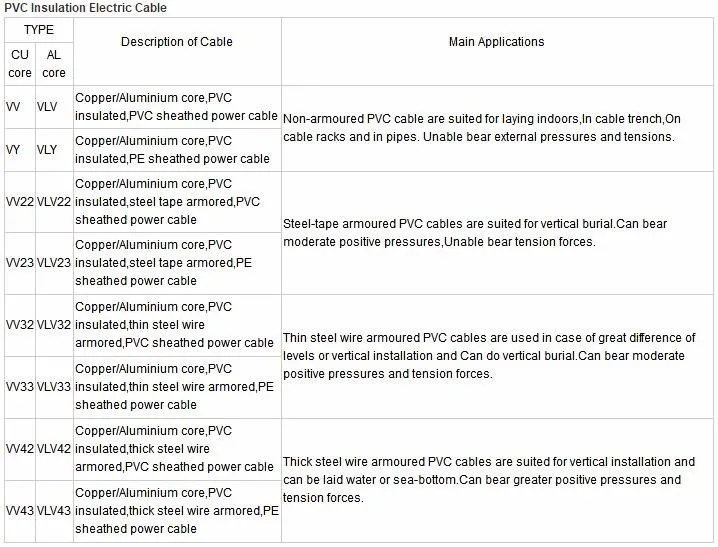

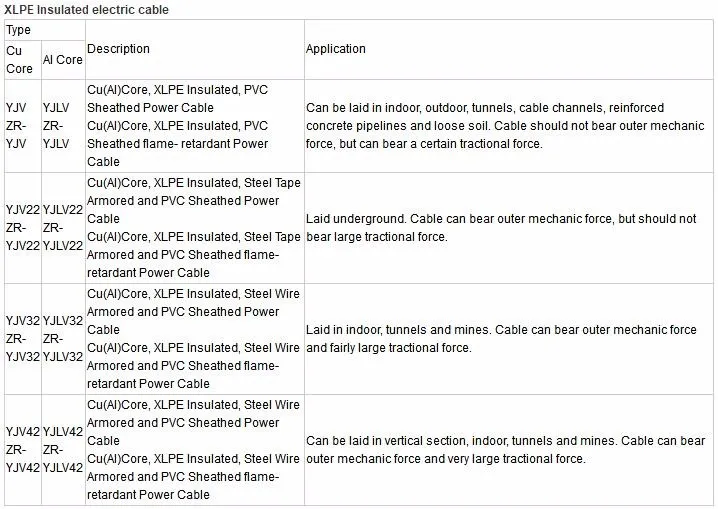

Type and Specification

Q1:When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we

will regard your inquiry priority.
Q2.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
Q3.How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days.

The samples will be sent to you via express and arrive in 3~5 days.
Q4.What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.

People's Cable Group Co., Ltd. Was founded in 2007, With good transport facilities which adjacent to the 310 national highway-Lian Huo highway. Our company had 2 factories(Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters. The real capital assets more than 10 million USD, with 630 staff members, 65 of which are professional and technical experts

Cu/Al conductor XLPE Insulated Power Cable with or without steel armored

50mm high quality electric transmission wire/ kabel bumi/power cable

China supplier MV 33KV aluminum xlpe underground cable

For more information, please kindly contact us freely!
Welcome your inquiry of power cables, please kindly inform us the section area, material, application, quantity you needed, so that we could quote accordingly.
