Aluminum Conductor 11kv Xlpe Copper Cable Specification 400mm2 Na2xy Power Cable

FOB Price

US$ 0.1 - 69 / Meter

100 Meters(Min. Order)

Port Qingdao Tianjing Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	RMJT		Place of Origin	Henan, China
Model Number	na2xy power cable

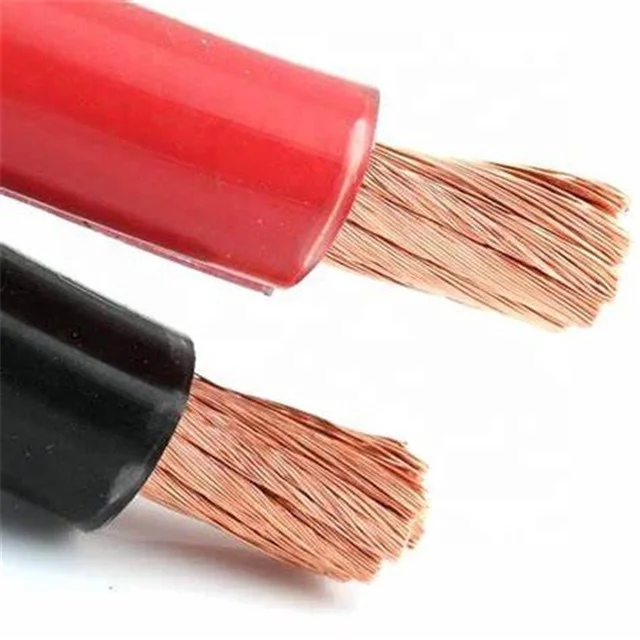

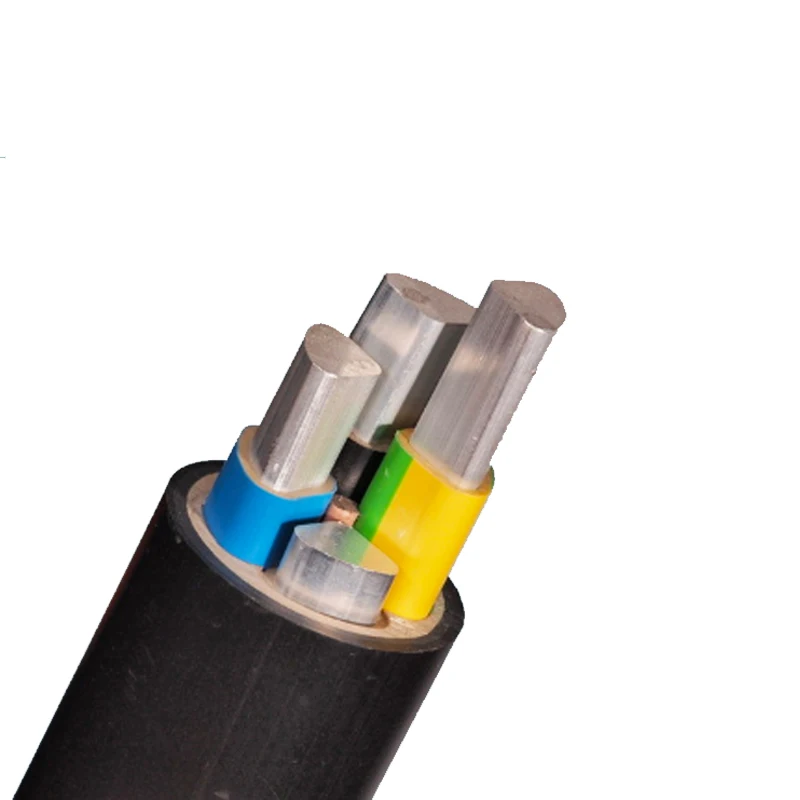

Product Description

high voltage xlpe insulated 1 200kw power cable

^{The description of Multicore power cable :}

^{1. Conductors: copper or aluminum.
2. Both armored and non-armored type power cables are available.
3. Voltage rating: 0.6/1kv 3.6/6kv 6/10kv 8.7/15kv 26/35kv 1200kv
4. PVC or XLPE Insulated.
5. Standards: IEC, BS, ASTM, NFC, AS, GOST etc. or other special characteristics as customers request.
6. Max Long-time operating temperature of PVC insulated cable is 70°C, XLPE 90°C
7. Installing temperature of cable should not be less than 0°C
8. Max short-circuit temperature is: PVC not exceed 160°C,XLPE 250°C,Not more than 5 Sec.
9. Permitting bending radius cable: Not less than 10 D times (D:external diameter of cable)}

Technical Performance of power cable

^{1. PVC insulated cable conductor maximum temperature rating of 70 ℃, when a short circuit occurs (the longest duration of no more than 5S), the conductor temperature does not exceed 160 ℃.}

^{2. The maximum rated temperature of XLPE insulated cable conductor is 90 ℃, short (the longest duration of no more than 5S) occurs, the conductor temperature does not exceed 250 ℃.}

^{3. when installing PVC insulated or jacketed cable ambient temperature not below 0 ℃.}

^{4. Perfect chemical stability, resistant against acids, alkali, grease and organic solvents, and flamer retardant.}

^{Minimum bending radius}
^Project	^{Single core cable}			^{Multi-core cable}
^Project		^Unarmored	^Armored	^Unarmored	^Armored
^{Mounting the cable minimum bend radius}	^20D	^15D	^15D	^12D
^{Minimum bending radius near the connection box and termination cable}	^15D	^12D	^12D	^10D

Power Cable Advantages

_{1. Occupies a small area. It is usually buried in the soil or laid indoors. In trenches and tunnels, the insulation distance between the lines is small, no towers are used, it occupies less land, and basically does not occupy space on the ground.}

_{2. High reliability. Affected by climatic conditions and surrounding environment, transmission performance is stable and reliability is high.}

_{3. It has more favorable conditions for the development of ultra-high voltage and large capacity, such as low temperature and super-conducting cables.}

_{4. Large distributed capacitance.}

_{5. Low maintenance workload.}

_{6. The possibility of electric shock is small.}

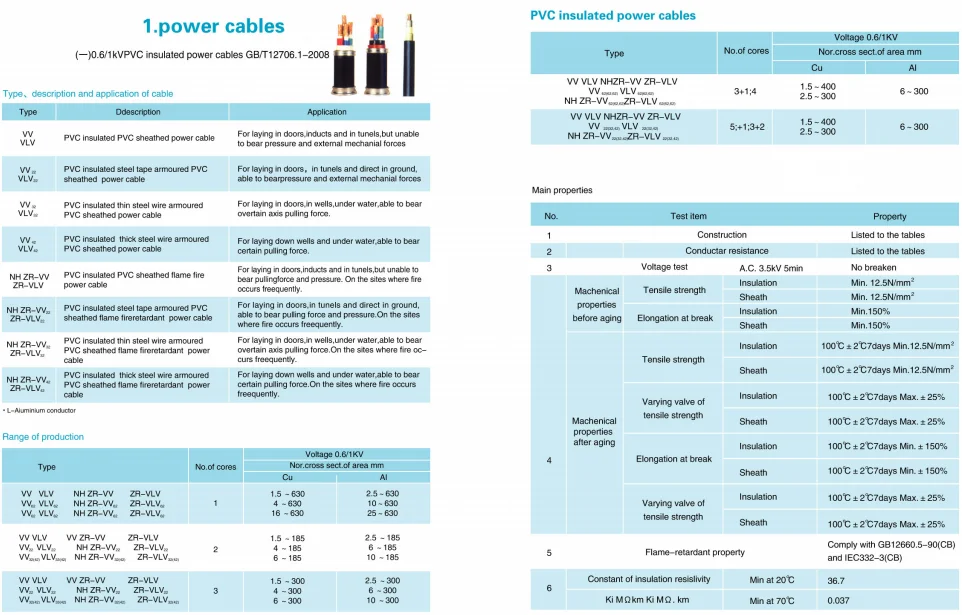

Model Specifications

_{Some power cable models and usage scenarios}

^Model			Application
^Copper	^Aluminum		Application
^VV	^VLV	^{Lay indoors, pipes, tunnels}
^VY	^VLY
^VV22	^VLV22
^VV23	^VLY23	^{Lay underneath, able to withstand external mechanical forces}
^YJV	^YJLV	^{Laying aerial, indoor, cable trench, tunnel, underground}
^YJY	^YJLY	^{Laying indoor, cable trench, tunnel, underground}
^YJV22	^YJLV22	^{Fixedly laid in the place with external pressure}
^YJV23	^YJLV23	^{Fixedly laid in places where external forces are often applied}
^YJV32	^YJLV32	^{Fixed installation in places that can withstand tensile forces}
^YJV33	^YJLV33
^YJV42	^YJLV42	^{Fixedly laid underwater, in a shaft or in a place that can withstand tensile forces}
^YJV43	^YJLV43	^{Fixed installation in places that can withstand large tensile forces}
^ZR-VV	^ZR-VLV	^{Lay indoors, tunnels, pipes}
^ZR-VV22	^ZR-VLV22	^{Laid indoors, in tunnels, directly buried in the soil, able to withstand pressure and other external forces}
^ZR-VV32	^ZR-VLV32	^{Laid indoors, mines, can withstand considerable tension}
^ZR-VV42	^AR-VLV42	^{Laid indoors, mines, can withstand considerable axial tension}

_{SPEC (mm2)}	_{Conductor structure}			_Insulation	_{Approx overall}	_Approx
		_Phase	_Neutral	_{Thickness (mm)}	_{diameter (mm)}	_{weight (mm)}
		_{(compacted Al)}	_(alloy)
		_No./mm	_No./mm
		_No./mm	_No./mm
_116+116	_7/1.72	_7/1.72	_1.2	_12.5	_110.1
_125+125	_7/2.15	_7/2.15	_1.2	_14.9	_163.9
_135+135	_7/2.54	_7/2.54	_1.4	_17.5	₂₂₉
_150+150	_7/2.92	_7/2.92	_1.4	_20.1	₃₀₀
_170+170	_19/2.15	_19/2.15	_1.4	_23.6	_423.2
_195+195	_19/2.54	_19/2.54	_1.6	_27.6	_585.4
_216+116	_7/1.72	_7/1.72	_1.2	_14.2	_175.8
_225+125	_7/2.15	_7/2.15	_1.2	_16.7	_258.4
_235+135	_7/2.54	_7/2.54	_1.4	_19.7	_361.2
_250+150	_7/2.92	_7/2.92	_1.4	_22.5	_472.1
_270+170	_19/2.15	_19/2.15	_1.4	_26.1	_658.3
_295+195	_19/2.54	_19/2.54	_1.6	_30.5	_908.2
_316+116	_7/1.72	_7/1.72	_1.2	_16.3	_241.5
_325+125	_7/2.15	_7/2.15	_1.2	_19.1	_353.6
_335+135	_7/2.54	_7/2.54	_1.4	_22.5	_493.5
_350+150	_7/2.92	_7/2.92	_1.4	_25.7	_644.1
_370+170	_19/2.15	_19/2.15	_1.4	_29.7	_895.2
_395+195	_19/2.54	_19/2.54	_1.6	_34.6	_1233.5

_Notice

_{In addition, we also have NH-YJV, WDZ-YJV, WDZA-YJV, WDZA-YJV, WDZV-YJV, NH-YJV22, WDZ-YJV22, WDZA-YJV22, WDZZ-YJV22 and other models.If you need other models and sizes, please click to contact us！！！}

Product Usage

^{Laying of pipes and cables}

^{Tunnel cable laying}

^{Underwater cable laying}

_{Underground buried cable laying}

^{Overhead cable laying}

^{Rail transit cable laying}

^{Specification for installation, operation and laying of power cables}

_{1. direct burial cable, generally use armored cable, direct embedment depth of not less than 0.7m
2. The net distance for the installation of cables of 10kV and below should be ≥0.1M, the net distance for the installation of cables of 10kV and above should be ≥0.25m, and the net distance between cross-installation of cables should be ≥0.5m
3. When the cable is close to the thermal pipeline (including oil pipeline), the electrical clearance should be not less than 2m; when crossing, the electrical clearance should be not less than 0.5m;
4. When the cable is directly buried, there must be a good soil layer at the bottom of the cable trough without stones or other hard debris. Otherwise, a 100mm thick layer of soft soil or sand should be laid. After laying the cable, it should be covered with a 100mm thick layer of soft soil or sand, and then covered with a concrete protection board. The width of the cable on both sides of the diameter should exceed 50mm.
5. When the cable leads from the ground or cable trench to the ground, the part 2m above the ground shall be protected by a metal pipe or cover, and its root shall be 0.1M underground.
6. When installing a cable with an external shield, the semi-conductive shield must be removed from the terminals and the insulation must not be damaged during operation. The copper strip and steel strip at the end of the cable must be well grounded. The grounding lead-out wire should be a tin-plated textile copper wire. When connecting to the cable copper strip, chrome iron tin soldering should be used.
7. The crane must be loaded or unloaded with a crane or forklift. Do not carry or lay cables horizontally. The installation of large cables must use cable laying equipment.
8. The end of the cable should be sealed to prevent erosion by water and other corrosive materials.}

Packing & Delivery

Packing

Material:
Steel wooden drum (fumigation)
Cable length in each drum: 500m/1000m or as per actual cable length requirements.

Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!

Delivery:

Port: Tianjin, or other ports as per your requirements.

Sea freight: FOB/C&F/CIF quotation are all available.
*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency.

Related Products

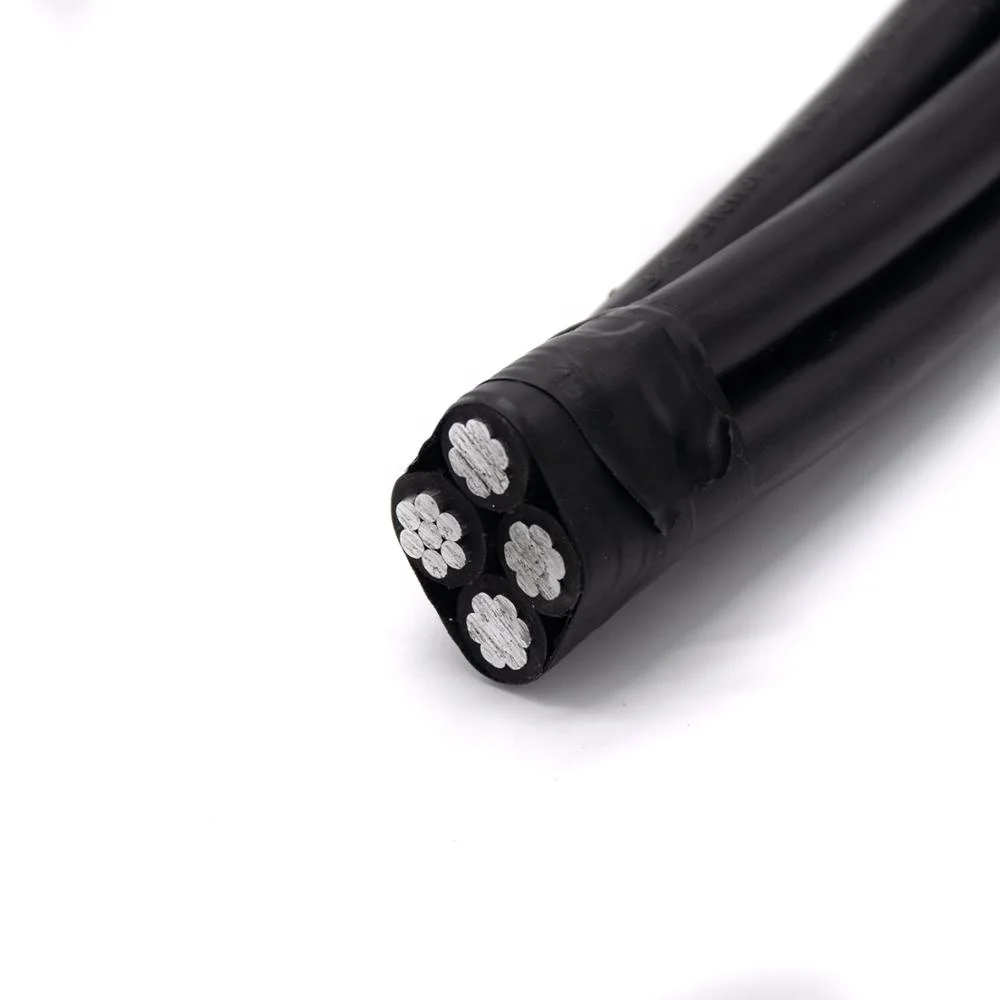

ABC CABLE

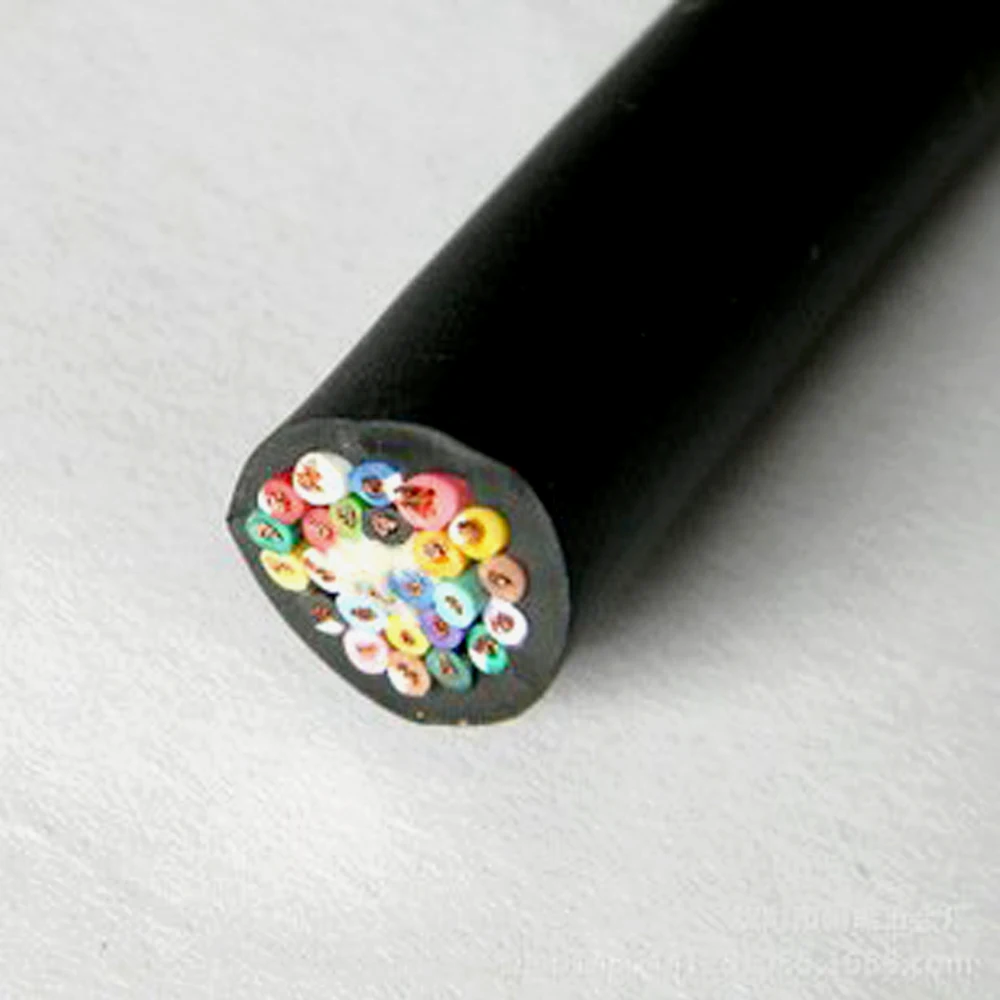

CONTROL CABLE
