0.6/1kV 3x50mm2 XLPE Insulated PVC/PE Sheath Low Voltage Power Cable
US$ 0.7 - 3
/ Meter
1 Meter(Min. Order)
- QingDao
- T/T Credit Card
You May Like
-
10mm Copper Power Cable
-
16mm 3 Core Cable 25sqmm Copper Wire Power Cable Aluminium YJLV
-
10mm 35mm 150mm 1kv Single Core Standard XLPE Underground 2 X6. mm Power Cable
-
Price 0.6/1kv Power 16mm 4 Core Armoured Cable Wire Electrical
-
Price 0.6/1kv 16mm 4 Core Armoured Electrical Power Cable
-
YJV / YJV22 /YJLV /YJLV22 /ZR YJV 0.6/1KV 3+2 Cores CU / AL / XLPE / PVC Power Cable
Product Details
| Brand Name | RMJT | Place of Origin | Henan, China | |
| Model Number | YJV22 YJLV22 YJV23 YJLV23 | Type | Low Voltage | |
| Application | Underground | Insulation Material | XLPE | |
| Jacket | PVC | Conductor Material | Aluminum |
Product Description
Product Description
Standards of 3x50mm2 xlpe insulated armoured low voltage power cable
The products are manufactured according to the standards of GB/T 12706.1 in power cables with extruded insulation and their accessories for rated voltages from 1Kv(Um=1.2kV) up to 35kV(Um=40.5kV) in part 1 cables for rated voltages from 1kV(Um=1.2kV) and 3kV(Um=3.6kV).
Properties and Functions of 3x50mm2 xlpe insulated armoured low voltage power cable
For 0.6/1kV cross-linked polyethylene (XLPE) insulated power cable,silane water cure method has been employed to transform the molecular structure of PE into three-dimensional network i.e. transforming thermoplastic PE into thermosetting XLPE. After crosslinking,the heat and mechanical properties of the cable have been greatly improved while its electrical properties are still maintained.
The conductor operating temperature of XLPE insulated power cable is 90℃.Comparing to the conductor of the same cross section, the long-term permissible current rating will be raised 25% more than than of PVC insulated. The cable has the advantages of simplicity in construction, lightness in weight and antichemical corrosion in properties. It can also be laid with no limitation of level difference along the route. The cable is used for fix-installed electiric power transmission and distribution systems, operating at rated voltage 1000V and below. Five cores cross-linked polyethylene(XLPE) insulated power cable is applicable on the circuit of three phases and five line, the earthing conductor and neutral conductor are divided, so it can ensure safety of the body.
Properties of Application
1.Max.permissible operating temperature of conductor is 90℃.
2.Conductor short-circuit temperature shall not exceed 250℃ Max. sustaining period shall not exceed 5 seconds.
3.Bending radius
Bending radius of single core cable:20(D+d)±5%
Bending radius of multi core cable:15(D+d)±5%
D-Actual outer diameter of cable sample(mm);
d-Actual diameter of the conductor(mm).
4.No restriction of level difference along the route for installation.
5.Installation temperature
It shall be heated when ambient temperature is below 0℃
The products are manufactured according to the standards of GB/T 12706.1 in power cables with extruded insulation and their accessories for rated voltages from 1Kv(Um=1.2kV) up to 35kV(Um=40.5kV) in part 1 cables for rated voltages from 1kV(Um=1.2kV) and 3kV(Um=3.6kV).
Properties and Functions of 3x50mm2 xlpe insulated armoured low voltage power cable
For 0.6/1kV cross-linked polyethylene (XLPE) insulated power cable,silane water cure method has been employed to transform the molecular structure of PE into three-dimensional network i.e. transforming thermoplastic PE into thermosetting XLPE. After crosslinking,the heat and mechanical properties of the cable have been greatly improved while its electrical properties are still maintained.
The conductor operating temperature of XLPE insulated power cable is 90℃.Comparing to the conductor of the same cross section, the long-term permissible current rating will be raised 25% more than than of PVC insulated. The cable has the advantages of simplicity in construction, lightness in weight and antichemical corrosion in properties. It can also be laid with no limitation of level difference along the route. The cable is used for fix-installed electiric power transmission and distribution systems, operating at rated voltage 1000V and below. Five cores cross-linked polyethylene(XLPE) insulated power cable is applicable on the circuit of three phases and five line, the earthing conductor and neutral conductor are divided, so it can ensure safety of the body.
Properties of Application
1.Max.permissible operating temperature of conductor is 90℃.
2.Conductor short-circuit temperature shall not exceed 250℃ Max. sustaining period shall not exceed 5 seconds.
3.Bending radius
Bending radius of single core cable:20(D+d)±5%
Bending radius of multi core cable:15(D+d)±5%
D-Actual outer diameter of cable sample(mm);
d-Actual diameter of the conductor(mm).
4.No restriction of level difference along the route for installation.
5.Installation temperature
It shall be heated when ambient temperature is below 0℃
Specification
Model | Name | Application |
YJV | Copper or aluminium conductor, XLPE insulated PVC sheathed power cable | For laying indoor,tunnel,channel and underground .unable to bear external mechanical force,but bear the traction force during laid |
YJLV | ||
YJV22 | Copper or aluminum conductor XLPE insulated steel tape armoured PVC sheathed power cable. | For laying indoor,tunnel,channel and underground.able to bear external mechanincal force,but unable to bear large pulling force |
YJLV22 | ||
YJV32 42 | Copper or aluminum,XLPE insulated steel tape armoured PVC sheathed power cable. | For laying in shaft with large difference of level,able to bear external mechanical force, and moderate pulling force |
YJLV32 42 |
Nominal Cross Section | Approx. Overall Diameter of Conductor | Nominal Thickness of XLPE Insulation | Thickness of PVC Outer Sheath | Approx.Overall Diameter | Approx. Weight Cable KG/KM | ||
mm2 | mm | mm | mm | mm | Cu | Al | |
1.5 | 1.6 | 0.7 | 1.7 | 10.7 | 130 | — | |
2.5 | 2 | 0.7 | 1.7 | 11.7 | 173 | — | |
4 | 2.6 | 0.7 | 1.7 | 12.9 | 227 | — | |
6 | 3.1 | 0.7 | 1.7 | 14.1 | 297 | — | |
10 | 3.8 | 0.7 | 1.7 | 15.7 | 413 | 236 | |
16 | 4.8 | 0.7 | 1.7 | 17.9 | 609 | 314 | |
25 | 6 | 0.9 | 1.7 | 21.5 | 903 | 451 | |
35 | 7.1 | 0.9 | 1.7 | 23.9 | 1187 | 550 | |
50 | 8.4 | 1 | 1.7 | 27.3 | 1563 | 712 | |
70 | 10 | 1.1 | 1.8 | 26.4 | 2097 | 849 | |
95 | 11.7 | 1.1 | 1.9 | 29.8 | 2834 | 1111 | |
120 | 13.3 | 1.2 | 2 | 33.2 | 3560 | 1377 | |
150 | 14.5 | 1.4 | 2.2 | 37.9 | 4406 | 1693 | |
185 | 16.4 | 1.6 | 2.3 | 42.9 | 5491 | 2109 | |
240 | 18.7 | 1.7 | 2.4 | 48 | 7144 | 2707 | |
300 | 20.4 | 1.8 | 2.6 | 52.5 | 8903 | 3337 | |

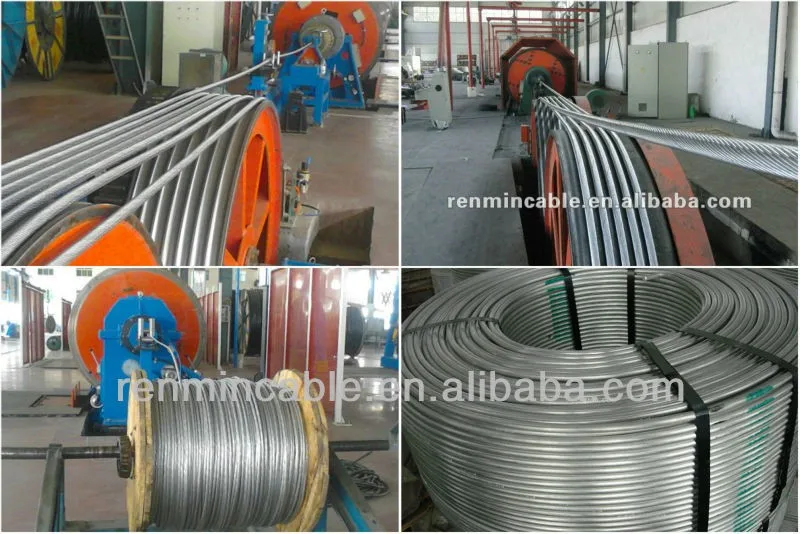

Work shop
