Single-core XLPE Insulated Armoured Medium Voltage 10kV Power Cable

FOB Price

US$ 1 - 50 / Meter

200 Meters(Min. Order)

Port QingDao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	RMJT	Place of Origin	Henan, China
Model Number	YJV22 YJV32 YJLV22 YJLV32	Type	Medium Voltage
Application	Underground	Insulation Material	XLPE

Product Description

1. Company profile:

More than 30 years history.
Export more than 60 countries in the world.
More than 1000 employees.
Produce kinds of electrical wire and kinds of power cable up to 35KV.
Nominated supplier of State Grid Corporation of China.
More than 70 patents which include 10 National Invention Patent.
CE, ISO9001 & ISO 14001,CCC Certificate company.

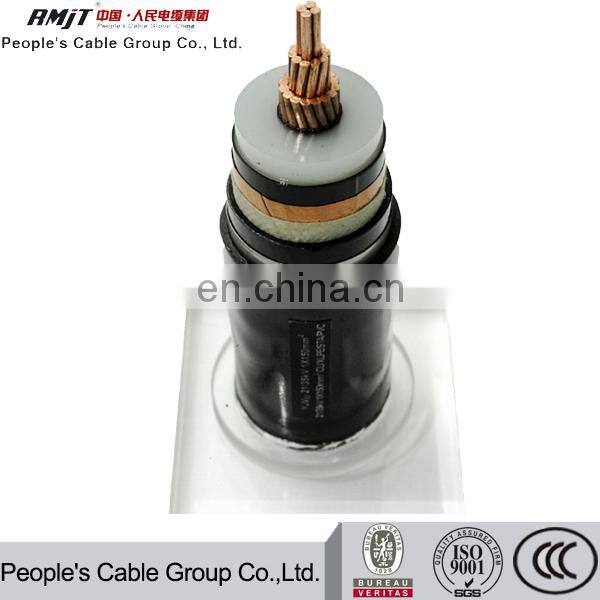

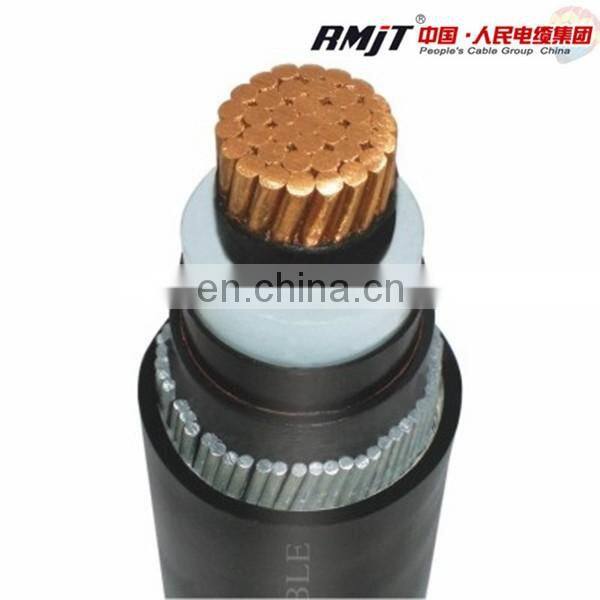

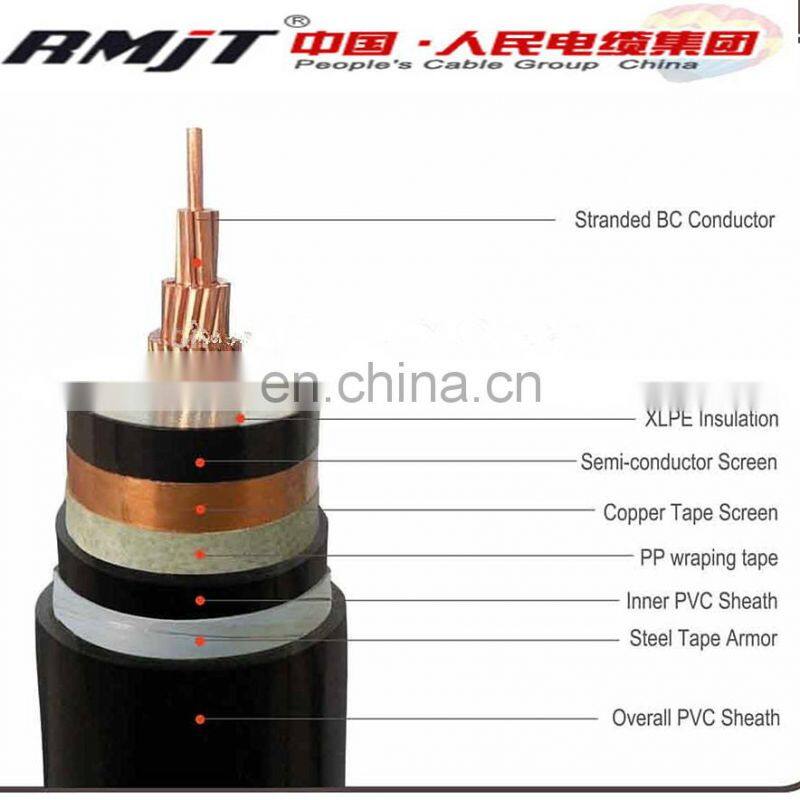

2. IEC standard single-core XLPE insulated copper conductor armoured medium voltage power cable

XLPE insulated power cables for rated voltages up to 6 /6 kV (6/10kV)

Introduction
Single-core XLPE insulated copper conductor armoured medium voltage power cable for rated voltages up to 6/6 kV (6/10kV) are fit for AC50Hz distribution lines for the same rated voltages. The mechanical and electrical properties of these cables are accordantant with GB/T 12706-2008 Power cables extruded ed ed d'Ordon and its accessories Of rated voltages 1 kV

Instruction of single-core XLPE insulated copper conductor armoured medium voltage power cable application.
1. Rated voltages : 6 / 6kv ( 6 /10kv)
2. The ambient temperature for cable installation: ≥ 0°C
3. Maximum conductor temperature in normal operation : ≤ 90 °C
4. Max operating temperature of conductor. when cable short-circuited
(5s maximun duration) : 250 °C
5. Permissible bending radius:
Single cable : [20(D+d)±5%] , mm
Actual overall diameter , mm
Actual diameter of conductor , mm

Specification of underground medium voltage Power Cable

Type	Core unmber	Rating(kV)
		6/6.6/10
		Normal cross sectional area of conductor
YJV YJ LV YJY YJLY YJV62 YJLV62 YJV62 YJLV62 YJV62 YJ LV62 YJV62 YJLV62	1	25~630
YJV YJLV YJY YJLY YJV22 YJLV22 YJV23 YJLV23 YJV32 YJLV32 YJV33 YJLV33 YJV42 YJLV42 YJV43 YJLV43	3	25~400

6/10kV single-core XLPE insulated copper conductor armoured medium voltage power cable
Normal cross-section area of conductor	Overall diameter of conductor	Normal thickness of insulation	Thickness of inner sheath	Diameter of steel wire	Normal thickness of outer sheath	Approx. overall diameter	Approx. weight kg/km
mm²	mm	mm	mm	mm	mm	mm	YJV32	YJY33
25	6.0	3.4	1.2	1.6	1.8	27	1456	1357
35	7.0	3.4	1.2	1.6	1.8	28	1610	1507
50	8.1	3.4	1.2	1.6	1.9	29	1804	1692
70	9.9	3.4	1.2	1.6	1.9	31	2105	1984
95	11.5	3.4	1.2	1.6	2.0	34	2697	2562
120	12.9	3.4	1.2	2.0	2.1	35	3034	2887
150	14.3	3.4	1.2	2.0	2.1	37	3384	3230
185	16.0	3.4	1.2	2.0	2.2	39	3842	3675
240	18.4	3.4	1.2	2.0	2.2	41	4564	4366
300	20.6	3.4	1.2	2.0	2.3	43	5272	5075
400	23.3	3.4	1.3	2.5	2.5	48	6731	6496
500	26.7	3.4	1.3	2.5	2.6	51	8037	7776
630	30.4	3.4	1.4	2.5	2.7	55	9686	9388
