High Quality and Low Price Wheeled Tractor

High Quality and Low Price Wheeled Tractor thumbnail-1

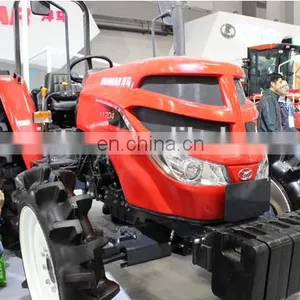

High Quality and Low Price Wheeled Tractor thumbnail-2
High Quality and Low Price Wheeled Tractor photo-1

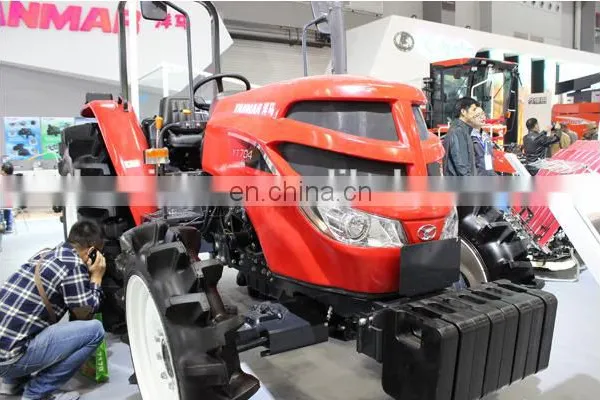

High Quality and Low Price Wheeled Tractor photo-2
US$ 8,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
-
Place of Origin:
Jiangsu, China
Model Number:
YT704
Contact Supplier Request Quote Chat Now
Yancheng Harriston Int\'l Co.,ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
CHINA MAIN PORTS
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name -
Place of Origin Jiangsu, China
Model Number YT704
Type Walking Tractor
After-sales Service Provided No overseas service provided
Certificate CE
Usage Farm Tractor
Drive Type Gear Drive
Condition New
By wheel 4WD

HIGH QUALITY WHEELED TRACTORS

Product Description



Model UNIT YT704
Name   YANMAR Wheeled tractors
Form   Flood and drought
Size Length mm 3890
Width mm 1865
Height mm 2600
Minimum ground clearance mm 450
Weight kg 2200+240 Pre-configured / standard tires,2275+240 Pre-configured / High flower
Engine model   4TNV98-NRY1
type   Direct water spray 4-stroke diesel engine
Displacement L 3.318
Power/Rotating speed kW(PS)/rpm 51.5(70)/2500
Fuel tank capacity L 70
Turning,brake department Steering gear form   Full hydraulic power steering
  Brake form   Mechanical wet multi-plate (plate)
Transmission department Clutch type   Mechanical dry monolithic
Gearbox and shift mode   Mechanical, manual
Differential type   Bevel gear with differential lock
The final way of transmission   Starlight slowdown
Walking part Rack type   Frame type
Wheeled Tire model(forward/behind)   9.5-24/16.9-30
Tire pressure (forward/behind) kPa 280/170
Wheelbase mm 2050
Track(forward/behind) mm 1420/1440
working equipment  Hydraulic Suspension System type   position
Suspension type   3 point link
Hydraulic output device   1 couplet
Safety valve full pressure Mpa 15±0.5
Power output shaft type   Rear, standalone
Power output shaft spline outside diameter mm 38
Power output shaft speed PTO/engine rpm 540/2409,720/2287(540E/1715)



High quality and low price wheeled tractorHigh quality and low price wheeled tractor



Packaging & shipping:

Packing: Close package to make shipment safer and suitable for import and export.

Deliver: 1. Ship by Express. (DHL.TNT.UPS.FEDEX)
             2.Ship by Air express to airport
             3.Ship by sea

Price item: FOB Shanghai

Payment Item: T/T in advance, Western Union

Company information:



    Yancheng Harriston Machinery Equipment Co. Ltd. Specializes in refrigeration units, agricultural machinery, construction machinery, engine and all kinds of accessories:

     1, all independent and non independent refrigeration unit sales, installation, training and customer service service  for 9.6meters van truck. Supplying front, top and chassis types to meet the needs of various types of vehicles;

     2, Kubota series of machine and accessories’ sales and service, including tractors, harvester, rice transplanter, seeding machine etc.;

     3, Yanmar series of machine and accessories’ sales and service, including tractors, harvester, rice transplanter, seeding machine etc.;

     4, Cummings full range of engine accessories ‘sales and service, with the East, north, Kang Kang Kang, Xikang and Meikang models;

     5, various types of farm implements’ sales and service, including rotary machine, strapping machine, mixing machine, grinder, disc plough, glass mower, seeder, harvester etc.;

     6, all kinds of domestic agricultural machinery and equipment ‘s customization and sales, can install nameplate as custom’s request. Including Harvesters, tractors, transplanter, weeding machine, plant protection machinery etc.;

     7, Russia MTZ, Romania UTB tractor’s full range of accessories sales;

     8, We are as the overseas agent of Japan's mitsuboshi agricultural belt . including SC52 SC59 SC54 SB58 SB59 toothed belt, reliable quality and reasonable price;



     9,Can customize all kinds of engine accessories, including the piston, piston rings ,cylinder liner, bearing, crankshaft, cylinder block and cylinder head etc.
